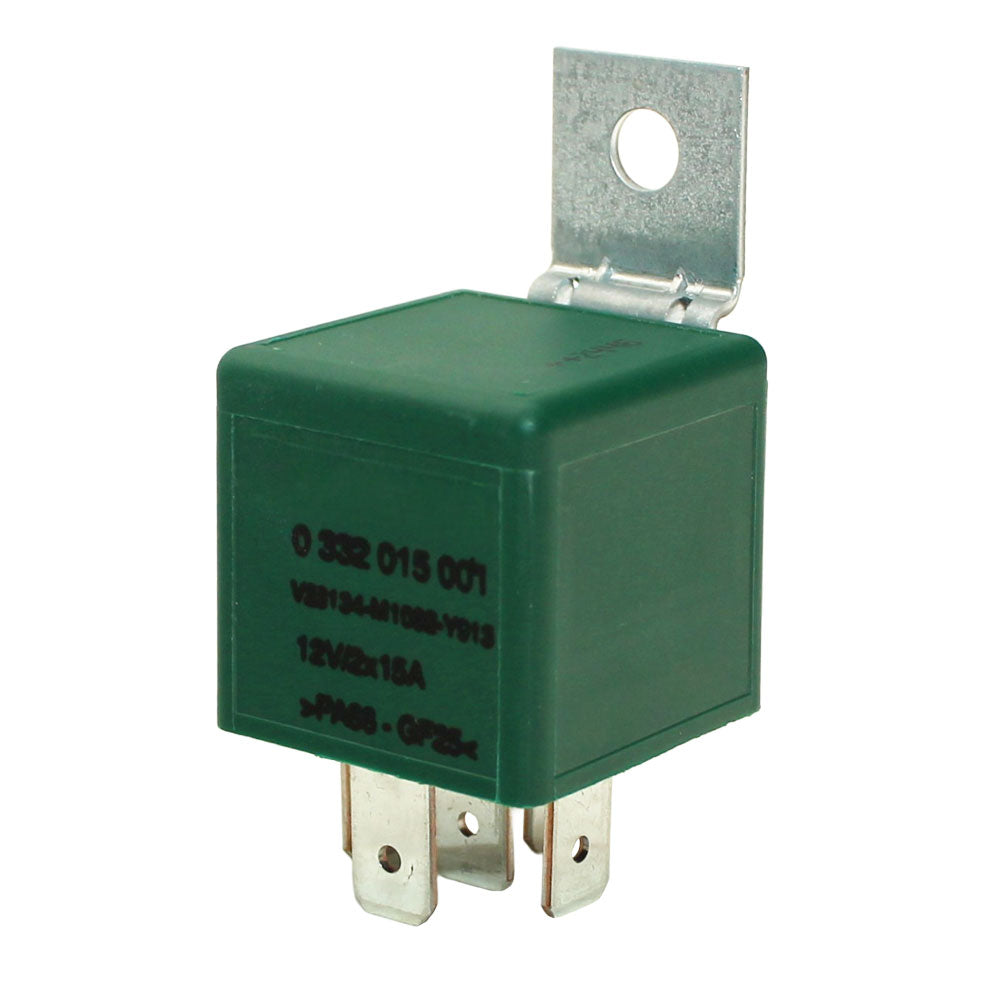

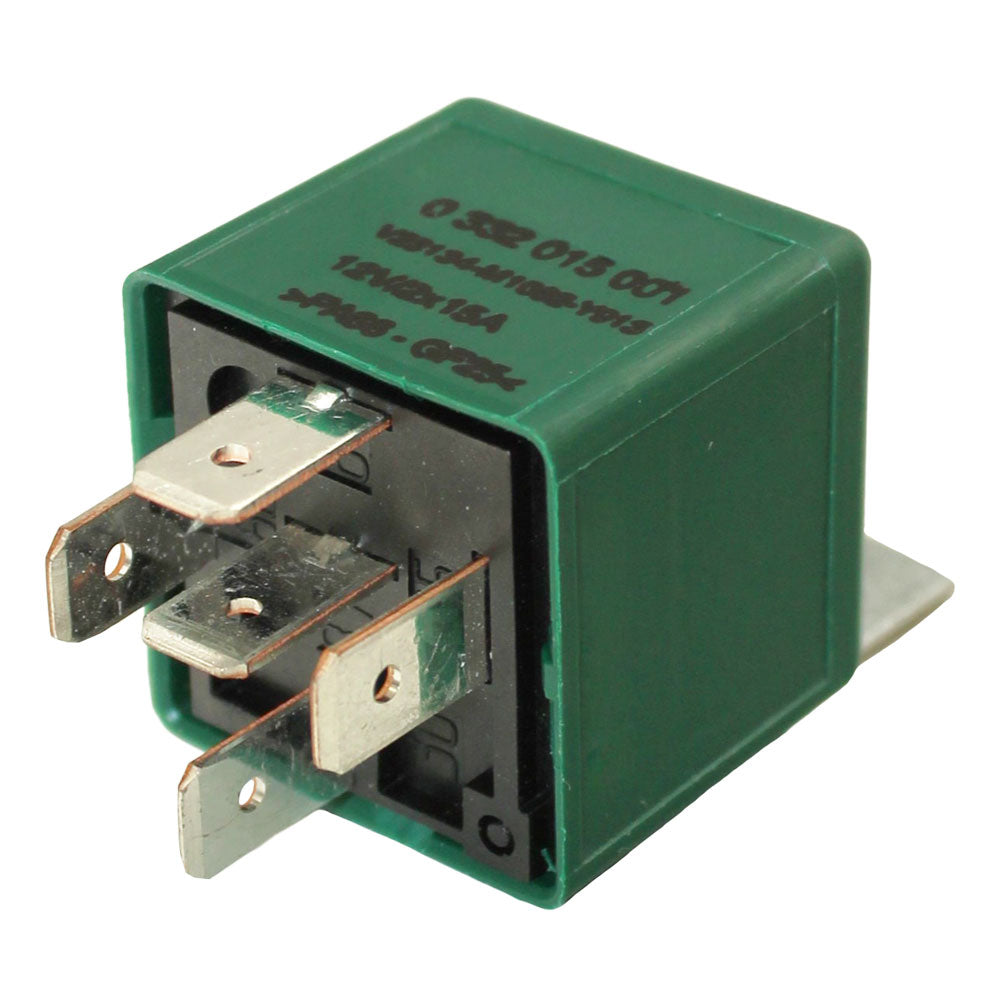

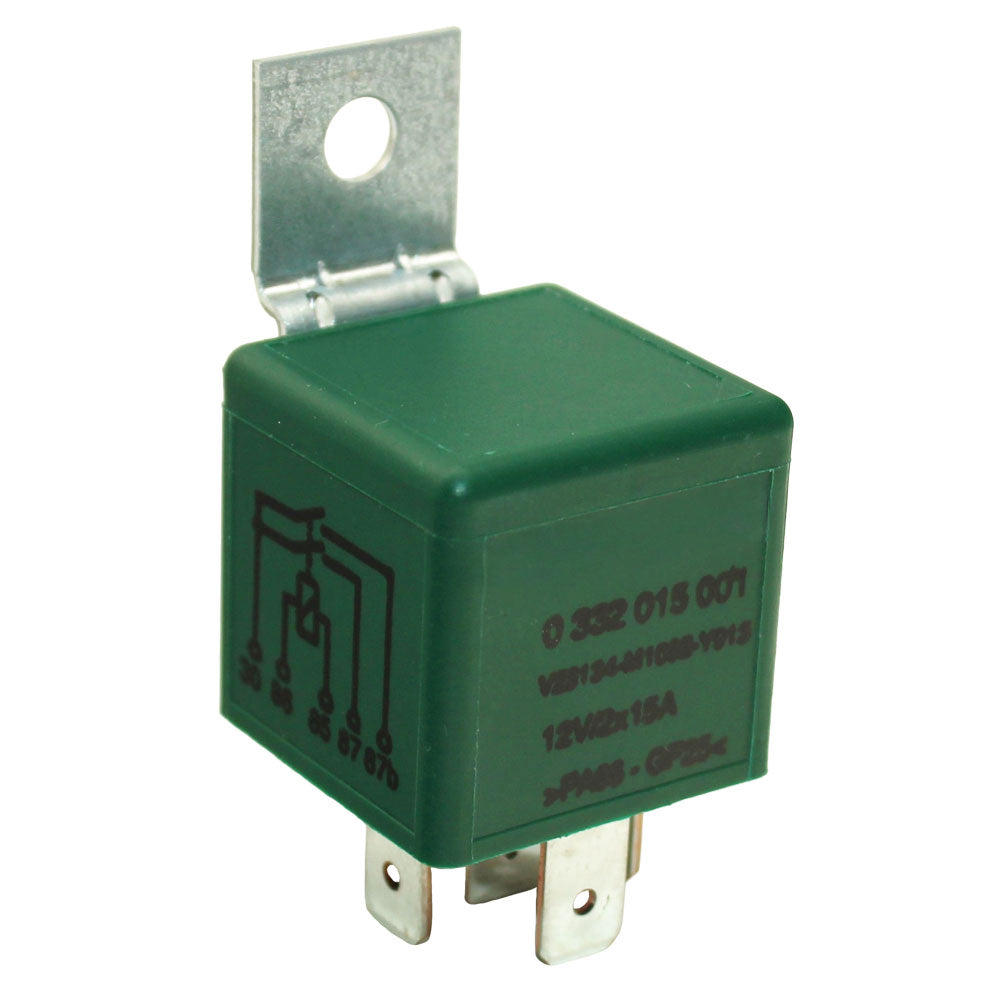

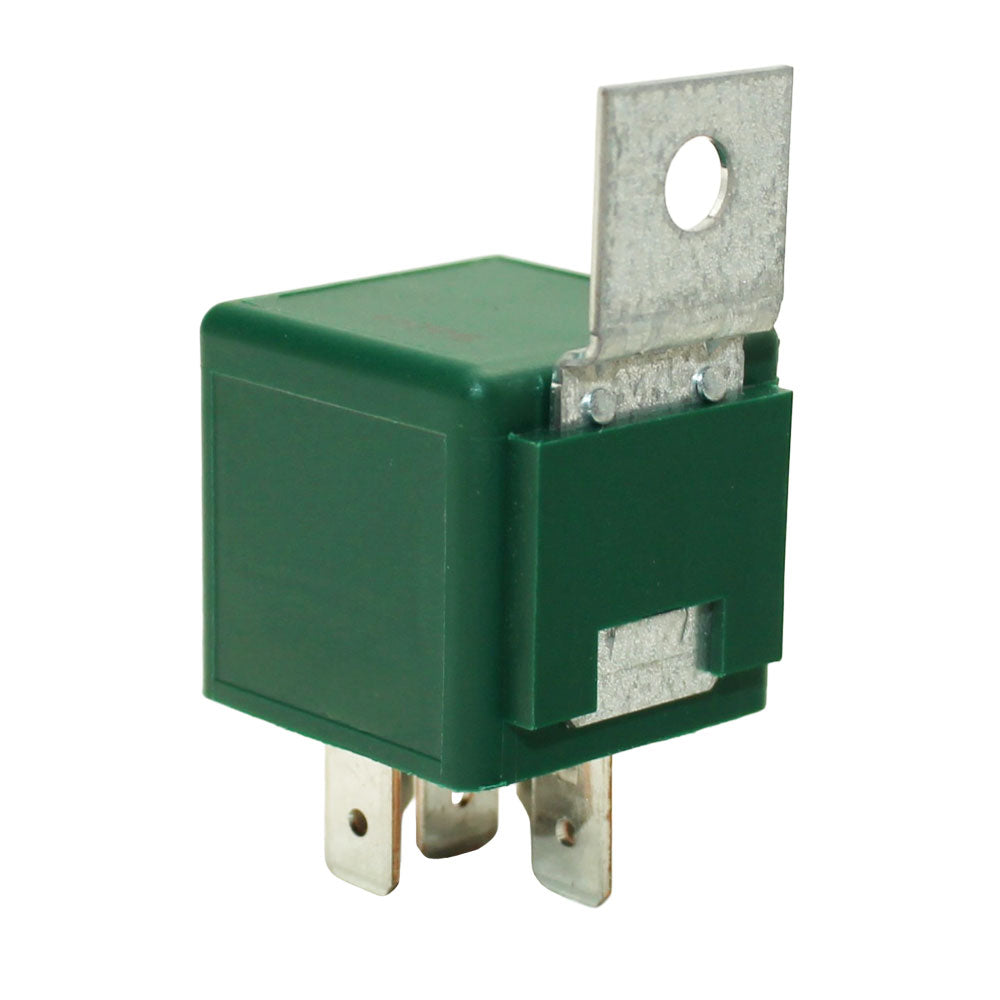

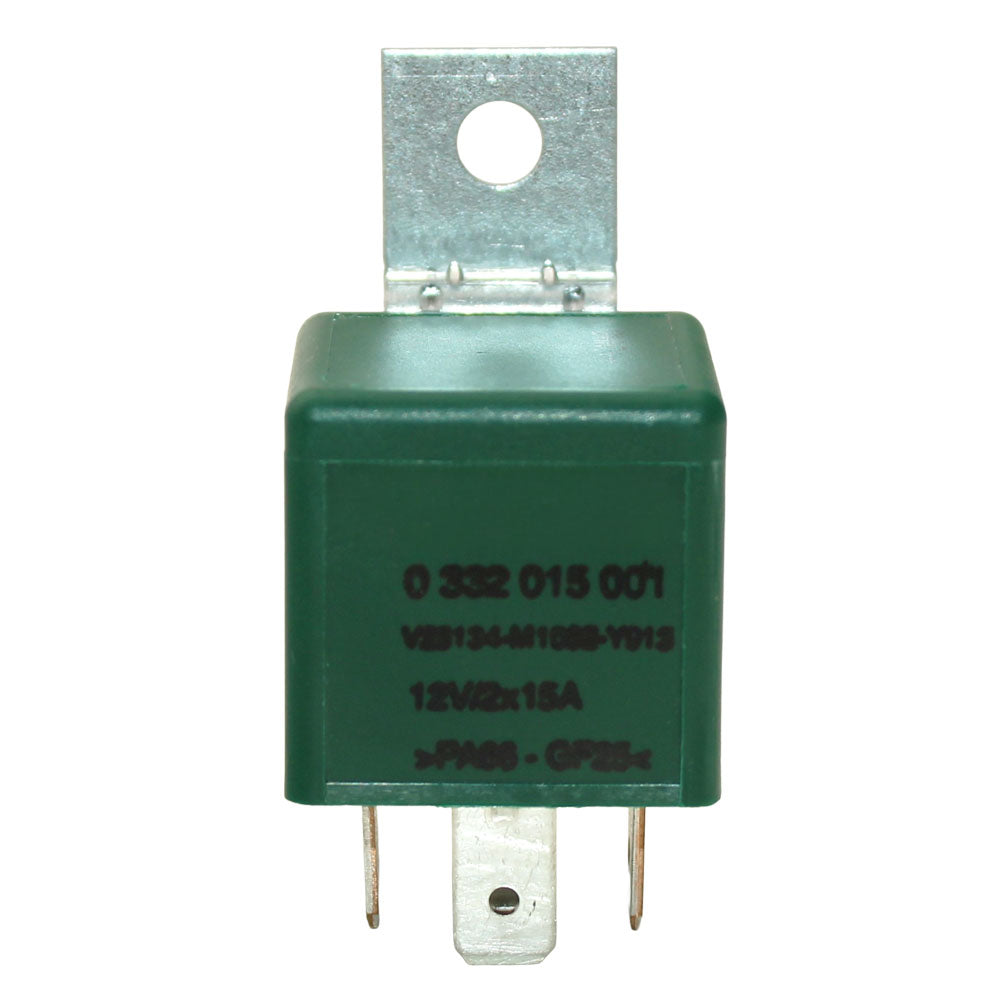

Mini Relay Fits Bosch Replaces 0332015001
Mini Relay Fits Bosch Replaces 0332015001
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Mini RelayTech Info:
-Volt: 12
-Amps: 15
-Terminal ID 2: 30
-Terminal 2 Size: 6.3mm x 0.8mm
-Terminal ID 3: 85
-Terminal 3 Size: 6.3mm x 0.8mm
-Terminal ID 4: 86
-Terminal 4 Size: 6.3mm x 0.8mm
-Terminal ID 5: 87
-Terminal 5 Size: 6.3mm x 0.8mm
-Terminal ID 6: 87b
-Terminal 6 Size: 6.3mm x 0.8mm
-Cap Composition: Metal
-Contact Config: Single Pole, Single Throw (SPST)
-Duty Cycle: Continuous
-No. of Terminals: 5
-Plated Terminals: FALSE
-Resistance Type: Coil Only
-Resistance: 63 ohms
-Includes: Double Make Contacts, Mounting BracketMade to Fit Bosch:
Other (Misc) Models: Cars & trucks, Tractors, Skid steers, Lawn & garden equipment, ATVs / UTVs Construction equipment
Replaces Part Number(s): 0332015001, 0332015001BLK
-Volt: 12
-Amps: 15
-Terminal ID 2: 30
-Terminal 2 Size: 6.3mm x 0.8mm
-Terminal ID 3: 85
-Terminal 3 Size: 6.3mm x 0.8mm
-Terminal ID 4: 86
-Terminal 4 Size: 6.3mm x 0.8mm
-Terminal ID 5: 87
-Terminal 5 Size: 6.3mm x 0.8mm
-Terminal ID 6: 87b
-Terminal 6 Size: 6.3mm x 0.8mm
-Cap Composition: Metal
-Contact Config: Single Pole, Single Throw (SPST)
-Duty Cycle: Continuous
-No. of Terminals: 5
-Plated Terminals: FALSE
-Resistance Type: Coil Only
-Resistance: 63 ohms
-Includes: Double Make Contacts, Mounting BracketMade to Fit Bosch:
Other (Misc) Models: Cars & trucks, Tractors, Skid steers, Lawn & garden equipment, ATVs / UTVs Construction equipment
Replaces Part Number(s): 0332015001, 0332015001BLK
Models This Part Fits:
Lawn & garden equipment, ATVs / UTVs Construction equipment, Cars & trucks, Skid steers, TractorsAdditional Information:
Volt: 12 Amps: 15 Terminal ID 2: 30 Terminal 2 Size: 6.3mm x 0.8mm Terminal ID 3: 85 Terminal 3 Size: 6.3mm x 0.8mm Terminal ID 4: 86 Terminal 4 Size: 6.3mm x 0.8mm Terminal ID 5: 87 Terminal 5 Size: 6.3mm x 0.8mm Terminal ID 6: 87b Terminal 6 Size: 6.3mm x 0.8mm Cap Composition: Metal Contact Config: Single Pole, Single Throw (SPST) Duty Cycle: Continuous No. of Terminals: 5 Plated Terminals: FALSE Resistance Type: Coil Only Resistance: 63 ohms Includes: Double Make Contacts, Mounting Bracket Mini RelayReference Numbers:
0332015001, 0332015001BLKMakes This Part Fits:
