Mower Deck Spindle & OEM HL Type Blade Kit for MTD Riding Mower 46" Deck
Mower Deck Spindle & OEM HL Type Blade Kit for MTD Riding Mower 46" Deck
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

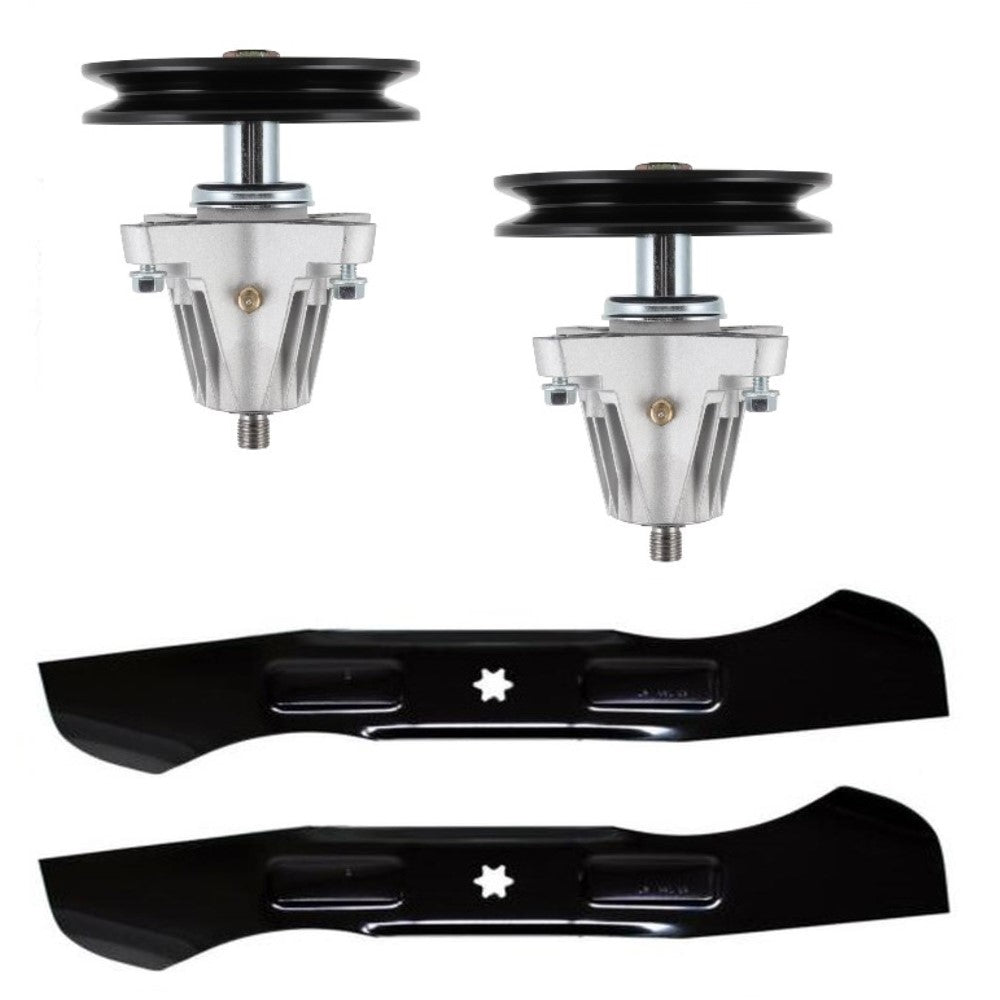

Set of 2 Mower Deck Spindles with High Lift OEM Type Mower Blades Fits MTD Riding Mower Models: 131AQ1ZT099, 132QA1ZT099, 13AQA1ZT099, 13A8A1ZT099, 13ATA1ZT099, 13BQA1ZT099, 13APA1ZT093, 13ALA1ZT091, 13APA1KT897, 13AZA1KT897
Kit includes 2 mower deck spindles with mounting bolts and 2 high lift OEM style mower blades.
These spindles already have the threads cut in the housing - no need to worry about thread cutting bolts and stripped spindle housings. This is the highest quality aftermarket spindle on the market.
Spindle Height: 6-¼", Pulley Outer Diameter: 6-¼", Spindle Nut Threads: 5/8"-18 UNF
Blade Length: 23-1/4", Blade Width: 3-1/4", Thickness: .164", Center Hole: 6 Point Star
Replaces Part Number: 618-06977, 618-06977A, 918-06977, 918-06977A, 742-04244A, 942-04244A, 942-04290A
Models This Part Fits:
LTX1045, LTX1046, LTX1046VTAdditional Information:
2 Spindle Assemblies Height: 6 1/4" Pulley Outer Diameter: 6 1/4" Thread: 5/8"-18 UNF Replaces: 918-06977A, 618-06977, 618-06977A, 918-06977, 285-700 2 High Lift Mower Blades Length: 23-1/4" Width: 3-1/4" Thickness: 0.164" Center Hole: 6 Point Star 2 Blades Required for 46" Deck Replaces: 942-04290, 742-04290, 942-04244A, 942-04244Reference Numbers:
490-110-C131, 742-04244, 742-04244A, 742-04290, 742-04290A, 754-04244, 942-04244, 942-04244A, 942-04290, 942-04290A, OCC-742-04244, 754-04219, 954-04219, OCC-754-04219Makes This Part Fits:
Shop Cub Cadet Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
Product Sub Group:
View full details
