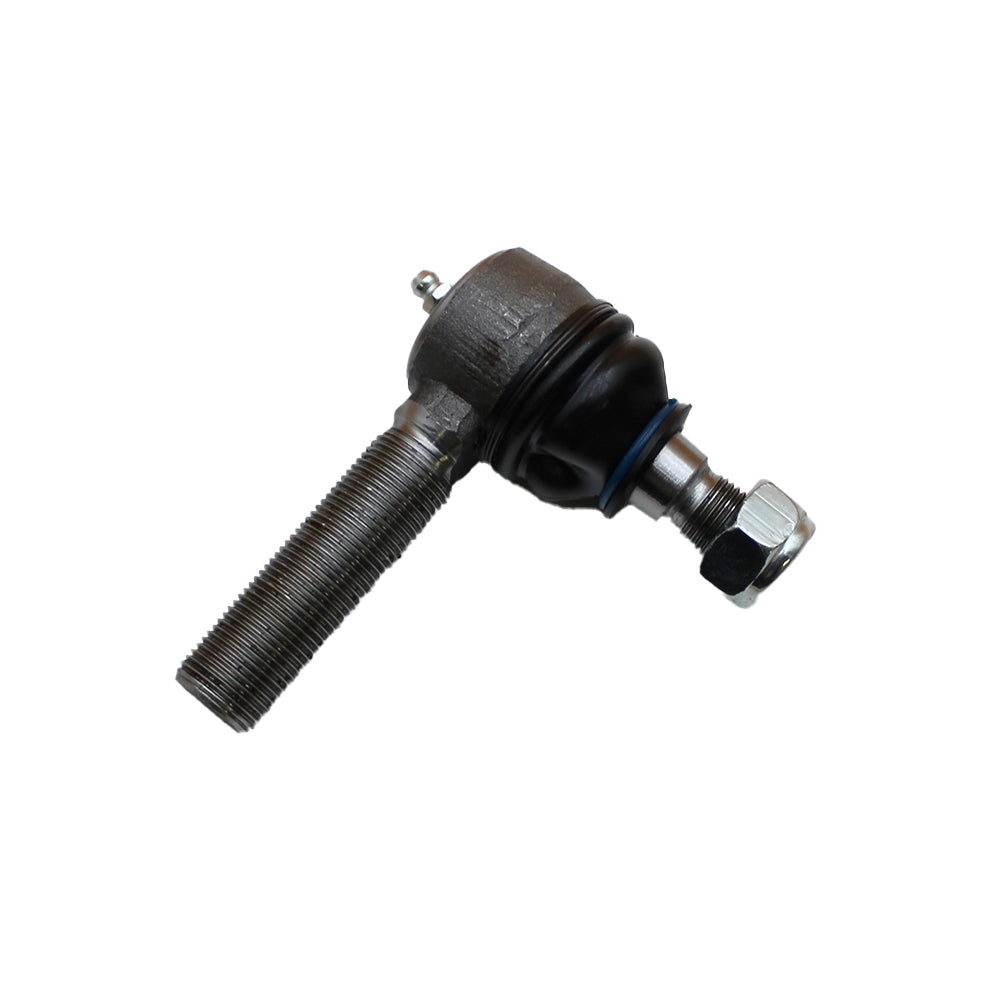

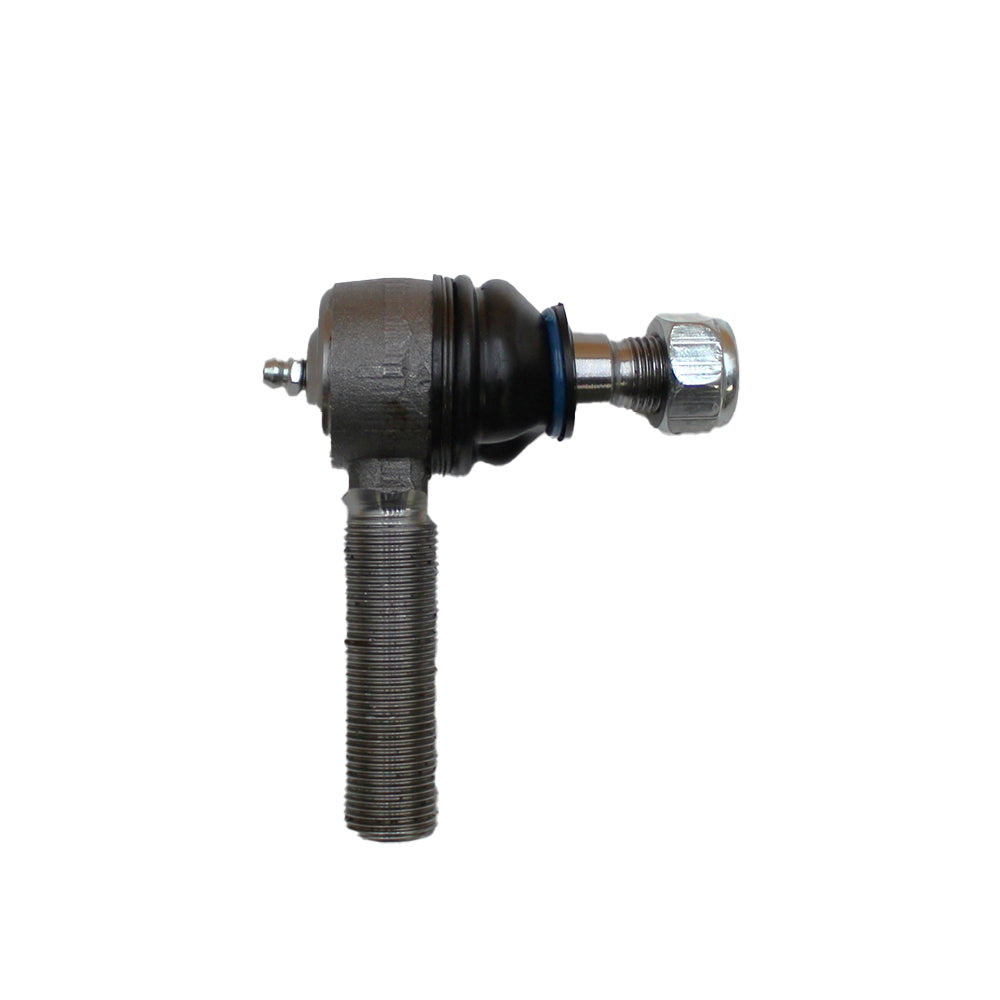

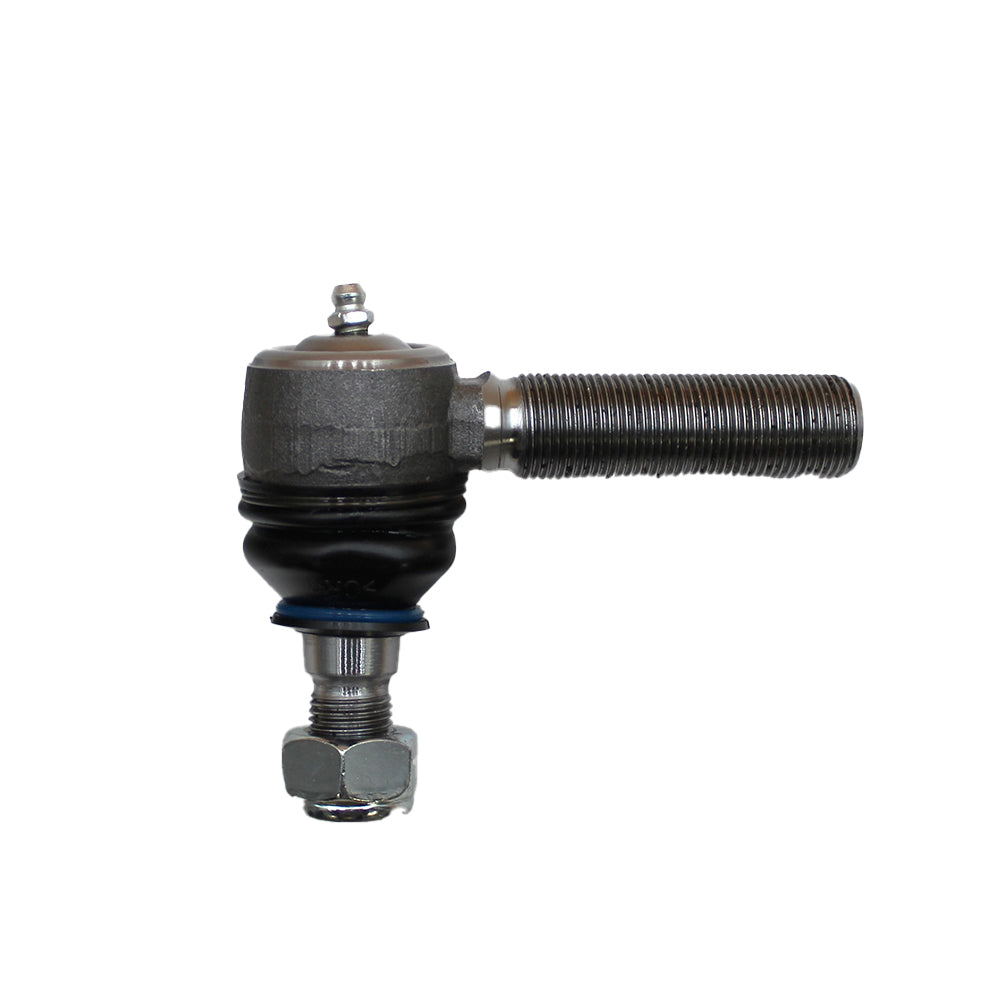

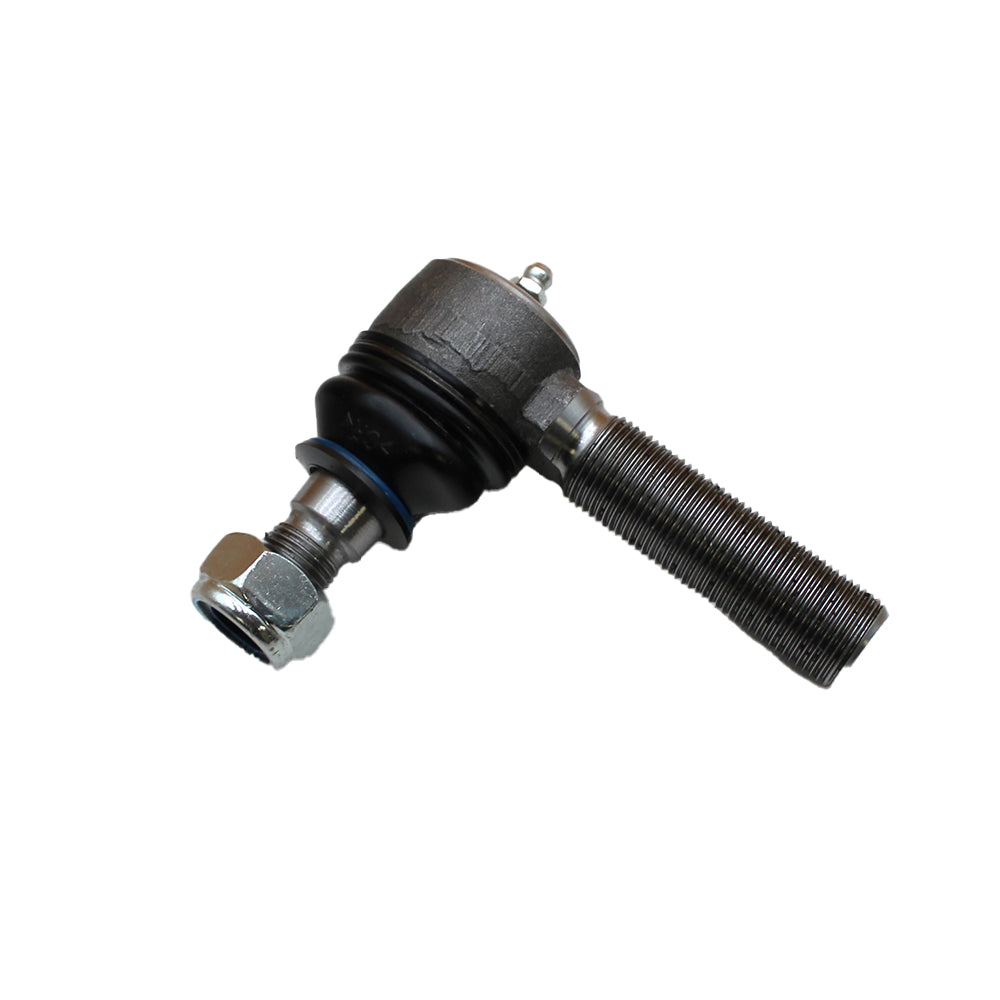

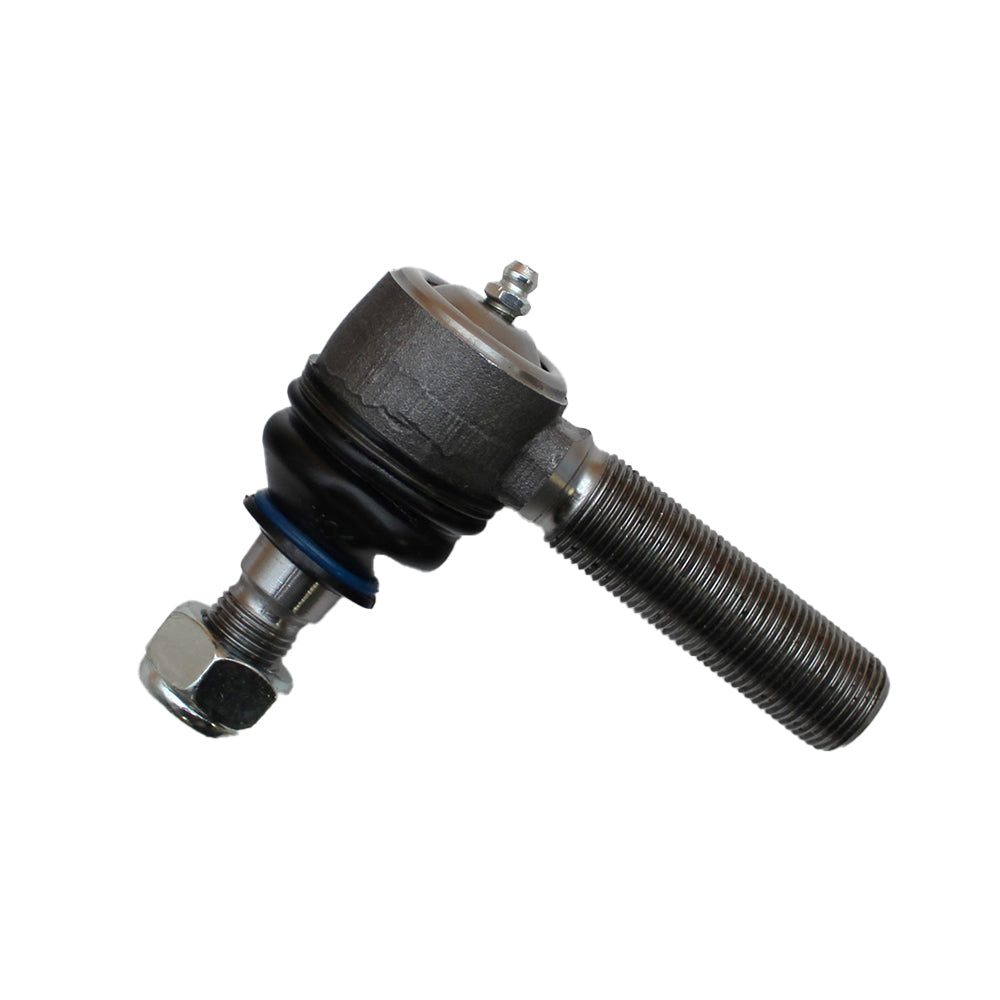

One New Aftermarket Replacement Left-Hand (LH) Tie Rod End for Allis-Chalmers Tractors

This aftermarket replacement left-hand (LH) male tie rod end fits the adjustable front axle steering system on Allis-Chalmers 170, 175, 6060, and 6070 tractors. Featuring right-hand (RH) threads, it connects within the front axle tie rod assembly to maintain proper front wheel toe-in and steering geometry. For Allis-Chalmers 170 and 175 tractors, this part is specifically for models equipped with a Roll Shift (adjustable wide) front axle.

Specifications

• Thread Hand: Right-Hand (RH) threads
• Outside Diameter: 0.813"
• Length: 3.75"
• Center to Post: 3-3/4"
• Application: Adjustable front axles
• Side: Left-Hand (LH)

Compatible Models

Allis-Chalmers (AC): 170 (w/ Roll Shift adjustable front axle), 175 (w/ Roll Shift adjustable front axle), 6060, 6070

Replaces Part Number(s):

70256151, 70256151V, 256151

Aftermarket Interchange Numbers

A160200, A162214 (Case / Case IH); 1034059M91, 1034059M92 (Massey Ferguson)

New aftermarket replacement part - not remanufactured, not used.
