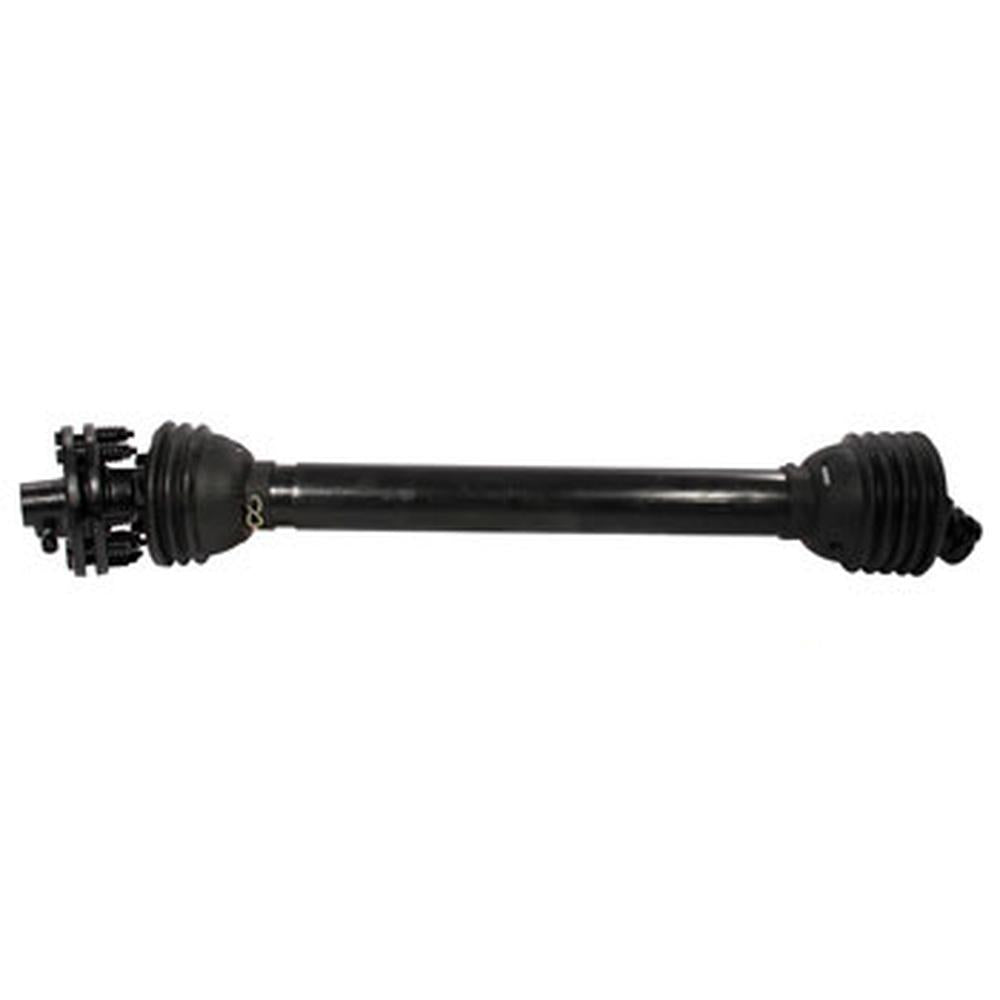

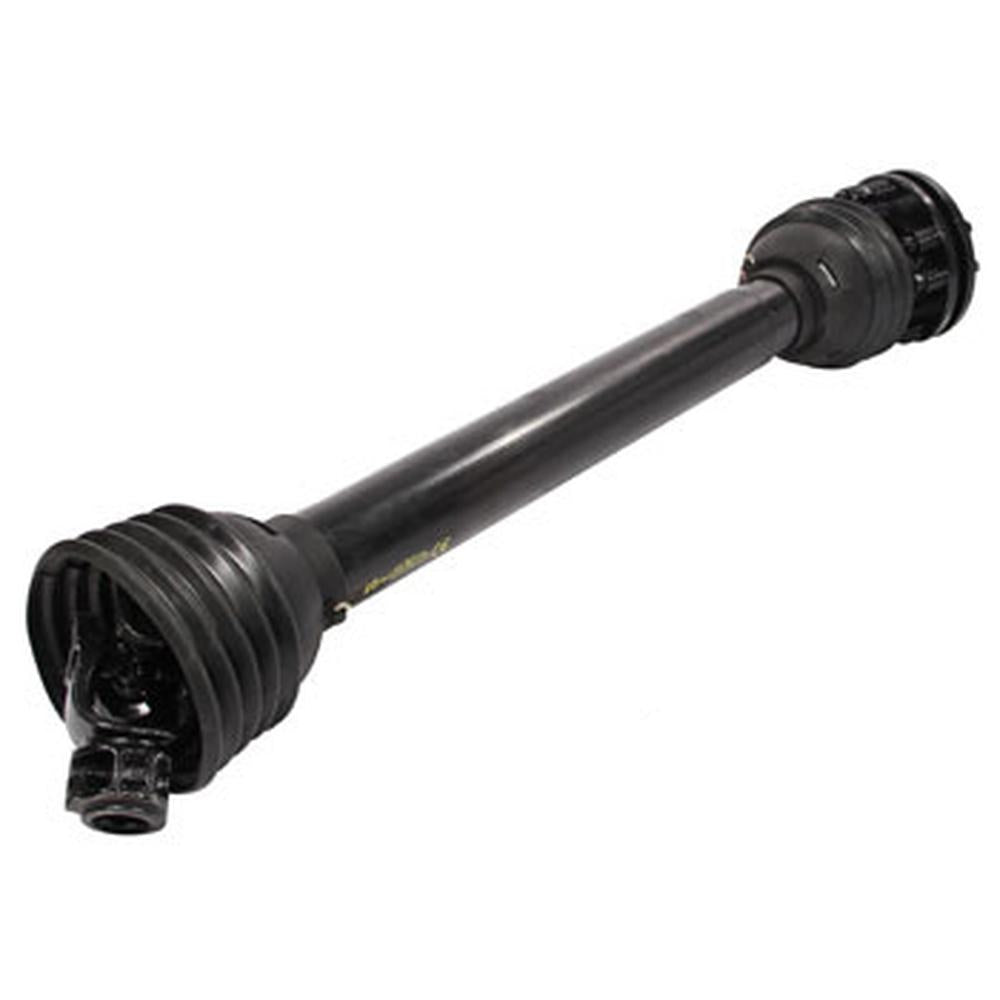

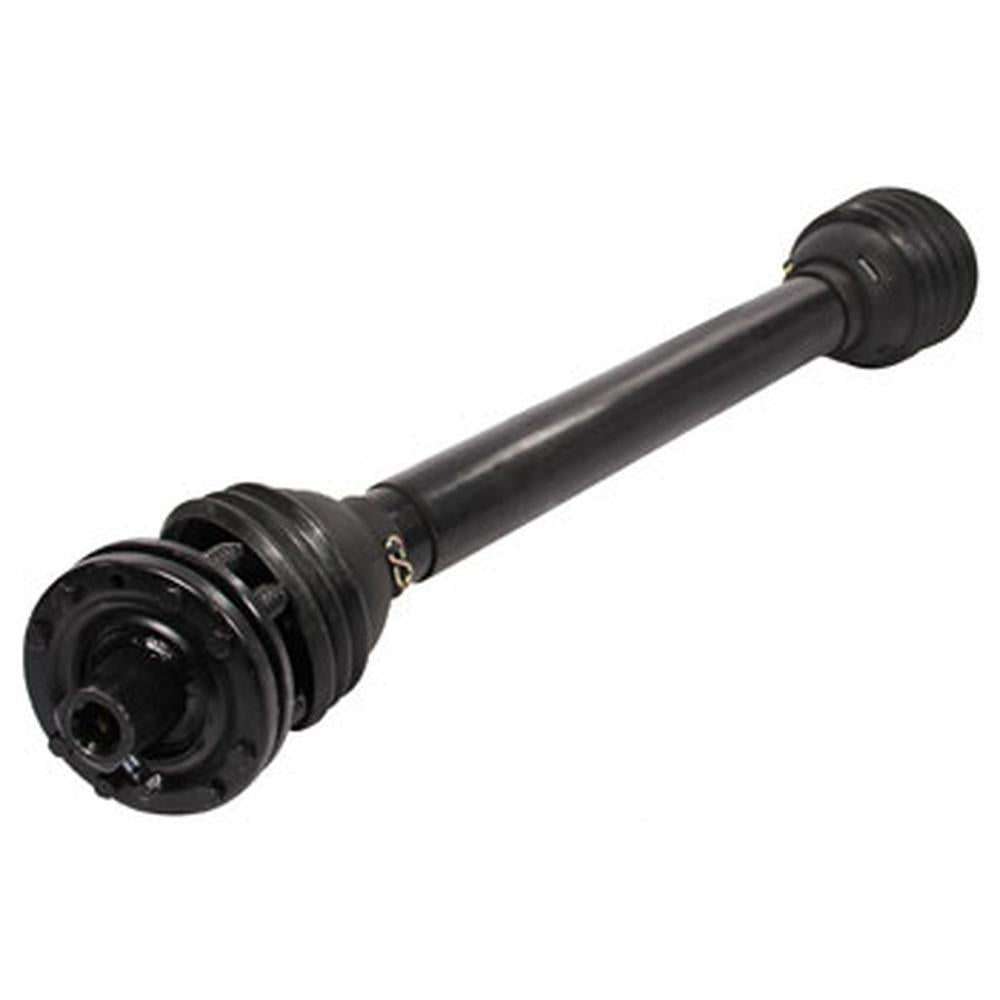

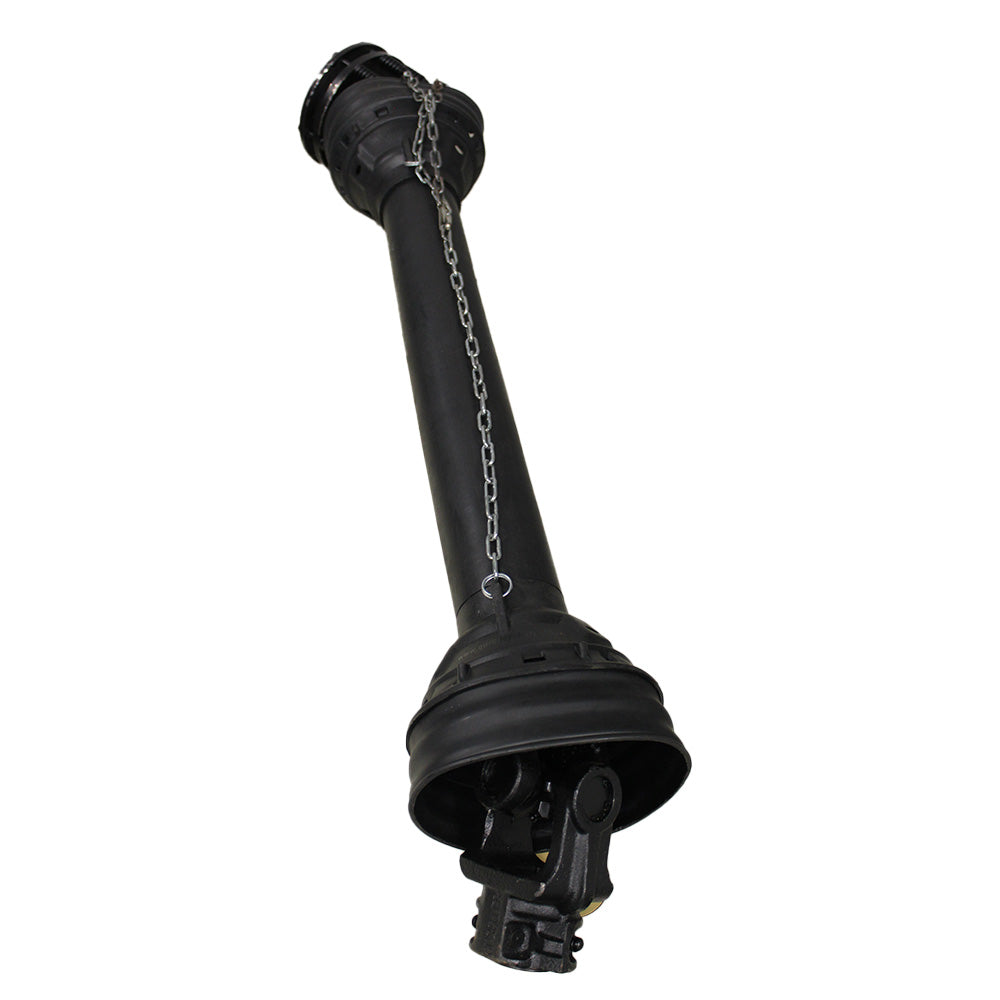

New pull/tow Driveline with Friction Clutch fits Bush Hog 50034236 CS53516

Name: New pull/tow Driveline with Friction Clutch fits Bush Hog 50034236 CS53516
Brand: AIC Replacement Parts
SKU: CS53516_2
Price: 219.0 USD
Availability: InStock

New pull/tow Driveline with Friction Clutch fits Bush Hog 50034236 CS53516

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Replacement Rotary Cutter PTO Assembly Driveline (w/ 7" Friction Clutch)

Fits Bush Hog Rotary Cutter / Chopper Models:
SQ840, 275, 285 (540 RPM), 286
Fits Kodiak Rotary Cutter / Chopper Model:
MD60

PLEASE NOTE: It maybe necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Tech Info:
size: 5

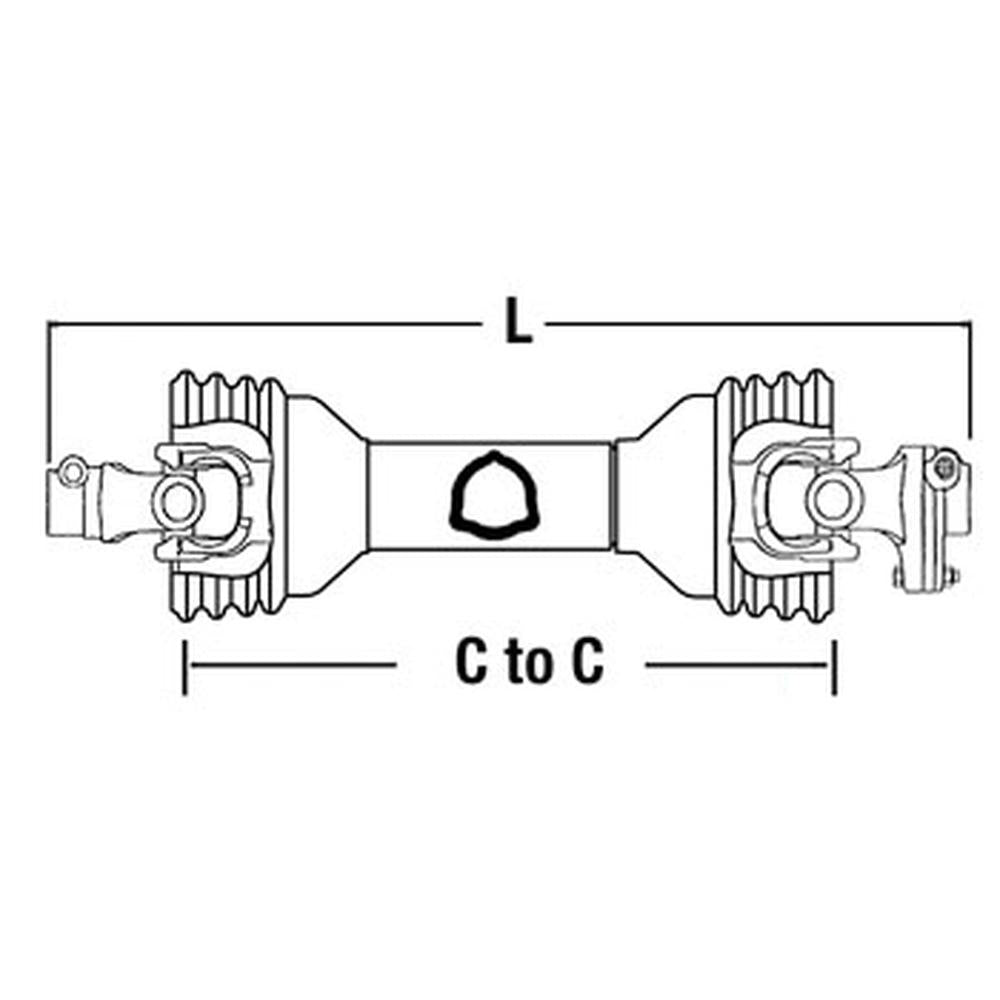

min c-to-c length: 885 mm/ 35"
max c-to-c length: 1310 mm/ 52"
total collapsed length: 1140 mm/ 45"
tractor: 1 3/8" -6
implement: 1 3/8" - 6 SPL. FF1 FR.CL.
clutch diameter: 7.09"
Type: Pull/Towed
Series: 100
Category: 4 (47HP

Replaces The Following:
Replaces Miscellaneous Models:CS5110E, CS5094E, 88609
Replaces Driveline Models: CS53514, A-111-60S, PM14106546, 14106546
Replaces Edcor Models: ECC5383
Replaces Bush Hog Models: A-50034235, A-50034236, 76742
Fits Case-IH Models: W14106546DS
Replaces A & I MEGA-CROSS Models: AM14106546, 971-14106546

Crossed From: AB5091090

Models This Part Fits:

25-34-50, L-72-60-SC-P6, LM378, L360, 285, L72 RD, 72, L366, 100 Series, CY72, L-72-60-SC, P60-HD, 613, 275, CY60, 616, 305, 600, 603, L-72-40-SC-P6, SE7, 286, SQ84, L60-HD, P60-40-P, L-72-40-SC, L-72-60-HD, RTH, P72HD, P72 RD, SQ7, SE6, SQ840, SQ72, L-72-80-HD, 717, 12, 306, 80

Additional Information:

47 PTO Rated HP Collapsed Length: 46" Driveline Connector Tractor End: 1-3/8" 6 Spline QD Driveline Connector Implement End: 1-3/8" 6 Spline Slip Clutch QD ID: 1-3/8" ID 2: 1-3/8" Number of Splines: 6 Rating: 5S RPM: 540 Spline Count: 26 Type: Tri Tube Driveline

Reference Numbers:

15113245, 266014106546, 343-152, 658-15113245, AB4381386, 14106546, 50034235, 50034236, 76742, 111-60S, 15113245, 266014106546, 343-152, 658-15113245, AB4381386, 14106546, W14106546DS, ECC5383, CS53516, CS5094E, CS5110E, CS53514, 111-60S, 15113245, 266014106546, 343-152, 658-15113245, AB4381386, 14106546, CS53516, CS5094E, CS5110E, CS53514, 111-60S, 15113245, 266014106546, 343-152, 658-15113245, AB4381386
