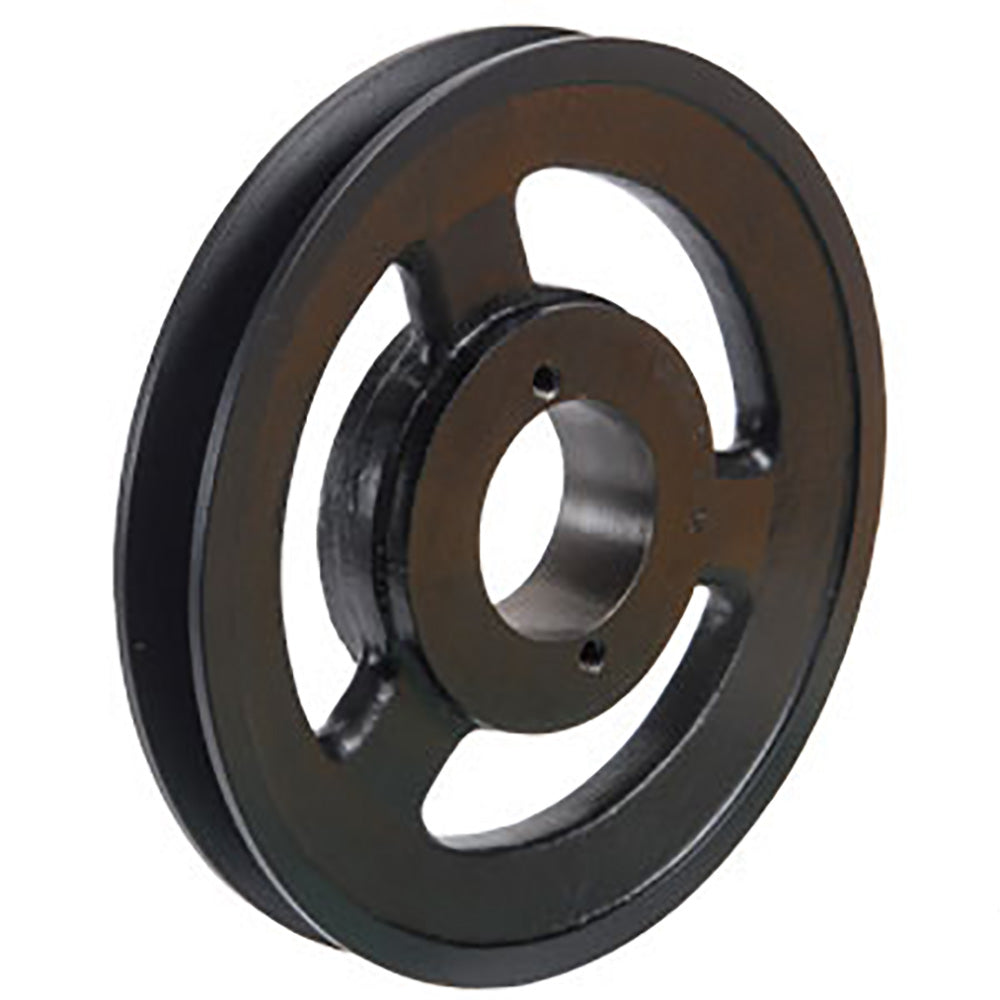

One New Aftermarket Replacement Spindle Pulley for Scag Turf Tiger Zero-Turn Mowers

This left-hand spindle pulley mounts on the Turf Tiger deck spindle assembly and transfers belt-driven power to the cutting blade. It features a tapered bore and is used with the Rotary 9153 spindle assembly and 9600 tapered hub. Scag part number 48753 was superseded by 482745.

Specifications

• Outside Diameter (OD): 6-1/4"
• Inside Diameter (ID): 1-19/32" tapered bore
• Width/Height: 7/8"
• Position: Left Hand (LH) spindle

Compatible Models

Scag Turf Tiger: Turf Tiger zero-turn mowers (2005 Turf Tiger Model 31BSD, 2005 SWZ Walk-Behind)

Replaces Part Number(s):

482745, 482745-A, 48753, 48753-A, B1SC86, DRF30-0025

Aftermarket Interchange Numbers

Rotary 9601; used with Rotary 9153 Spindle Assembly and Rotary 9600 Tapered Hub

New aftermarket replacement part - not remanufactured, not used.
