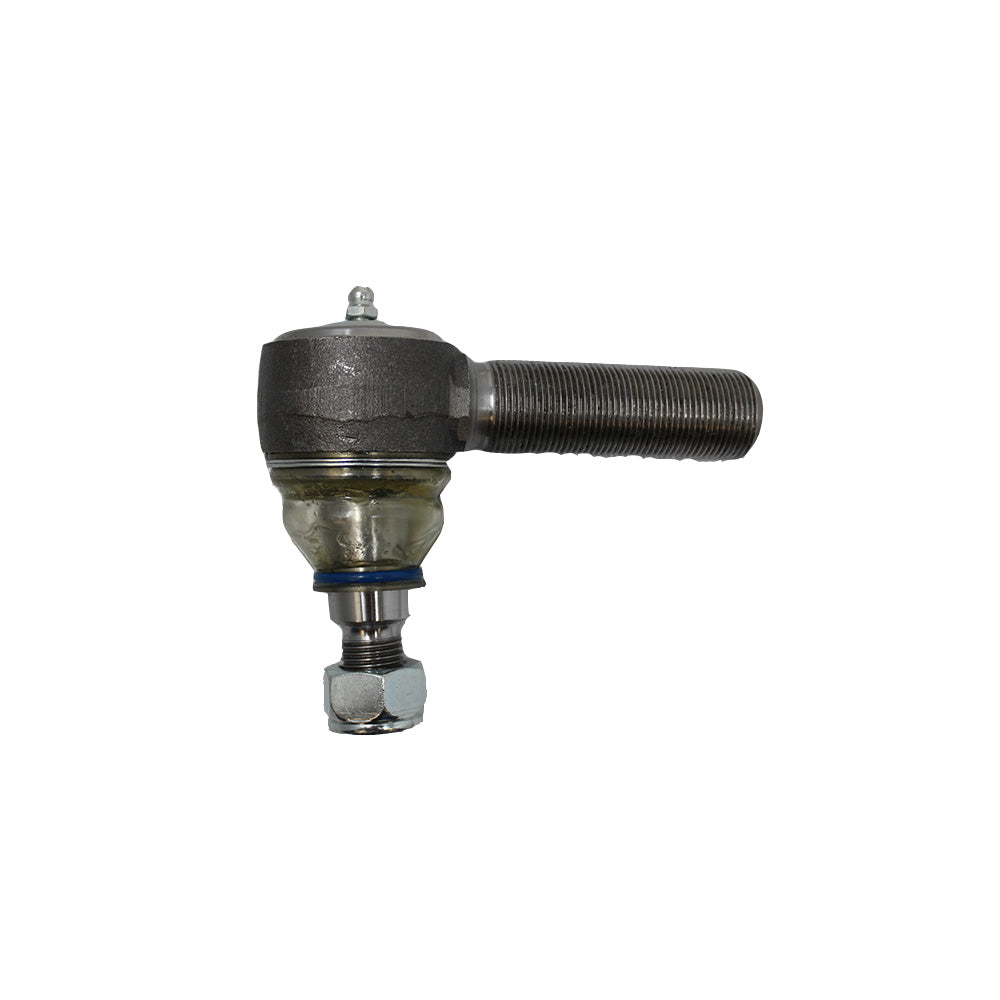

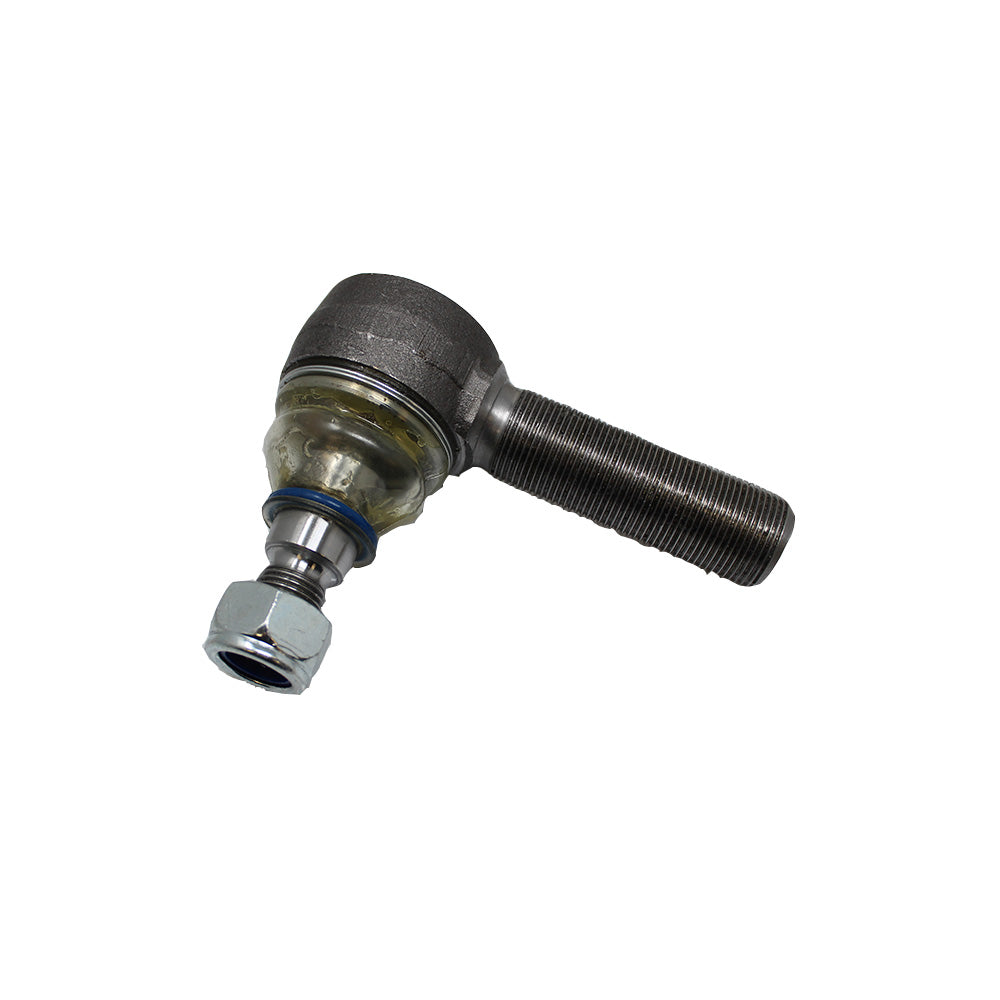

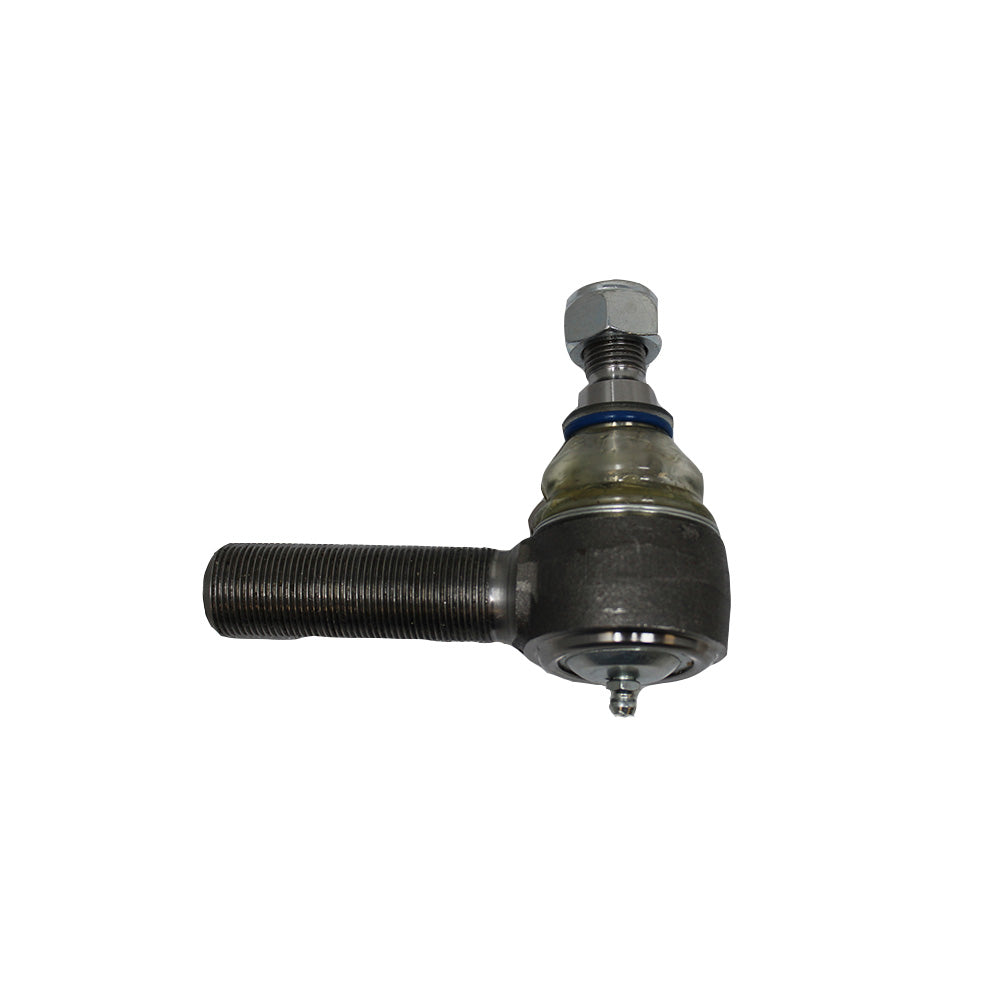

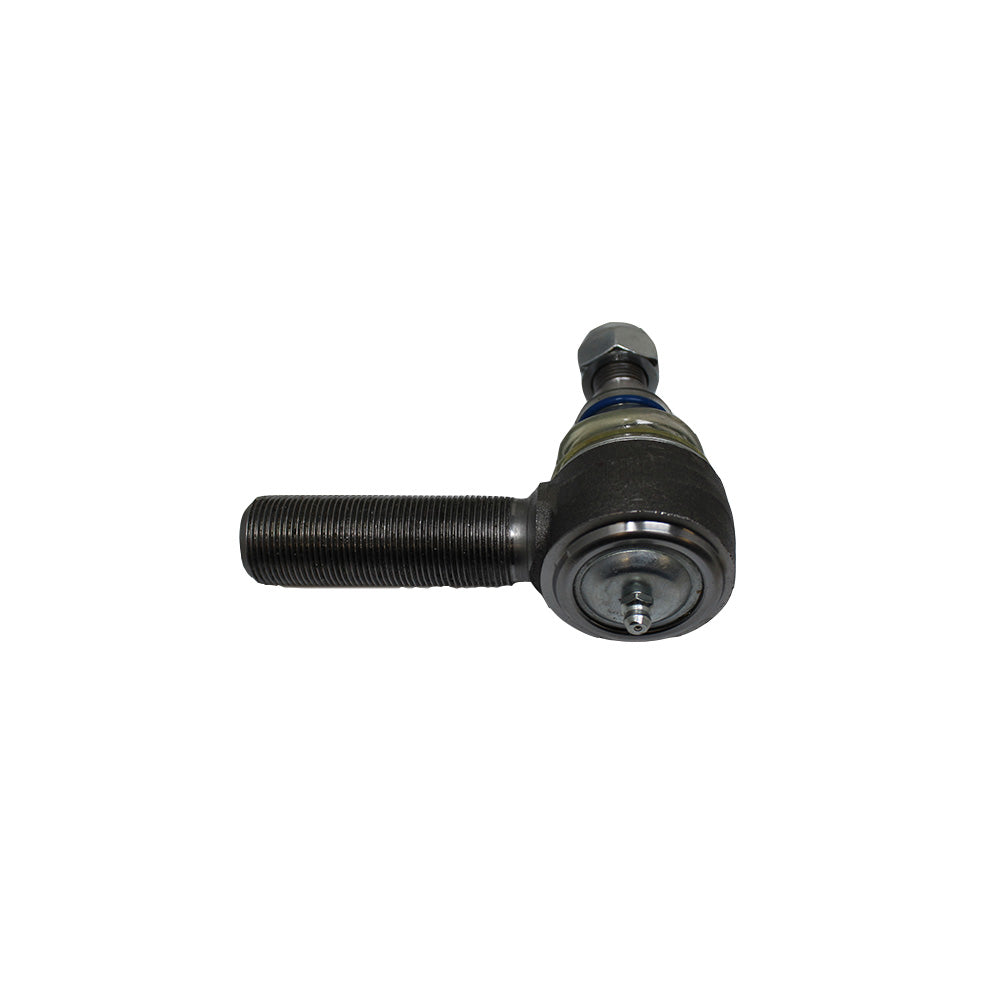

One New Aftermarket Replacement Right Hand (RH) Tie Rod End for John Deere Compact Tractors and Loader Backhoe

This right hand (RH) tie rod end is a direct-fit aftermarket replacement for the John Deere MFWD front axle steering system, used across a wide range of John Deere compact utility tractors and the 110 Compact Loader Backhoe. It features metric threads (M24 x 1.5). Important: Early serial number machines use standard SAE threads -- verify your machine's serial number before ordering. Several models also have axle-specific fitment requirements noted below.

Specifications

• Thread: M24 x 1.5 (Metric)
• Length of Ball Joint (End to Center): 3.87 in.
• Bottom of Taper (going up on Ball Joint): 0.880 in.
• Top of Taper: 0.768 in.
• Hand: Right Hand (RH)

Serial Number and Axle Restrictions

• 4120, 4320, 4520, 4720: ASN 470001 (late serial number machines)
• 4300, 4400: Axle marked S20BZ107-1
• 4700: Axle marked S20BZ108-1 or S20BZ112-1
• Early S/N machines on all models: Standard SAE threads -- this part does NOT fit

Compatible Models

John Deere 100 Series: 110 Compact Loader Backhoe

John Deere 3000 Series Compact Utility Tractors: 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3203, 3320, 3520, 3720

John Deere 4000 Series Compact Utility Tractors: 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4105, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4520, 4600, 4610, 4700, 4710, 4720

Replaces Part Number(s):

LVA14959

Aftermarket Interchange Numbers

1404-1096, FRT40-0090, A-LVA14959, AMLVA14959

New aftermarket replacement part - not remanufactured, not used.
