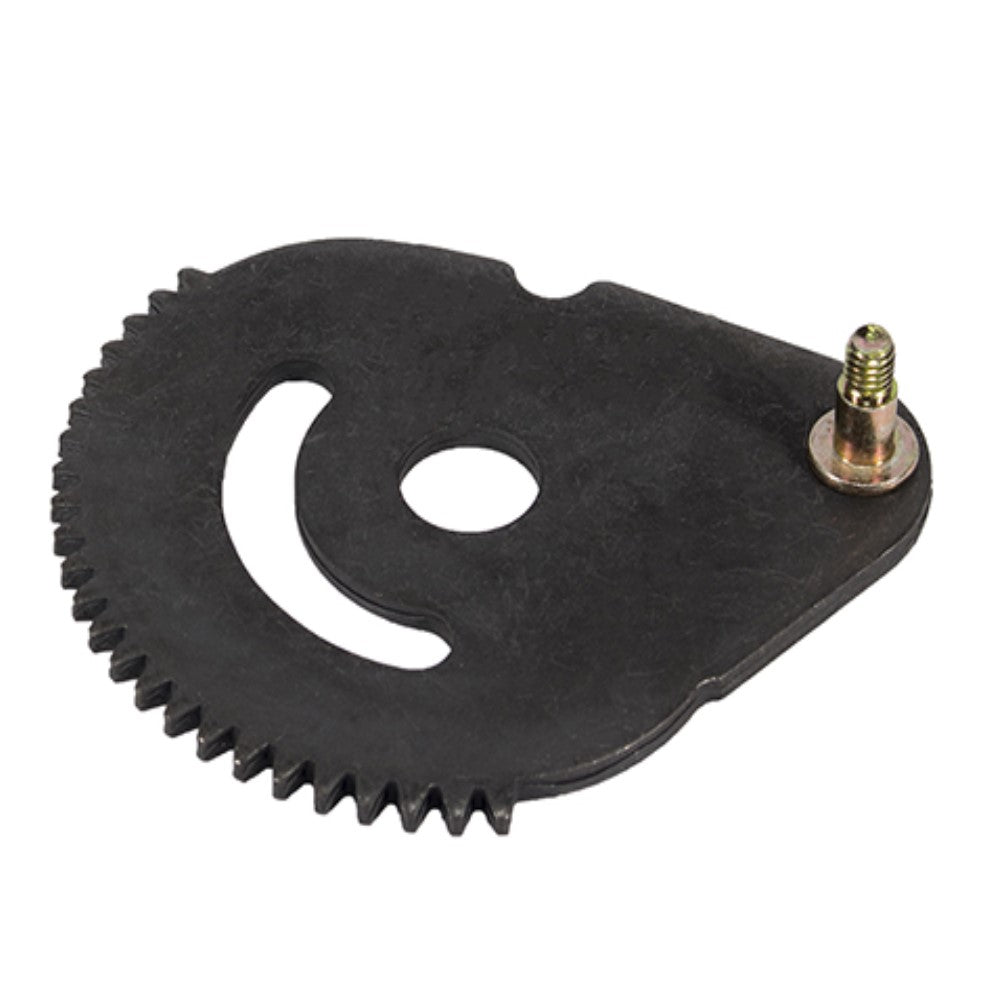

One New Aftermarket Replacement Steering Gear for MTD Lawn Tractors

This sector steering gear is a direct replacement for the front axle steering assembly on MTD-platform lawn tractors sold under multiple brand names, including Fits Cub Cadet, Troy-Bilt, Yard-Man, Yard Machines, Bolens, and Fits Craftsman. The steering gear meshes with the pinion gear on the steering shaft to translate steering wheel input into front wheel movement. Worn or damaged sector gears are a common cause of sloppy or unresponsive steering on these machines.

Specifications

• Center hole diameter: 0.87 in.
• Quantity: 1 steering gear assembly

Compatible Models

MTD: T1000, T1200, T1400, T1500, T1600, T1800, T1900, LT1500, LT2500, LT3812, LT4216, LT538G, LT542H, CLT38G, CLT42H, CLT46CVT, 13W1762F065 (2011), 13WC762F065 (2011), 13AC76GF897 (2011), 13AC77KF897 (2013), 13BC77KF897 (2014), 13A879KS897 (2015), 13A878KT897 (2015), 13A277KF897 (2017)

Troy-Bilt: 13A Series lawn tractor models

Fits Cub Cadet: Selected models - verify by part number

Yard-Man: 13AN785T055 (2014), 13AN785S001 (2013), 13AN772S055 (2014), 13BC76LF055 (2014), 13A2785S001 (2013-2014), 13AC76LF055 (2011), 13AO772S055

Yard Machines: 13AN775S000 (2012-2013), 13AN775S200 (2012-2013, 2015), 13AM775S200 (2015), 13B2775S000 (2016-2017)

Bolens: 13W1762F265 (2012-2013)

Fits Craftsman: 247288841, 247288810, 247288852, 247203701, 247288842, 247288843, 247288851, 247288861, 247288870, 247288890, 247289150, 247203700, 247203710, 247203711, 247203720, 247203721, 247203730, 247203731, 247203740, 247203741, 247203760, 247203761, 247203770, 247203771, 247288811, 247288812, 247288820, 247288831, 247203705 and more

Replaces Part Number(s):

617-04094, 61704094

Aftermarket Interchange Numbers

Oregon 76-057, Rotary 16139

New aftermarket replacement part - not remanufactured, not used.
