One Fits Massey Ferguson Tach Drive Assembly 1853144M1

Name: One Fits Massey Ferguson Tach Drive Assembly 1853144M1
Brand: AIC Replacement Parts
SKU: 1446059M1_1
Price: 18.12 USD
Availability: InStock

One Fits Massey Ferguson Tach Drive Assembly 1853144M1

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

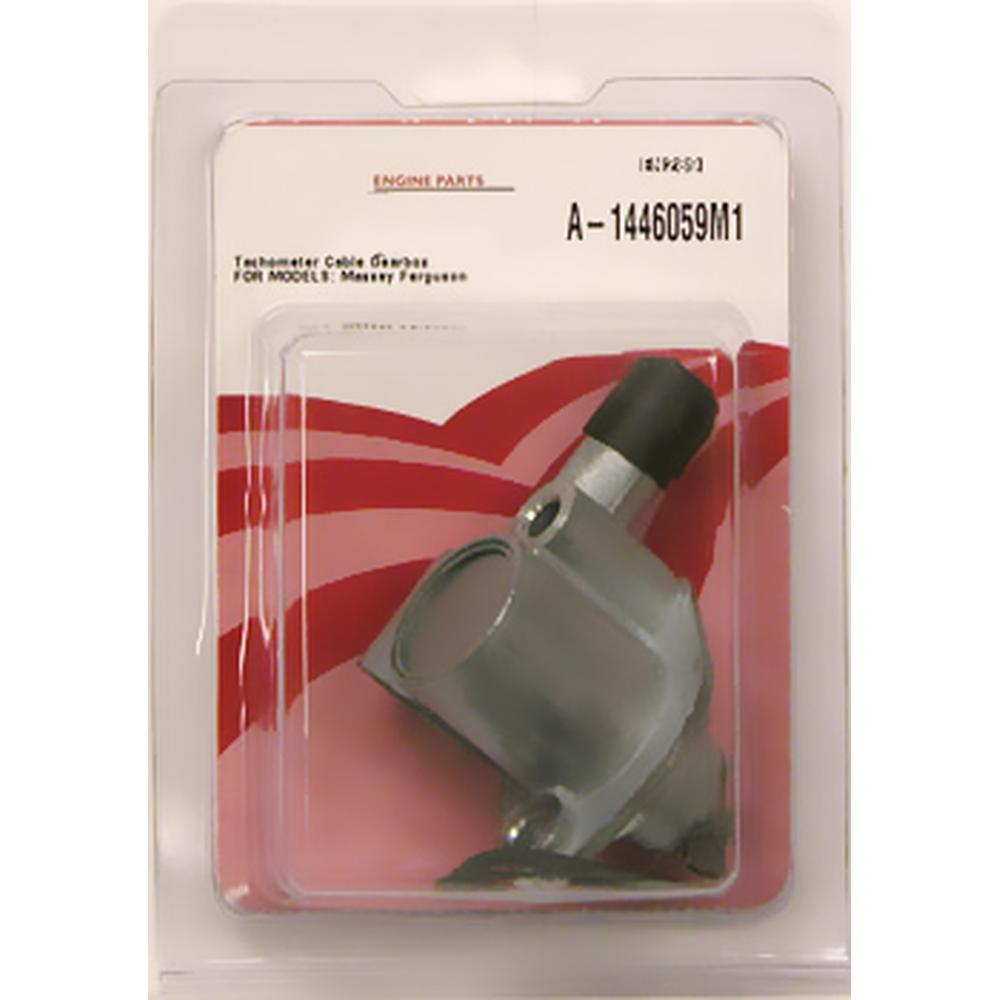

One New Aftermarket Replacement Tachometer Drive Assembly (Gearbox) Fits Massey Ferguson Tractors

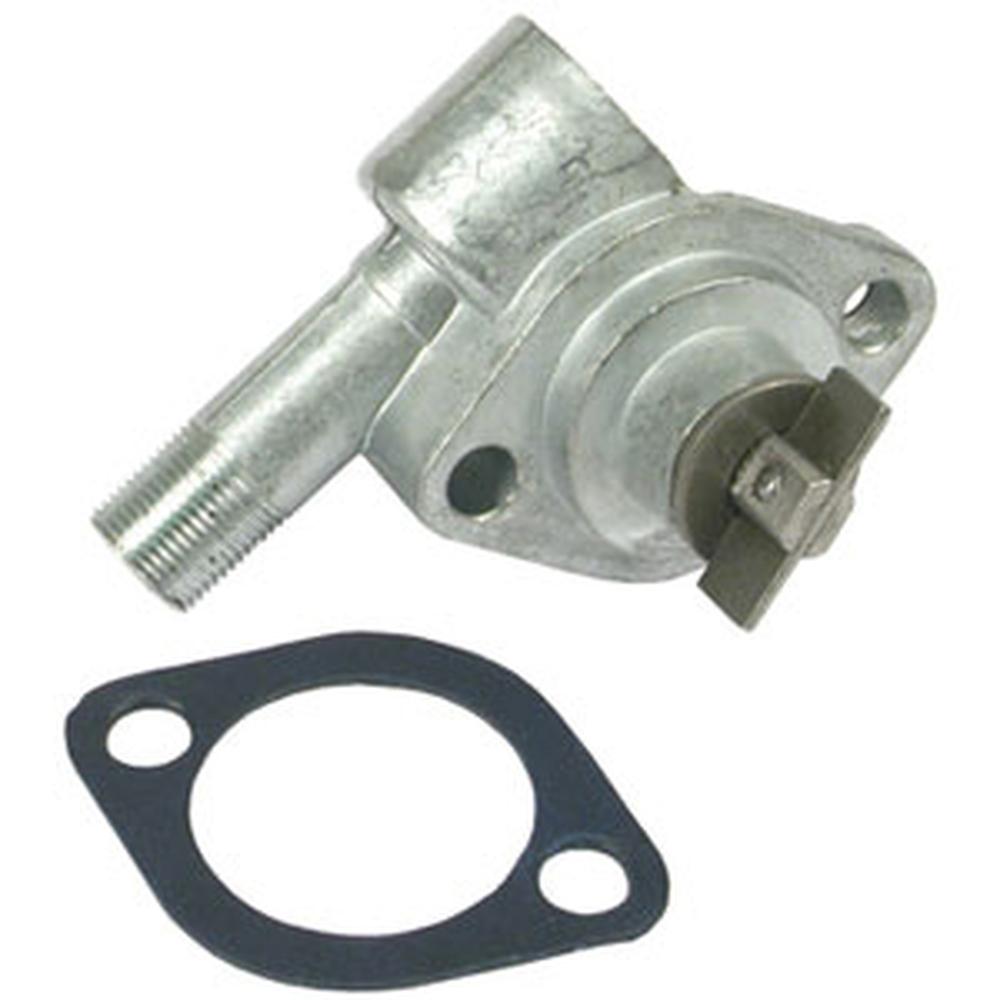

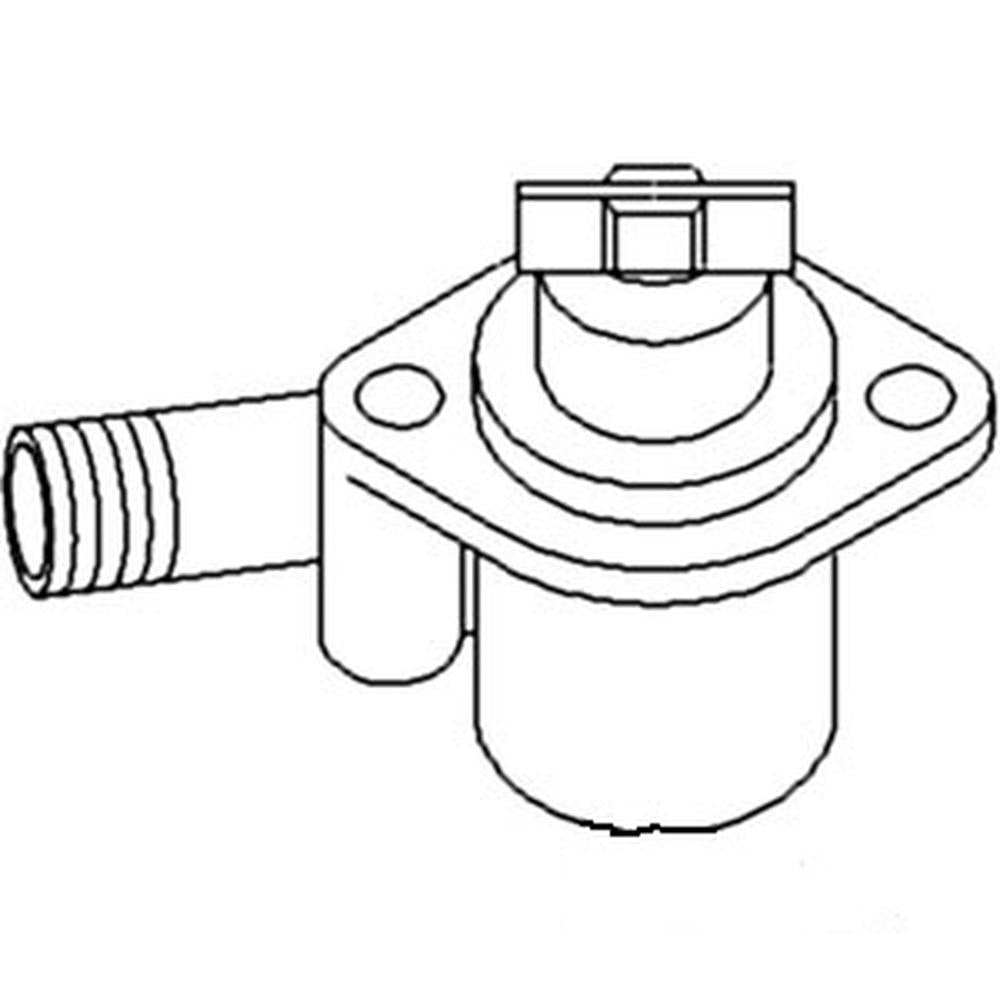

This aftermarket replacement tachometer drive assembly -- also called a tractormeter drive or tach drive gearbox -- mounts to the engine and drives the tachometer cable, allowing the instrument panel to display accurate engine RPM. The assembly includes a gasket. Cable end features a 1/2" UNF thread. Replaces OEM part numbers 1853144M1 and 1446059M1 and fits a wide range of Fits Massey Ferguson, Landini, Leyland, Perkins, and Fits Volvo equipment.

Note: Fitment on some models is serial-number dependent. Verify serial number compatibility before ordering.

Specifications

Cable End Thread: 1/2" UNF
Includes gasket

Compatible Models

Fits Massey Ferguson: 134, 134C, 154, 154-4, 154C, 164, 165, 168, 174, 174C, 175, 178, 184, 184-4, 185, 188, 194, 194C, 233, 234, 234C, 240, 241, 243, 244CF, 253, 254, 254-4, 254C, 254SK (274SK), 261, 263, 264, 265, 270, 272, 273, 274, 274-4, 274C, 275, 281, 282, 282 US Built, 283, 284, 285 (FR), 290, 290 Brazilian, 290 US Built, 293, 294, 294-4, 294C, 298, 362, 364, 364C, 364CF, 365, 375, 375E Brazilian, 382, 383, 390, 390E Brazilian, 390T, 398, 462, 472, 482, 487, 506, 565, 575, 590, 592, 595, 602, 604, 670, 675, 690, 698, 698T, 699, 702, 704, 802, 804, 1004, 1004T, 1080, 1104, 1150, 2200, 2204, 2250, 2254, 6030, 6500, 6550, 7500, T500

Fits Massey Ferguson Industrial: 50E, 50F, 50H, 60H

Landini: 5500, 5530, 5830, 5840, 6030, 6040, 6060, 6500, 6530, 6550, 6830, 6840, 7500, 7530, 7550, 7830, 7860, 8500, 8530, 8550, 8560, 8830, C4830, C5830, C6830, C7830, CF5030, CF5830, CF6060, CF6830, Large 9550

Leyland: 255, 262, 270, 272, 282, 462, 472, 482, 602, 604, 702, 704, 802, 804

Perkins Engines: A4.212 (LA), A4.236 (LD), A4.248 (LF), A4.318 (NC), T4.236 (LJ), 1004T

Fits Volvo: (see ref PG2758346)

Replaces Part Number(s):

1853144M1, 1853144V1, 1853368M1, 1446059M1, 3699203M91, 41097, 28260, 83H1004, 2758346, 2758347, 2758348, 12758346, 12758348, PG2758346

Aftermarket Interchange Numbers

A-1446059M1, A47560

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

C5830, 6500, 290, 188, A4.212 (LA), 293, 50F, 383, 174, 5840, 8830, 178, 273, 698, 134C, 290 BRAZILIAN, 6030, 185, 174C, 194C, 604, 274, 255, 282 US BUILT, 184, C7830, 8550, 243, 462, 675, 165, 134, 272, 231S, 390E BRAZILIAN, 253, 802, A4.236 (LD), 2250, 702, 390, 60H, 364CF, 5500, 7500, CF6830, 50E, 240, 6840, 164, 7860, 274C, 5830, 804, 254C, 184-4, 244CF, 254, CF6060, 264, 590, 234, 506, 699, 285 (FR), 704, 1150, 262, 254-4, 698T, 364C, 241, 5530, 1080, 575, 482, 234C, CF5030, T4.236 (LJ), 283, 8500, 2204, 282, 194, 290 US BUILT, 375, 270, 154C, 274SK, 263, A4.318 (NC), 690, 8560, 233, 7530, 364, 175, 294C, 261, 6060, 1004T, 154-4, 265, T500, 390T, 398, 275, 284, 298, 2254, 274-4, 2200, 365, 6040, 1004, 8530, 592, 50H, CF5830, 6550, C6830, 294, 487, 168, 362, A4.248 (LF), 595, 6530, 472, 602, 7830, 154, 294-4, 6830, 271, 382, 7550, LARGE 9550, 281, C4830, 375E BRAZILIAN, 670, 565, 1104

Additional Information:

Cable End: 1/2" UNF Thread Tachometer Cable Gearbox

Reference Numbers:

83H1004, 2758348, 41097, 2758347, 2758346, PG2758346, 41097, 3699203M91, 1853368M1, 1853144V1, 1853144M1, 2758348, 2758346, 1446059M1, 28260, 1853144M1, 2758348, 2758347, 2758346, 12758348, 12758346
