One New Aftermarket Rebuild Kit for 38", 42", 46" and 54" Mower decks
One New Aftermarket Rebuild Kit for 38", 42", 46" and 54" Mower decks
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

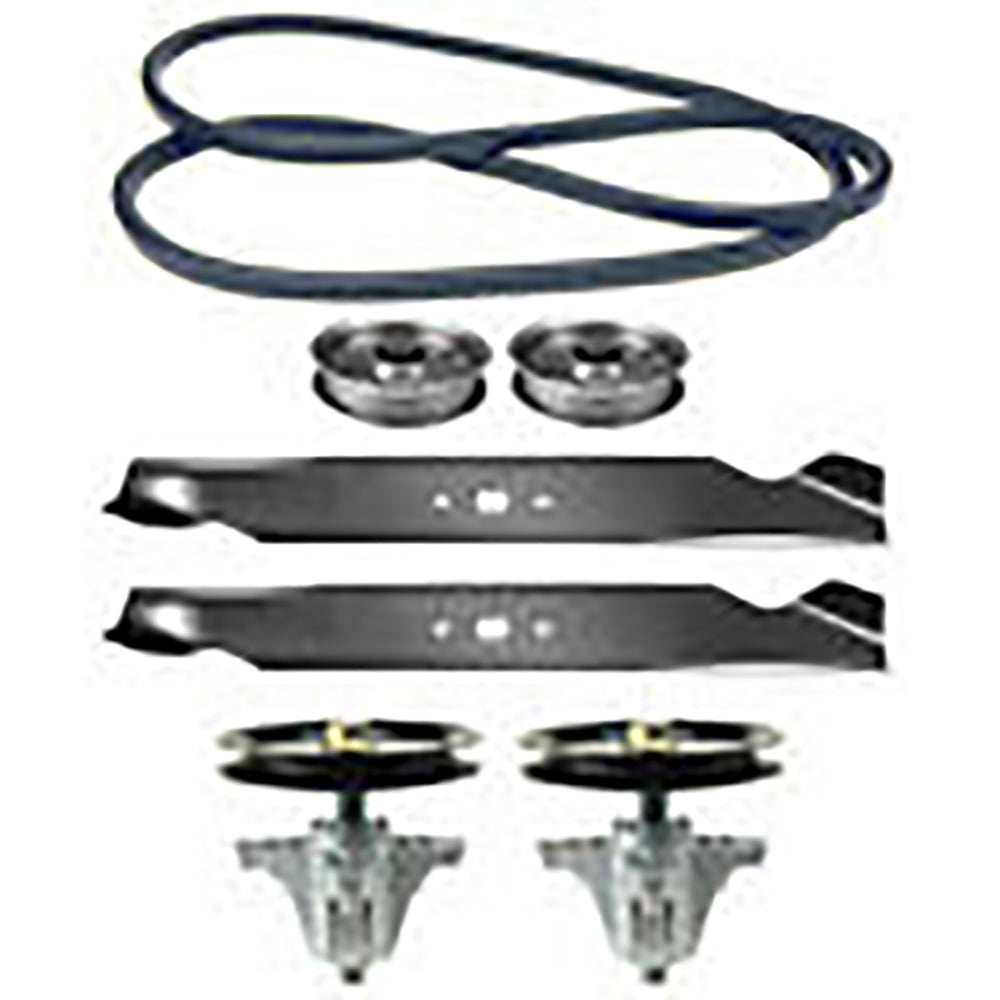

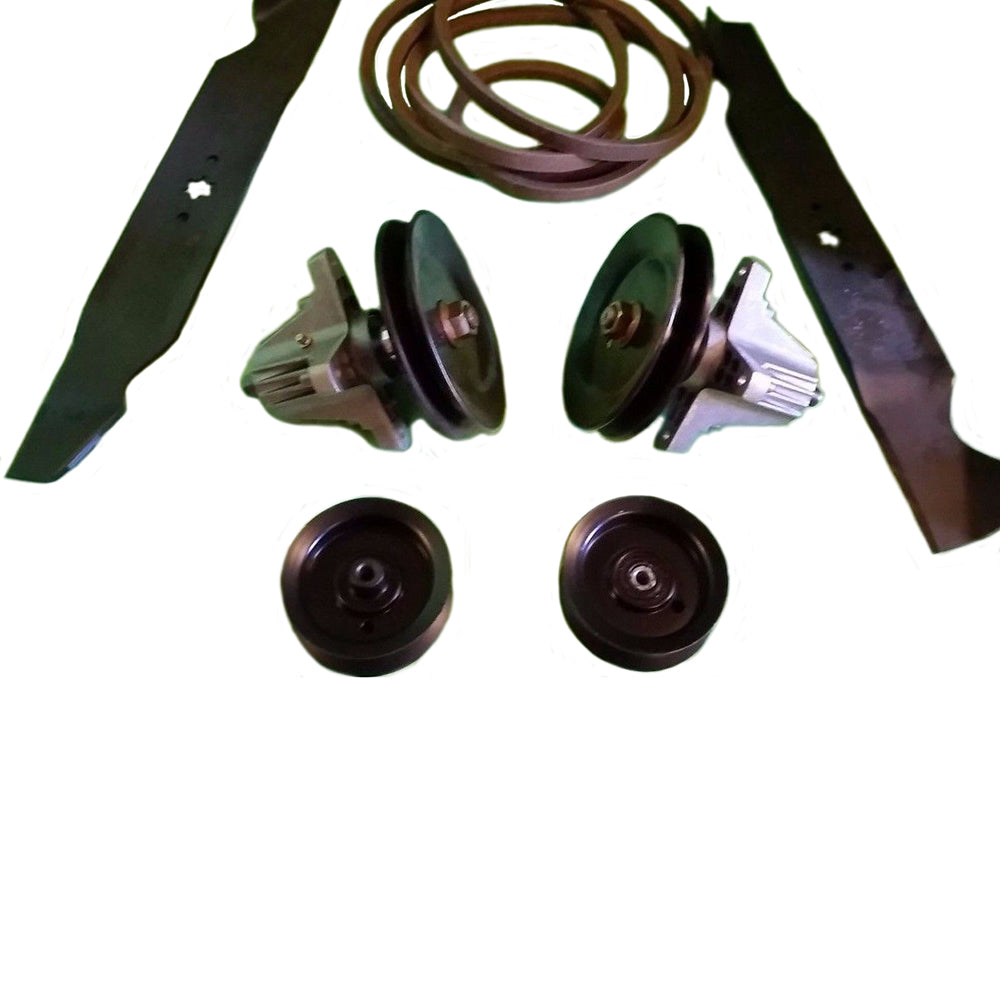

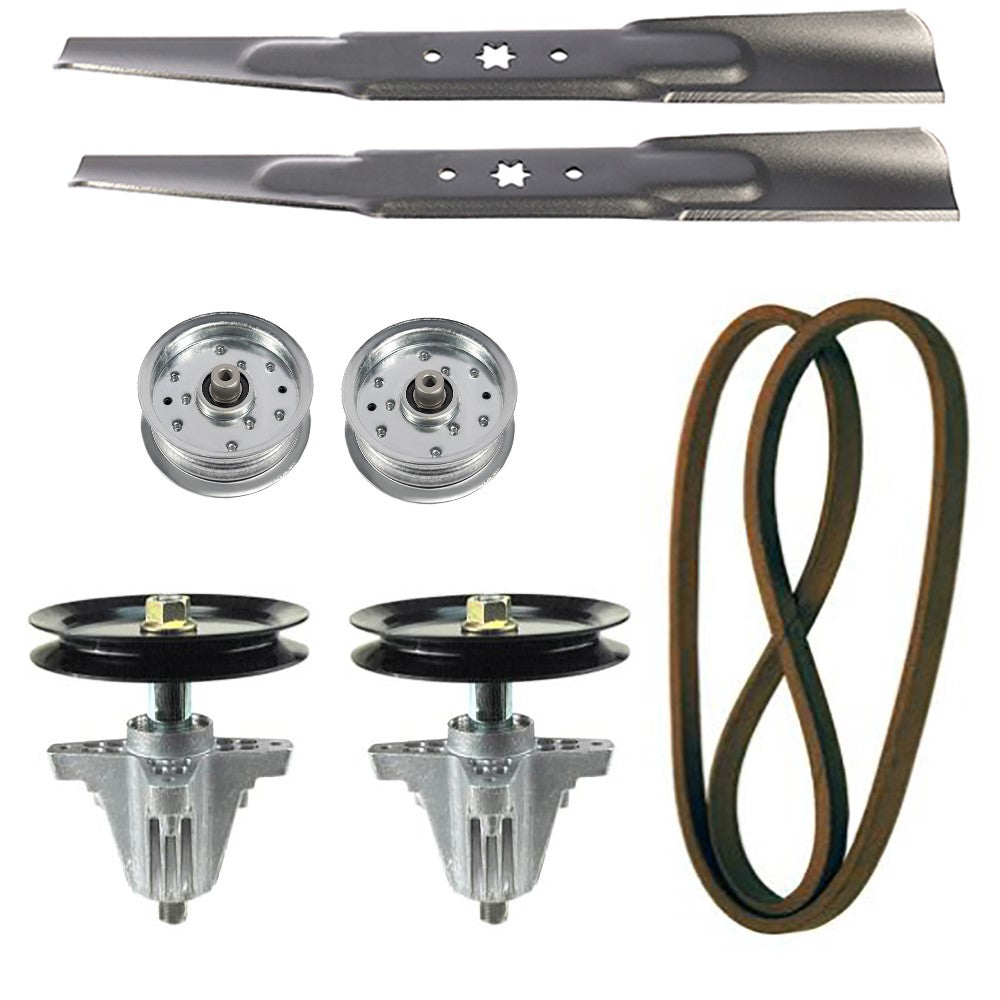

One New Aftermarket Rebuild Kit for 38", 42", 46" and 54" decks Kit Contains: 2 Deck Spindles, 2 Blades, 2 Idler Pulleys and Deck Belt
(2) Flat Idler Pulleys
Specs:
Inside Diameter: 3/8"
Outside Diameter: 4-7/8"
Height: 1"
Material: Metal (Non-Zinc)
Type: Heavy Duty
Replaces Part Numbers:
Fits Cub Cadet: 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C
Fits MTD: 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C, 38", 42", 46" and 54" decks
(2) Deck Spindles
Specs:
Pulley Diameter: 6-1/2"
Center Hole: 6 Point Star
Replaces Part Numbers:
Fits Cub Cadet: 618-04636, 618-04636A, 618-04865A, 918-04865A
Fits MTD: 618-04636, 618-04636A, 618-04865A, 918-04636, 918-04636A, 918-04865A
Fits Troy-Bilt: 618-04636, 618-04636A, 618-04865A, 918-04636, 918-0865A
Fits Cub Cadet Models: LTX1045, LTX1046 and Z-force S 46
Fits MTD Models: 13AL771T004, 13AL78ST099, 13AL78ST299, 13AL795T004, 13AL795T057, 13AO785T058, 13AR91PT099, 13AR91PT299, 13AT915T004, 13AX771T004, 13AX791T031, 13AX90YT001, 13AX915T004 and 13WX791T031
(2) Blades
Specs:
Center hole - 6 pt. star,
Length - 23 1/4",
Thickness - 0.164",
Width - 3 1/4",
Requires 2 for 46" deck
Fits Cub Cadet Models: LTX1045, LTX1046 and LTX1046VT
Fits Yardman Models: 3AR91PT099, 2011 and 13AR91PT299, 2011
Replaces Part Numbers: 490-110-C131, 742-04244, 742-04244A, 742-04290, 742-04290A, 754-04244, 942-04244, 942-04244A, 942-04290, 942-04290A, OCC-742-04244
(1) Belt
Specs:
Length - 103 1/4",
Width - 1/2"
(2) Flat Idler Pulleys
Specs:
Inside Diameter: 3/8"
Outside Diameter: 4-7/8"
Height: 1"
Material: Metal (Non-Zinc)
Type: Heavy Duty
Replaces Part Numbers:
Fits Cub Cadet: 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C
Fits MTD: 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C, 38", 42", 46" and 54" decks
(2) Deck Spindles
Specs:
Pulley Diameter: 6-1/2"
Center Hole: 6 Point Star
Replaces Part Numbers:
Fits Cub Cadet: 618-04636, 618-04636A, 618-04865A, 918-04865A
Fits MTD: 618-04636, 618-04636A, 618-04865A, 918-04636, 918-04636A, 918-04865A
Fits Troy-Bilt: 618-04636, 618-04636A, 618-04865A, 918-04636, 918-0865A
Fits Cub Cadet Models: LTX1045, LTX1046 and Z-force S 46
Fits MTD Models: 13AL771T004, 13AL78ST099, 13AL78ST299, 13AL795T004, 13AL795T057, 13AO785T058, 13AR91PT099, 13AR91PT299, 13AT915T004, 13AX771T004, 13AX791T031, 13AX90YT001, 13AX915T004 and 13WX791T031
(2) Blades
Specs:
Center hole - 6 pt. star,
Length - 23 1/4",
Thickness - 0.164",
Width - 3 1/4",
Requires 2 for 46" deck
Fits Cub Cadet Models: LTX1045, LTX1046 and LTX1046VT
Fits Yardman Models: 3AR91PT099, 2011 and 13AR91PT299, 2011
Replaces Part Numbers: 490-110-C131, 742-04244, 742-04244A, 742-04290, 742-04290A, 754-04244, 942-04244, 942-04244A, 942-04290, 942-04290A, OCC-742-04244
(1) Belt
Specs:
Length - 103 1/4",
Width - 1/2"
Will also work with but not limited to the following models: 38", 42", 46" and 54" decks
Models This Part Fits:
LTX 1046, 13AX915T004, 13YX79KT211, TB 46, 13AX935T004, 13AL78BT066, 13AX79BT066, 13AX78KT066, LTX 1045, 13YX79KT011, 13WX78KT066, 13AT915T004, 13BX79KT011, 13CX79KT011, LTX 1046 VT, TB 2246, 13AX795T004, 13AX79KT011, 13AJ78BT066, LTX 1046 M, LTX 1046 KW, 13WX79KT066, 13WX79KT011Additional Information:
(2) Mower Deck Spindle with Pulleys Pulley Diameter: 6-1/2" Height: 6-13/16" Center Hole: 6 Point Star For 46" Decks w/ (2) Blades Replaces Part Number(s): 618-04636, 918-04636, 918-04685 (2) Flat Idler Pulleys For 38", 42", 46" and 54" Decks Inside Diameter: 3/8" Outside Diameter: 4-7/8" Height: 1" Replaces Part Number(s): 753-08171, 756-04129, 956-04129 (1) Deck Belt Width: 1/2" Length: 103.25" Made w/ Wrapped Aramid Cord For 46" Decks w/ (2) Blades Replaces Part Number(s): 754-04219, 954-04219 (2) Standard Mower Blades Length: 23-1/4" Center hole: 6 pt Star Width: 2-1/4" Thickness: 0.150" For 46" Decks w/ (2) Blades Replaces Part Number(s): 942-04290, 742-04290, 942-04244A, 742-04244AReference Numbers:
618-04636, 918-04636, 918-04685, 753-08171, 756-04129, 956-04129, 754-04219, 954-04219, 942-04290, 742-04290, 942-04244A, 742-04244AMakes This Part Fits:
