One New Rebuild Clutch Slider Disc Kit Fits John Deere Tractors A AO AR D G

Name: One New Rebuild Clutch Slider Disc Kit Fits John Deere Tractors A AO AR D G
Brand: AIC Replacement Parts
SKU: RE29878-B2354R-KIT-RAP
Price: 182.77 USD
Availability: OutOfStock

One New Rebuild Clutch Slider Disc Kit Fits John Deere Tractors A AO AR D G

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Replacement Rebuild Clutch Slider Disc Kit

Fits John Deere Tractor Models: A, AO, AR, D, G

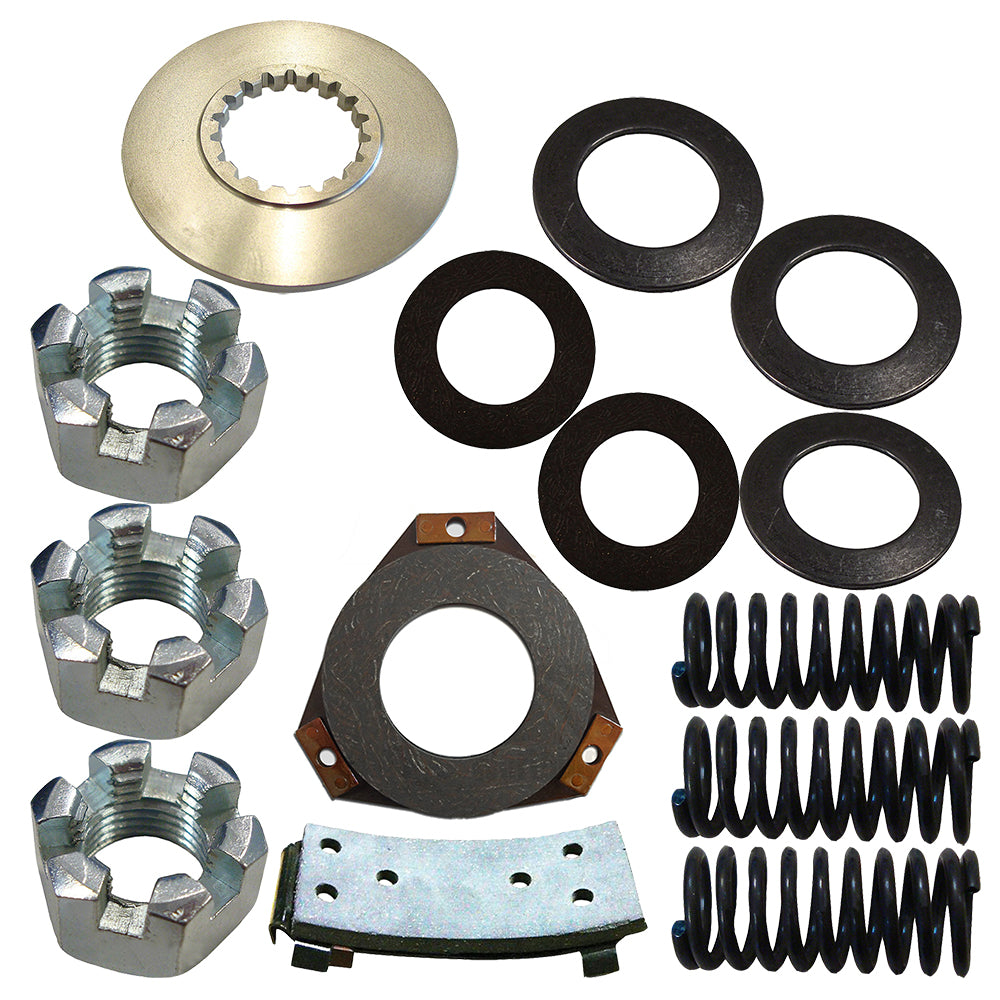

Kit Contains:

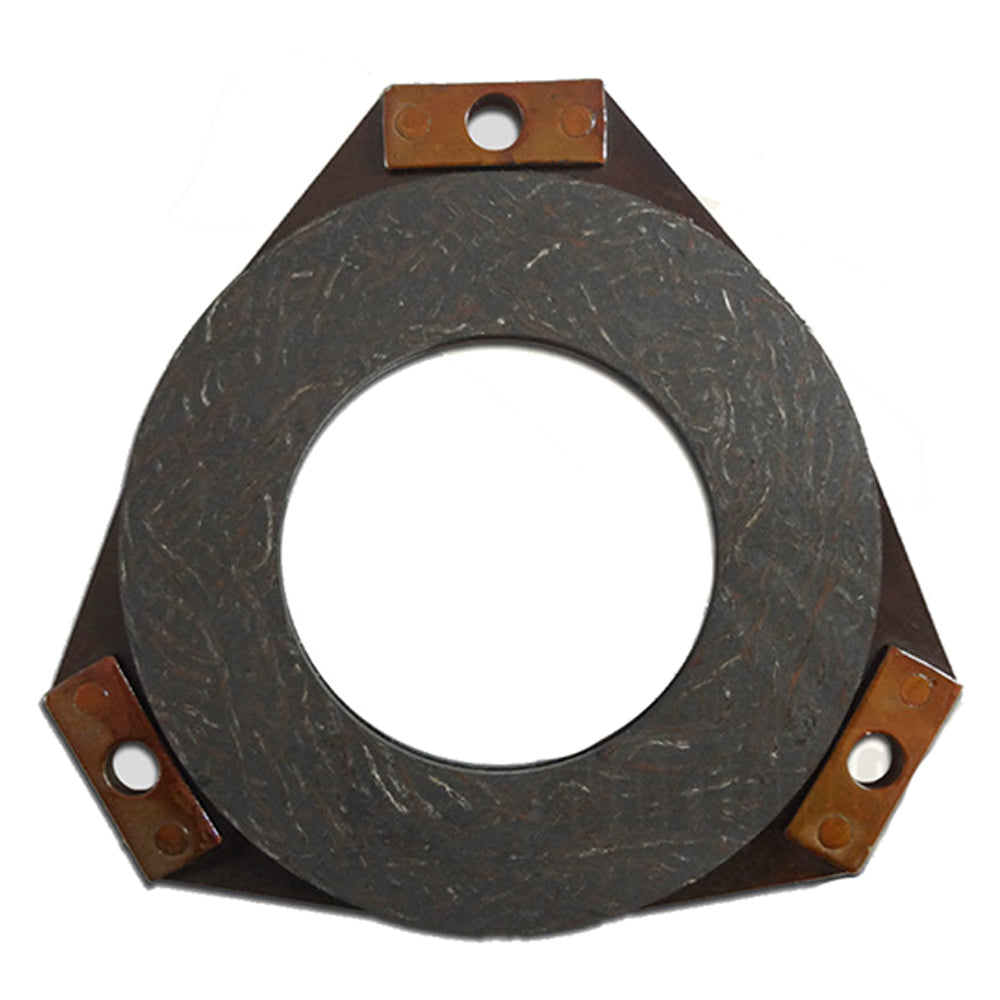

(1) Pulley Disc Clutch Assembly - RE29878

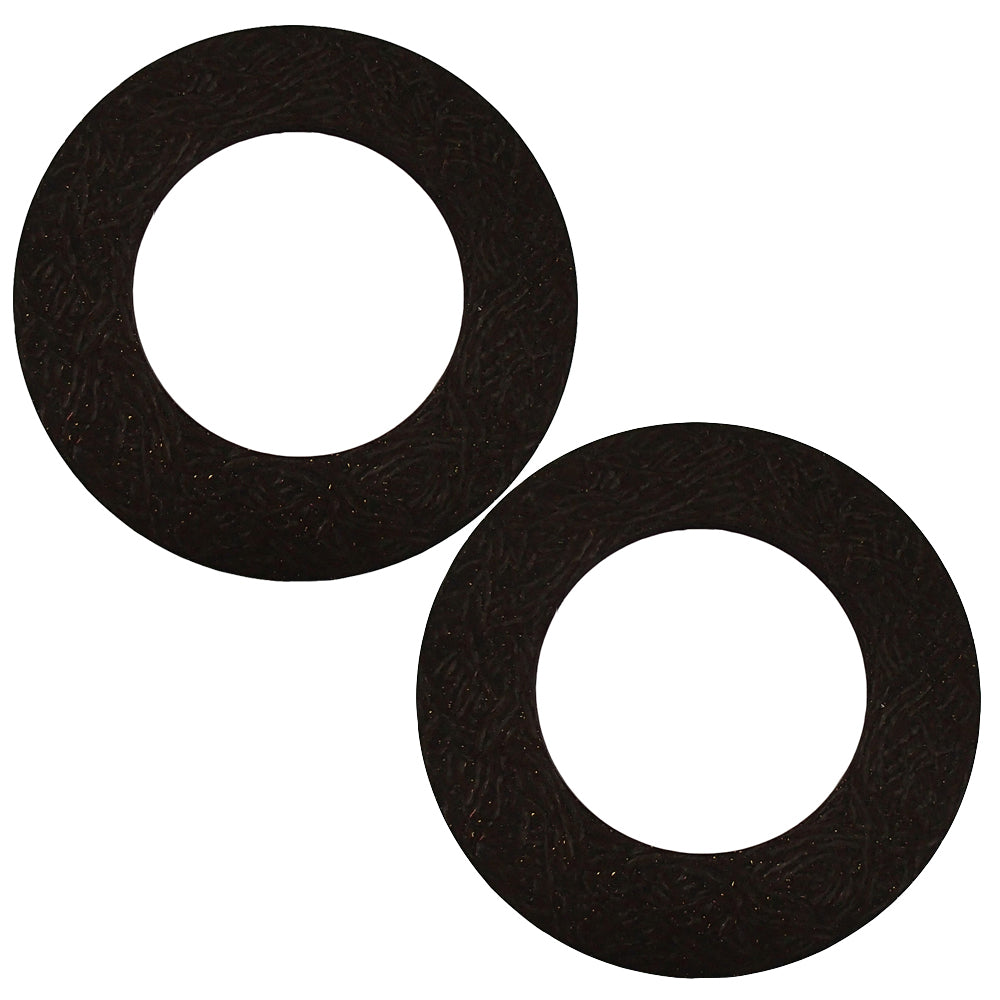

(2) Clutch Facing Disc - B2354R

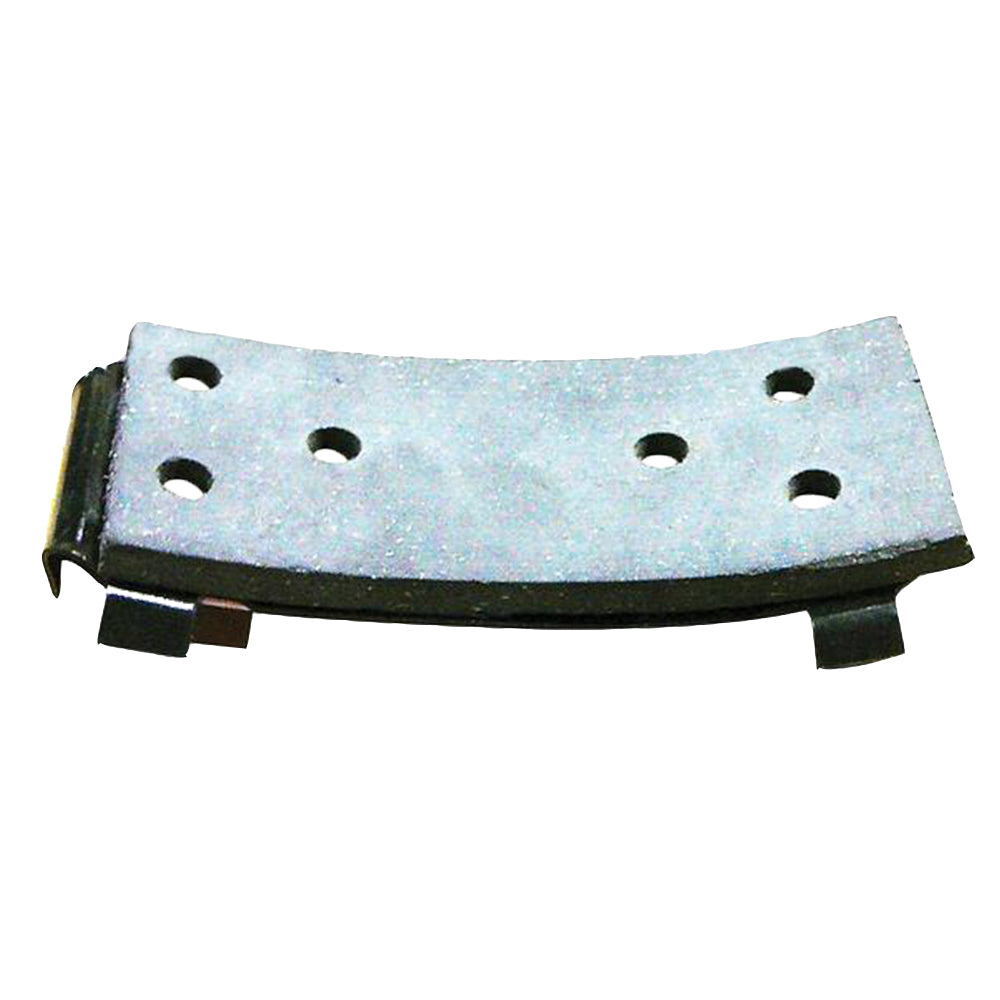

(1) Brake Pad Pulley - RE29790

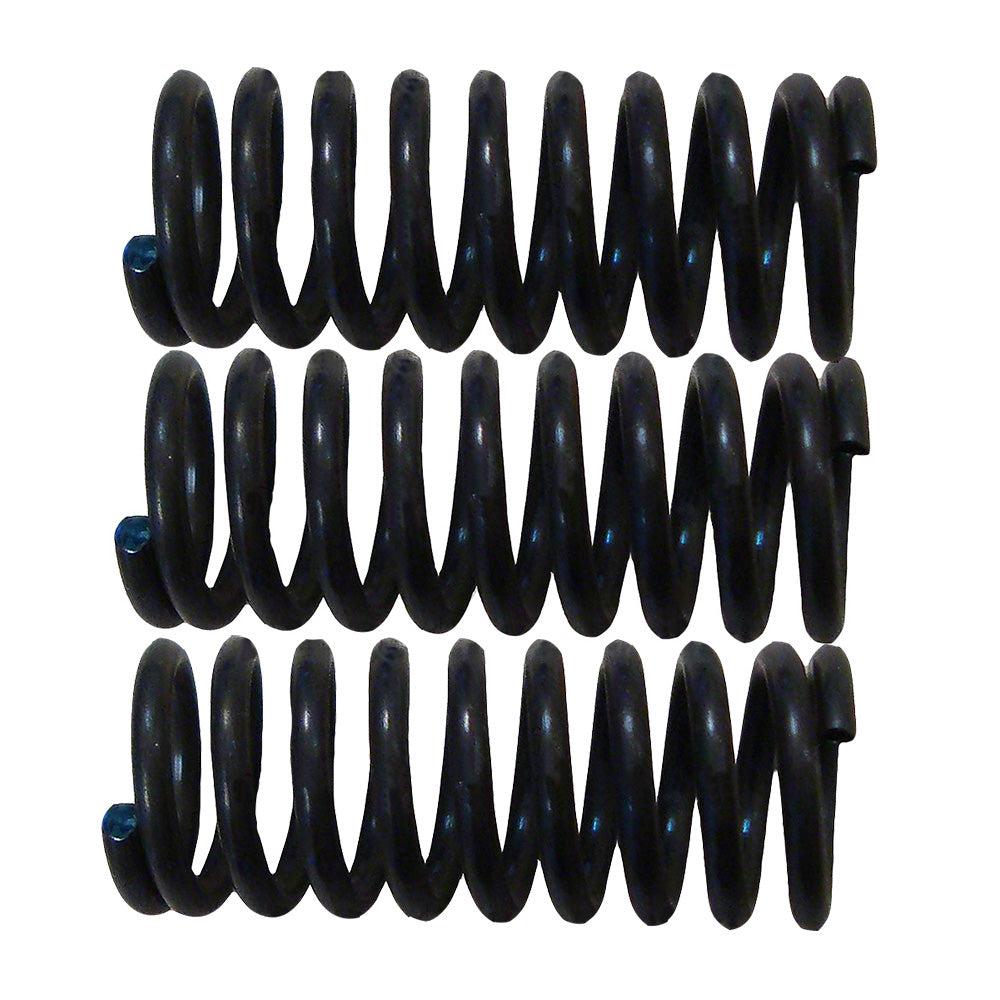

(3) Clutch Disc Adjusting Spring - B161R

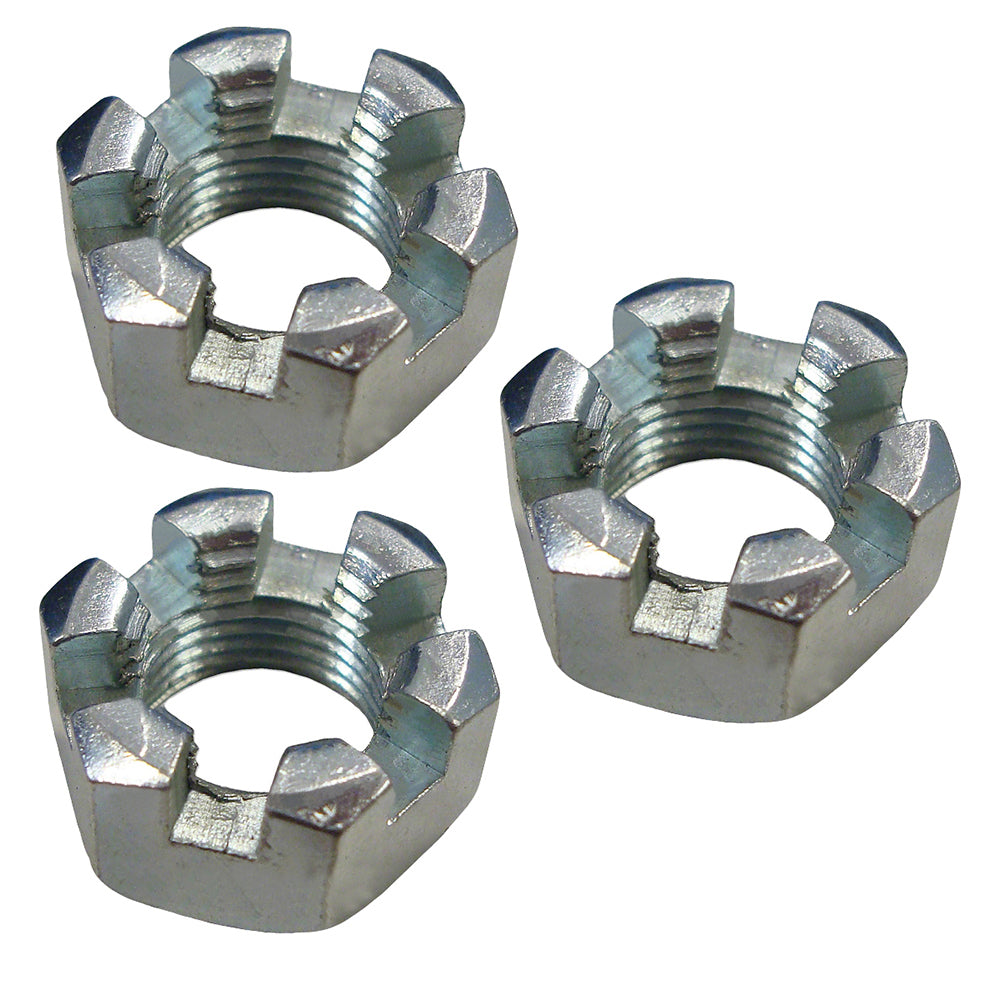

(3) Clutch Adjusting Nut - 14H994

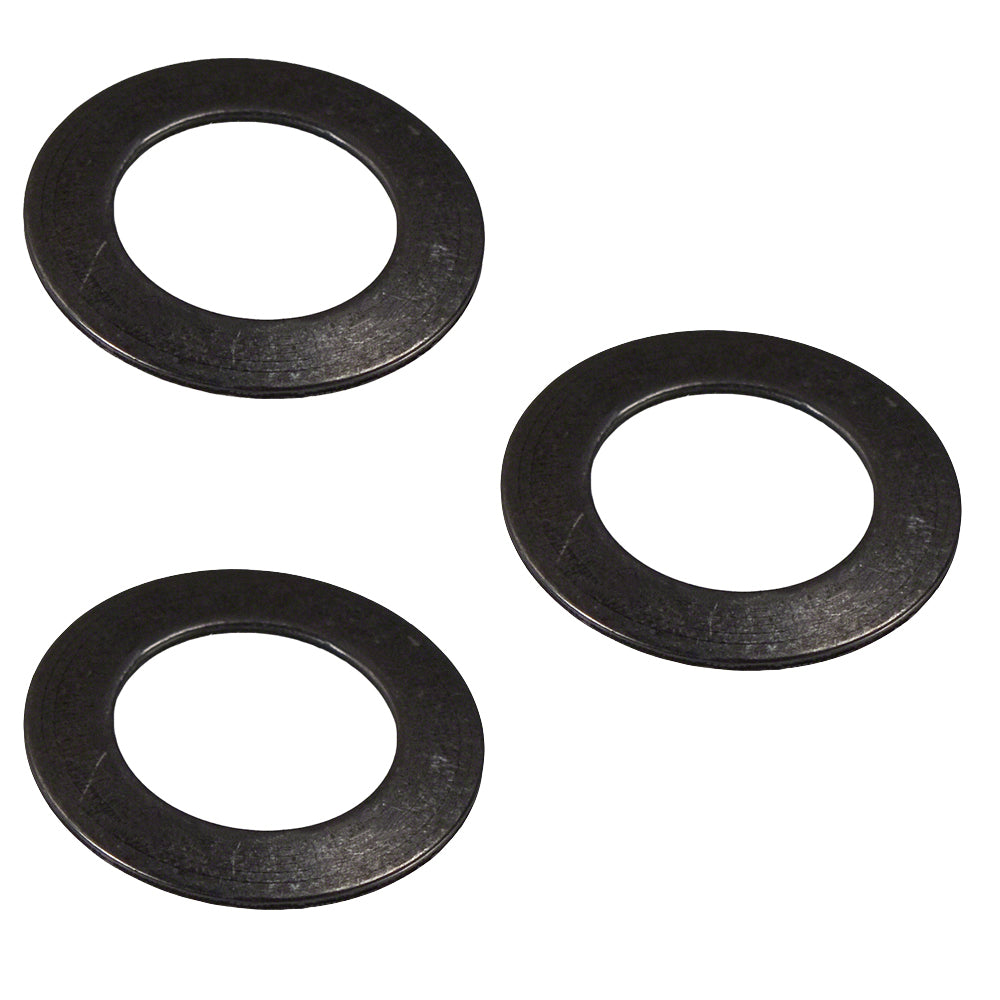

(3) Clutch Pressure Plate Spring (Fits Belleville) Washer - JDS1626

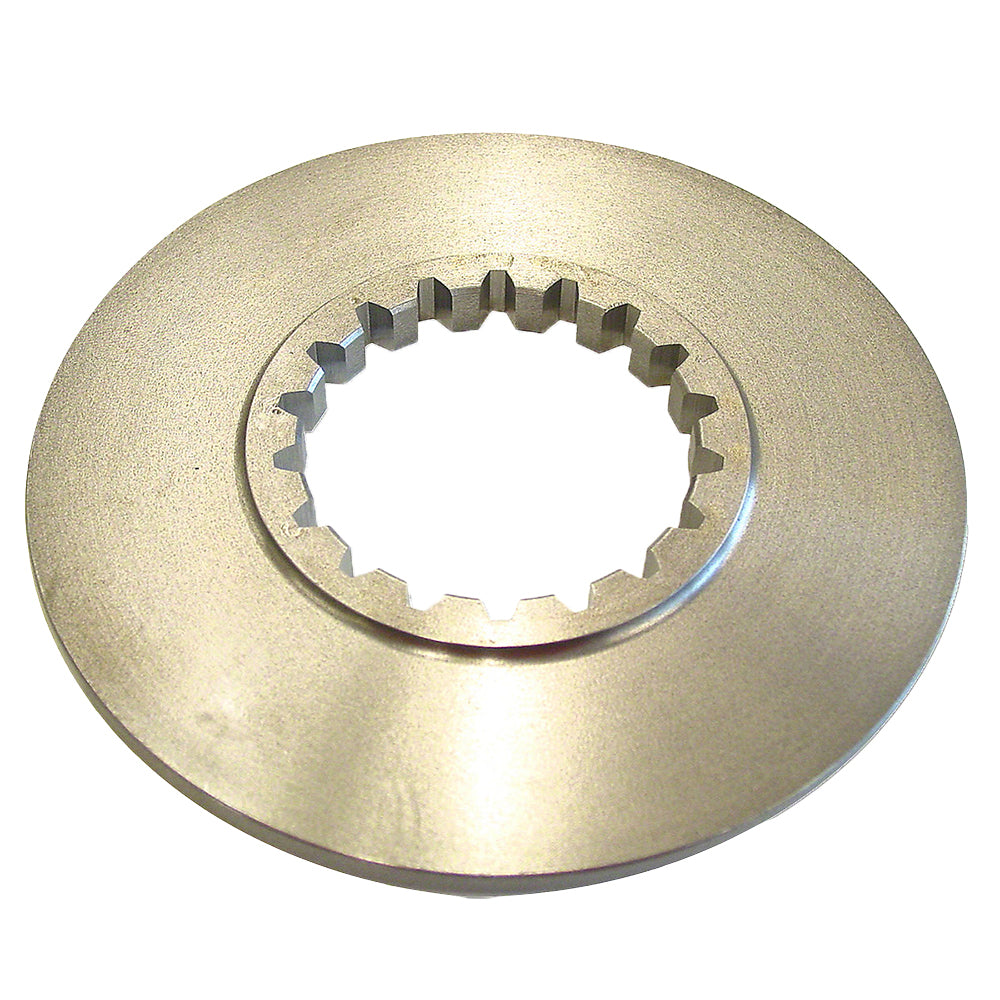

(1) Clutch Slider Disc - B3127R

Replaces Part Numbers: B161R, B2354R, B3127R, JDS1626, RE29790, RE29878

Models This Part Fits:

520, 530

Additional Information:

Kit Contains: (1) Pulley Clutch Discs w/ Bonded Lining Includes Riveted Lining 0.445" Thick 1-1/2" Lining Width Replaces Part Number(s): AB3471R, B2355R, AB4828R, RE29878 (2) Floating Clutch Facing Discs 7" OD x .160 Thick Replaces Part Number(s): R90220 (1) Belt Pulley Brake Pad Lining Woven Non-Asbestos Lining with Countersunk Brass Rivets Replaces Part Number(s): AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Springs It Mounts to the Outer Cast Iron Adjusting Disc Replaces Part Number(s): B161R (3) Clutch Adjusting Nuts 1/2" - 20 Nf Grade 5 Zinc Slotted Hex Nut, 1/2" 3 Used Per Tractor Replaces Part Number(s): B3279R, AA4967R, A335R, 14H994 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" Inside Diameter 0.937" Outside Diameter 0.035" Thick Spring Steel Torque Initially to 15 Ft Pounds, Then Adjust as Needed Use to Smooth Out the Hand Clutch Engagement 3 Used Per Tractor Replaces Part Number(s): AR21803R, R21647 (1) Clutch Slider Disc 0.250" Thick and 6.988" Outside Diameter Replaces Part Number(s): B3127R
