(Pack of 8) Trailer Axle Kit with Hubs, Spindles, Grease Seals, Caps & Bearings

Name: (Pack of 8) Trailer Axle Kit with Hubs, Spindles, Grease Seals, Caps & Bearings
Brand: AIC Replacement Parts
SKU: FRJ20-0028_x8_2
Price: 216.0 USD
Availability: InStock

(Pack of 8) Trailer Axle Kit with Hubs, Spindles, Grease Seals, Caps & Bearings

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

Eight New Aftermarket Trailer Spindle/Hub Kits.

Replaces Part Number:
545R-4INCH

Dimensions:
-2,000 lbs
-4 on 4" Bolt Pattern
-1" Round Spindles
-Each Hub has 1,250 lb Capacity, used on 2,000 lb Axles.

Dimensions:
Axle Shaft Dia: 1" - Shaft Step Diameter - 1-1/4"
Axle Shaft Length: 8-3/4"
Stud Length: 1-3/16''
Stud Size: 3/8''
Hub Dia: 5-1/2
C to C Bolt Pattern: 2-7/8''

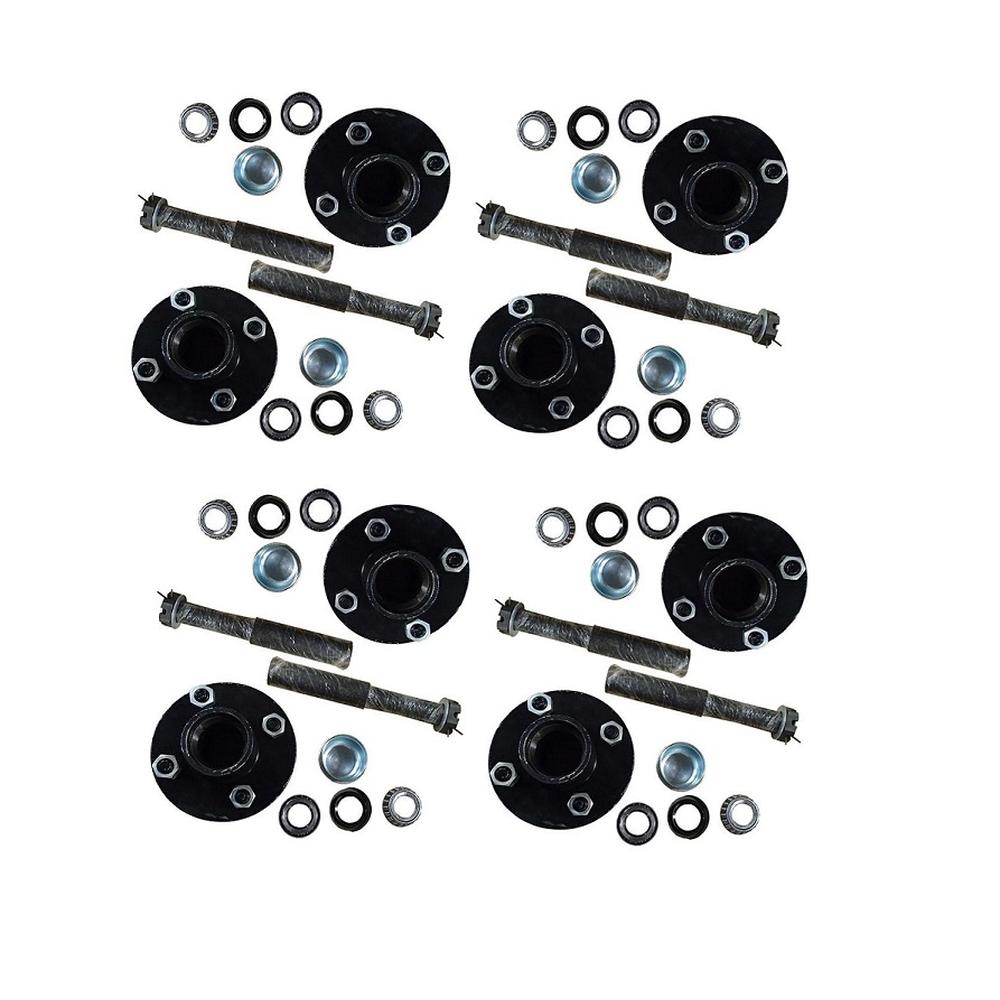

Kit Includes:

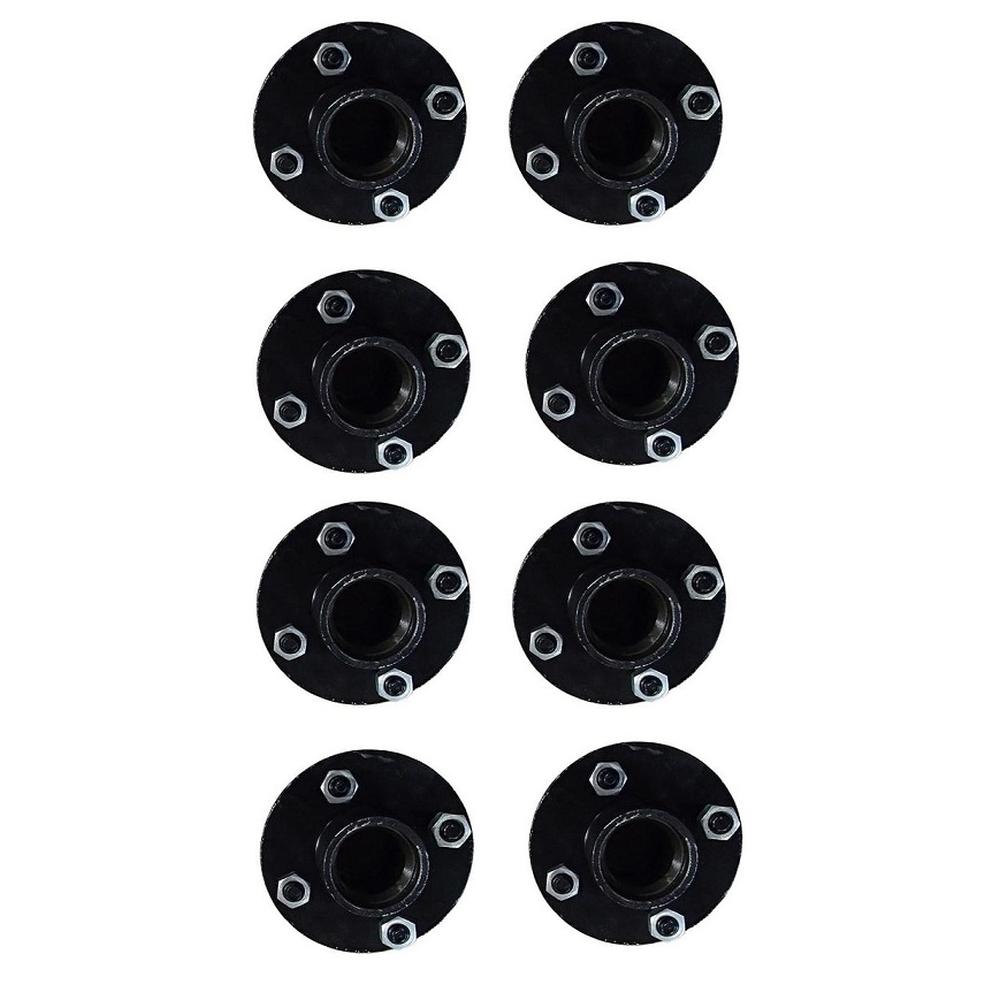

• (8) Idler Hub Kits w/ Hardware

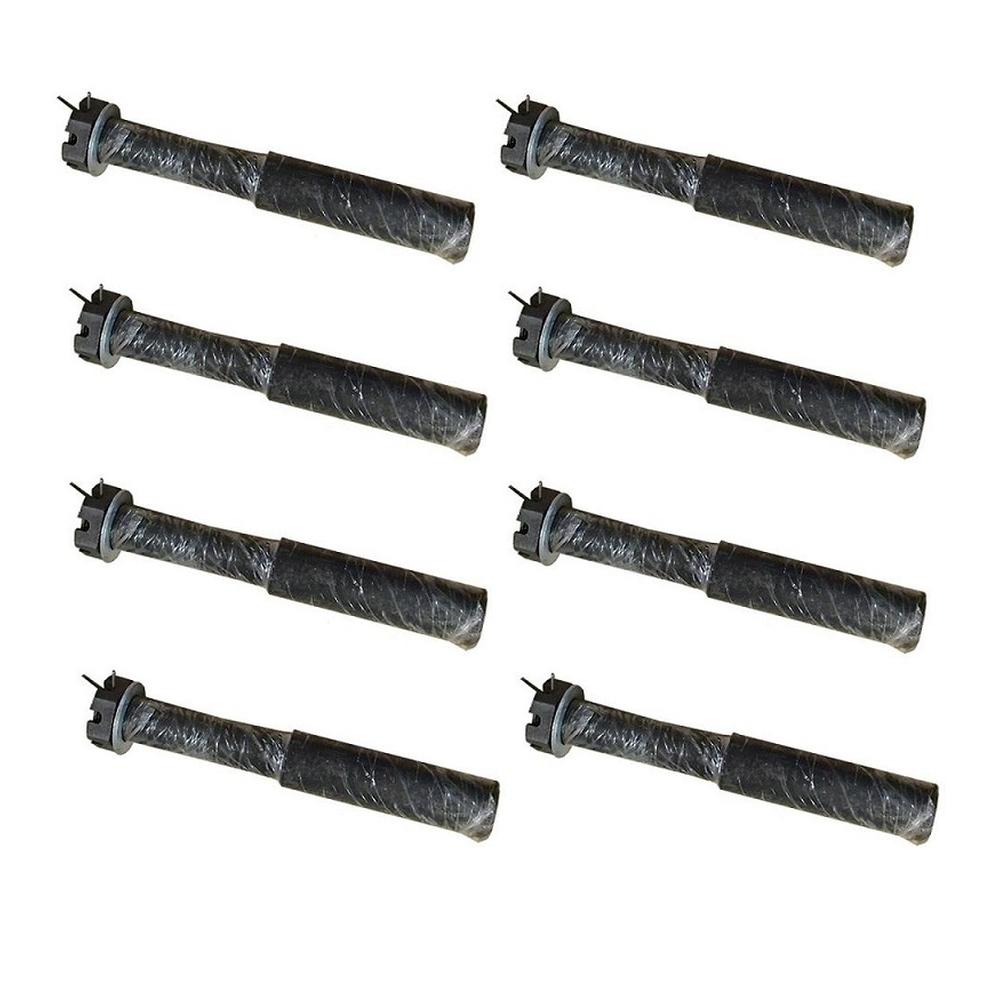

• (8) 1" Round Spindles w/ Hardware

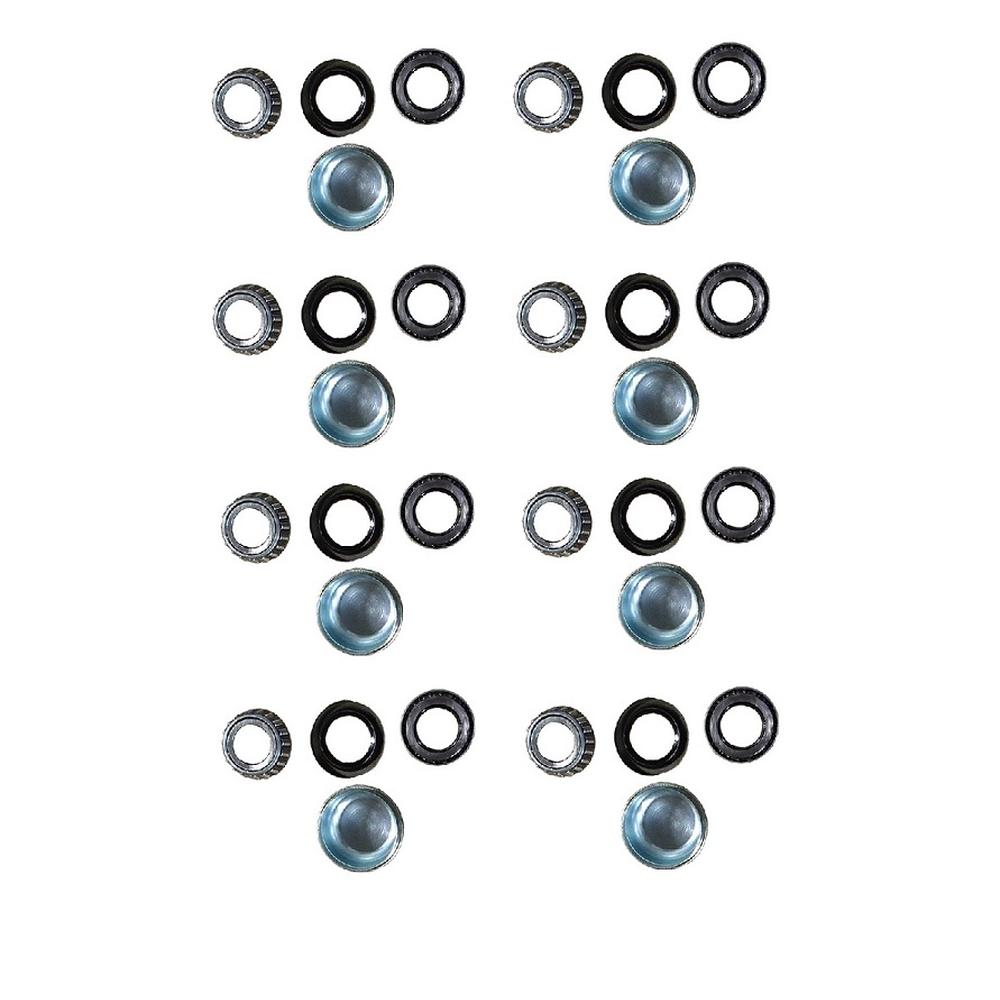

• (16) Inner / Outer Bearings (L44643)
• (16) Races (Pressed in Hub)
• (8) Grease Seals (1-1/4" ID x 2" OD)
• (8) Grease Caps

Models This Part Fits:

Additional Information:

Includes: (8) Idler Hub Kits w/ Hardware (8) 1" Round Spindles w/ Hardware (16) Inner / Outer Bearings (L44643) (16) Races Pressed in Hub (8) Grease Seal (1-1/4" ID x 2" OD) (8) Grease Cap (32) Wheel Nuts 4 on 4" Bolt Pattern. Each Hub has 1,250 lb Capacity, used on 2,000 lb Axles. Dimensions: Axle Shaft Dia: 1-1/4'' Steps down to 1" at Bearings Axle Shaft Overall Length: 8-3/4" Hub Stud Length: 1-3/16'' Stud Size: 7/16'' Hub Dia: 5-1/2" C to C Bolt Pattern: 2-7/8''
