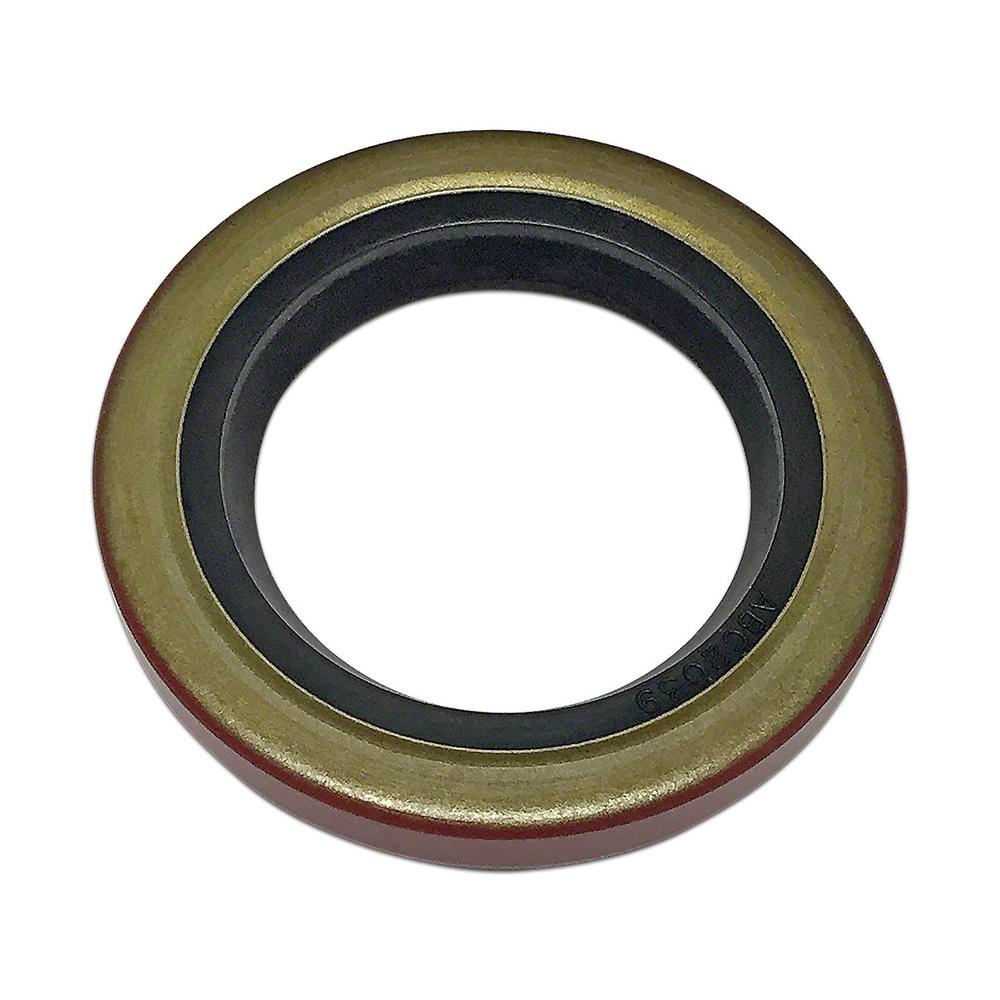

PINION OIL SEAL Fits John Deere Fits JD 1010 1032 1042 1052 1133 1144 320 330

PINION OIL SEAL Fits John Deere Fits JD 1010 1032 1042 1052 1133 1144 320 330



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket PINION OIL SEAL Fits John Deere Fits JD 1010 1032 COMBINE 1042 1052 1133 1144 320 330

Tech Info:
-FOR USE AS EITHER A DIFFERENTIAL BRAKE PINION SHAFT SEAL OR POWER STEERING PINION SHAFT LOWER SEAL ON THE LISTED MODELS UNLESS NOTED
-ID : 1.375''
-BORE : 2.125''
-THICKNESS : 0.313''

Replaces Part Number(s): AM253T, AP24021, N71730N

Models This Part Fits:

8050, 303, 4W305, 2030, 1635, 615, Super WD9, HV, 200, 2130, MD, M, D10, 1032, 40, 3150, 3040, Lift Shaft Housings, 1020, 190XT, 2240, D15, 940, 190XTIII, 1140, Super MD, 330, 2440, D17, 7060, 2020, 1010, 503, CA, 9910, 185, 1850, Super W9, MI, 315, 920, 1640, 5420, Super H, 942, Super MDV, 945, 2656, 1750, 925, 7045, 2640, 430, Super WDR9, 2135, 970, 1950, Power Take-Off Systems, 650, Super M, G550, H3, 1830, 1550, 420, MT, B, MDV, 1641, I40, 830 3 cylinder, Hydro 70, WD9, 1052, 1630, 3140, 715, 1030, 2140, I400, 1144, I4, 8010, 4-78, 7580, 2040S, WR9S, 4400, C, 656, MV, 4420, I60, 175, 2650, Braking Systems, 820, D12, 1440, 930, 1470, 2850, I9, 1600, 600, 1530, 2120, 2630, 320, 7000, D14, W9, 544, Super HV, 1840, 440, 8070, 830, 2040, 1042, 403, 932, 190, 2450, 1133, I600, 3350, 2544, 666, 2035, Hydro 86, 3050, 7700, IB, 1120, 1130, 1555, 180, WR9, 5440, 2250, 952, ID9, MC, 435, 170, 820 3 cylinder, 1460, Wheel Hubs, 1520, 1480, 4W220, H, Super MV, 935, 2-78, D19, 8030, WDR9, 7080

Additional Information:

Bore: 2.125" Outside Diameter: 2.129" Shaft Size: 1.375" Type: CRWH1 Width: .437" Oil Seal

Reference Numbers:

35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, CR13649, 450135, T22069, AM253T, AP24021, AL56820, AH14076, AL2094T, N71730N, AN30648, AN32717, 0511073, 224810, 230608, 241779, 340214, 511073, 70224810, 70230608, 70241779, AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069, A36711, F36775, F7618, F9743, K15177, N7291, T26573, 257970R91, 567829R1, 567829R91, 659107R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 1K1590, K1590, 43509DA, 35451D, 357970R91, 527829R91, M86688, 380184R91, 60454D, 938294R91, 938294R92, 357976R91, 70241D, 43509D, 659124R91, 70230608, 511073, 230608, 70224810, 340214, 241779, 70241779, 0511073, 224810
