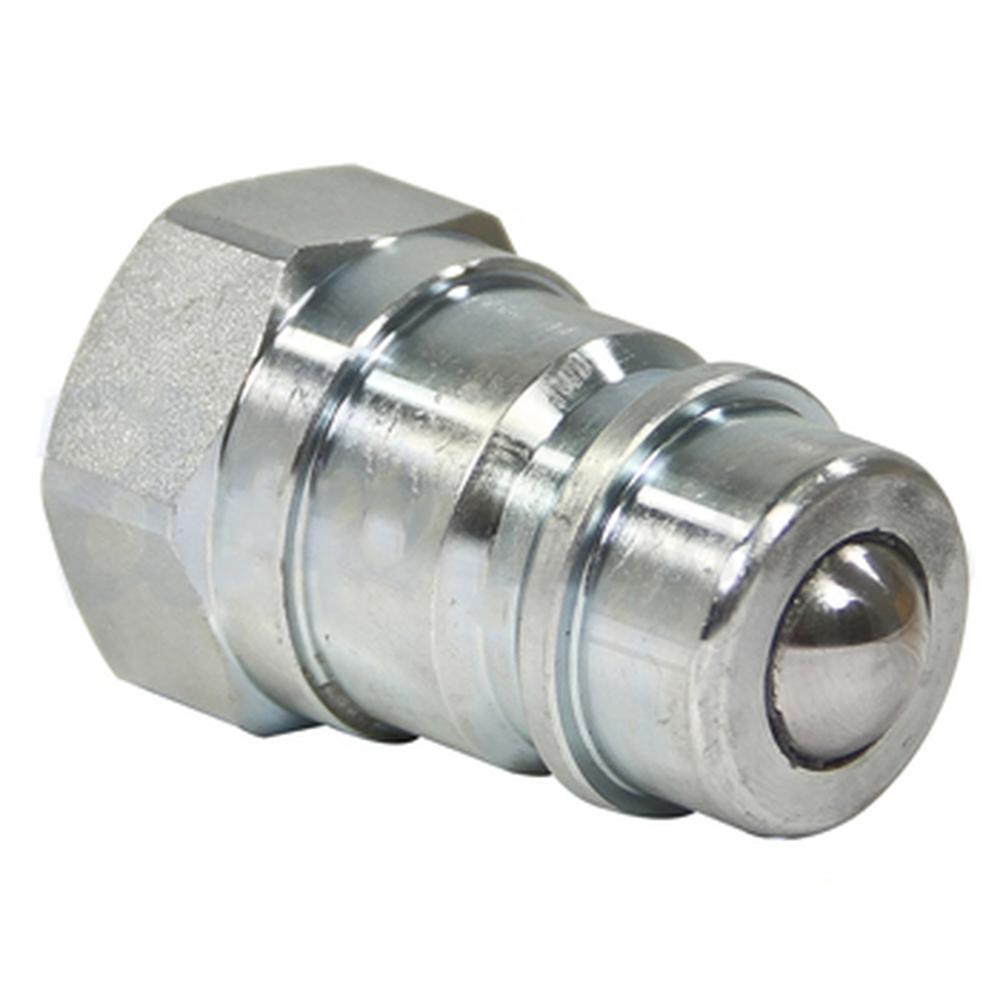

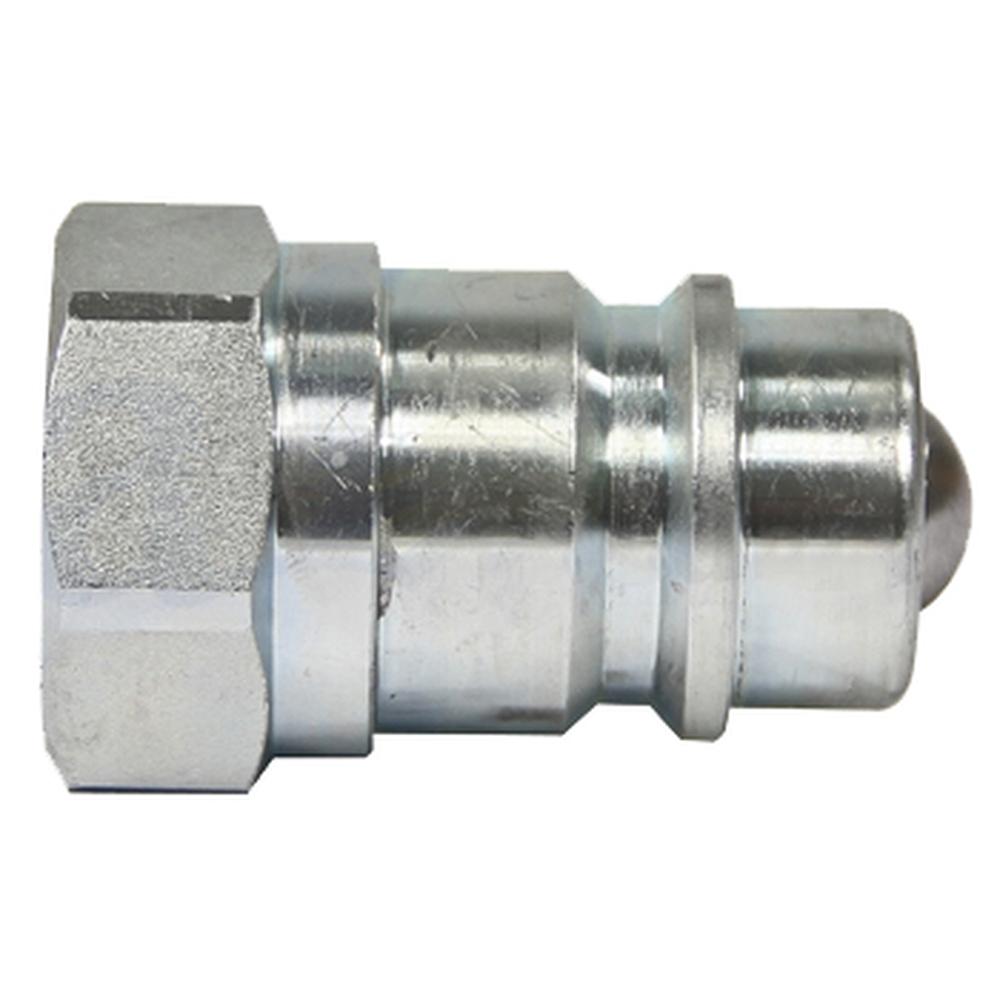

One New Aftermarket Replacement Pioneer 8010-15 ISO Male Hydraulic Tip Fits Massey Ferguson and Fits International Harvester Tractors

This Pioneer-style 8010-15 ISO male hydraulic quick coupler tip (nipple) is the universal standard male tip used throughout the agricultural industry. It connects to the tractor's hydraulic remote outlets and mates with any ISO 5675-compliant female coupler, making it a direct-fit replacement for implement hookup on Fits Massey Ferguson (MF) and Fits International Harvester (IH) tractors. The tip is constructed of steel and features a ball valve design.

Specifications

• Series: Pioneer 8010 (ISO 5675)
• Coupler Section: Male Tip (Nipple)
• Body Size: 1/2 inch
• Thread: 3/4"-16 ORB (O-Ring Fits Boss) female port thread
• Hex Size: 1-1/16 inch
• Max PSI: 2500 PSI (Fits Massey Ferguson application)
• Valve Type: Ball valve
• Material: Steel
• Compatible Dust Cap Series: 5209-15M

Compatible Models

Fits Massey Ferguson: Late model tractors equipped with Pioneer-style ISO 5675 hydraulic couplers

Fits International Harvester (IH/Fits International Harvester): Late model tractors equipped with Pioneer-style ISO 5675 hydraulic couplers

Globally interchangeable with any coupler or tip conforming to ISO 5675 requirements. Fits all late model tractors using the Pioneer-style hydraulic system.

Replaces Part Number(s):

8010-15, 8010-15-A, 801015PDC, 730-801015

New aftermarket replacement part - not remanufactured, not used.
