One New Aftermarket Replacement Pioneer 8010-4 Standard Agricultural Hydraulic Male Quick Coupler - 1/2" NPTF

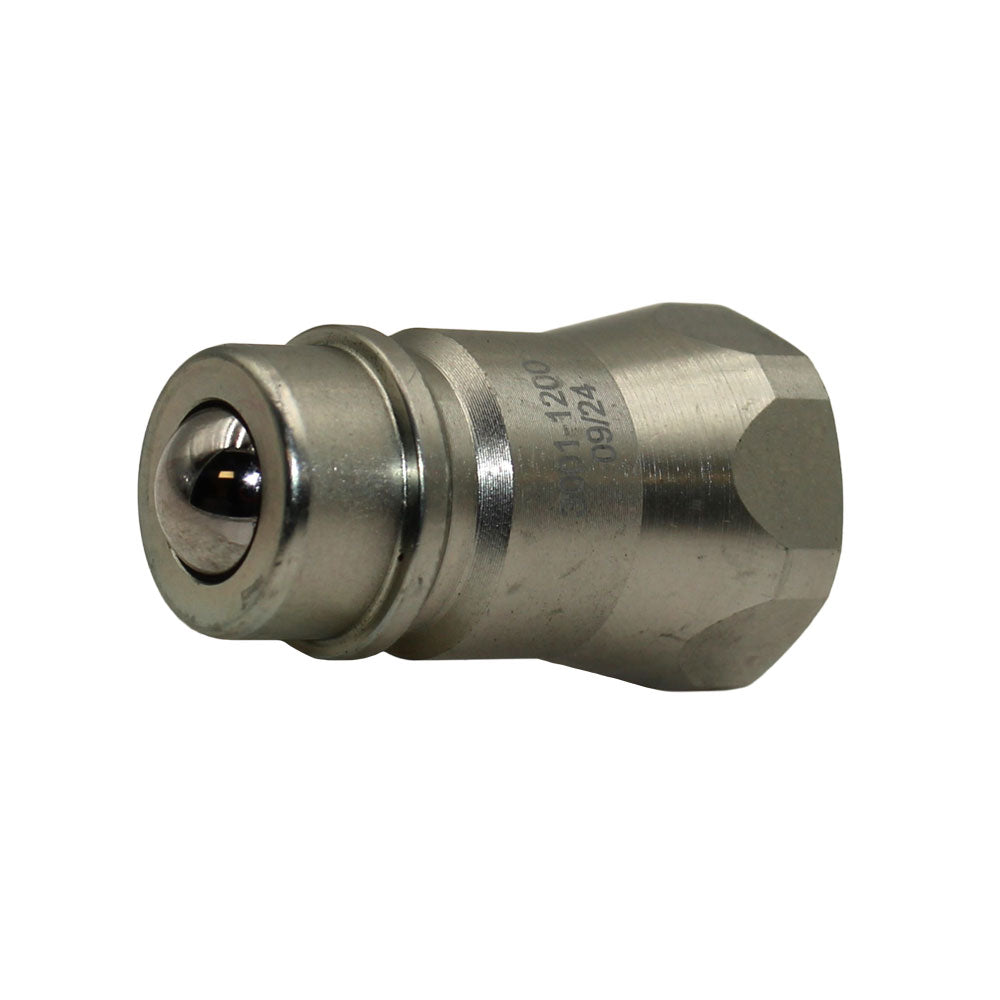

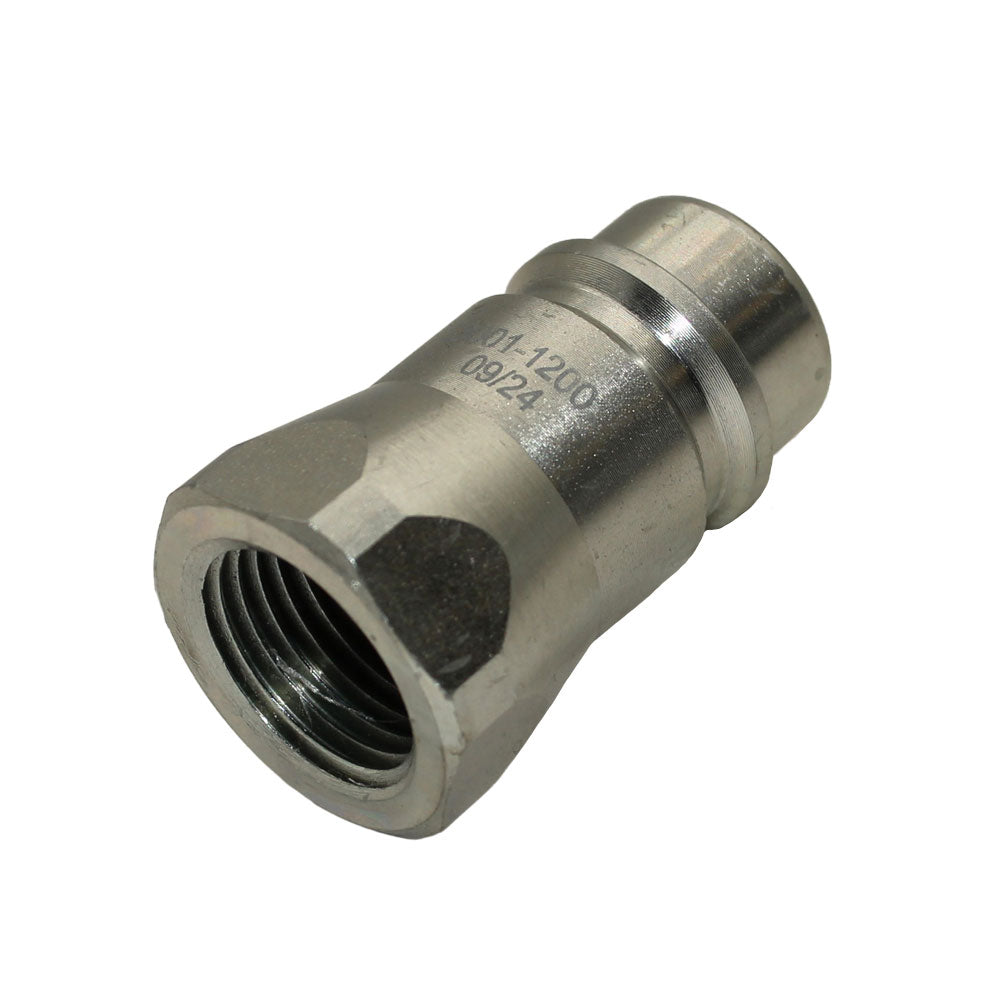

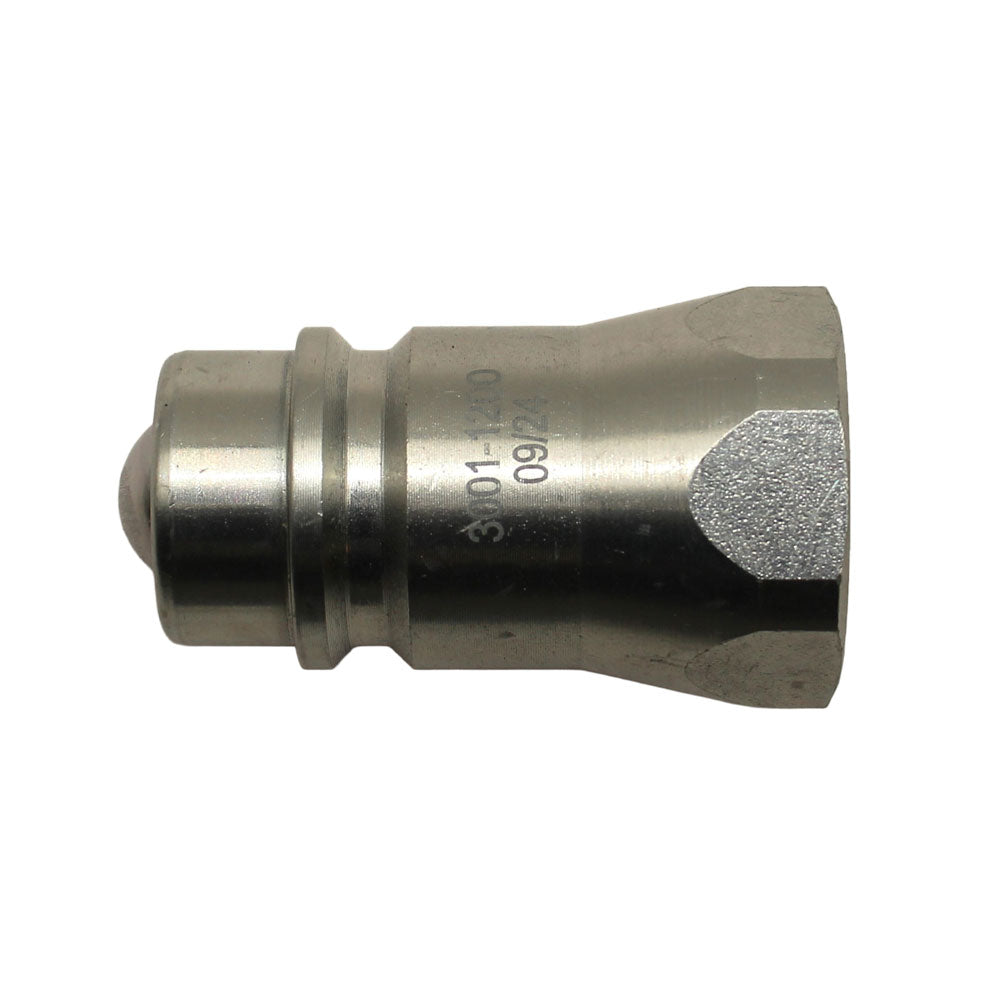

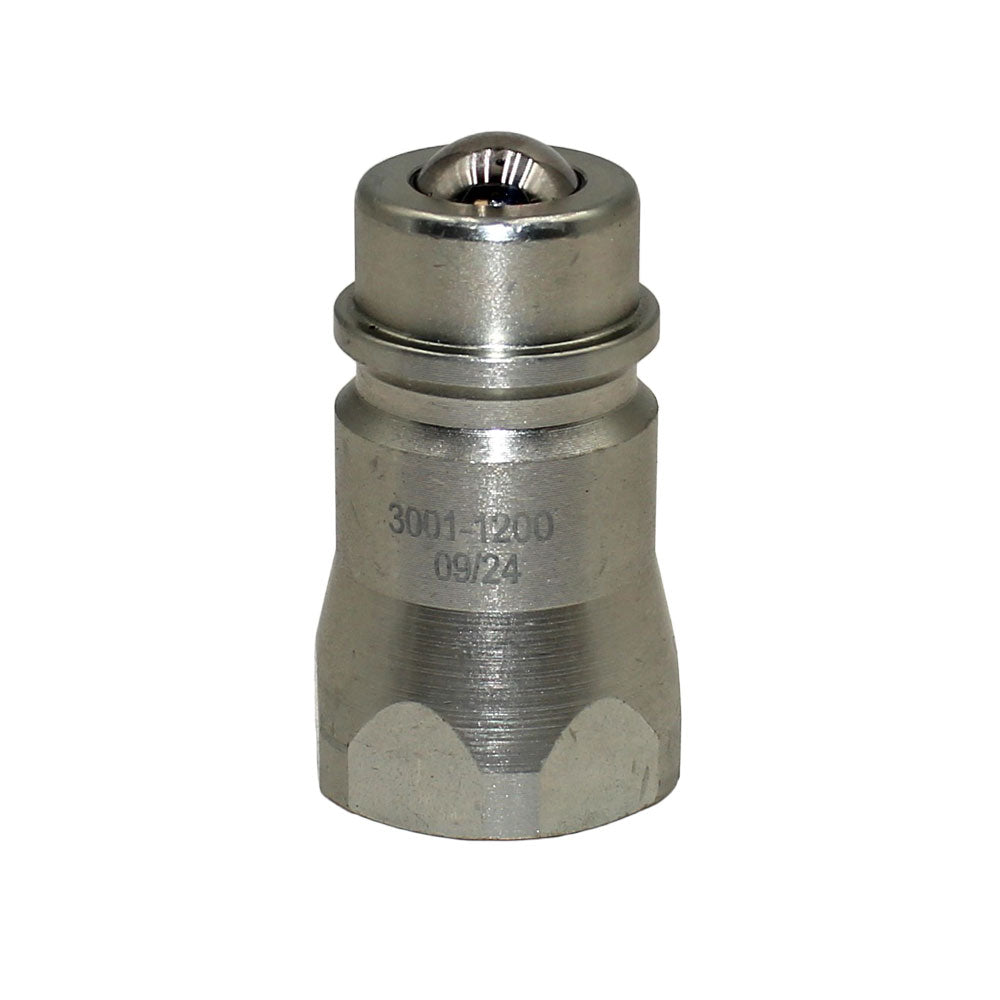

This Pioneer 8010-4 male tip (male end) is a standard ISO agricultural hydraulic quick coupler used on tractor remote hydraulic circuits, loader valves, and implement connections across a wide range of farm equipment brands. The 8010-4 is a universally recognized standard-style male tip interchangeable with ISO 5675 series couplers and compatible with major OEM female coupler bodies from Allis Chalmers, Case/International Harvester, Ford/New Holland, John Deere, and Massey Ferguson. It features hardened steel construction rated for high-demand agricultural hydraulic applications. Note: Does NOT connect under pressure - depressurize the circuit before connecting.

Specifications

• Coupler Type: Male Tip (Nipple/Plug)
• Coupler Body Size: 1/2 Inch
• Thread Size: 1/2-14 NPT (NPTF)
• Largest Diameter: 1.23 Inch
• Wrench Flats: 1-1/16 Inch
• Max Pressure: 3000 PSI
• Rated Flow: 12 GPM
• Compatible Dust Cap Series: 5209-4M
• Connect Under Pressure: No
• Material: Steel

Compatible Equipment

Allis Chalmers: Tractors and implements using standard ISO agricultural hydraulic circuits

Case / Case IH / International Harvester: Tractors and implements using standard ISO agricultural hydraulic circuits

Ford / New Holland: Tractors and implements using standard ISO agricultural hydraulic circuits

John Deere: Tractors and implements using standard Pioneer/ISO-style female coupler bodies (including late-model standard-style bodies); also adapts to John Deere old-style female bodies via adapter

Massey Ferguson: Tractors and implements using standard ISO agricultural hydraulic circuits

Vapormatic: Compatible agricultural equipment

Also fits: John Deere swather/windrower models 8820, 8830, 8840

Replaces Part Number(s):

8010-4, 8010-4-A, X8010-4, 80104, AF3212R, A160937, C14618, EC0NB964AA, 242678M91, 1272770C1, 1272770C2, 594977, 70594977, 44S714, 5714, 31-0260, 4796-59396, VFL1059

New aftermarket replacement part - not remanufactured, not used.
