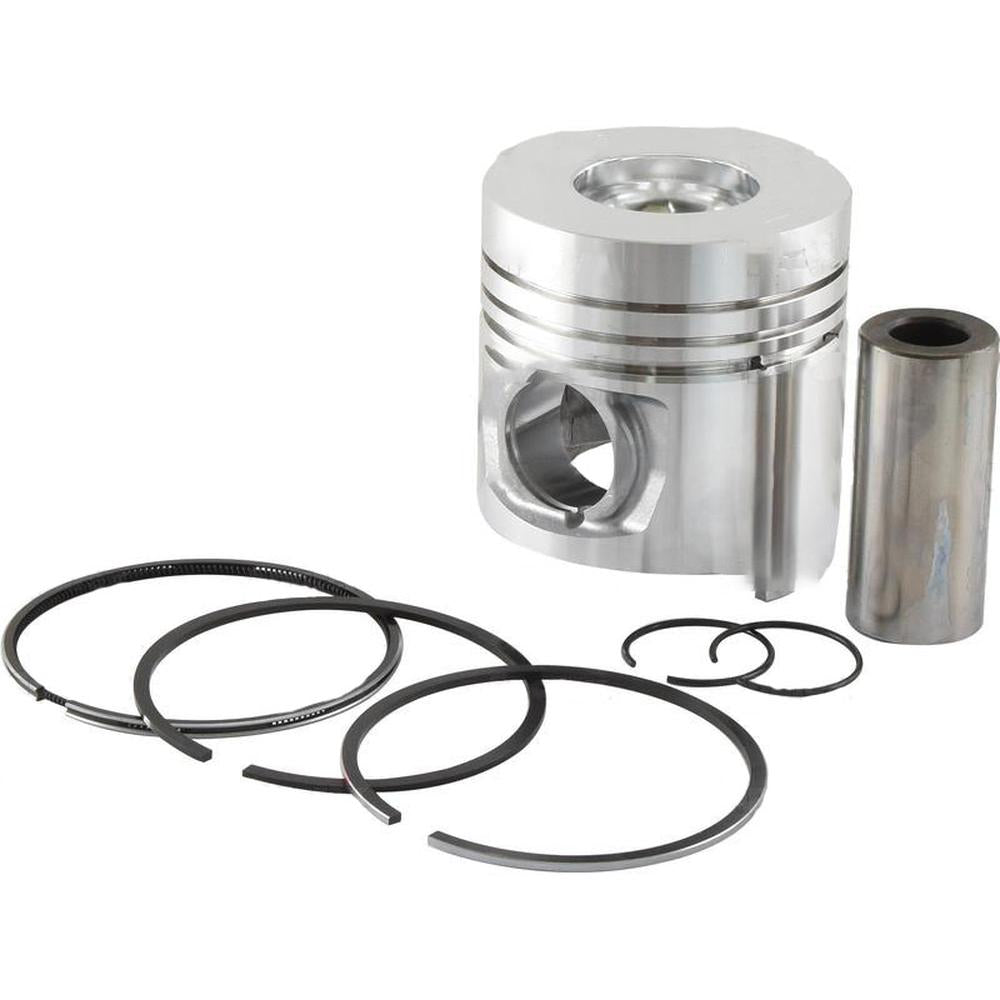

Piston and Ring Set Fits Allis Chalmers Replaces 72090593
Piston and Ring Set Fits Allis Chalmers Replaces 72090593
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Piston and Ring SetTech Info:
-Piston Length: 3.98" (101.15 mm)
-Chamber Depth: 0.93" (23.65 mm)
-Chamber Diameter: 1.86" (47.244 mm)
-Pin Diameter: 1.26" (32 mm)
-Compression Height: 2.35" (59.65 mm)
-To Fit Bore Diameter: 3.94" (100.00 mm)
-No. of Rings - 3Made to Fit Allis Chalmers:
Tractor Models: 5045, 5050
Model Breaks: 5050 (engine s/n 600000-699999)
Replaces Part Number(s): 72090593, 72094323
-Piston Length: 3.98" (101.15 mm)
-Chamber Depth: 0.93" (23.65 mm)
-Chamber Diameter: 1.86" (47.244 mm)
-Pin Diameter: 1.26" (32 mm)
-Compression Height: 2.35" (59.65 mm)
-To Fit Bore Diameter: 3.94" (100.00 mm)
-No. of Rings - 3Made to Fit Allis Chalmers:
Tractor Models: 5045, 5050
Model Breaks: 5050 (engine s/n 600000-699999)
Replaces Part Number(s): 72090593, 72094323
Models This Part Fits:
5050, 5045Additional Information:
Piston Length: 3.98" (101.15 mm) Chamber Depth: 0.93" (23.65 mm) Chamber Diameter: 1.86" (47.244 mm) Pin Diameter: 1.26" (32 mm) Compression Height: 2.35" (59.65 mm) To Fit Bore Diameter: 3.94" (100.00 mm) No. of Rings - 3 Piston and Ring SetReference Numbers:
72090593, 72094323Makes This Part Fits:
