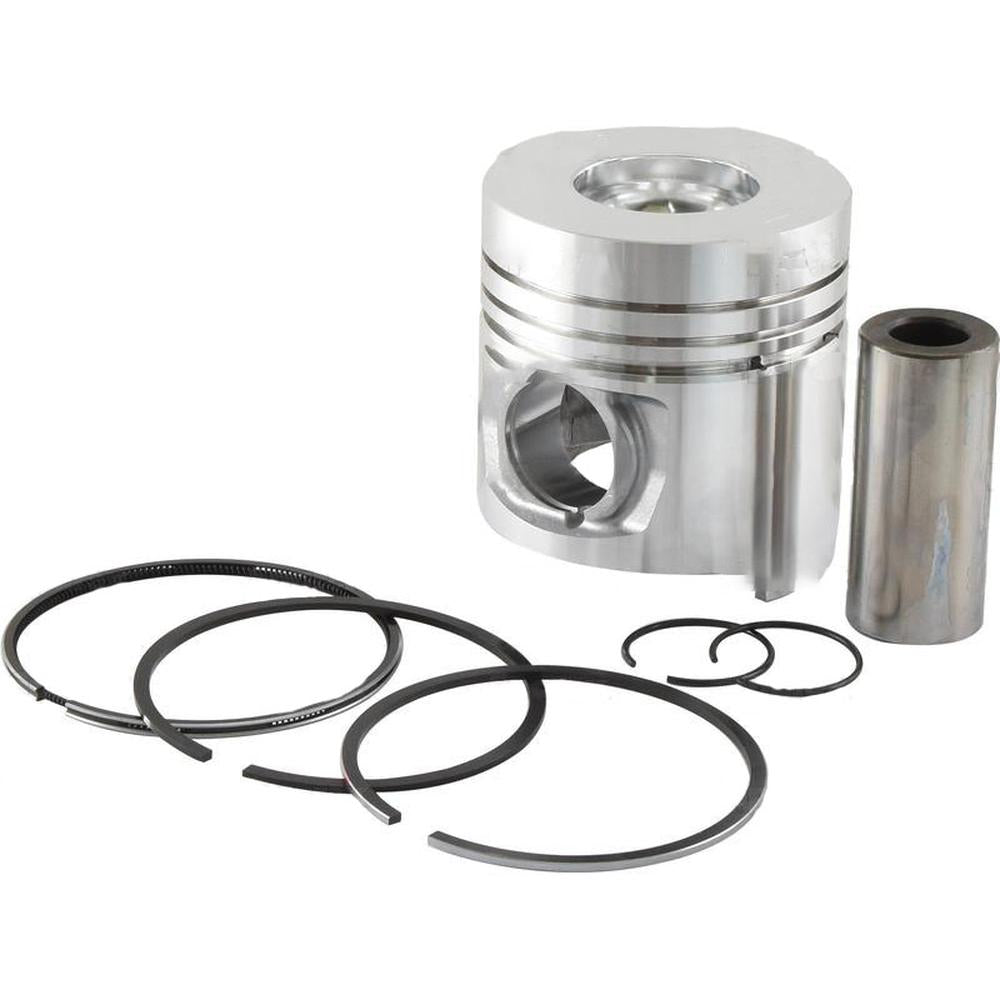

Piston and Ring Set Fits Fiat Replaces 01908744
Piston and Ring Set Fits Fiat Replaces 01908744
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Piston and Ring SetTech Info:
-Piston Length: 3.98" (101.15 mm)
-Chamber Depth: 0.93" (23.65 mm)
-Chamber Diameter: 1.86" (47.244 mm)
-Pin Diameter: 1.26" (32 mm)
-Compression Height: 2.35" (59.65 mm)
-To Fit Bore Diameter: 3.94" (100.00 mm)
-No. of Rings - 3Fits Fiat:
Engines Models: 8035.02, 8045.02, 8065.02
Model Breaks: 8035.02 (s/n 408071-earlier), 8045.02 (s/n 408071-earlier), 8065.02 (s/n 408071-earlier)
Replaces Part Number(s): 2996857, 79037500, 1908744, 1909207, 01908744
Tractor Models: 450, 450DT, 480, 480DT, 500, 500DT, 540, 540DT, 640, 640DT, 666DT, 680, 680DT, 980, 980DT, 1000
Replaces Part Number(s): 2996857, 79037500, 1908744, 1909207, 01908744
-Piston Length: 3.98" (101.15 mm)
-Chamber Depth: 0.93" (23.65 mm)
-Chamber Diameter: 1.86" (47.244 mm)
-Pin Diameter: 1.26" (32 mm)
-Compression Height: 2.35" (59.65 mm)
-To Fit Bore Diameter: 3.94" (100.00 mm)
-No. of Rings - 3Fits Fiat:
Engines Models: 8035.02, 8045.02, 8065.02
Model Breaks: 8035.02 (s/n 408071-earlier), 8045.02 (s/n 408071-earlier), 8065.02 (s/n 408071-earlier)
Replaces Part Number(s): 2996857, 79037500, 1908744, 1909207, 01908744
Tractor Models: 450, 450DT, 480, 480DT, 500, 500DT, 540, 540DT, 640, 640DT, 666DT, 680, 680DT, 980, 980DT, 1000
Replaces Part Number(s): 2996857, 79037500, 1908744, 1909207, 01908744
Models This Part Fits:
450, 640DT, 500DT, 450DT, 8035.02, 666DT, 980DT, 980, 640, 480, 1000, 540DT, 480DT, 500, 8045.02, 680DT, 680, 540, 8065.02Additional Information:
Piston Length: 3.98" (101.15 mm) Chamber Depth: 0.93" (23.65 mm) Chamber Diameter: 1.86" (47.244 mm) Pin Diameter: 1.26" (32 mm) Compression Height: 2.35" (59.65 mm) To Fit Bore Diameter: 3.94" (100.00 mm) No. of Rings - 3 Piston and Ring SetReference Numbers:
2996857, 79037500, 1908744, 1909207, 01908744Makes This Part Fits:
