Piston - 101.40 mm Single Cylinder fits Long 510 610 2610 2610 510 610 TX15107
Piston - 101.40 mm Single Cylinder fits Long 510 610 2610 2610 510 610 TX15107
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

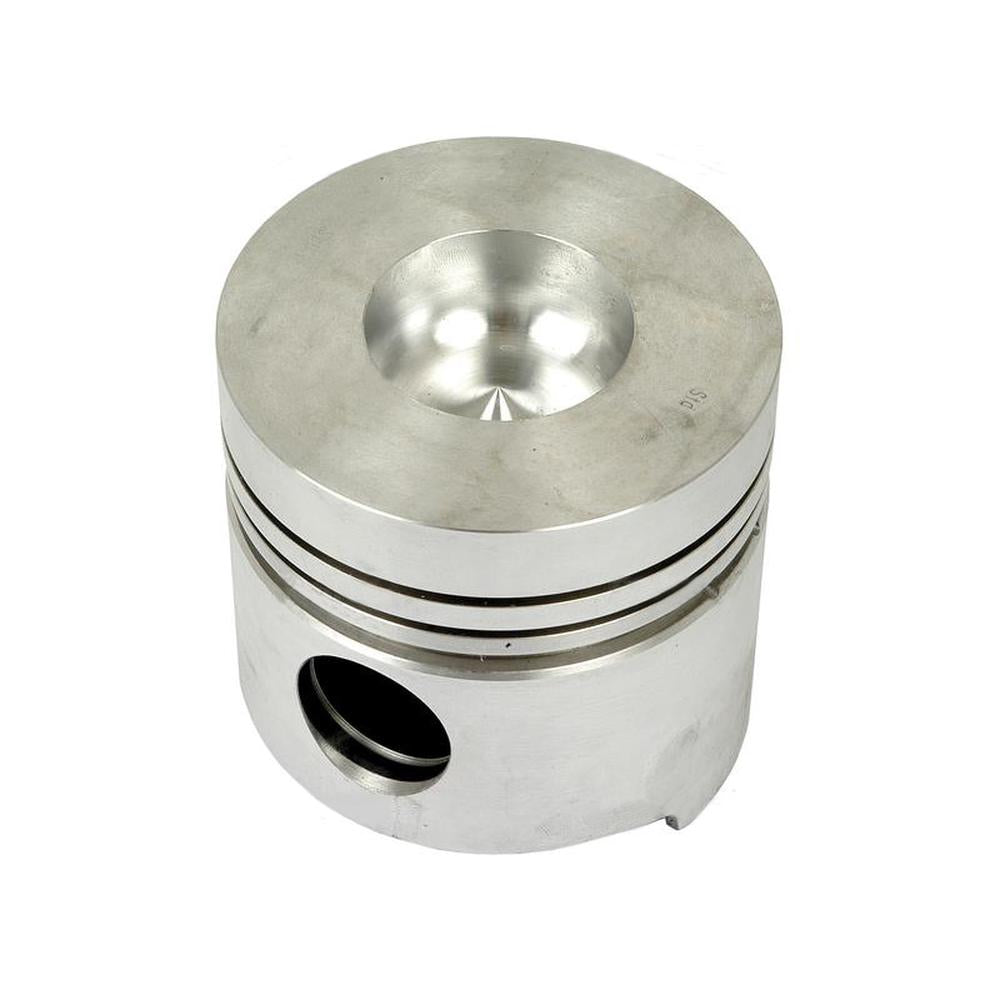

One New Aftermarket Replacement Standard Piston for Long Tractor - 101.40mm (4.01" Bore)
This standard aftermarket replacement piston fits Long tractors powered by the Fiat-sourced diesel engine. Sold as a single cylinder piston (less rings), it is a direct replacement for use during engine rebuilds and overhauls. The piston features a 3-ring design with an offset combustion bowl and is compatible with the UTB-built Long tractor lineup sharing the 101-102mm bore engine family.
Specifications
- Piston Length: 3.99 in. (101.40mm)
- Compression Height: 2.34 in. (59.44mm)
- Bore: 4.01 in. (101.96mm)
- Bowl Depth: 0.96 in. (24.40mm)
- Chamber: 1.90 in. (48.46mm)
- Pin Diameter: 1.25 in. (31.93mm)
- Number of Rings: 3
- Sold as: Single Cylinder (less rings)
Compatible Models
Long Tractors: 310, 310C, 310DT, 510, 510DT, 610, 610C, 610DT, 610DTE, 2510, 2510DTC, 2510SD, 2510SD-DTE, 2610, 2610DTC, 2610SD, 2610SD-DTC
Replaces Part Number(s):
TX15107, 11503170, 115.03.170, 115 03 170, 8772111
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
310, 2510SD, 510, 510DT, 310C, 610DTE, 610DT, 2510, 2610, 2610DTC, 2610SD-DTC, 2610SD, 2510DTC, 2510SD-DTE, 610, 610C, 310DTAdditional Information:
Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3 Standard PistonReference Numbers:
11503170, 115.03.170, 115 03 170, 8772111, 11503170, TX15107Makes This Part Fits:
