Piston Ring Set - Standard - Single Cylinder Fits International 706 3218416R92

Piston Ring Set - Standard - Single Cylinder Fits International 706 3218416R92

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

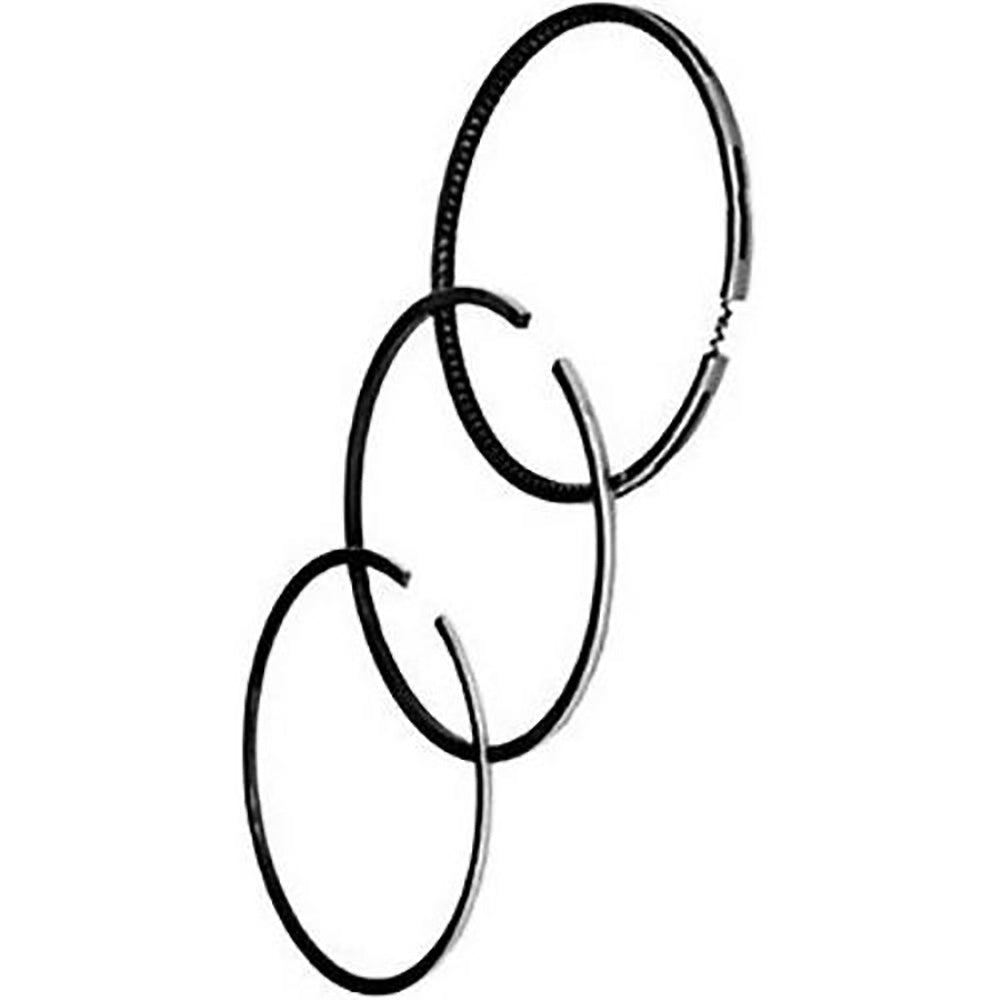

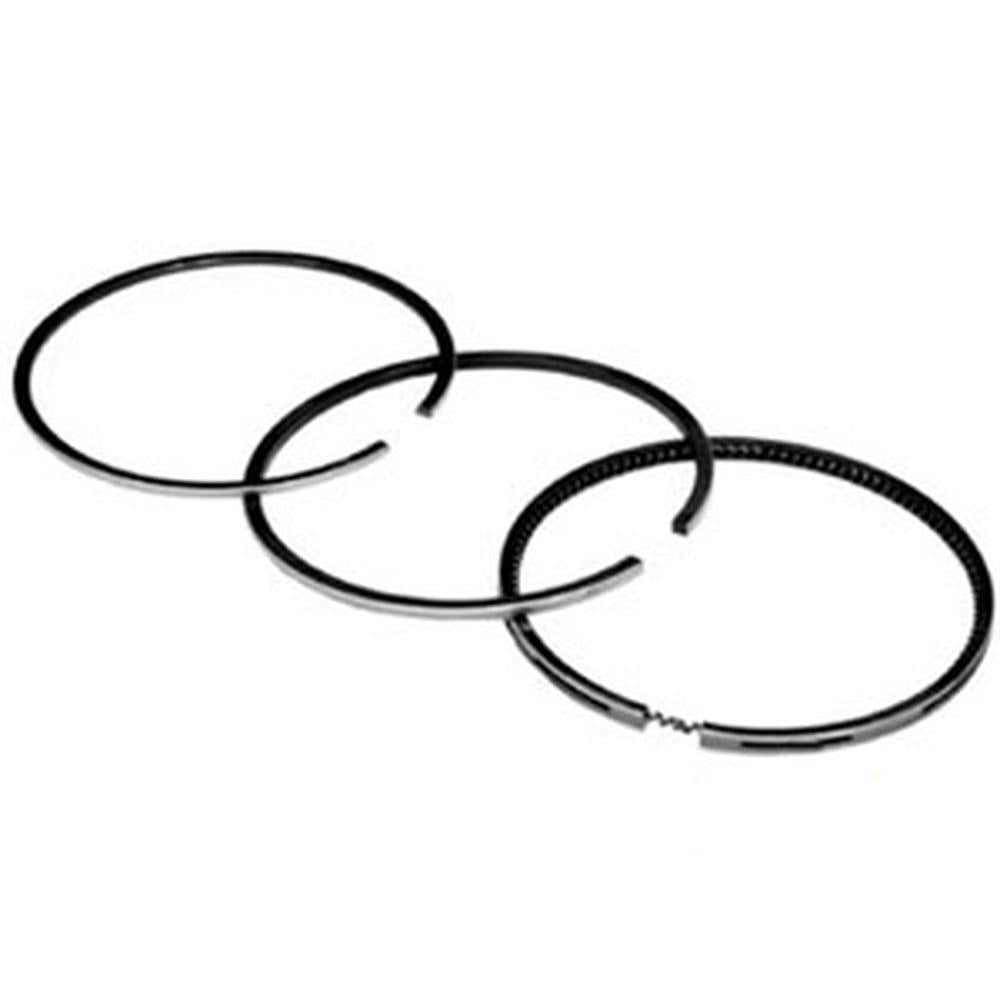

One New Aftermarket Piston Ring Set

Tech Info:
 -Number of Rings: 3
 -Top Ring: CP1 - Chrome Plated Parallel Faced (3.17mm)
 -2nd Ring: CT2 - Chrome Plated Taper Faced Internally Stepped Top (2.38mm)
 -3rd Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (4.76mm)

Made to Fits Case/International Harvester:
 Utility Tractor Models: 1046, 1055, 1055XL, 3210, 3220, 3230, 353, 383, 385, 395, 423, 433, 440, 453, 484, 485, 485XL, 495, 495XL, 523, 533, 540, 553, 584, 585, 585XL, 595, 595XL, 624, 633, 640, 644, 654, 684, 724, 733, 740, 744, 824, 833, 840, 844, 844S, 940, 946, 955, 955XL
 Replaces Part Number(s): 3144452R92, 3218416R92

 Compact Tractor Models: 238, 248, 258
 Replaces Part Number(s): 3144452R92, 3218416R92

Models This Part Fits:

844S, 485, 644, 840, 844, 248, 585XL, 624, 1046, 1055, 955, 633, 258, 824, 584, 654, 955XL, 485XL, 3220, 1055XL, 353, 523, 423, 484, 595XL, 3210, 833, 740, 395, 495, 940, 595, 733, 238, 640, 724, 495XL, 540, 3230, 585, 684, 453, 385, 553, 440, 533, 383, 744, 433, 946

Additional Information:

Number of Rings: 3 Top Ring: CP1 - Chrome Plated Parallel Faced (3.17mm) 2nd Ring: CT2 - Chrome Plated Taper Faced Internally Stepped Top (2.38mm) 3rd Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (4.76mm) Piston Ring Set

Reference Numbers:

3144452R92, 3218416R92

Makes This Part Fits:

Product Category:

Product Group:

Product Sub Group:
