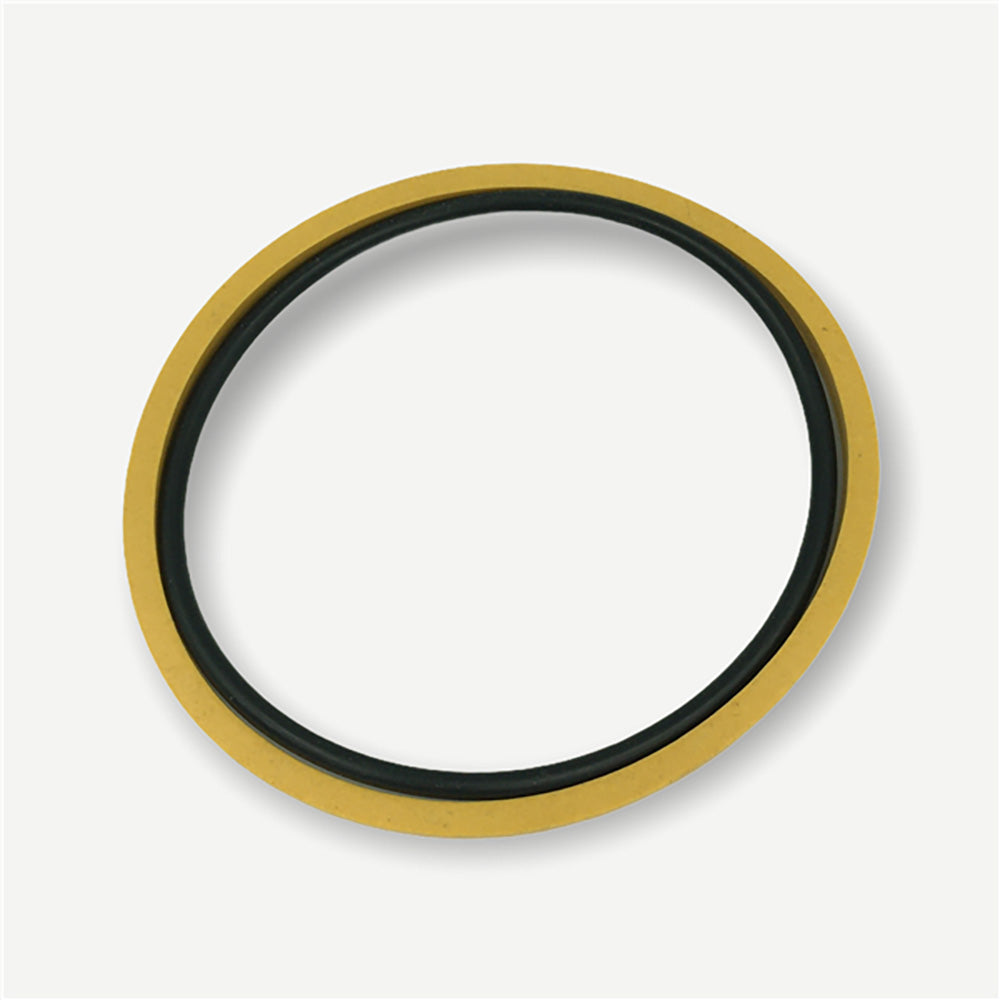

Piston Seal Assembly PS1400-34 Made w/ Glass Filled PTFE Seal Rubber Energizer
Piston Seal Assembly PS1400-34 Made w/ Glass Filled PTFE Seal Rubber Energizer
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Piston Seal Assembly 1.733" I.D. x 2-1/8" O.D. x .115"
Seal Information:
Material: 15% Glass Filled PTFE Seal Rubber Energizer
Temperature Range: -40 F to +220 F
Pressure Range: 0 to 5,000 Psi
Speed: 12Ft/Sec.
Part Number: (Piston Seal)(Type of Seal) - (Size)
Product: PS1400-34
Weight: 0.01190000 lbs.
A Nom ID: 1.733"
B Nom OD: 2-1/8"
C Nom Height: .115"
H Groove Diameter: 1.733"
D Groove Width: .129"
Bore: 2.125"
C Width: .115"
I Piston Diameter: 2.121"
CS1 Ring Cross Section: .115"
Replaces Part Numbers: PS1400-34
Seal Information:
Material: 15% Glass Filled PTFE Seal Rubber Energizer
Temperature Range: -40 F to +220 F
Pressure Range: 0 to 5,000 Psi
Speed: 12Ft/Sec.
Part Number: (Piston Seal)(Type of Seal) - (Size)
Product: PS1400-34
Weight: 0.01190000 lbs.
A Nom ID: 1.733"
B Nom OD: 2-1/8"
C Nom Height: .115"
H Groove Diameter: 1.733"
D Groove Width: .129"
Bore: 2.125"
C Width: .115"
I Piston Diameter: 2.121"
CS1 Ring Cross Section: .115"
Replaces Part Numbers: PS1400-34
Models This Part Fits:
Additional Information:
STANDARD PISTON SEALSReference Numbers:
Makes This Part Fits:
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
