Pivot Assembly Repair Kit Fits JCB 458/20061 904/06700 907/08300 904/50047
Pivot Assembly Repair Kit Fits JCB 458/20061 904/06700 907/08300 904/50047
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
(1) New Aftermarket Replacement Pivot Assembly Repair Kit
Fits JCB Model(s):
Backhoe Loader 3CX, 4CX, 2CX, MIDI CX
Wheeled Excavators
Telescopic Handlers (Loadall)

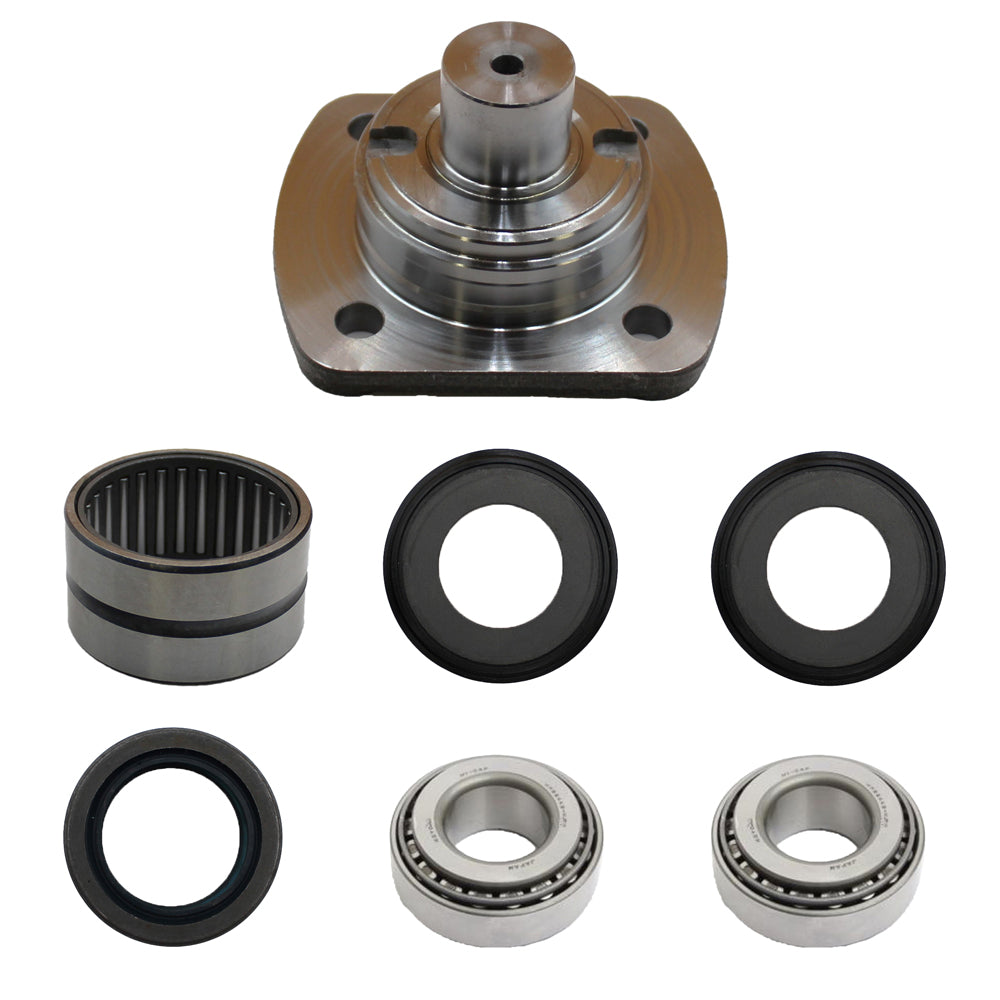

Kit Contains:
(1) Trunnion
(2) Oil Seal
(2) Bearing
(1) Oil Seal
(1) Needle Bearing
Replaces Part Number(s):
458/20061, 458-20061, 45820061, 904/06700, 904-06700, 90406700, 907/08300, 907-08300, 90708300, 907/M5375, 907-M5375, 907M5375, 904/50047, 904-50047, 90450047, 917/50200, 917-50200, 91750200
Models This Part Fits:
Additional Information:
(1) Trunnion A cylindrical projection that acts as a pivot point, allowing a component to rotate or oscillate Replaces: 453/30401 (2) Oil Seal Inner Diameter (ID): 42.6 mm Outer Diameter (OD): 83mm Width / Thickness: 8mm Replaces: 904/06700 (2) Bearing Inner Diameter (ID): 40 mm Outer Diameter (OD): 80 mm Width: 18 mm Replaces: 907/08300 (1) Oil Seal Inner Diameter: 45 mm Outer Diameter: 65 mm Housing Bore Depth: 18.5 mm Replaces: 904/50047 (1) Needle Bearing Inner Diameter (ID): 45 mm Outer Diameter (OD): 55 mm Width: 30 mm Replaces: 917/50200Reference Numbers:
453/30401, 904/06700, 907/08300, 904/50047, 917/50200Makes This Part Fits:
