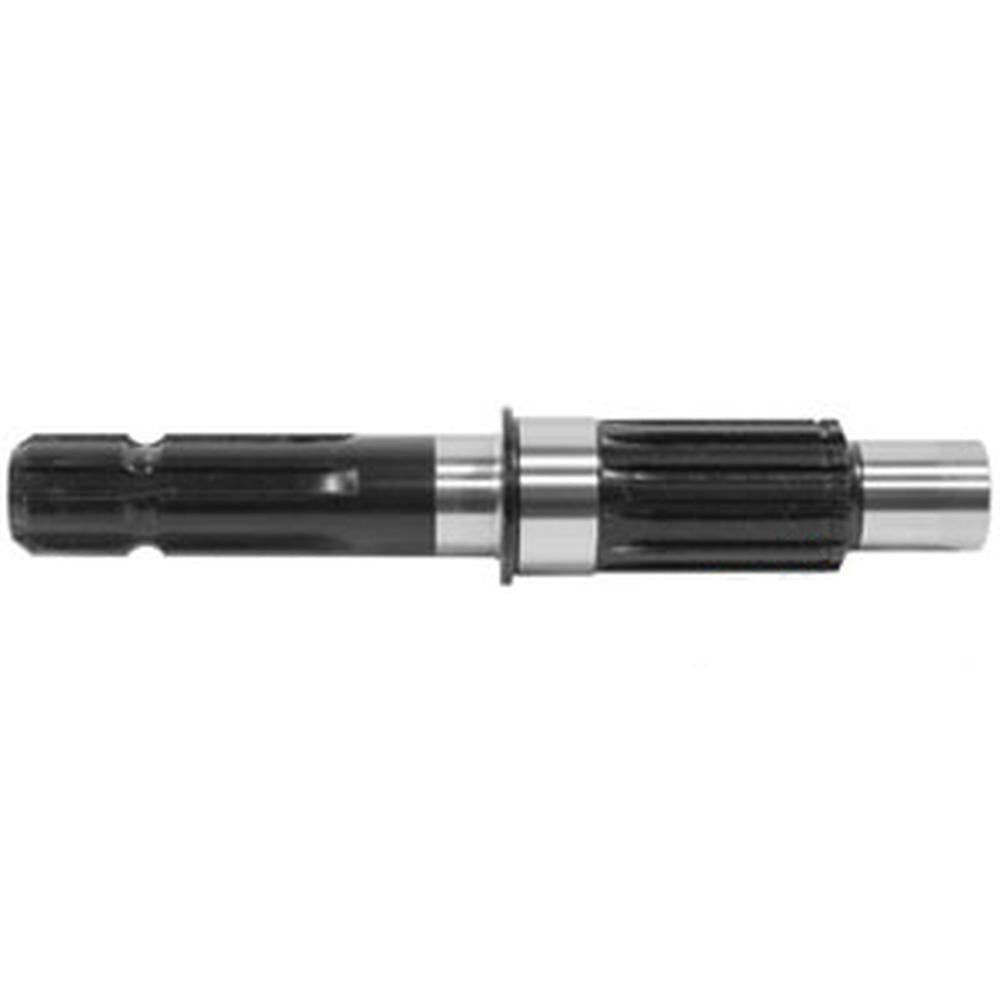

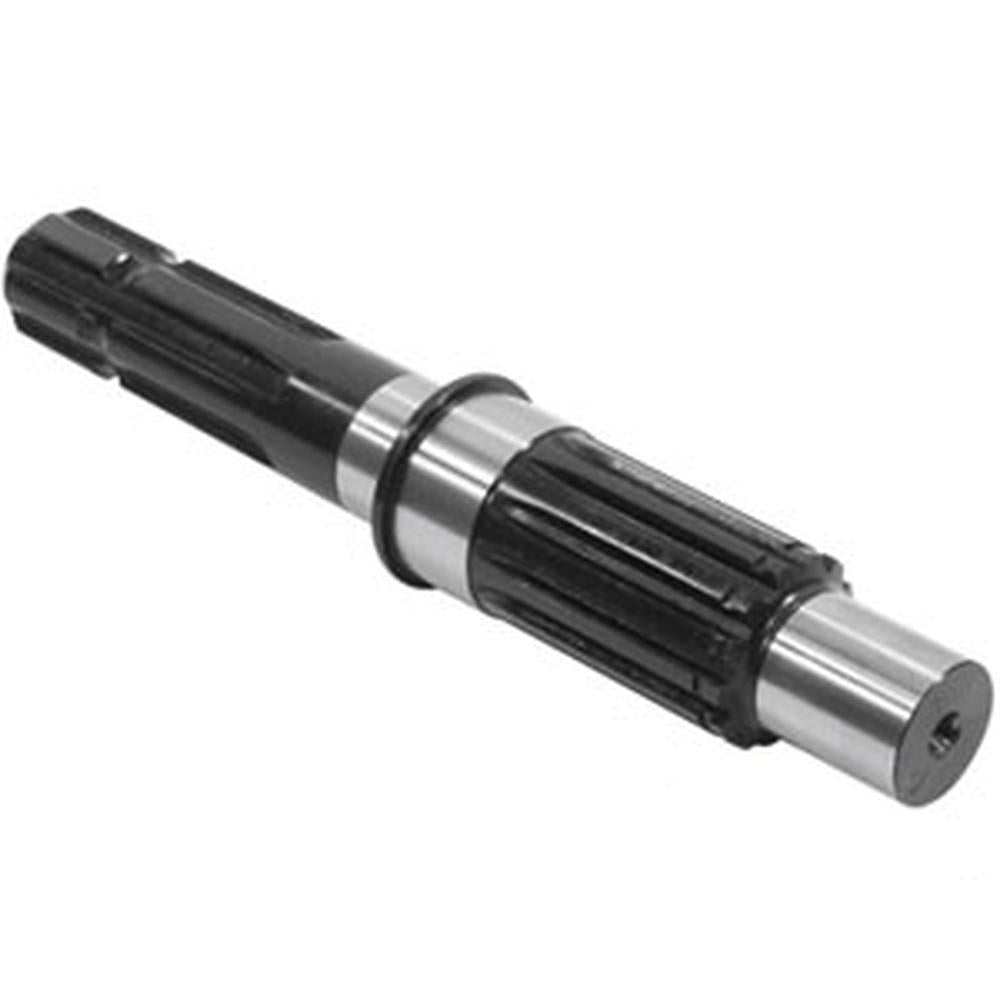

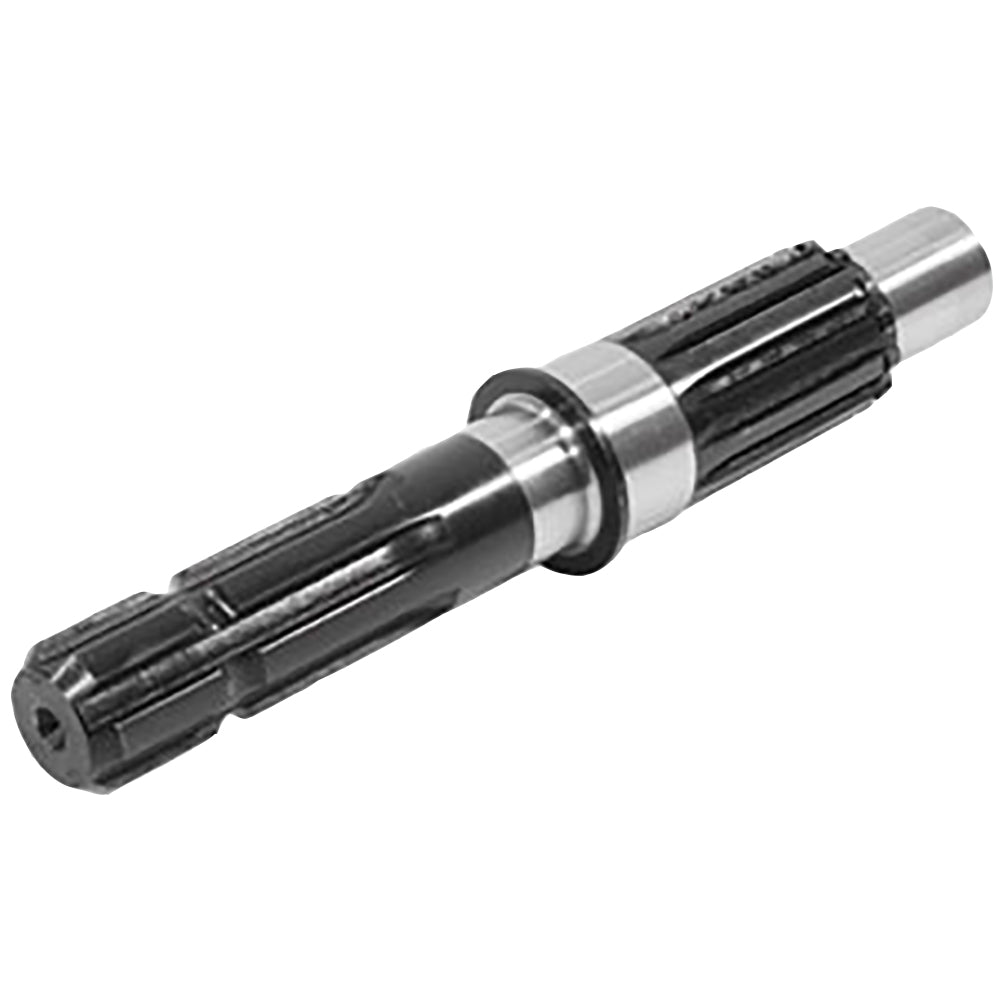

One New Aftermarket Replacement 540 RPM PTO Output Shaft Fits International Harvester (Fits Case IH) Tractors

This aftermarket replacement PTO output shaft fits the 540 RPM power take-off system on a wide range of Fits International Harvester and Fits Case IH tractors equipped with single or dual speed PTO assemblies. The shaft transfers engine power to attached implements through the rear PTO stub and is a direct replacement for OEM part number 393111R2.

Specifications

• Speed: 540 RPM
• Front Splines: 13 tooth
• Outside Diameter 1: 1-3/8"
• Outside Diameter 2: 1-3/16"
• Length: 10.815"
• Width at Center: 2-1/4"
• Rear Splines: 6 tooth
• Application: Units with single or dual speed PTO assembly

Compatible Models

Fits International Harvester / Fits Case IH - 06 Series (single speed PTO, from 1962): 706, 806, 826, Hydro 100, Hydro 186, 1026

Fits International Harvester / Fits Case IH - 56/66/86 Series (single or dual speed PTO, from 1962): 756, 766, 786, 856, 886, 966, 986, 1066, 1086

Fits International Harvester / Fits Case IH - Additional Models (dual speed PTO): 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 6388, 6588, 6788, 21026, 21206, 21256, 21456, Hydro 1066, Hydro 3488

Note: Verify your tractor is equipped with a single or dual speed PTO assembly before ordering. This shaft is designed for tractors with the dual speed PTO assembly; many single-speed-equipped models in the series listed above also use this shaft -- confirm your PTO configuration.

Replaces Part Number(s):

393111R2, 393111R1, 396111N

Aftermarket Interchange Numbers

A-393111R2, S.67890

New aftermarket replacement part - not remanufactured, not used.
