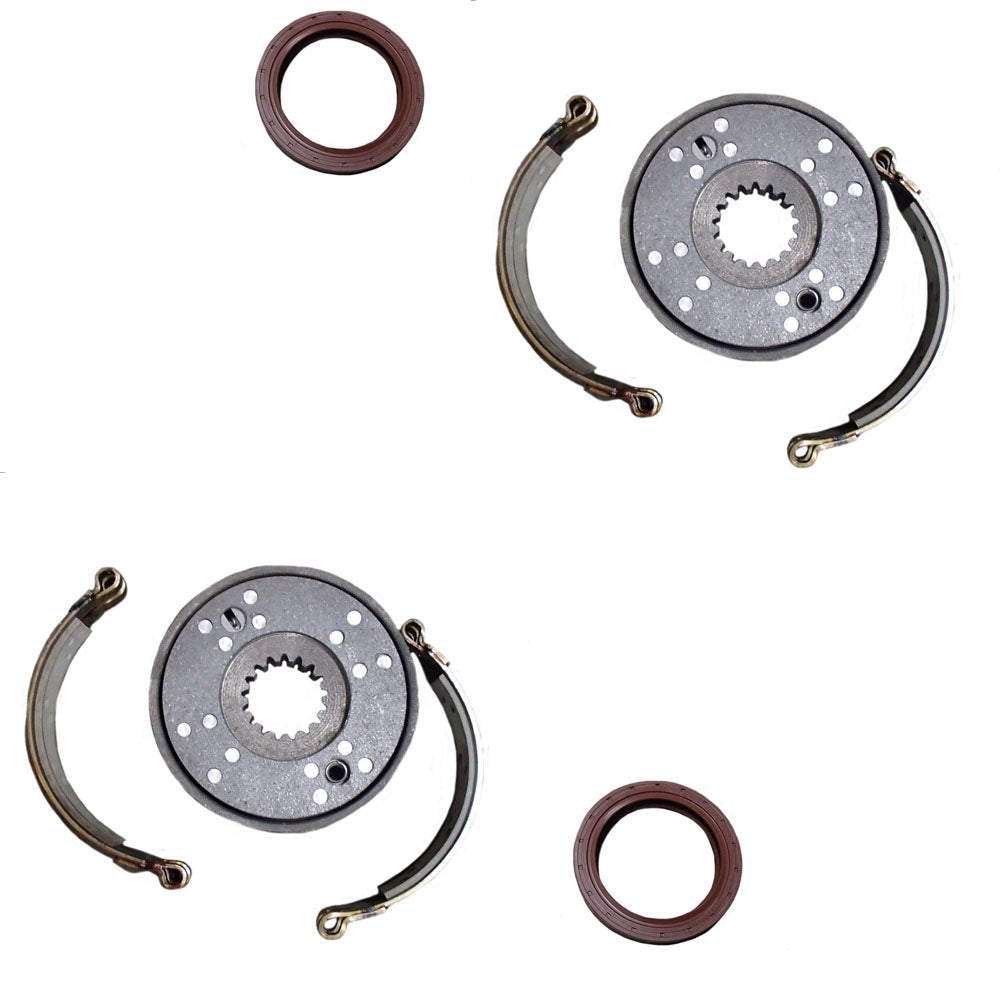

Qty 2: Brake Pack Assembly with Oil Seal Fits Case/International Harvester
Qty 2: Brake Pack Assembly with Oil Seal Fits Case/International Harvester
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Qty 2: Brake Pack Assembly with Oil SealTech Info:

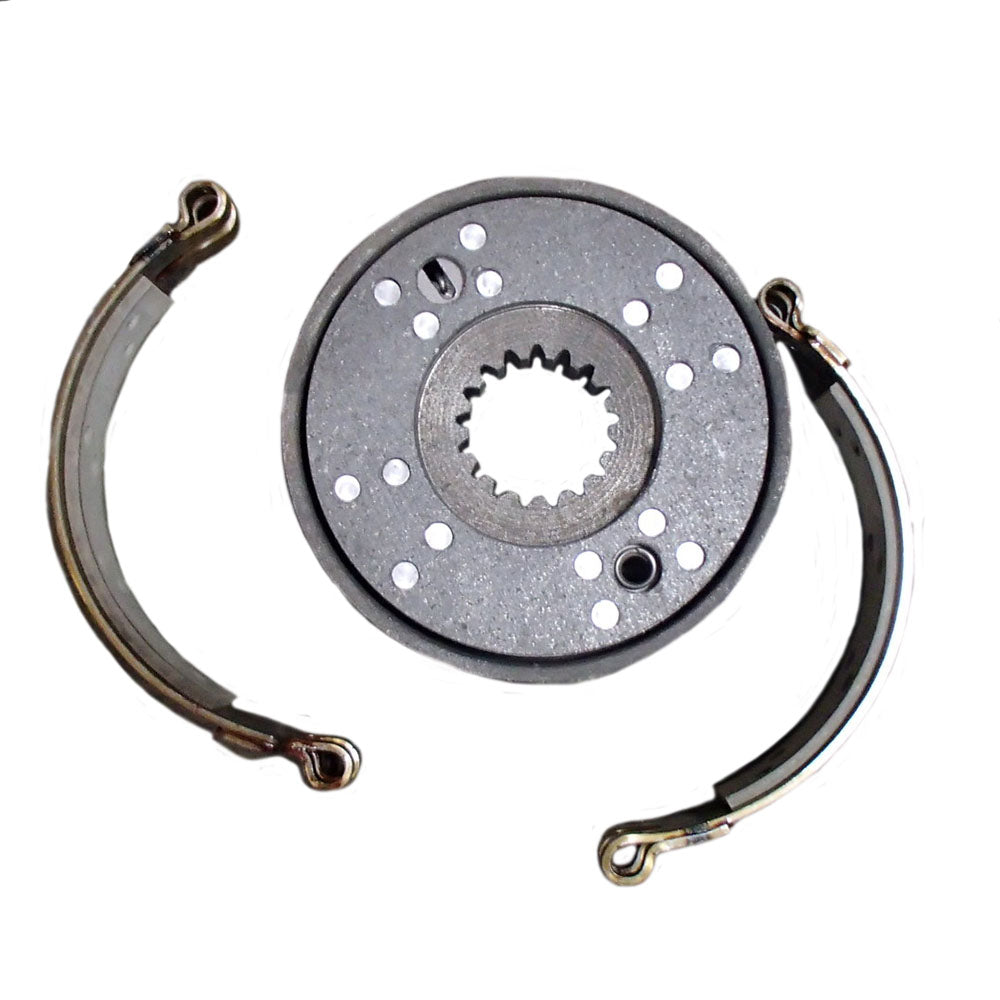

-(1) Brake Pack Assembly
-The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15
-
-Actual measurements 10-1/2" diameter,
-2-1/2" height
-2 used per tractor
-
-WILL NOT WORK ON TURBO MACHINES!.
-
-Replaces Part Numbers: 249022A1, 249022A2
-

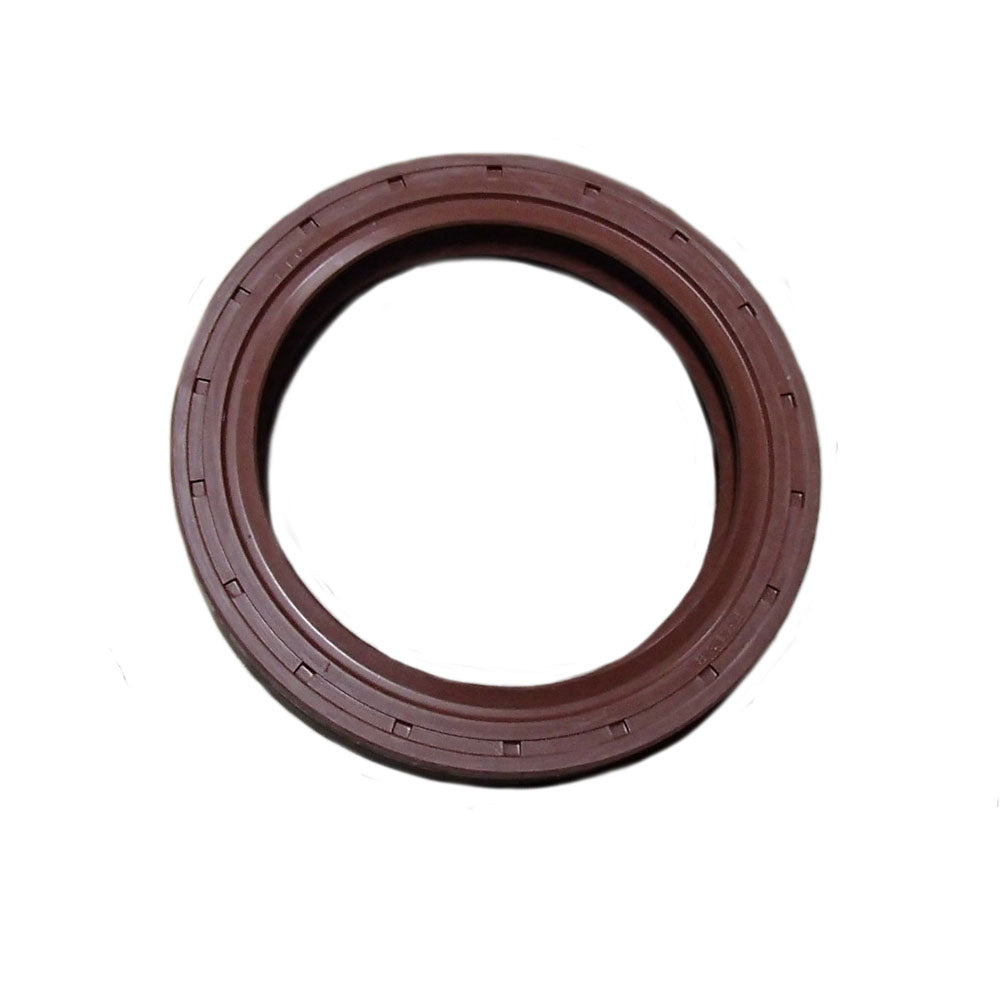

-(1) Oil Seal
-Tech Info:
-53.4mm ID x 76.09mm OD x 11.94mm Thick
-Replaces Part Number: 184072C1,295810A1,406902R91,AT21608Made to Fits Case/International Harvester:
Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
Replaces Part Number(s): 249022A1249022A2249022A3CCTA142979A154350A157157A55474
Replaces Part Number(s): 184072C1,295810A1,406902R91,AT21608,G10689,H362380
Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
Replaces Part Number(s): 249022A1249022A2249022A3CCTA142979A154350A157157A55474
-(1) Brake Pack Assembly
-The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15
-
-Actual measurements 10-1/2" diameter,
-2-1/2" height
-2 used per tractor
-
-WILL NOT WORK ON TURBO MACHINES!.
-
-Replaces Part Numbers: 249022A1, 249022A2
-
-(1) Oil Seal
-Tech Info:
-53.4mm ID x 76.09mm OD x 11.94mm Thick
-Replaces Part Number: 184072C1,295810A1,406902R91,AT21608Made to Fits Case/International Harvester:
Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
Replaces Part Number(s): 249022A1249022A2249022A3CCTA142979A154350A157157A55474
Replaces Part Number(s): 184072C1,295810A1,406902R91,AT21608,G10689,H362380
Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
Replaces Part Number(s): 249022A1249022A2249022A3CCTA142979A154350A157157A55474
Models This Part Fits:
580B, 580, 430, 580D 2WD, 580C, 480, 470, 480D 2WD, 580D NON TURBO 4WD, 570, 480C, 480B, 530Additional Information:
(2) Brake Pack Assembly The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15 Actual measurements 10-1/2" diameter, 2-1/2" height 2 used per tractor WILL NOT WORK ON TURBO MACHINES!. Replaces Part Numbers: 249022A1, 249022A2 (2) Oil Seal 53.4mm ID x 76.09mm OD x 11.94mm Thick Replaces Part Number: 184072C1, 295810A1, 406902R91, AT21608Reference Numbers:
184072C1,295810A1,406902R91,AT21608,G10689,H362380, 249022A1249022A2249022A3CCTA142979A154350A157157A55474Makes This Part Fits:
