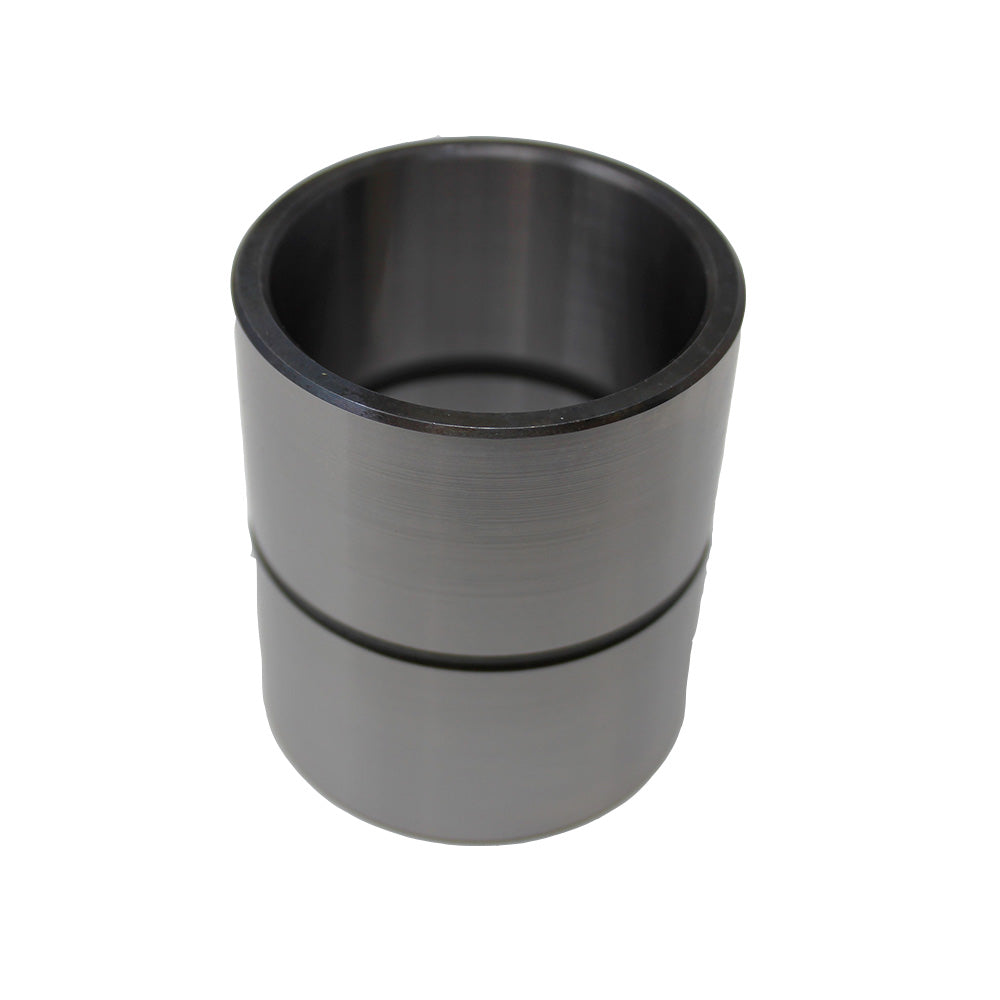

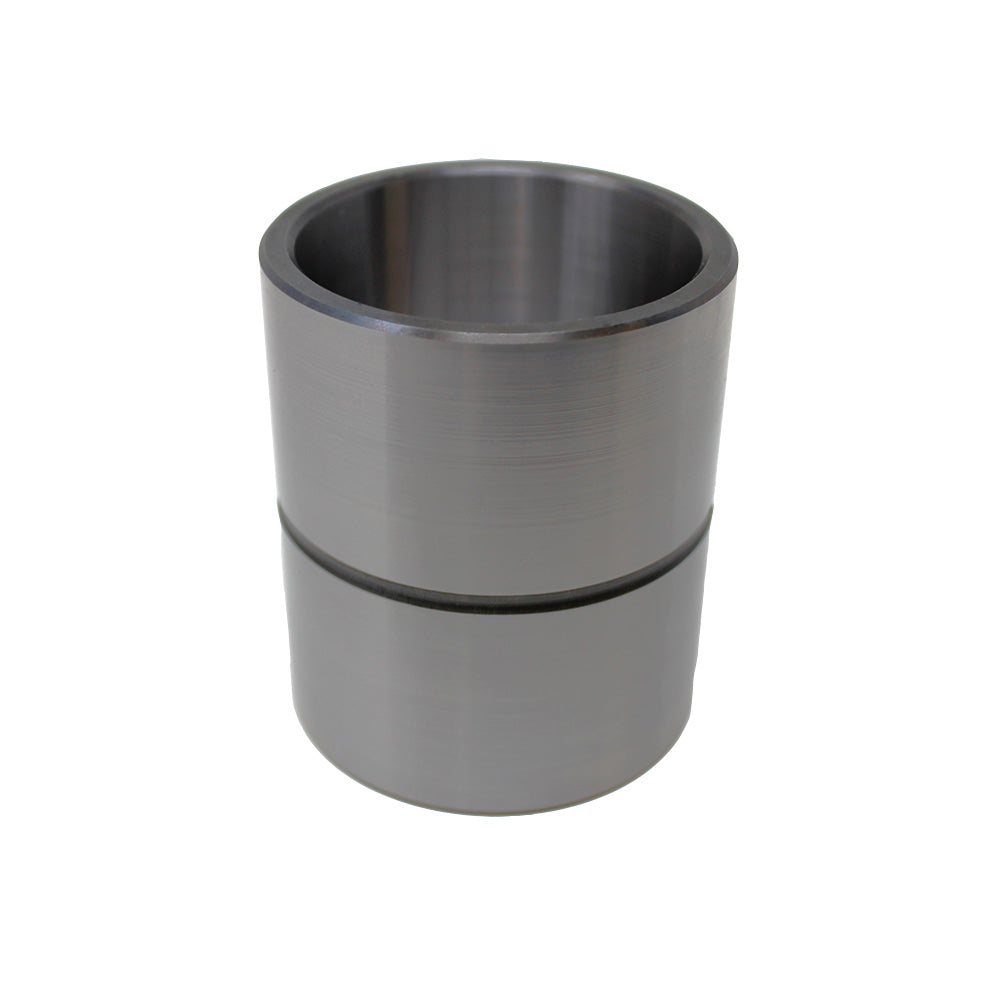

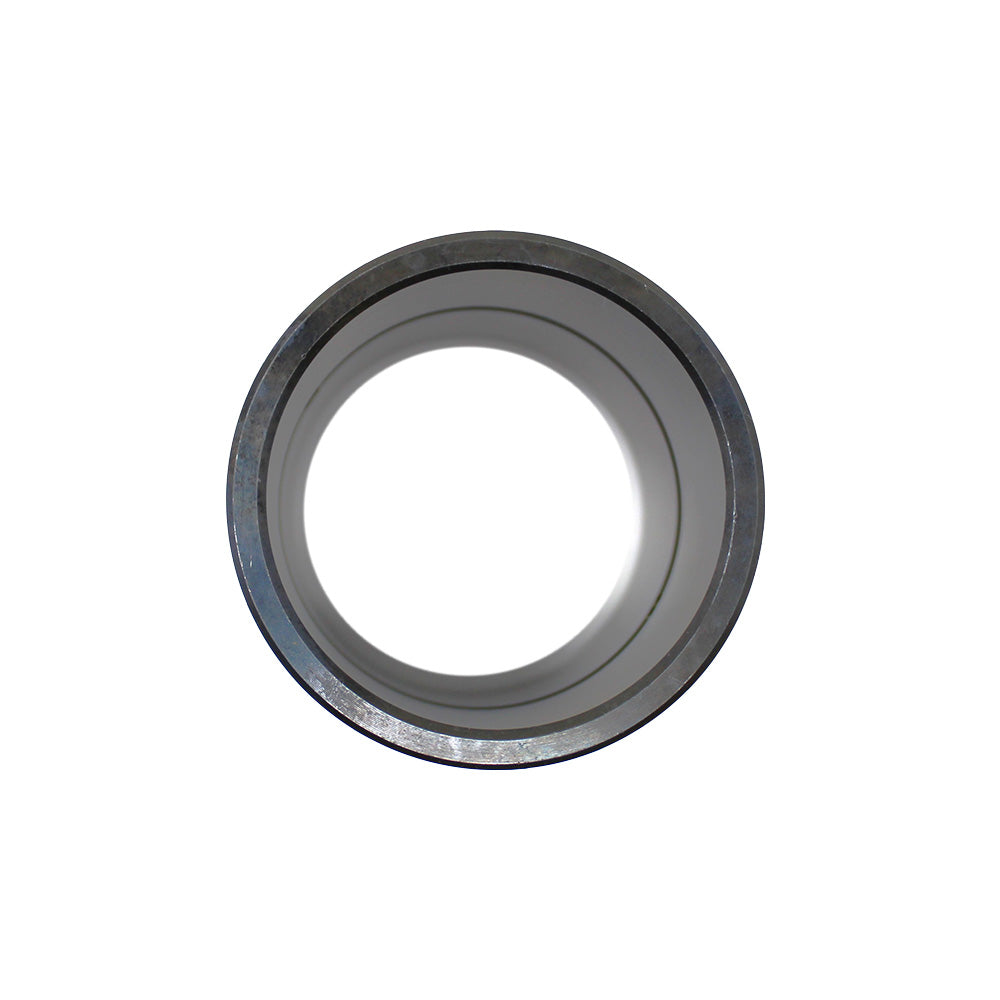

One New Aftermarket Replacement Dipper Cylinder Rod End Bushing for John Deere (JD) Backhoes

This bushing fits the dipper (crowd) cylinder rod end and bucket cylinder rod end on John Deere C- and D-series backhoes. Machined with internal and external center-cut grease grooves to retain lubrication and extend service life in demanding dig cycles.

Specifications

• Length: 76 mm (approx. 3 in.)
• Outer Diameter: 65 mm (approx. 2-9/16 in.)
• Inner Diameter: 55 mm (approx. 2-3/16 in.)
• Internal and External Center-Cut Grease Grooves

Compatible Models

John Deere Backhoes: 300D, 310C, 310D, 315C, 315CH, 315D, 410C, 410D, 510C, 510D, 610C, 9300G, 9310G

Replaces Part Number(s):

R82077

Aftermarket Interchange Numbers

RE151971

New aftermarket replacement part - not remanufactured, not used.
