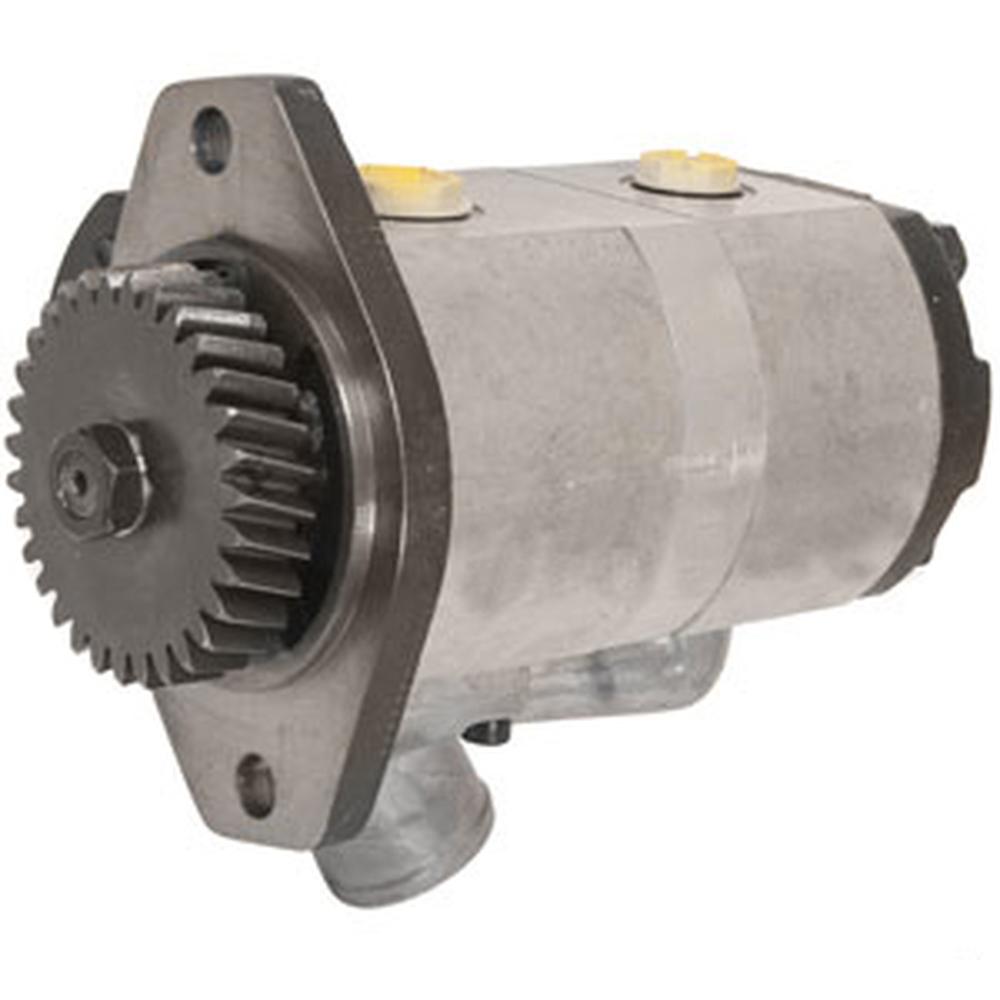

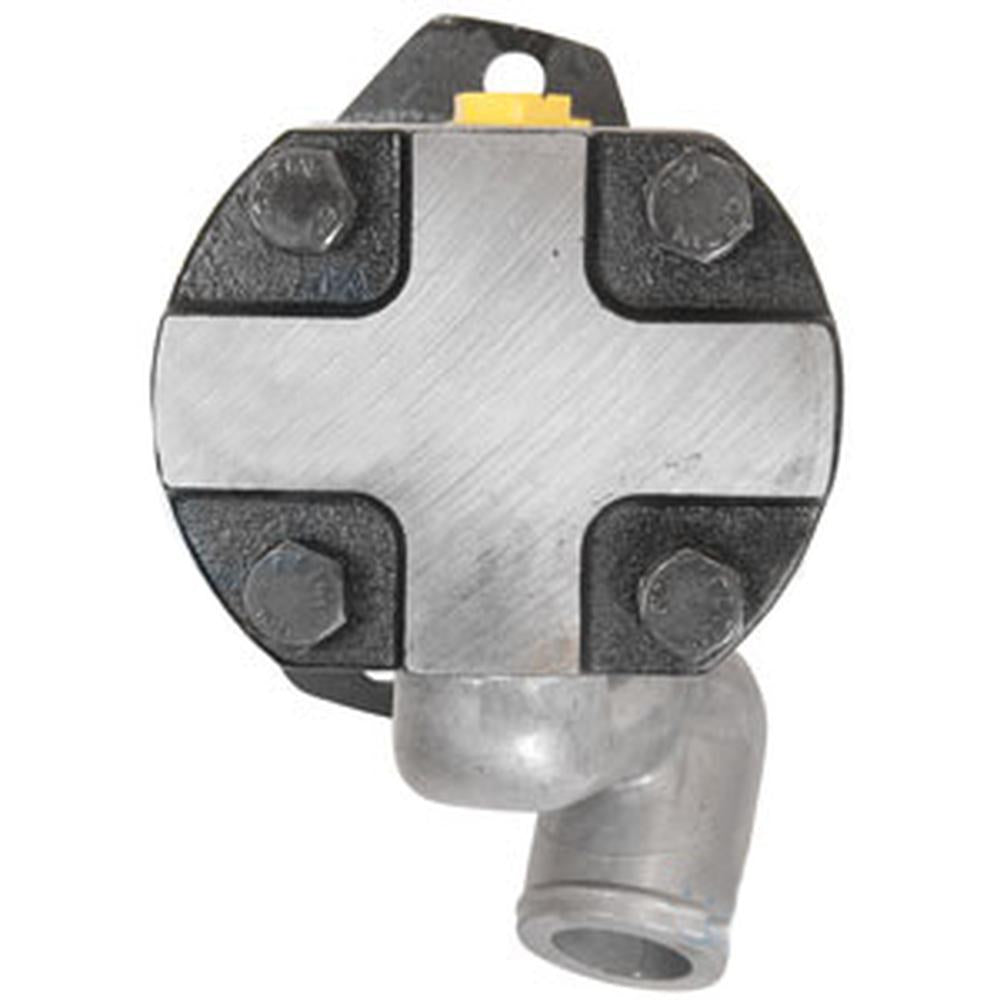

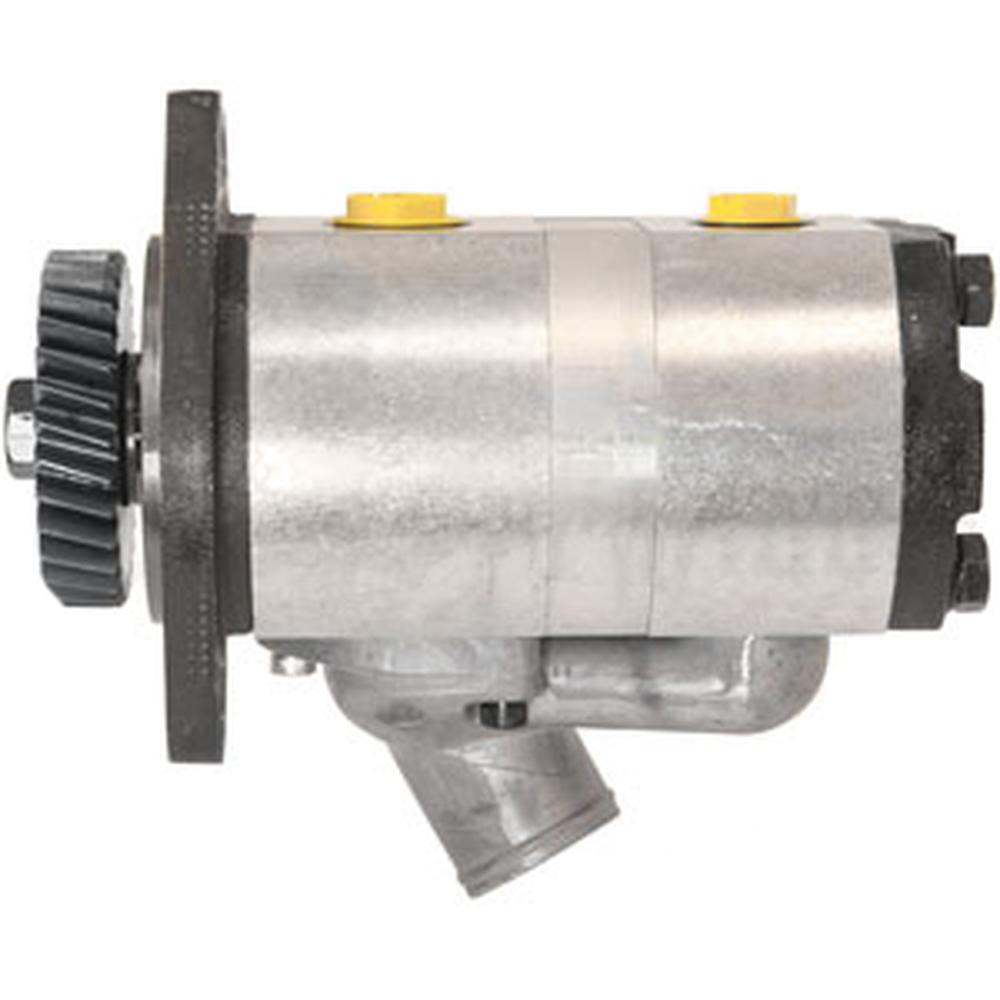

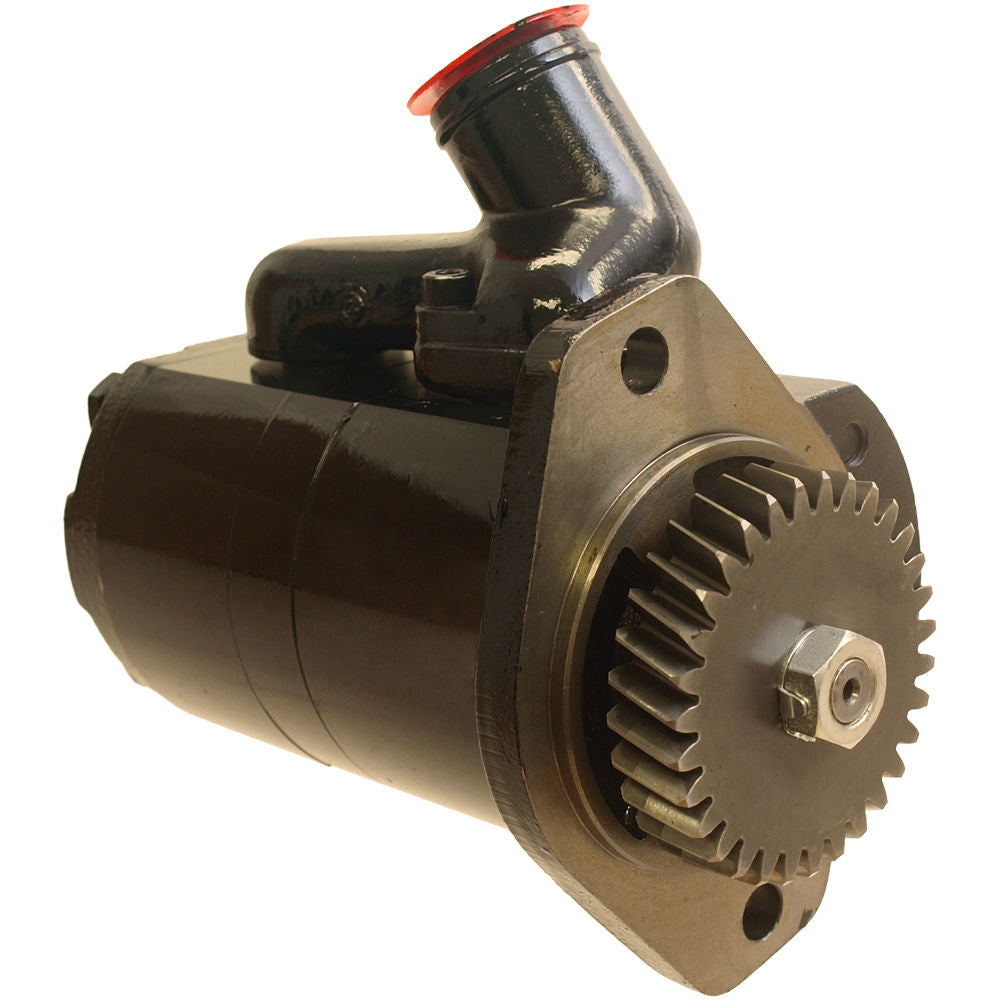

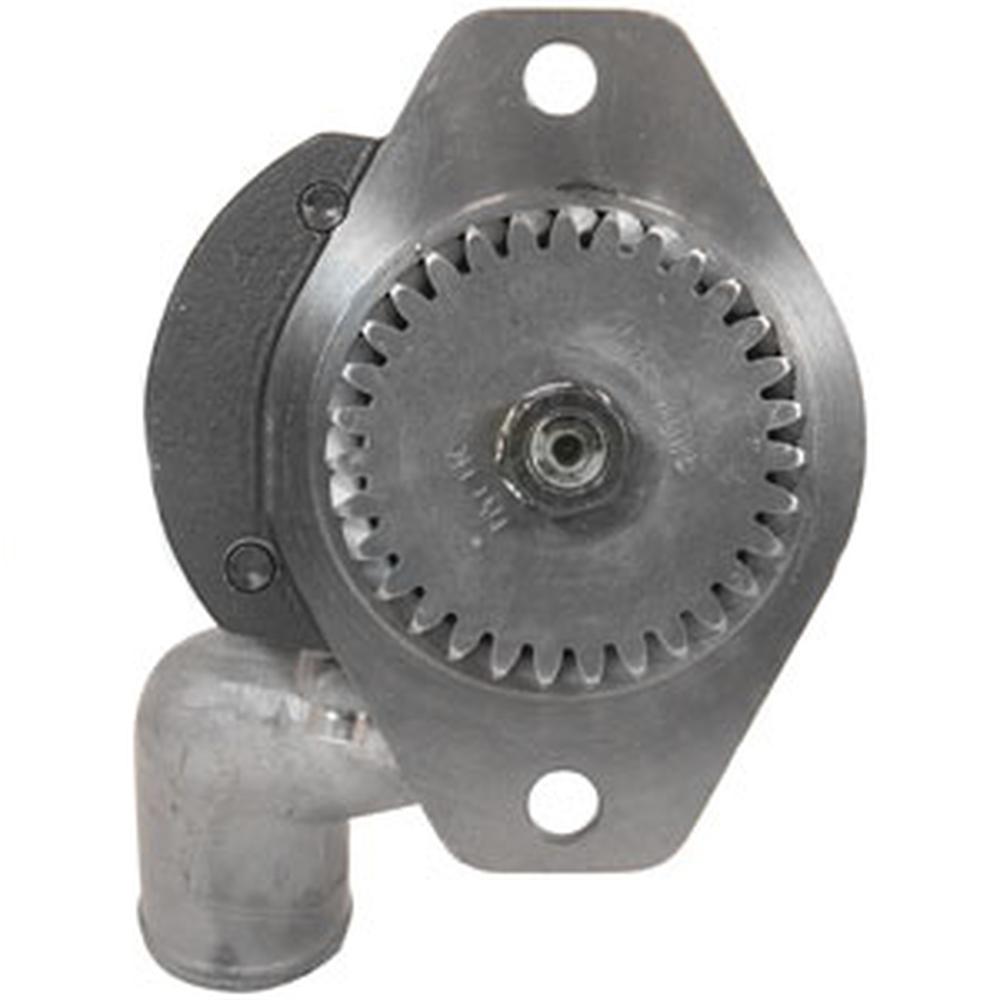

One New Aftermarket Replacement Tandem Hydraulic Pump for John Deere 5000 Series Tractors

This double gear-style tandem hydraulic pump replaces OEM part number RE73947 and supplies hydraulic flow to the tractor's implement and power steering circuits. It is a direct-fit replacement for a wide range of John Deere (JD) 5000 Series utility tractors. Note: relief valve is not included.

Specifications

• Pump Type: Double (Tandem) Gear Style
• Drive Teeth: 31
• Flow Rating: 7.3 / 3.1 GPM at 1000 RPM
• Displacement: 28 cc / 12 cc
• Max Pressure: 3625 PSI
• Rotation: Counter-clockwise (left)
• Displacement (CID): 1.708 + 0.732
• Dimensions: 9.6 in L x 7.6 in W x 6.5 in H
• Weight: approx. 28 lb
• Relief Valve: Not Included

Compatible Models

Note: Serial number restrictions apply to select models -- verify against your serial number before ordering.

John Deere 5000 Series: 5076E, 5076EF, 5076EL, 5082E, 5083E, 5090E, 5090EH, 5090EL, 5093E

John Deere 5001 Series: 5101E

John Deere 5003 Series: 5403, 5603

John Deere 5005 Series: 5605, 5705

John Deere 5010 Series: 5410 (s/n 243687 and above), 5510 (s/n 243687 and above), 5510N (s/n 357006 and above)

John Deere 5015 Series: 5415, 5415H, 5515, 5515F, 5515V, 5615, 5615F, 5615V, 5715, 5715HC

John Deere 5020 Series: 5420, 5420N, 5520, 5520N

John Deere 5025 Series: 5425, 5425H, 5425HC, 5425N, 5625, 5625HC, 5725, 5725H, 5725HC, 5725N

John Deere 5200 Series: 5210, 5215, 5215F, 5215V

John Deere 5300 Series: 5310, 5310N, 5315, 5315F, 5315V, 5320N

Replaces Part Number(s):

RE73947, RE72058, HYI60-0045

Aftermarket Interchange Numbers

RE135101

New aftermarket replacement part - not remanufactured, not used.
