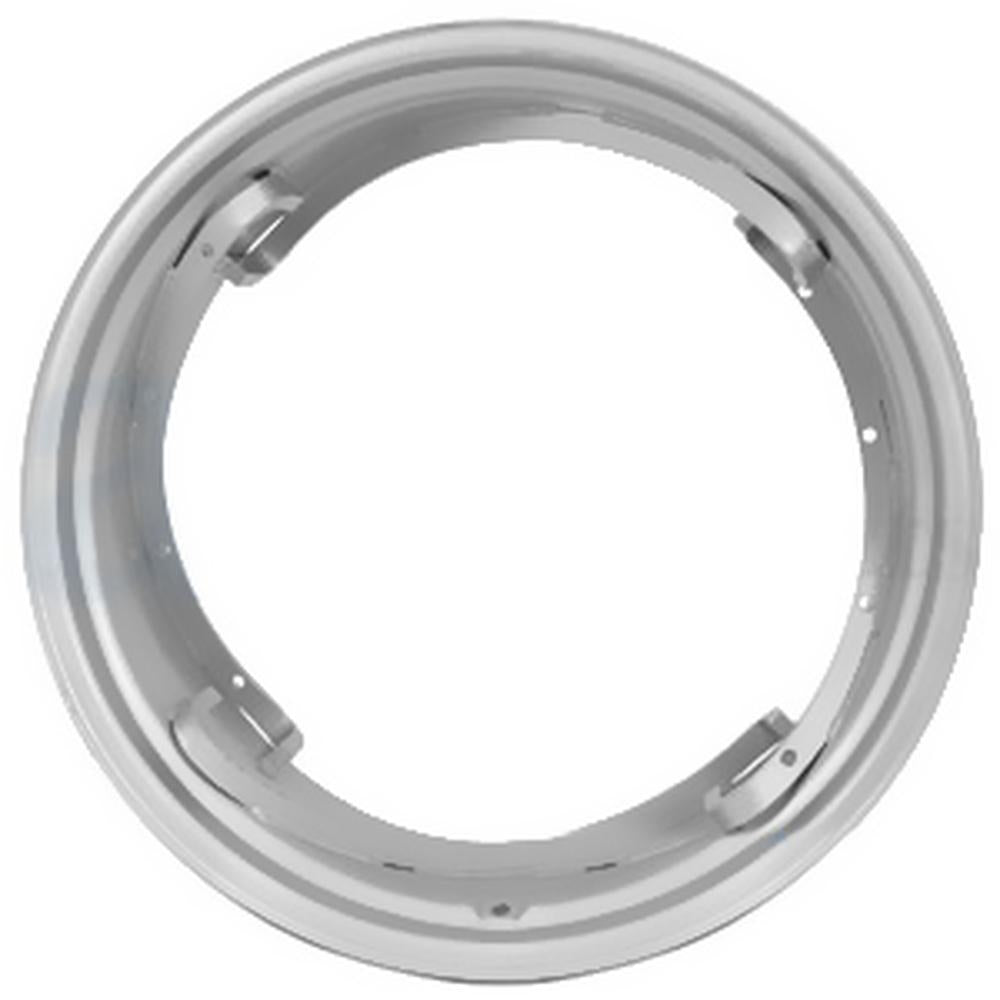

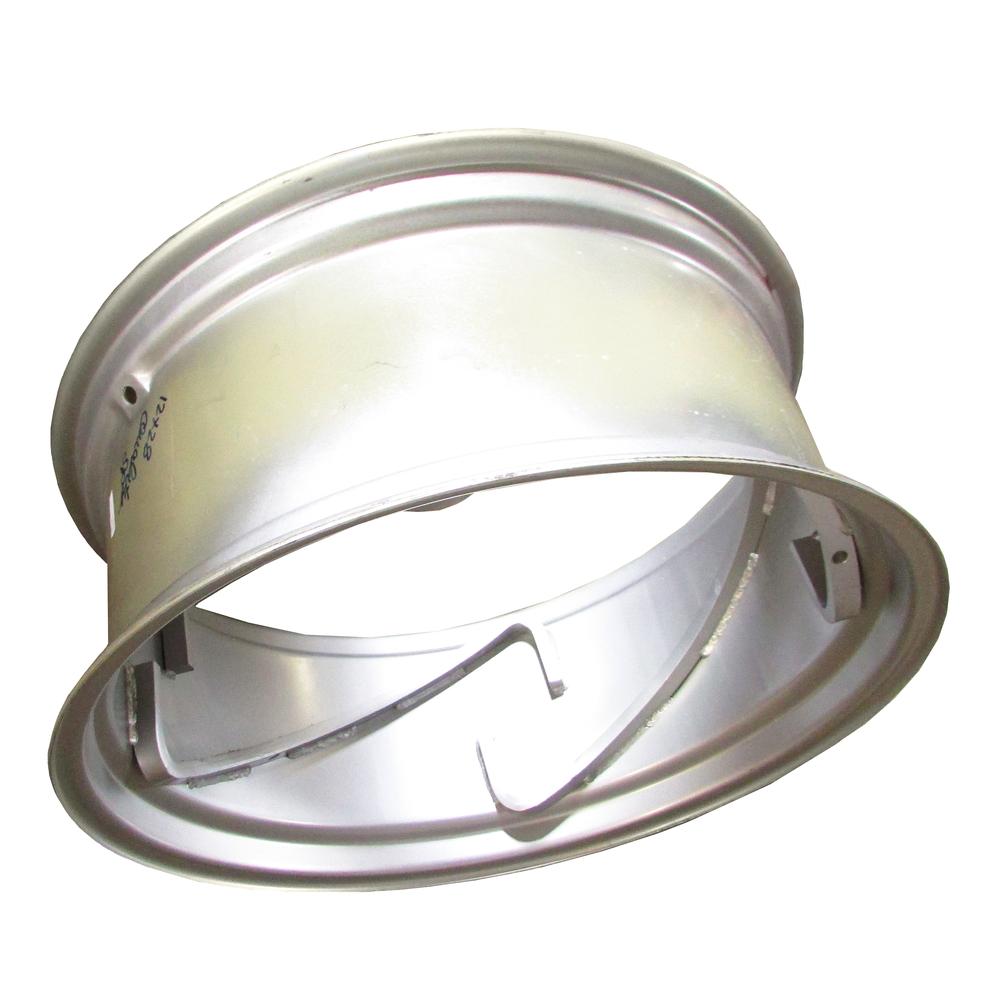

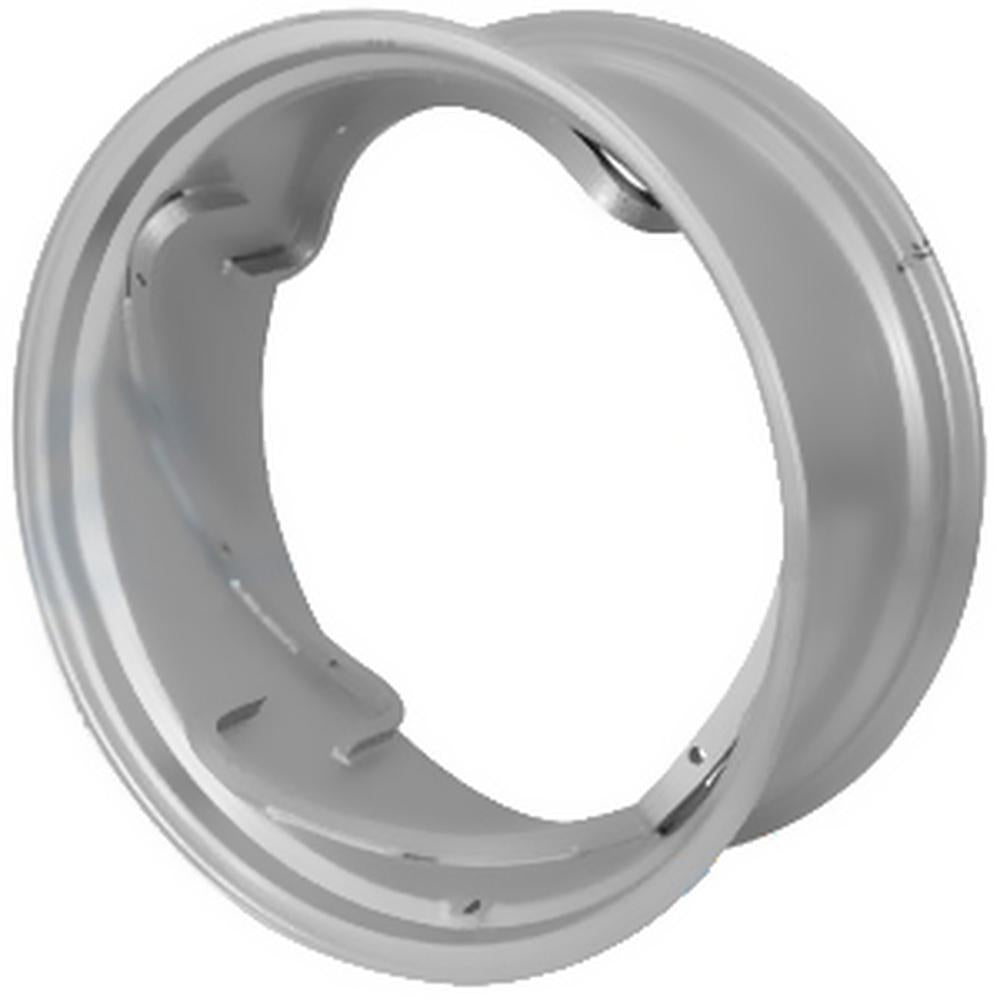

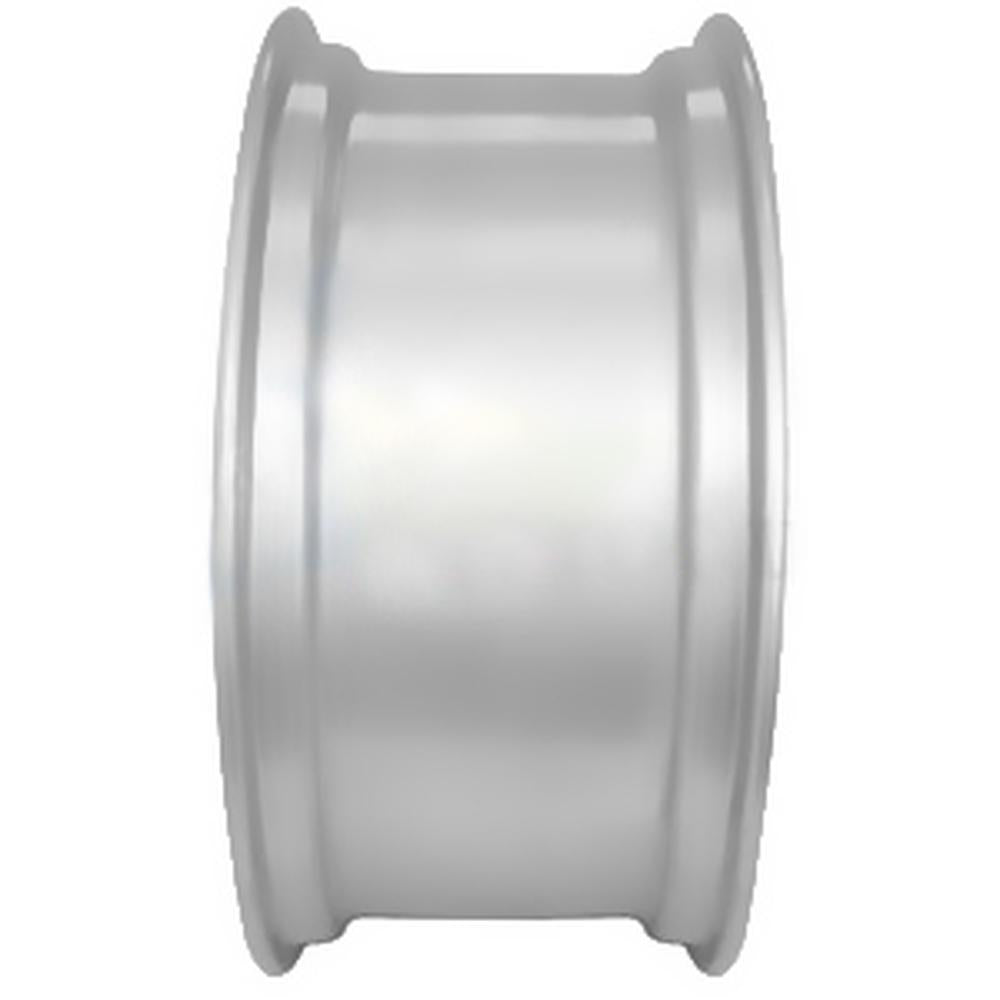

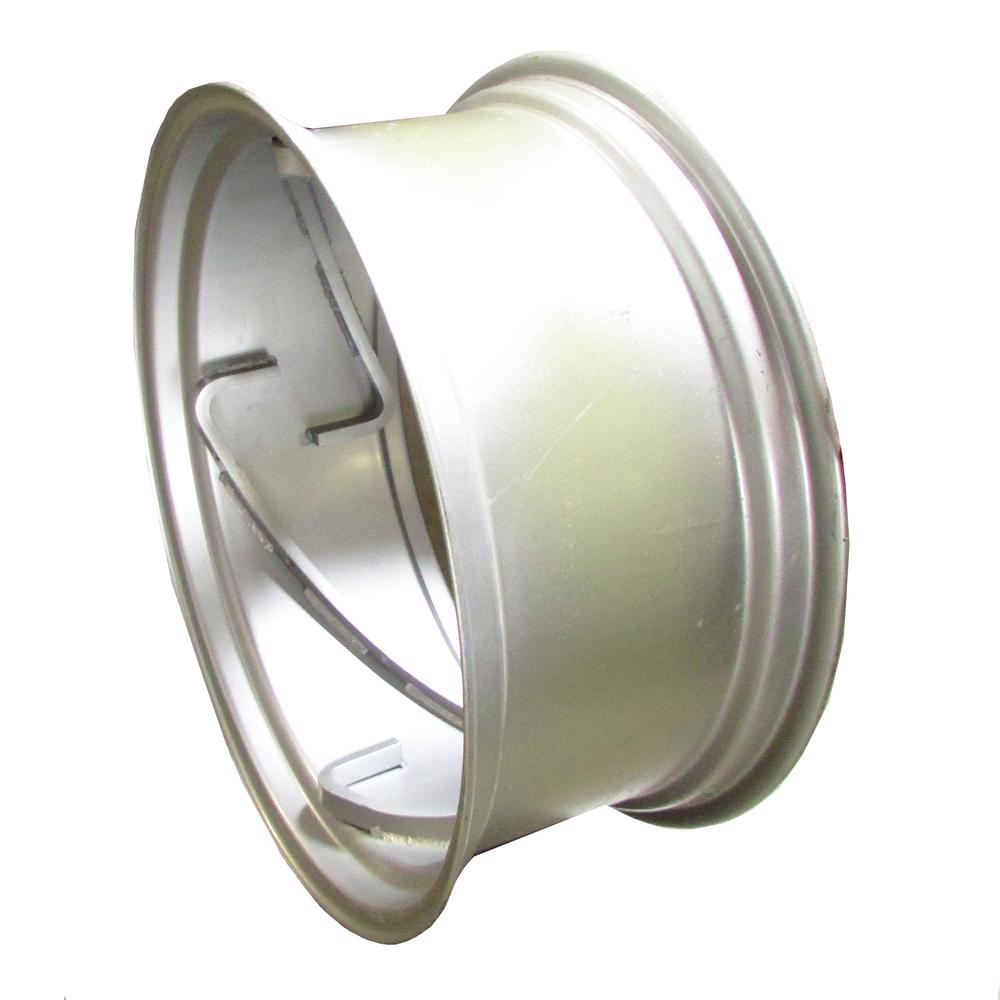

Rear Rim 12" x 28" Fits Case Replaces 365324R92
Rear Rim 12" x 28" Fits Case Replaces 365324R92
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

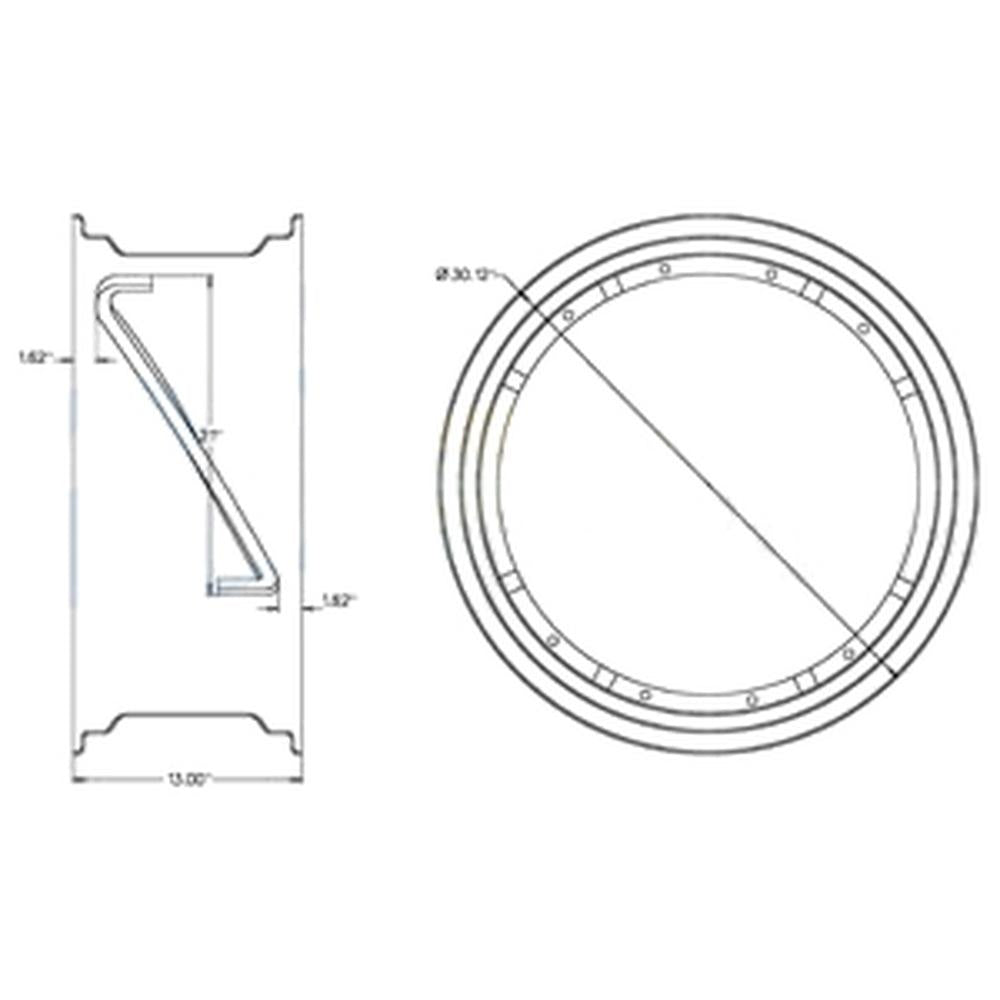

One New Aftermarket Rear Rim 12" x 28"Tech Info:
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit Case:
Utility Tractor Models: 430, 200B, 211, 480, 301B, 311B, 410B, 470, 400B, 300, 441, 411B, 541, 211B, 531, 530, 210B, 311, 570, 540, 300B, 210, 200, 310B, 431
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 365324R92
Industrial Tractor Models: 310 Crawler
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 365324R92
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit Case:
Utility Tractor Models: 430, 200B, 211, 480, 301B, 311B, 410B, 470, 400B, 300, 441, 411B, 541, 211B, 531, 530, 210B, 311, 570, 540, 300B, 210, 200, 310B, 431
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 365324R92
Industrial Tractor Models: 310 Crawler
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 365324R92
Models This Part Fits:
410B, 431, 310 Crawler, 200B, 531, 530, 310B, 430, 411B, 210B, 441, 480, 400B, 210, 300B, 211, 311B, 540, 200, 541, 311, 211B, 301B, 300, 570, 470Additional Information:
4 Rails 0.625" Rail Width 21" Long 1" Rail Height Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail Stop holes are angled To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside Not designed for tubeless applications Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time Rear Rim 12" x 28"Reference Numbers:
365324R92Makes This Part Fits:
