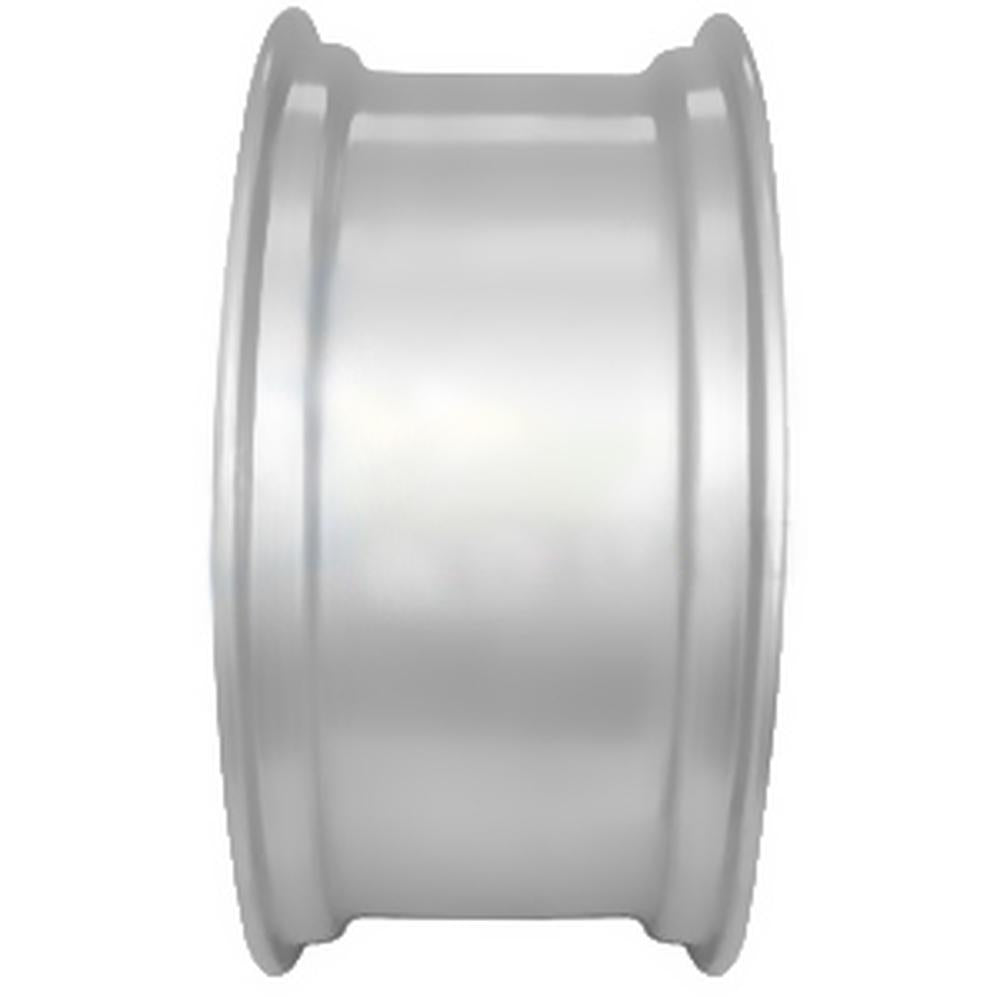

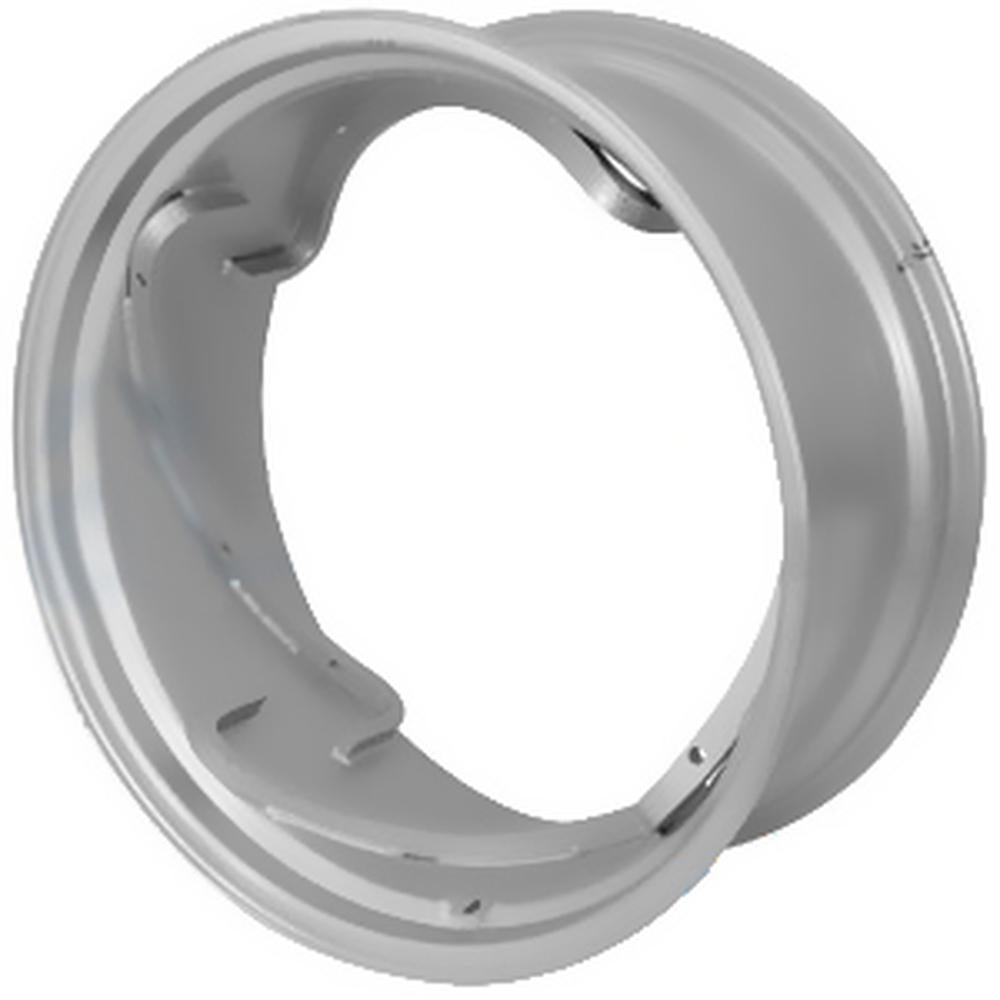

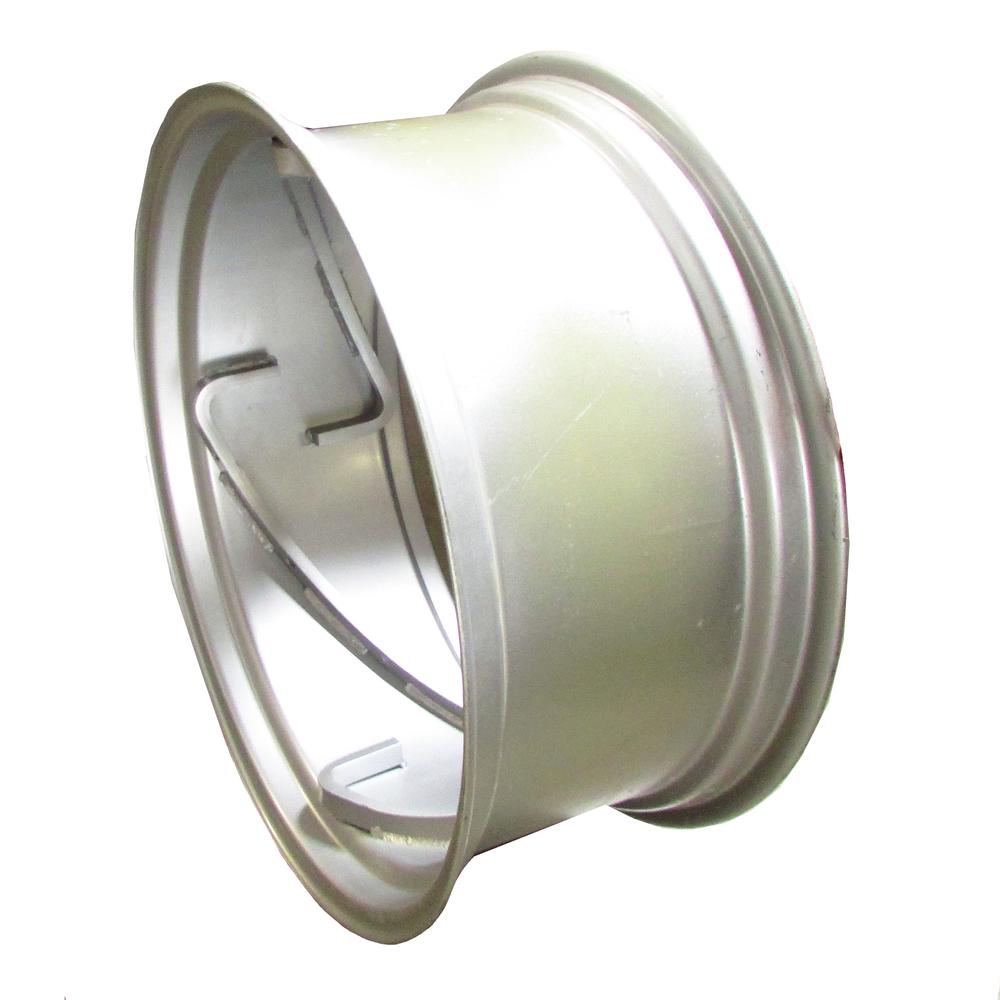

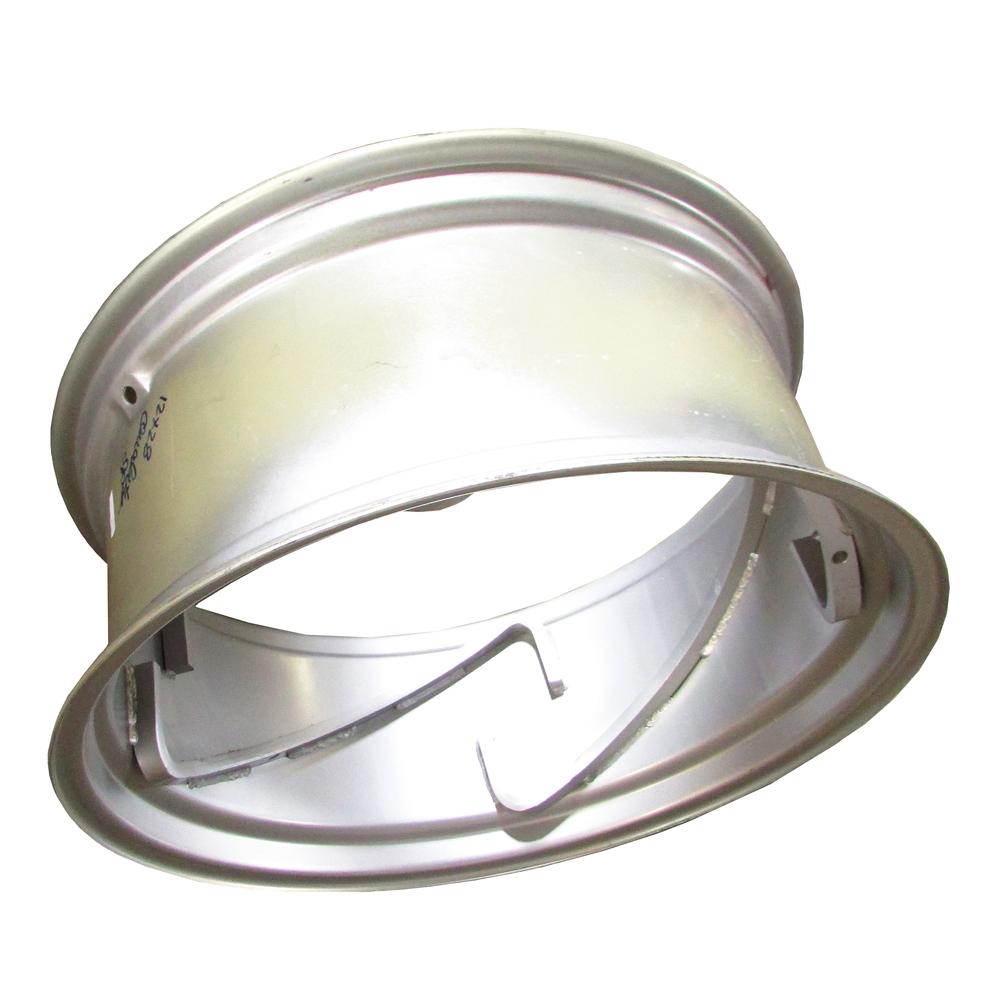

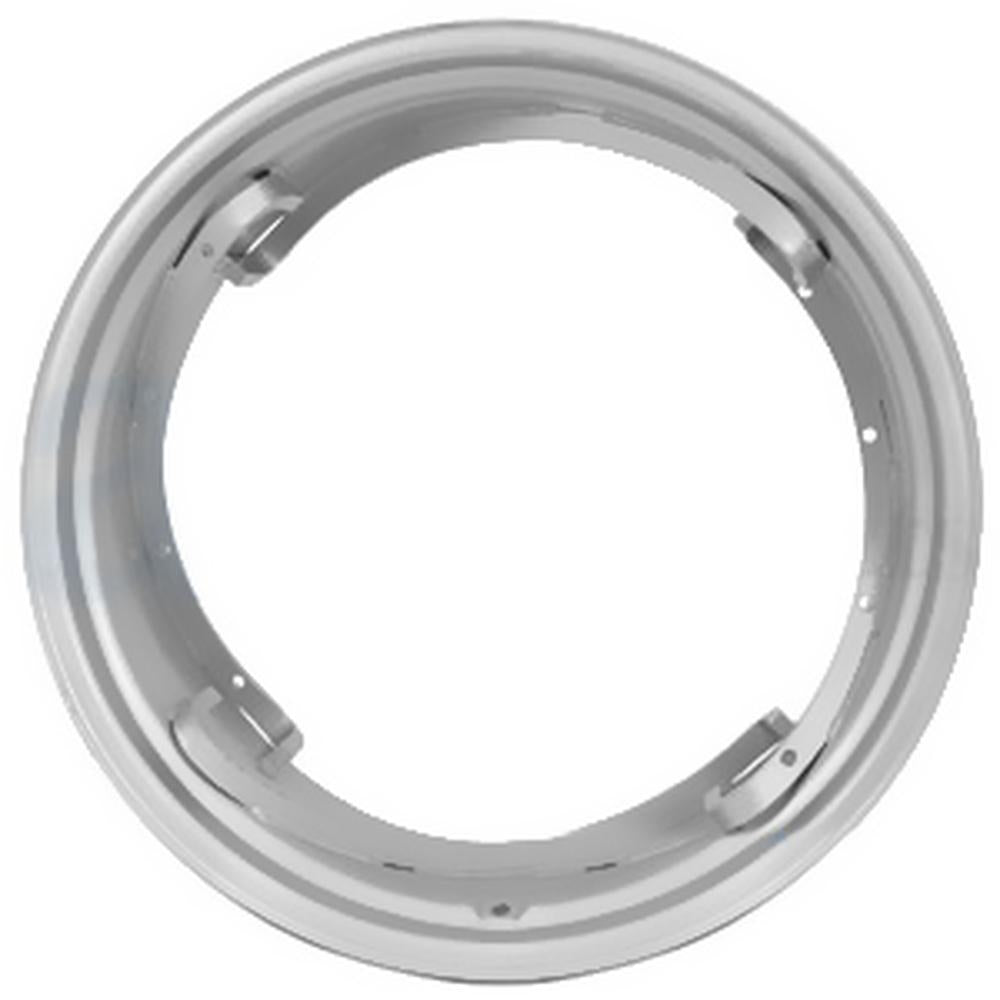

Rear Rim 12" x 28" Fits Minneapolis Moline Replaces 10P787
Rear Rim 12" x 28" Fits Minneapolis Moline Replaces 10P787
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

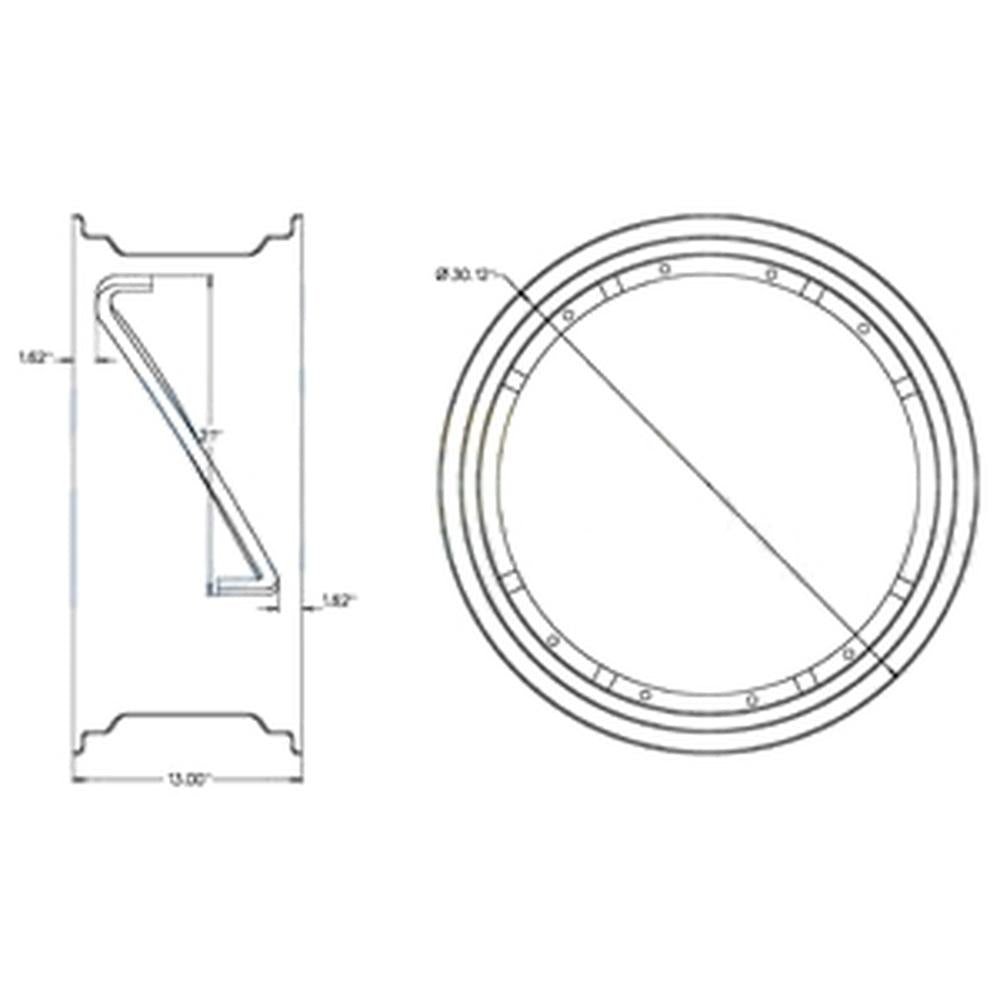

One New Aftermarket Rear Rim 12" x 28"Tech Info:
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit Minneapolis Moline:
Row Crop Tractor Models: 445, JetStar 3, Jetstar 3 Super
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 10P787
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit Minneapolis Moline:
Row Crop Tractor Models: 445, JetStar 3, Jetstar 3 Super
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 10P787
Models This Part Fits:
Jetstar 3 Super, JetStar 3, 445Additional Information:
4 Rails 0.625" Rail Width 21" Long 1" Rail Height Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail Stop holes are angled To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside Not designed for tubeless applications Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time Rear Rim 12" x 28"Reference Numbers:
10P787Makes This Part Fits:
