Rebuild Kit Spindles Blades Belt Pulleys for Troy Bilt Horse XP 46" Lawn Mower

Name: Rebuild Kit Spindles Blades Belt Pulleys for Troy Bilt Horse XP 46" Lawn Mower
Brand: AIC Replacement Parts
SKU: 754-04219-DECKREBUILDKIT
Price: 132.16 USD
Availability: OutOfStock

Rebuild Kit Spindles Blades Belt Pulleys for Troy Bilt Horse XP 46" Lawn Mower

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Replacement 46" Lawn Mower Deck Rebuild Kit Fits Troy Bilt Horse XP

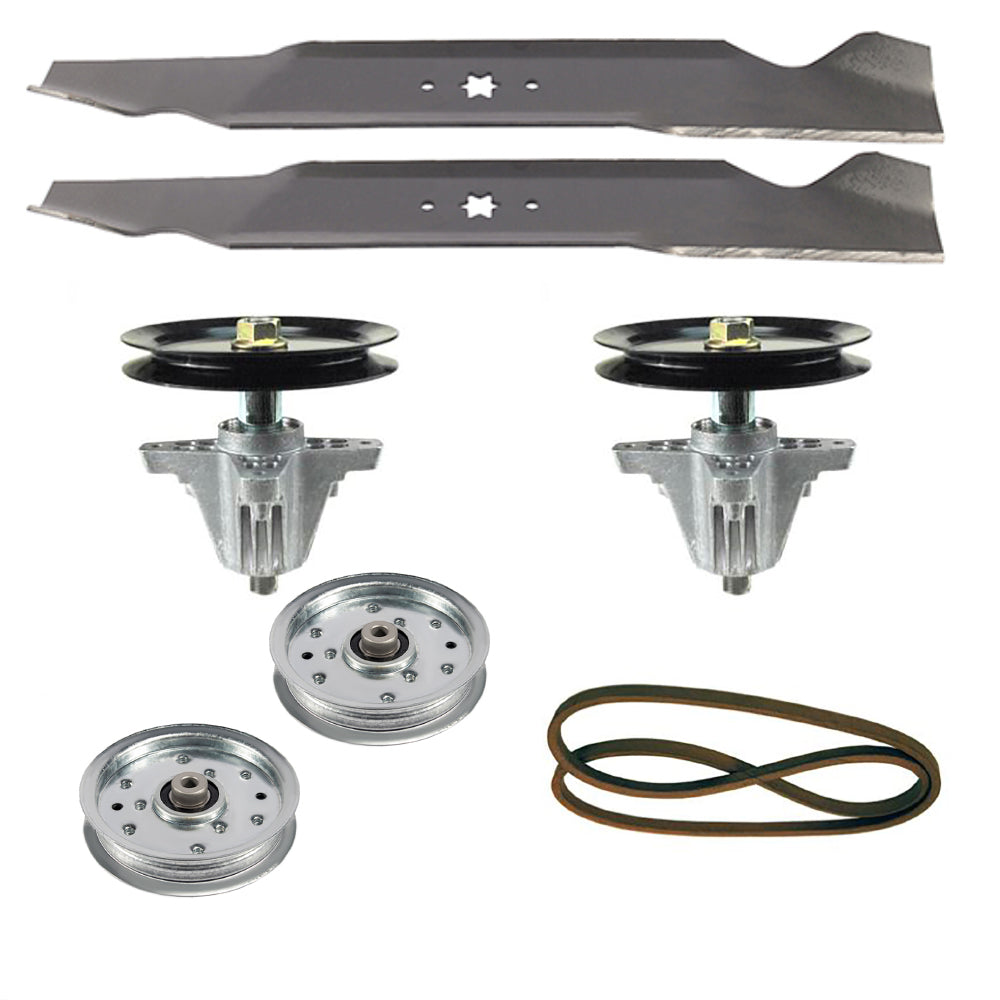

Kit Contains
(2) Blades
(2) Spindles
(2) Flat Idler Pulleys
(1) Belt

MODELS
13AL771T004, 13AL78ST099, 13AL78ST299, 13AL795T004

REFERENCE NUMBERS:
618-04636, 618-04636-A, 618-04636A, 618-04636A-A, 618-04865A, 618-04865A-A, 918-0, 918-0-A

Models This Part Fits:

17ARCACT011, KT735-3013, LTX1045, Z-force S 46, LTX1046

Additional Information:

(2) Mower Deck Spindle with Pulleys Pulley Diameter: 6-1/2" Height: 6-13/16" Center Hole: 6 Point Star For 46" Decks w/ (2) Blades Replaces Part Number(s): 618-04636, 918-04636, 918-04685 (2) Flat Idler Pulleys For 38", 42", 46" and 54" Decks Inside Diameter: 3/8" Outside Diameter: 4-7/8" Height: 1" Replaces Part Number(s): 753-08171, 756-04129, 956-04129 (1) Deck Belt Width: 1/2" Length: 103.25" Made w/ Wrapped Aramid Cord For 46" Decks w/ (2) Blades Replaces Part Number(s): 754-04219, 954-04219 (2) Standard Lift Mower Blades Center Hole Diameter: 6 Point Star Length: 23-1/4" Width: 3" Thickness: 0.1600" Diameter of Outside Holes: 0.4010" Replaces Part Number(s): 742-04290, 942-04290, 742-04244, 942-04244

Reference Numbers:

618-04636, 618-04636A, 618-04865, 618-04865A, 918-04636, 918-04636A, 918-04865A, 742-04290, 74204290, 942-04290, 94204290, 742-04290A, 74204290A, 942-04290A, 94204290A, 742-04244, 74204244, 942-04244, 94204244, 742-04244A, 74204244A, 942-04244A, 94204244A
