82009352 Vented Diesel Fuel Cap Fits Case IH New Holland Steyr JX TL TN TD
82009352 Vented Diesel Fuel Cap Fits Case IH New Holland Steyr JX TL TN TD
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Correct part

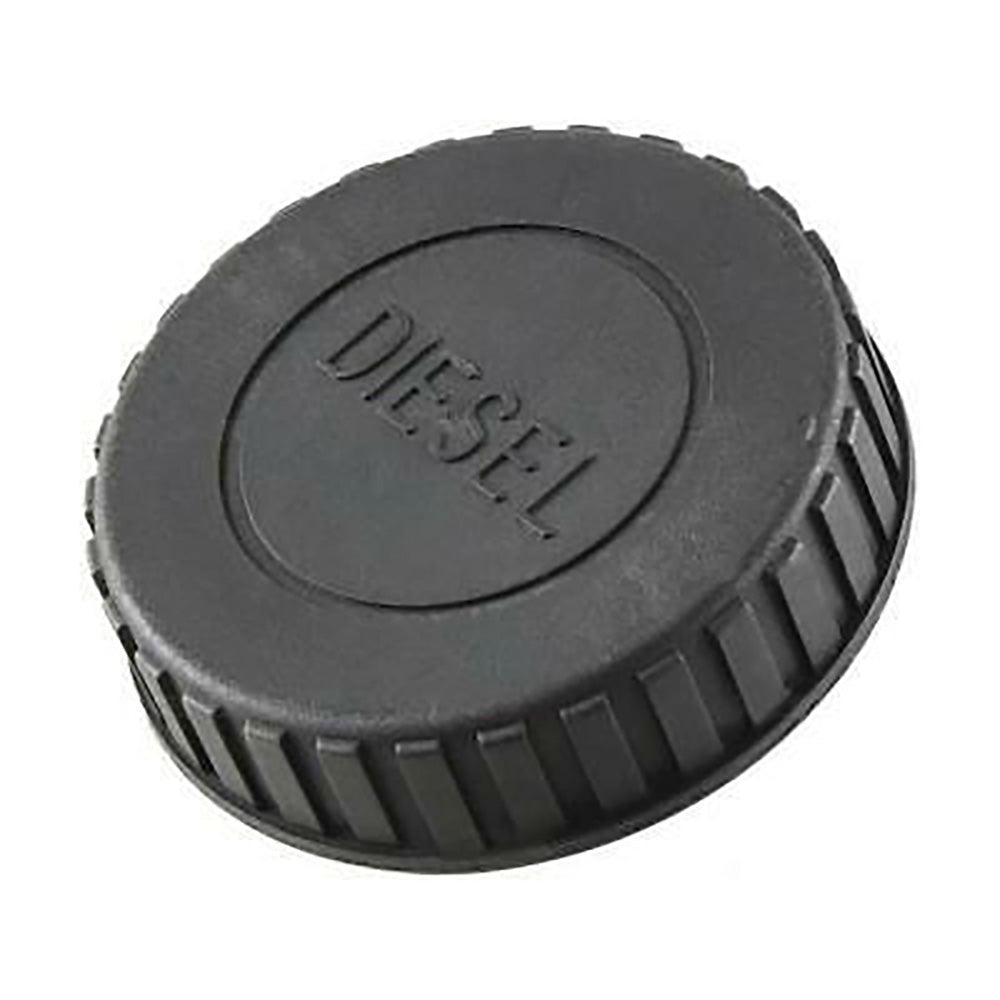

82009352 is the vented diesel fuel cap for the 80 mm fuel filler neck used across the Case, New Holland and Steyr worldwide tractor platform. It also carries the companion number 82012210.
Why venting matters
A fuel cap has to let air into the tank as fuel is drawn out. A cracked or non venting cap pulls a vacuum, the injection pump runs short of fuel, and you get power loss or stalling under load. This cap vents the way the factory cap did.
Fitment
Case IH JX, JXU, JXC and Quantum C, plus MXU and MXM. New Holland TL, TN, TD, TS and T4000 series. Steyr 360 through 4095 Kompakt. Match the number on your old cap before ordering.
Specs
Threaded plastic cap, about 82.6 mm inside and 89.8 mm across, seats on the 80 mm filler neck. Vented and non locking.
Also cataloged against
CNH numbers 87547768, 87547528 and 82848509. If one of those is stamped on your old cap, this is your replacement.
Models This Part Fits:
JX1070U, TL70, 8260, JX100U, 555D, 85C, 655C, TN75DA, TN85A, 8560, JX85, TD70D, JX1070C, TN65S, TN55S, TD95D, TN70D, TN60A, JX1075C, 65C, TL90A, 60, TN70S, TN70A, 95C, TN55D, TN65, JX75, JX1090U, JX1100U, TD60D, TN70, JX1095C, JX55, TN75, TD90D, TL80A, 8360, 655D, 75C, 4835, TN75SA, TN70SA, JX1060C, TN60DA, 555C, 80, TN60SA, TD5050, TN55, TL100A, JX90U, TN75D, JX70, 455C, TN65D, 70, 7635, TN75S, JX70U, 8160, 675D, JX1080U, TD75D, TL80, 455D, TL100, TD80D, JX1085C, JX80U, 575D, JX65, JX80, JX95, TN85DA, 95, TL90, JX90, 5635, 6635, TN70DA, TN95A, JX60, TN75A, TN95DA, 90Additional Information:
Cap Inner Diameter: 3.25" (82.6mm) Cap Outer Diameter: 3.53" (89.8mm) Seal Inner Diameter: 3.25" (82.6mm) Threaded and Vented Diesel Fuel CapReference Numbers:
87547528, 87547768, 82009352, 82000289, 85702173Makes This Part Fits:
