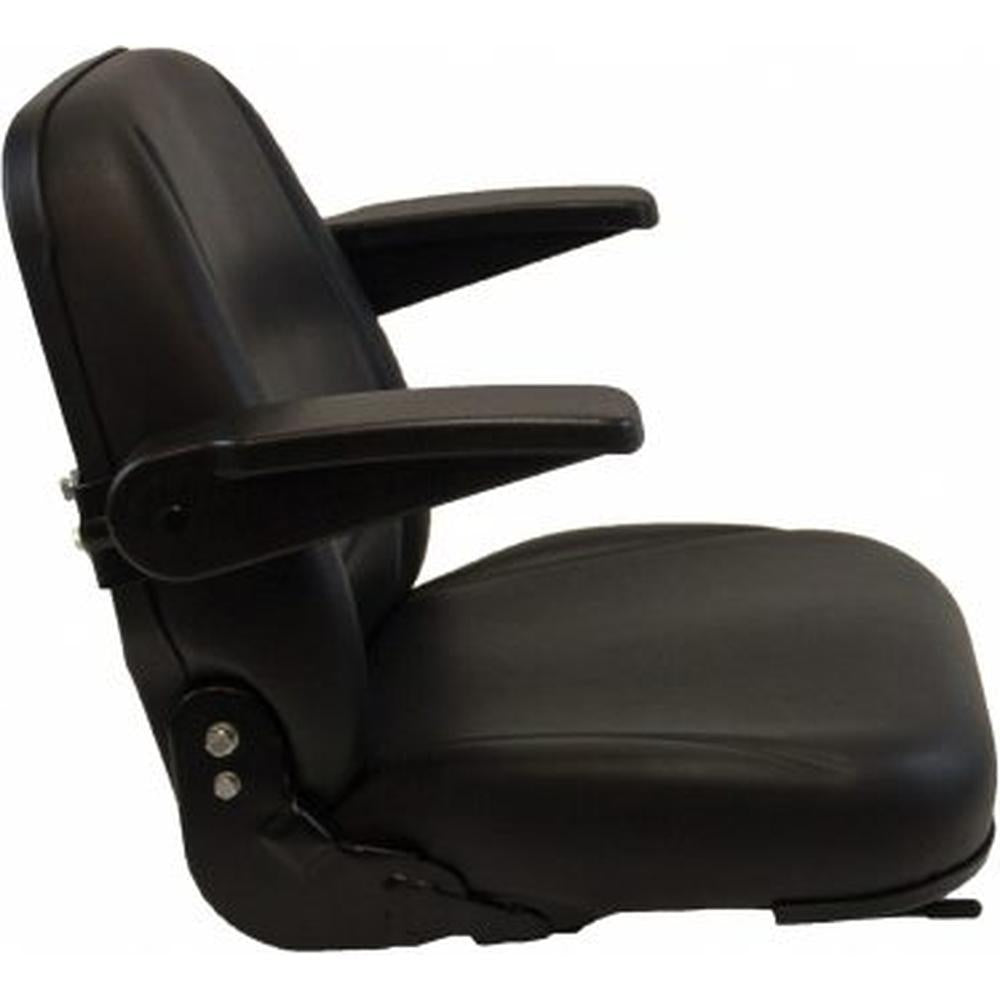

Replacement Seat Fits John Deere Skid Steer 240 280 313 315 317 328 CT322

Replacement Seat Fits John Deere Skid Steer 240 280 313 315 317 328 CT322

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

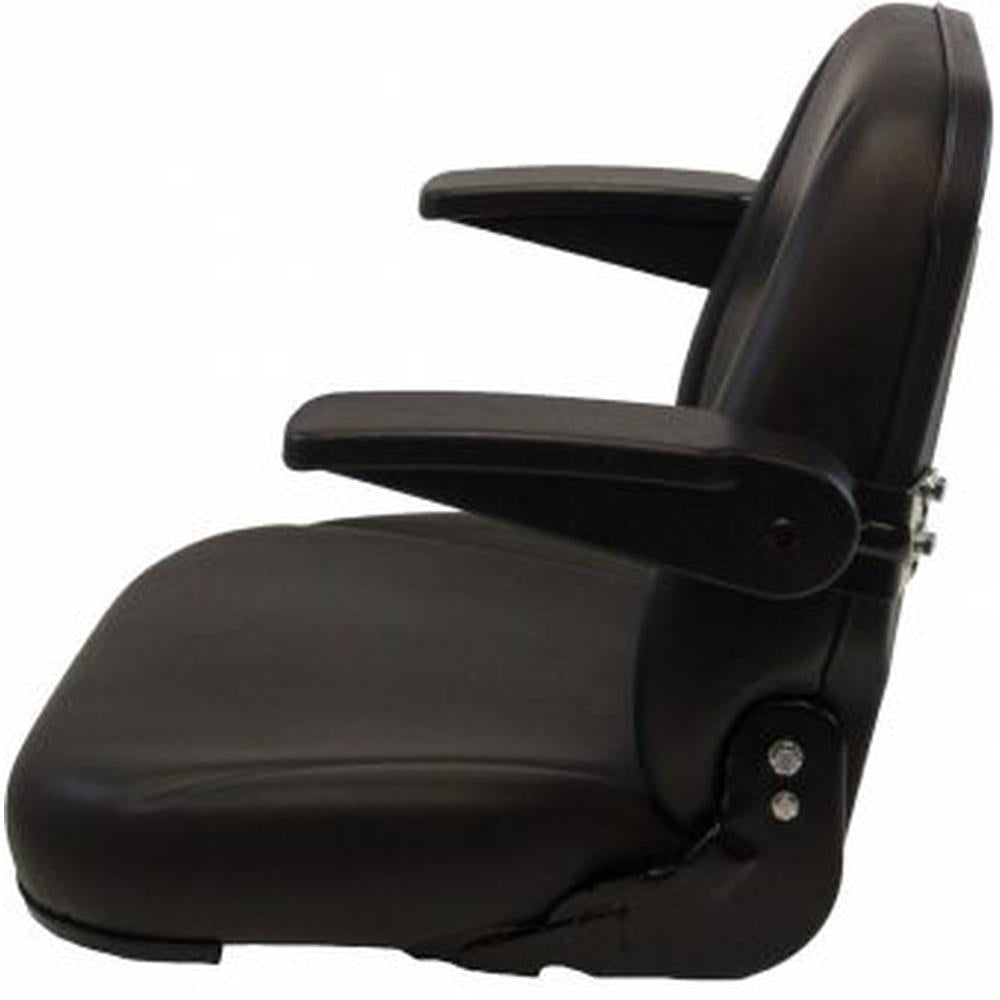

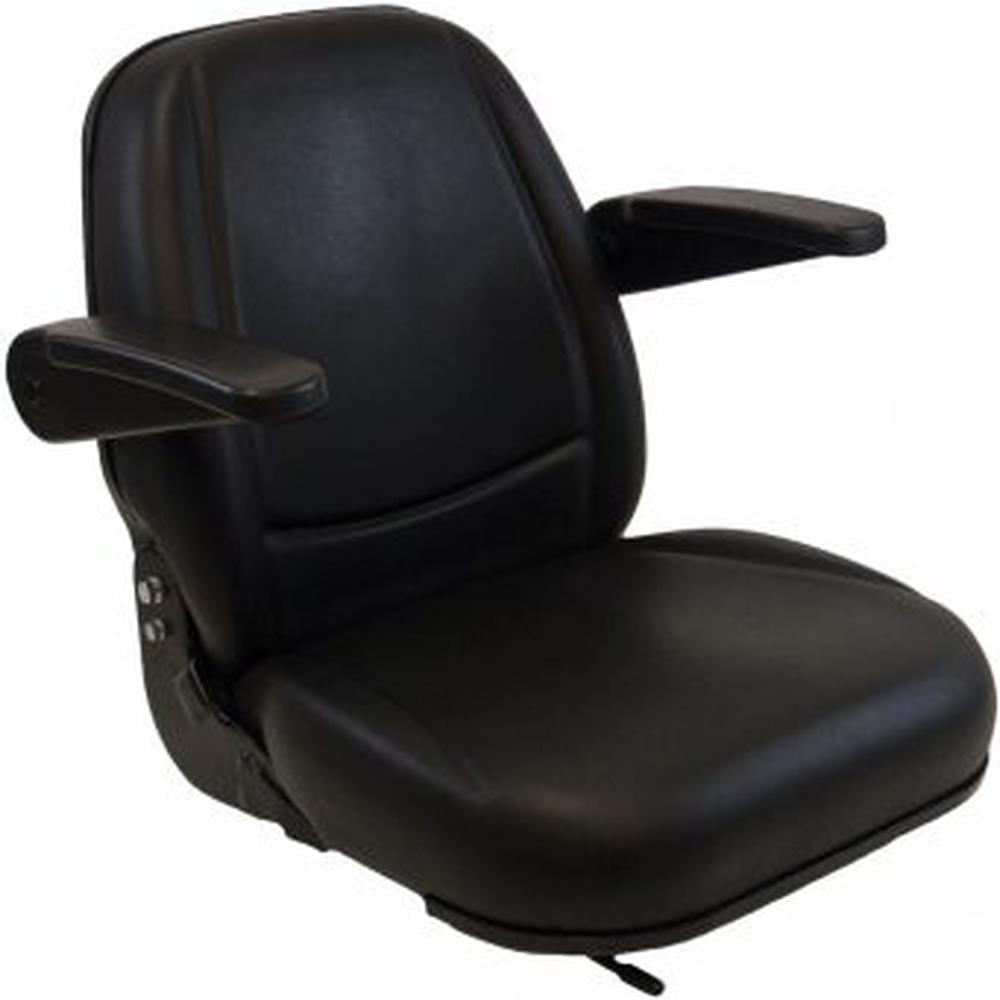

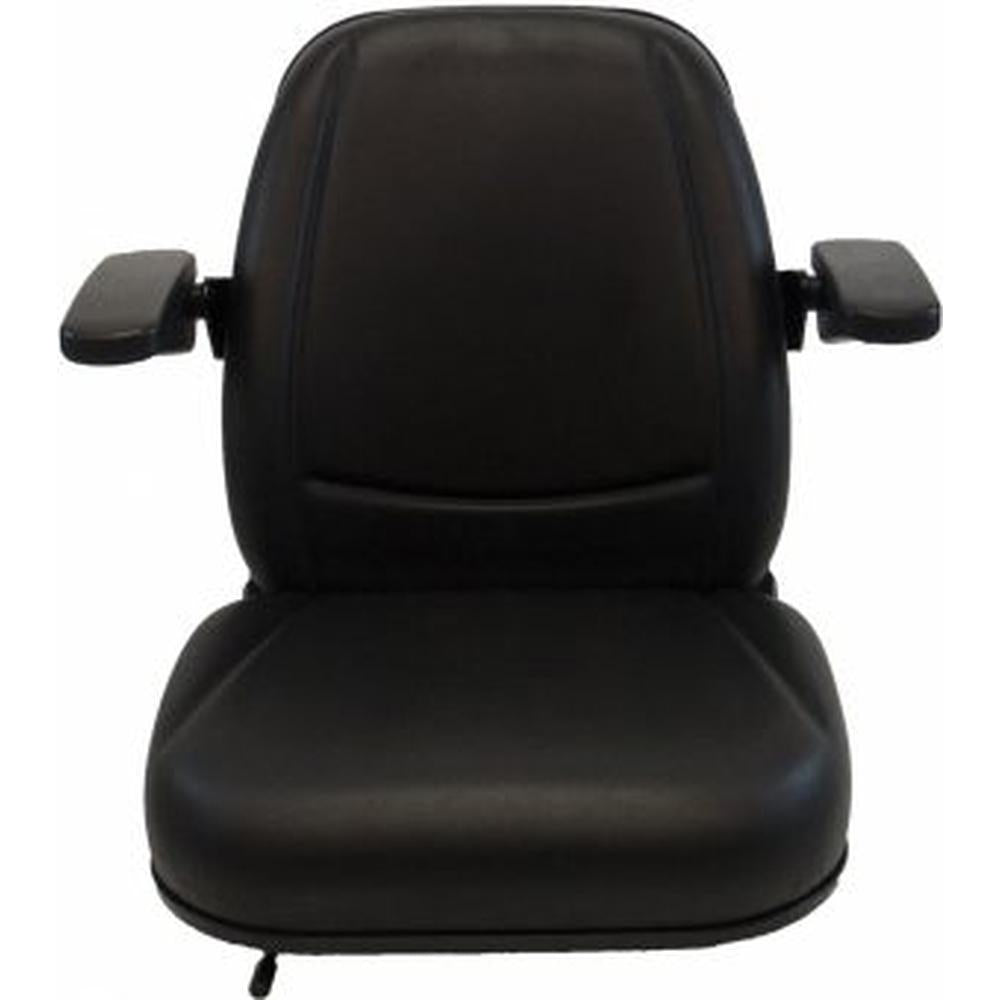

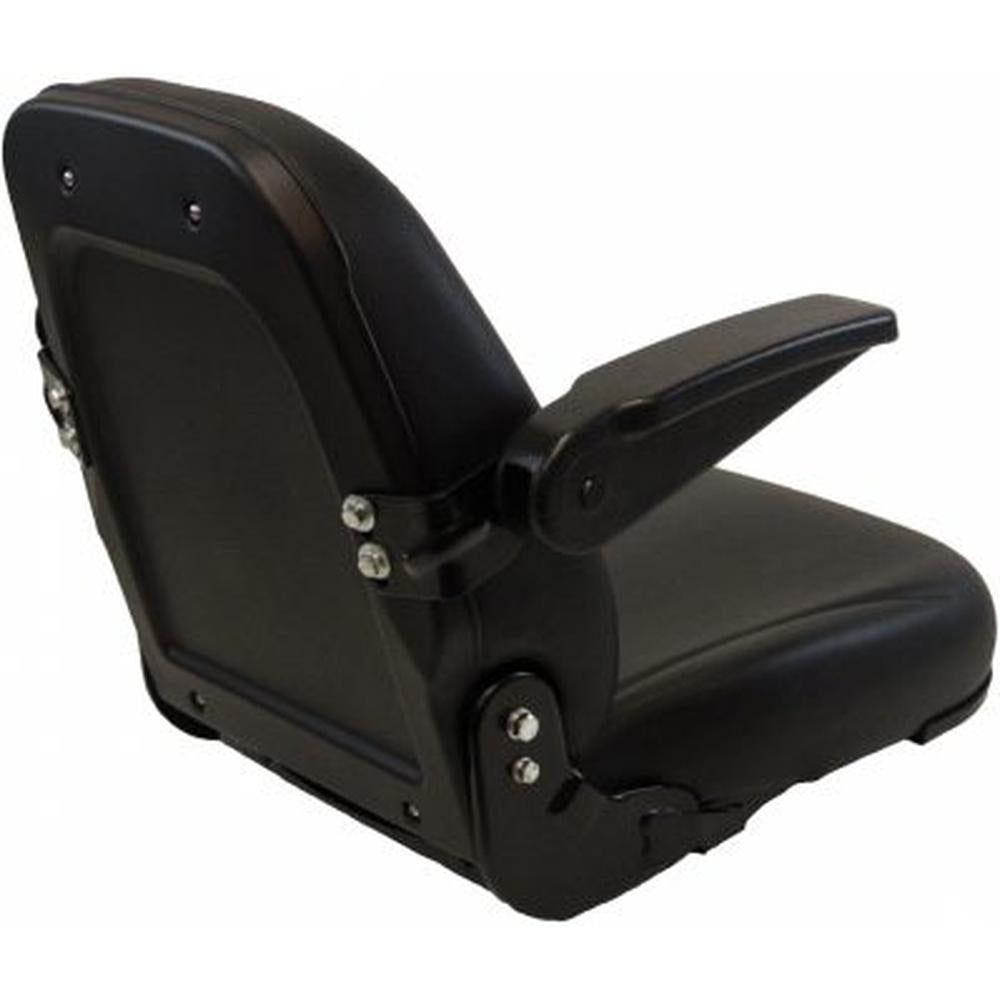

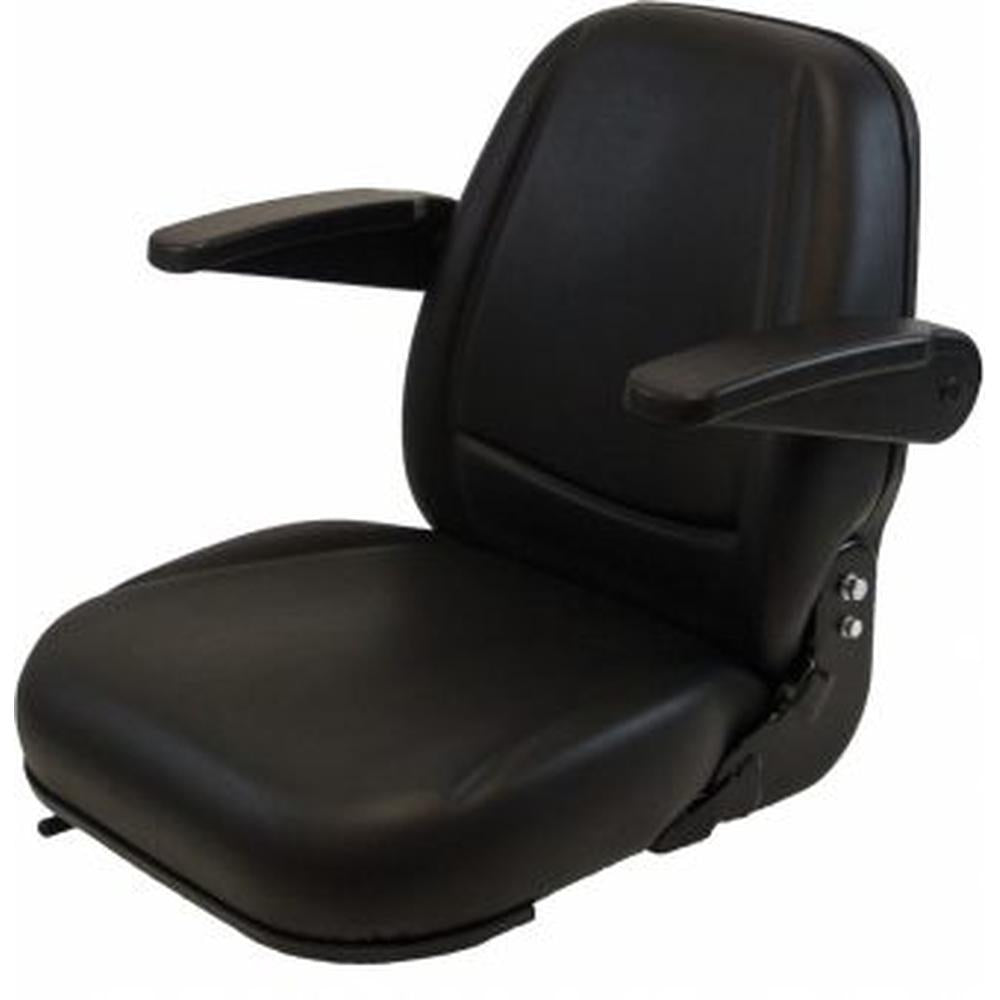

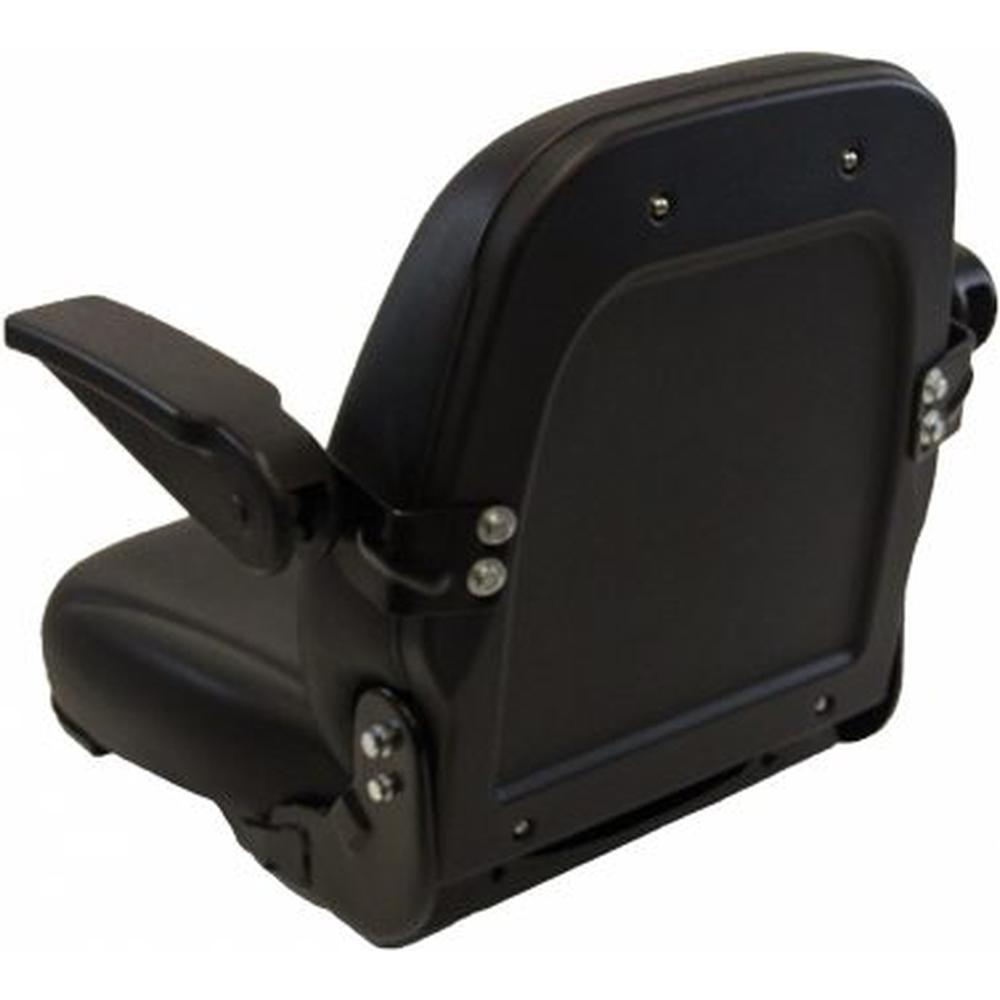

One New Aftermarket Seat w/Armrests Fits John Deere Skid Steer Models:
240, 280, 313, 315, 317, 320, 325, 328, 332, 332D, CT315, CT322, CT332

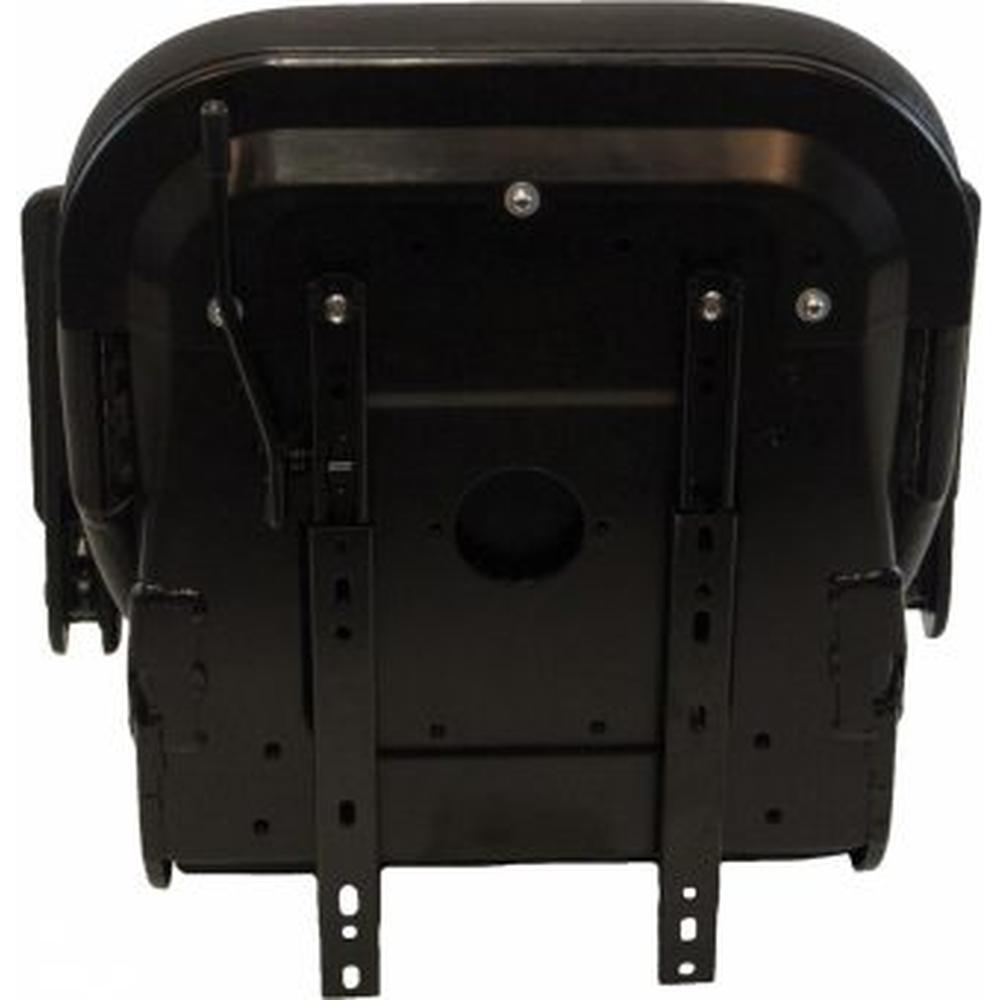

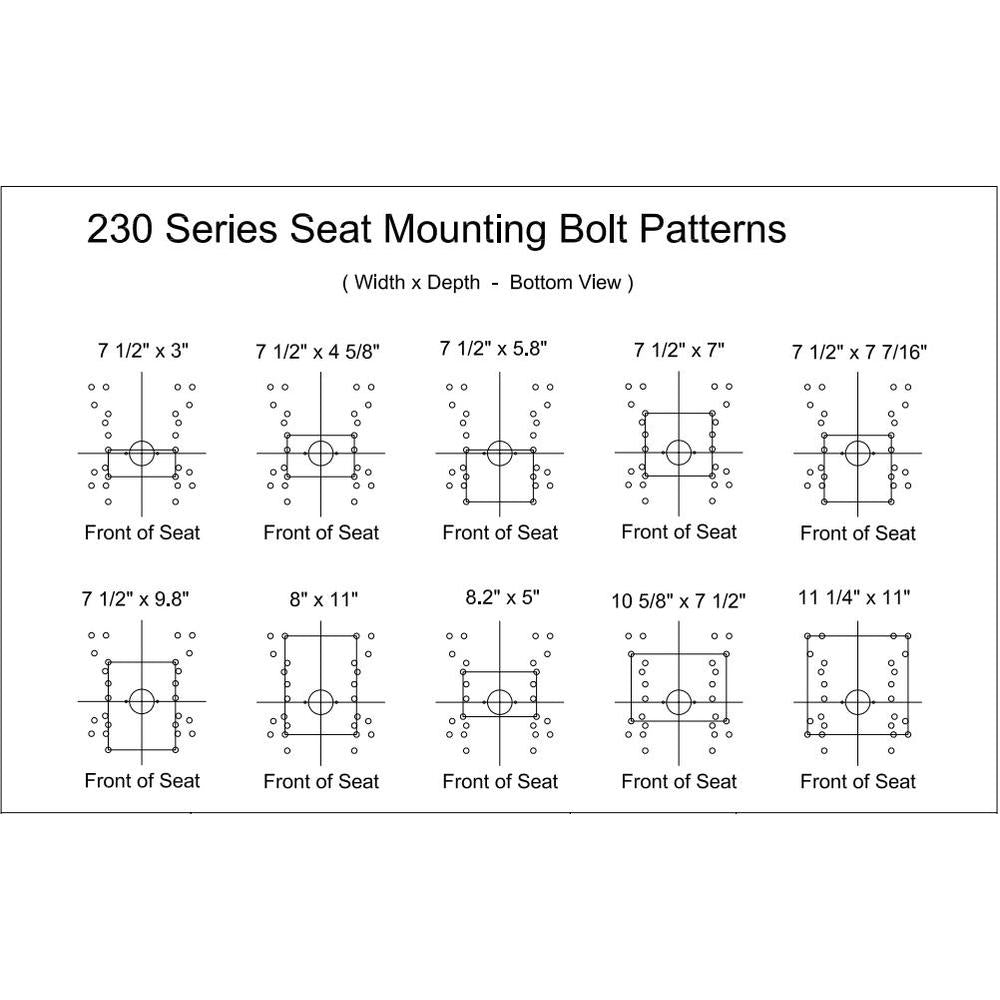

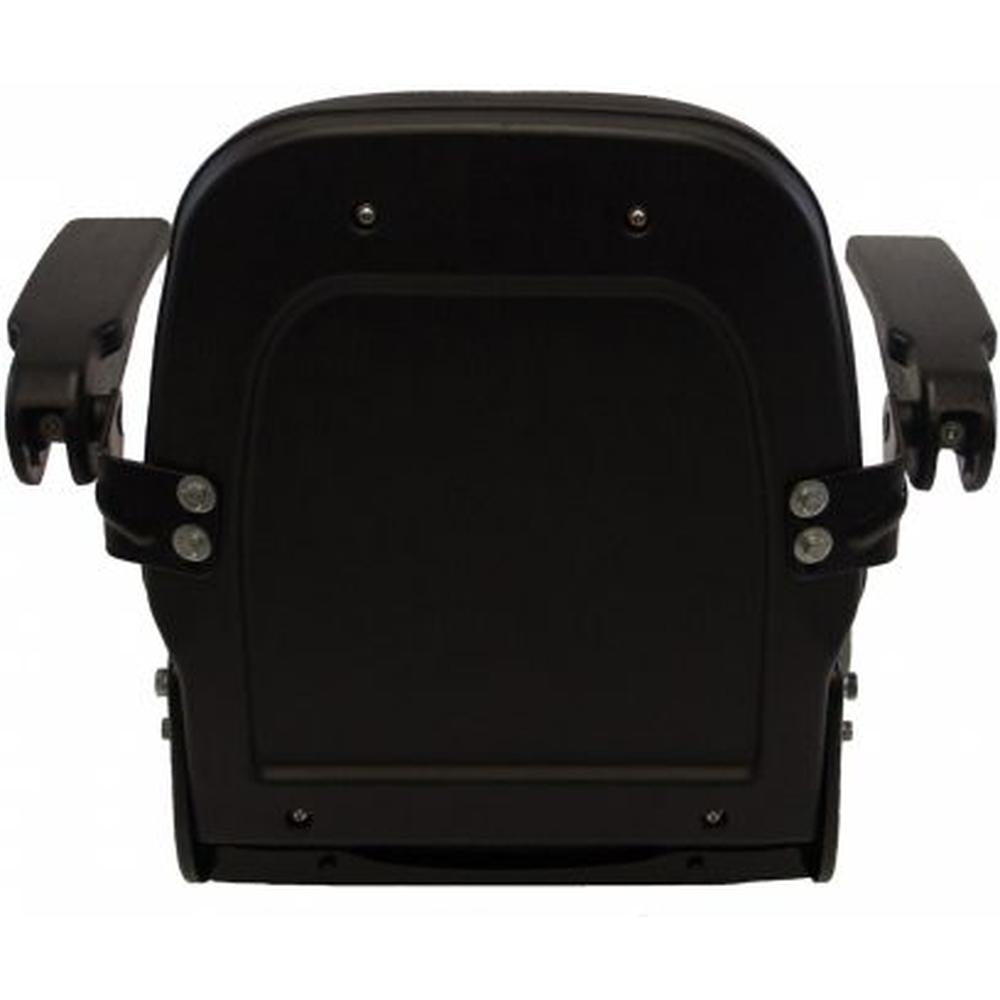

Please refer to pictures for bolt mounting patterns.
-Black vinyl cover
-Steel seat pan with hard plastic vinyl lip
-Adjustable armrests
-High density foam molded cushions
-Accepts operator presence switch
-Accepts seatbelt

Dimensions:
Height: 22.75"
Width: 24.375"
Depth: 24.5"
Front Cushion Height: 5.75"
Width Between Armrests: 18.5"

Replaces Part Number: AT315073, AT327447, AT344971, AT347476, AT361224, KV24167

Models This Part Fits:

L5740HST, 863HF, 873F, T250H, 248B, CT322, 2044, 257B, 6635SXT, 864G, T650, CT315, 216, 332D, 864H, G6-43A, T300K, G5-19A, S130, L3130DT, 4625, TL1255, HDZ 77 ISM Series, 864, T300G, 262B, 2760, 3935, 252, S175, L4630HSTC, 763G, TL642, L3540GST, L3830GST, 242B, 246B, L4740HST, 252B II, L4330DT, 4240E, L3430HSTC, G12-55A, S250HF, 287, 5640T, 226B II, L3540HSTC, L3940GST, S205, L4740GST, 35, 226B, L5040GST, 246, 262, 257, 228, 7800, T300, 267B, L3540HST, 268B, 315, Super Mini Z Series, 232, L3240HST, L3240GST, 2050, 864T, 320, 763, Z510A, 2066, S185, 2032, T190H, 2099, 5240E, T320, Super Z XR7 SSA Series, S160, 853, S185HF, Z720A, L5030HSTC, 4640E, L5740HSTC, 7610, 5640, G6-42P, L3130F, 252B, 236B II, 2750HP, 317, L3940HSTC, T190G, 287B, G6-42A, 277, 873, L5240HST, 50, 2109, T140, L4240GST, TL1055, T320H, 236, T250, T200, S150, ATZ Kawasaki Series, Super Z Series, S220, L3130HST, S330, L3240DT, ATZ Series, 773GT, T300H, S220H, 2750, SE2550, 328, SE2760HP, S300, 2074, 773G, 2076, S250, L3130GST, 5640E, G10-55A, 863F, 267, S650, T250G, 4240, 5635SXT, 240, L4630DT, 4840E, 7810, T190, 30, SE2750, 5635SX, L3240F, 40, L3240HSTC, L5240HSTC, 236B, S160HF, 883, 863, 753G, 873C, 247, 332, SE2744, 257B II, T190K, L3430GST, A300, 6640, 2070, 2086, 232B, 6640E, T200H, 751C, 247B II, 232B II, 4640T, 325, 864F, 7810E, 242, L4240HST, G5-18A, G6-23A, 242B II, T630, 248, L3830HST, L3940HST, L5030GST, TL943, 247B, T180, Z520A, Z710A, 2042, 863H, L4330GST, SE2734, L3430DT, 863G, T300ACS, 216B, L4240DT, 2095, CTL55, L3830F, L4630GST, 864EH, 3640E, L3940DT, 773, 4640, 313, L4740HSTC, S250K, 5625SL, T200G, 2550, ATZ XR7 SSA Series, 280, 2054, 873G, L3830DT, L4330HSTC, 1845C, S175HF, L4240HSTC, CT332, 226, 277B

Additional Information:

Depth: 24.500" Height: 23" Width: 24.500" Heavy-duty Black Vinyl covering High-density foam molded cushions to ensure operator comfort Steel pan seat with hard plastic vinyl lip Adjustable fold-up armrests Seat belt fixation points for added safety Seat dimensions (W x H): 24.5" x 23" Accepts operator presence switch & flip-type brackets Fore/aft slide rail adjustment Includes hardware for seat assembly Mounting Patterns Include (W x L): 7.5" x 3", 7.5" x 4.625", 7.5" x 5.8", 7.5" x 7", 7.5" x 7.4375", 7.5" x 9.8", 8" x 11", 8.2" x 5", 10.625" x 7.5" and 11.25" x 11" Black Seat

Reference Numbers:

AT315073, AT327447, AT344971, AT347476, AT361224, KV24167, TCA18026, 400328, 116-2943
