One New Aftermarket Replacement Water Temperature Gauge for John Deere Tractors and Combines

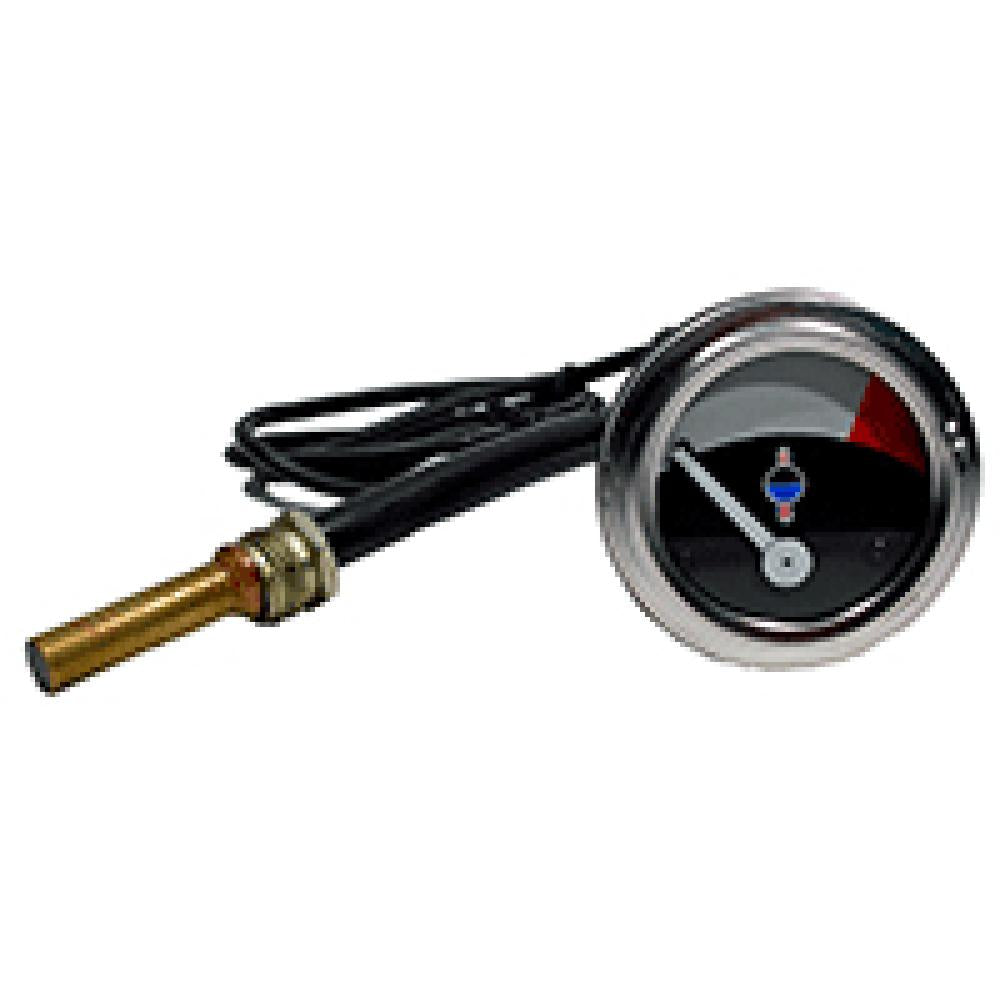

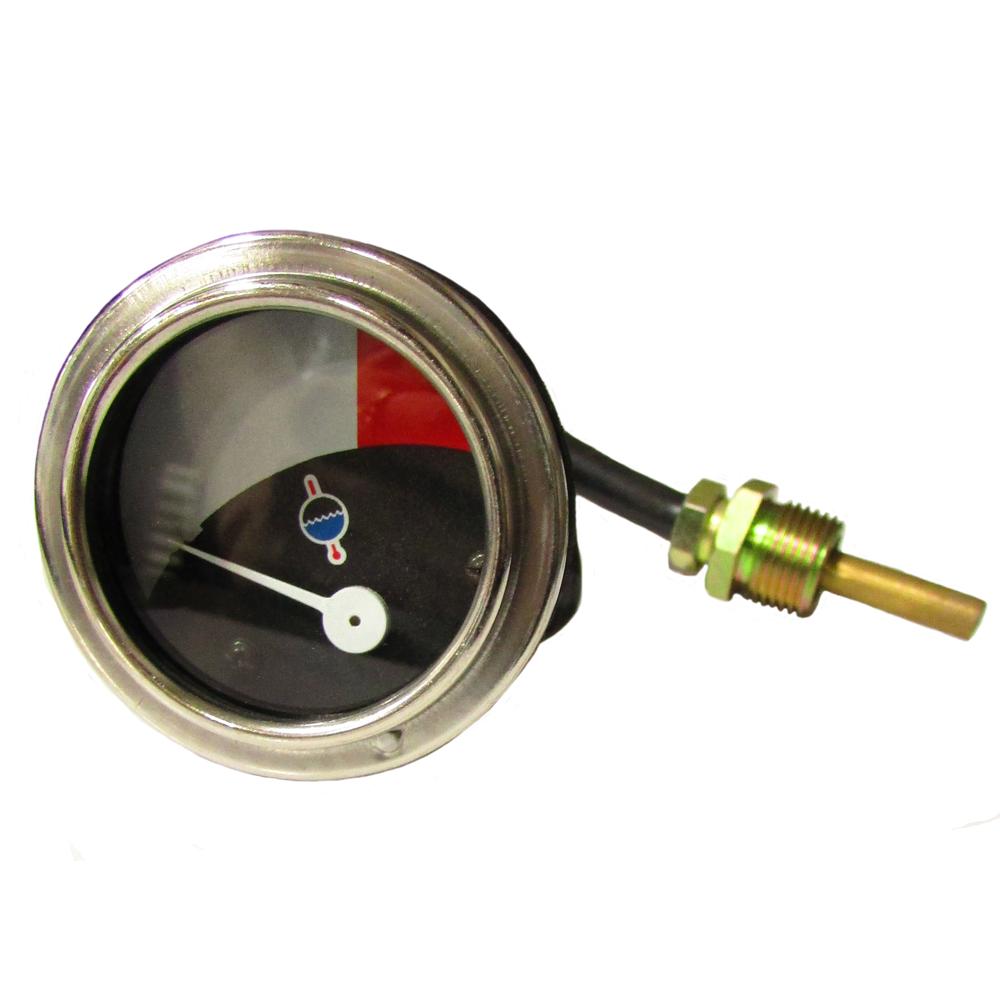

This aftermarket replacement water temperature gauge mounts on the instrument panel and allows the operator to monitor engine coolant temperature, providing an early warning if the engine is at risk of overheating. The gauge uses a 26-inch capillary lead with a 5/8-18 UNF end fitting and a 1/2" NPT pipe bushing, and includes a provision for fiber optic lighting. Replaces John Deere OEM part numbers AR48640 and AR45435.

Specifications

• Lead Length: 26 inches
• End Fitting: 5/8-18 UNF with 1/2" NPT Pipe Bushing
• Temperature Range: 100 degrees F (minimum) to 247 degrees F (maximum)
• Body Height: 1.037"
• Housing Outside Diameter: 2.045"
• Bezel Outside Diameter: 2.324"
• Includes provision for fiber optic lighting

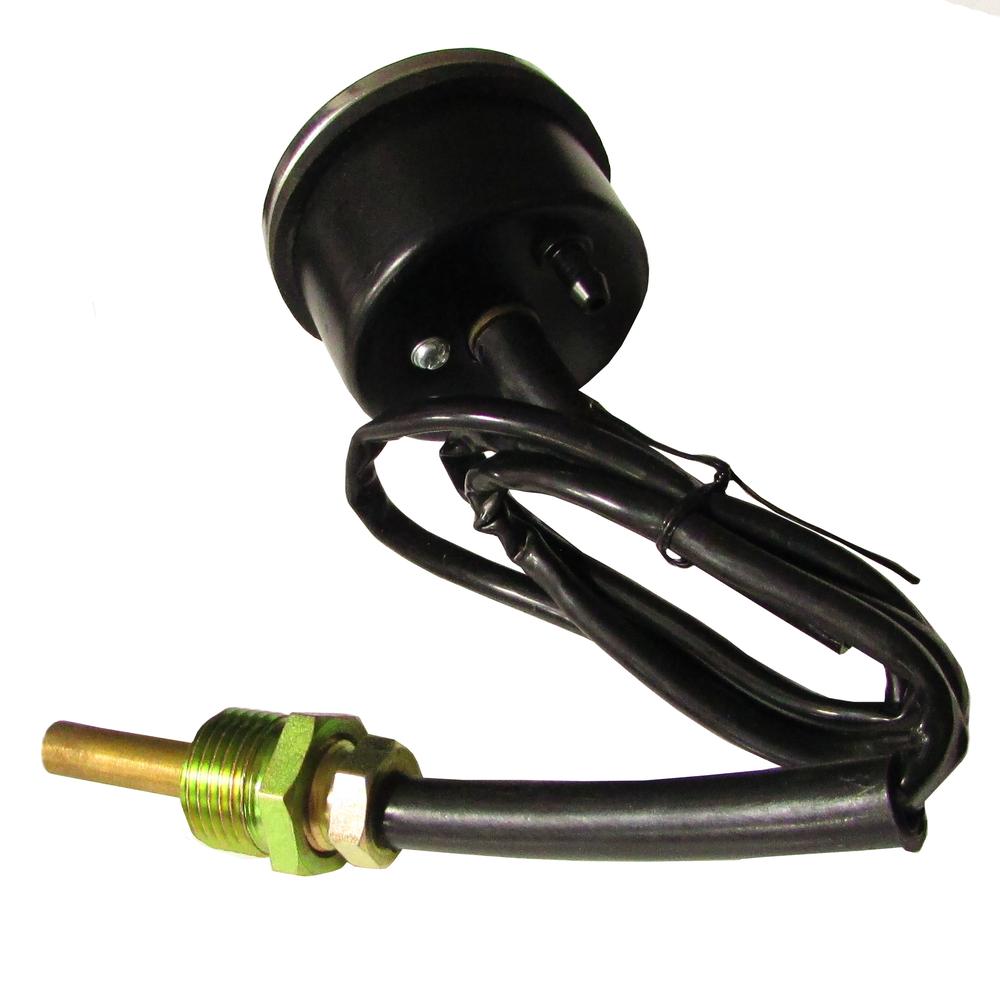

• No studs or clamp on rear of gauge

Compatible Models

John Deere Tractors: 2520, 3020 (Engine S/N 123000 and up), 4000, 4020 (Engine S/N 201000 and up), 4320, 4520, 4620, 7020

John Deere Combines: 3300, 4400, 4420, 6600, 6602, 7700

John Deere Industrial/Construction: 500A, 500B, 500C, 510

Replaces Part Number(s):

AR48640, AR45435

Aftermarket Interchange Numbers

JDS785, R4911

New aftermarket replacement part - not remanufactured, not used.
