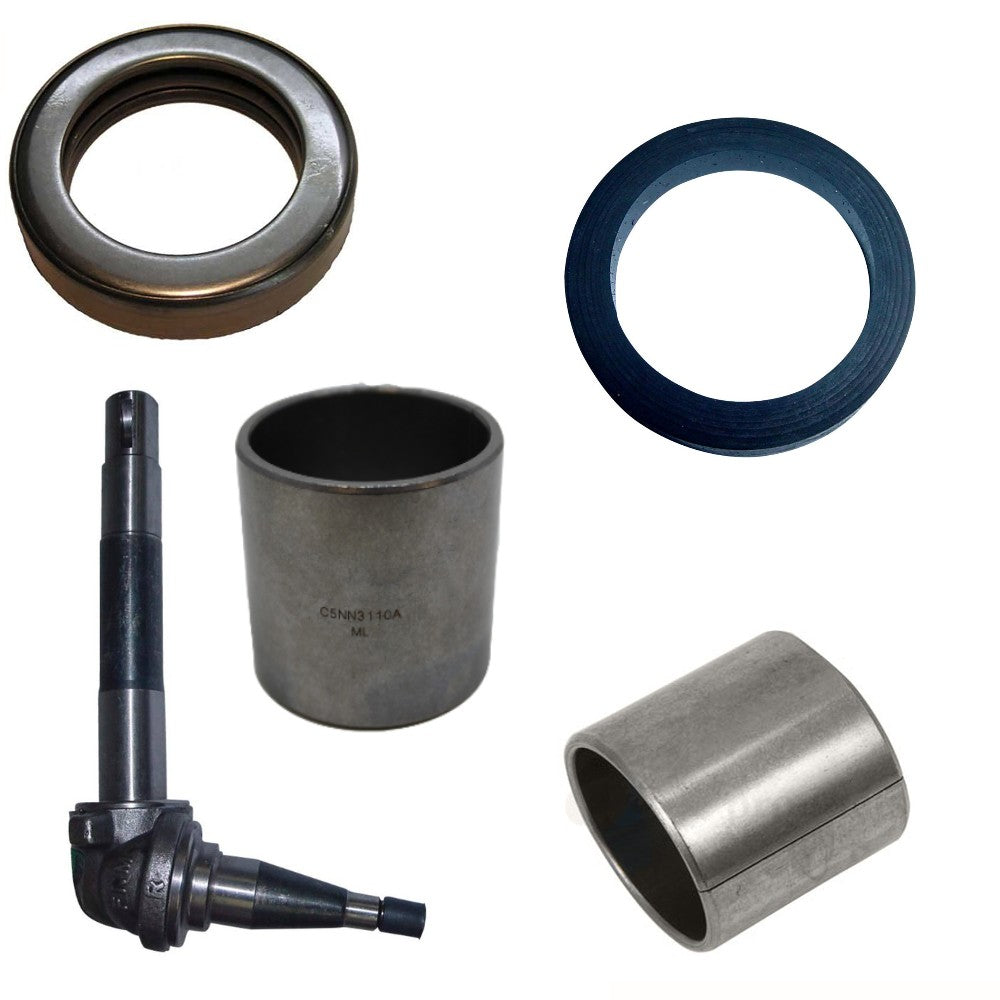

RH Spindle Kit Fits Ford/New Holland Replaces 00138712
RH Spindle Kit Fits Ford/New Holland Replaces 00138712
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket RH Spindle KitTech Info:
-Kit Contains:
-(1) Thrust Bearing
-Bearing Outside Diameter 2.878"
-Bearing Width 0.633"
-Inside Diameter 2.03"
-
-Replaces Part Number(s):
-596829R91, C0NN3A299A, 81802870, 00138712, 138712
-
-(1) Right Hand Spindle
-Keyed
-Axle Length 5 1/2"
-Diameter 1 1/2"
-Diameter 1 3/4"
-ID 1 5/8"
-Shaft Length 10 3/4"
-Type Right Hand
-
-Replaces Part Number(s):
-81815914, 82981359, 87762890, C5NN3105A, C5NN3105M, HCC5NN3105M
-
-(1) Spindle Bushing
-Inside Diameter 1.59"
-Length 1.90"
-Outside Diameter 1.98"
-
-Replaces Part Number(s):
-81802792, 82802792, C5NN3109A
-
-(1) Spindle Bushing
-Lower
-Inner Diameter: 45 mm
-Outer Diameter: 51 mm
-Height: 47 mm
-
-Replaces Part Number(s):
-81802797, C5NN3110A
-
-(1) Seal
-Inside Diameter 1.456"
-Outside Diameter 1.968"
-
-Replaces Part Number(s):
-C0NN3A208A, 81802845Made to Fit Ford/New Holland:
Tractor Models: 3010S, 3600, 4010S, 4100, 4600, 5000, 5100, 5110, 5600, 5610, 5610S, 5900, 6410, 6600, 6610, 6610S, 6710, 6810, 6810S, 7000, 7600, 7610, 7610S, 7700, 7710, 7810S
Model Breaks: 3010S (with 3-Cylinder, 4/96 and After),3600 (with 3-Cylinder, 1/75-12/81),4010S (with 3-Cylinder, 1/96 and After),4100 (with 3-Cylinder, 1/75-12/81),4600 (with 3-Cylinder, 1/75-12/81),5610S (with 4-Cylinder, 1/86 and After, Latin America),5610S (with 4-Cylinder, 12/93 and After),6610S (with 4-Cylinder, 1/94 and After),6610S (with 4-Cylinder, 1/94 and After, Latin America),6710 (with 4-Cylinder, 1/81-9/85),6810S (with 4-Cylinder, 1/88 and After, Mexico Only),7610S (01/01/1994-03/09/1999),7700 (76),7710 (with 4-Cylinder, 1/81-10/91),7810S (with 6-Cylinder, 12/93-7/97)
Replaces Part Number(s): C5NN3110A, 81802797, 81815914, 82981359, 87762890, C5NN3105A, C5NN3105M, C0NN3A299A, 00138712, 596829R91, 81802870, C5NN3109A, 81802792, 82802792, C0NN3A208A, 81802845
-Kit Contains:
-(1) Thrust Bearing
-Bearing Outside Diameter 2.878"
-Bearing Width 0.633"
-Inside Diameter 2.03"
-
-Replaces Part Number(s):
-596829R91, C0NN3A299A, 81802870, 00138712, 138712
-
-(1) Right Hand Spindle
-Keyed
-Axle Length 5 1/2"
-Diameter 1 1/2"
-Diameter 1 3/4"
-ID 1 5/8"
-Shaft Length 10 3/4"
-Type Right Hand
-
-Replaces Part Number(s):
-81815914, 82981359, 87762890, C5NN3105A, C5NN3105M, HCC5NN3105M
-
-(1) Spindle Bushing
-Inside Diameter 1.59"
-Length 1.90"
-Outside Diameter 1.98"
-
-Replaces Part Number(s):
-81802792, 82802792, C5NN3109A
-
-(1) Spindle Bushing
-Lower
-Inner Diameter: 45 mm
-Outer Diameter: 51 mm
-Height: 47 mm
-
-Replaces Part Number(s):
-81802797, C5NN3110A
-
-(1) Seal
-Inside Diameter 1.456"
-Outside Diameter 1.968"
-
-Replaces Part Number(s):
-C0NN3A208A, 81802845Made to Fit Ford/New Holland:
Tractor Models: 3010S, 3600, 4010S, 4100, 4600, 5000, 5100, 5110, 5600, 5610, 5610S, 5900, 6410, 6600, 6610, 6610S, 6710, 6810, 6810S, 7000, 7600, 7610, 7610S, 7700, 7710, 7810S
Model Breaks: 3010S (with 3-Cylinder, 4/96 and After),3600 (with 3-Cylinder, 1/75-12/81),4010S (with 3-Cylinder, 1/96 and After),4100 (with 3-Cylinder, 1/75-12/81),4600 (with 3-Cylinder, 1/75-12/81),5610S (with 4-Cylinder, 1/86 and After, Latin America),5610S (with 4-Cylinder, 12/93 and After),6610S (with 4-Cylinder, 1/94 and After),6610S (with 4-Cylinder, 1/94 and After, Latin America),6710 (with 4-Cylinder, 1/81-9/85),6810S (with 4-Cylinder, 1/88 and After, Mexico Only),7610S (01/01/1994-03/09/1999),7700 (76),7710 (with 4-Cylinder, 1/81-10/91),7810S (with 6-Cylinder, 12/93-7/97)
Replaces Part Number(s): C5NN3110A, 81802797, 81815914, 82981359, 87762890, C5NN3105A, C5NN3105M, C0NN3A299A, 00138712, 596829R91, 81802870, C5NN3109A, 81802792, 82802792, C0NN3A208A, 81802845
Models This Part Fits:
6600, 4100, 7000, 7810S, 6410, 7610S, 5000, 5110, 5100, 7610, 7710, 3010S, 6710, 7700, 6610, 3600, 6810S, 4010S, 7600, 6810, 5610, 5610S, 4600, 6610S, 5900, 5600Additional Information:
Kit Contains: (1) Thrust Bearing Bearing Outside Diameter 2.878" Bearing Width 0.633" Inside Diameter 2.03" Replaces Part Number(s): 596829R91, C0NN3A299A, 81802870, 00138712, 138712 (1) Right Hand Spindle Keyed Axle Length 5 1/2" Diameter 1 1/2" Diameter 1 3/4" ID 1 5/8" Shaft Length 10 3/4" Type Right Hand Replaces Part Number(s): 81815914, 82981359, 87762890, C5NN3105A, C5NN3105M, HCC5NN3105M (1) Spindle Bushing Inside Diameter 1.59" Length 1.90" Outside Diameter 1.98" Replaces Part Number(s): 81802792, 82802792, C5NN3109A (1) Spindle Bushing Lower Inner Diameter: 45 mm Outer Diameter: 51 mm Height: 47 mm Replaces Part Number(s): 81802797, C5NN3110A (1) Seal Inside Diameter 1.456" Outside Diameter 1.968" Replaces Part Number(s): C0NN3A208A, 81802845Reference Numbers:
C5NN3110A, 81802797, 81815914, 82981359, 87762890, C5NN3105A, C5NN3105M, C0NN3A299A, 00138712, 596829R91, 81802870, C5NN3109A, 81802792, 82802792, C0NN3A208A, 81802845Makes This Part Fits:
