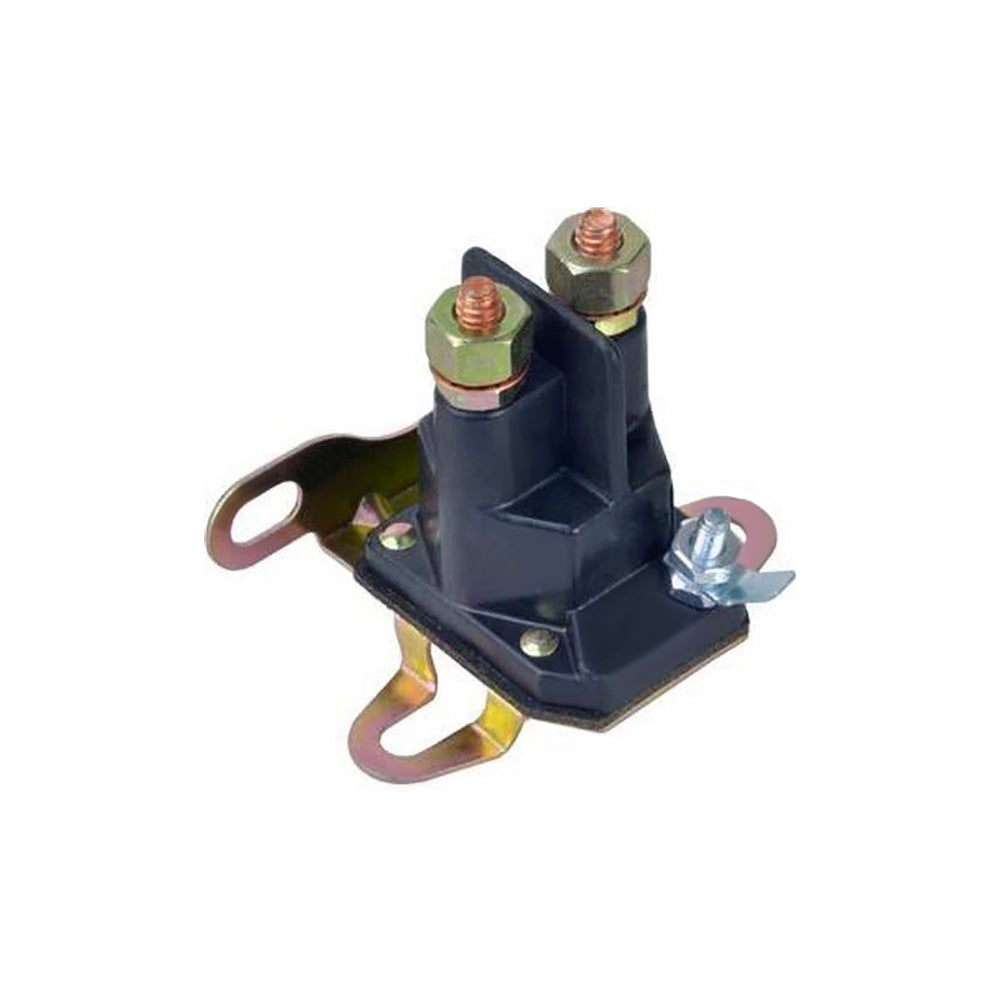

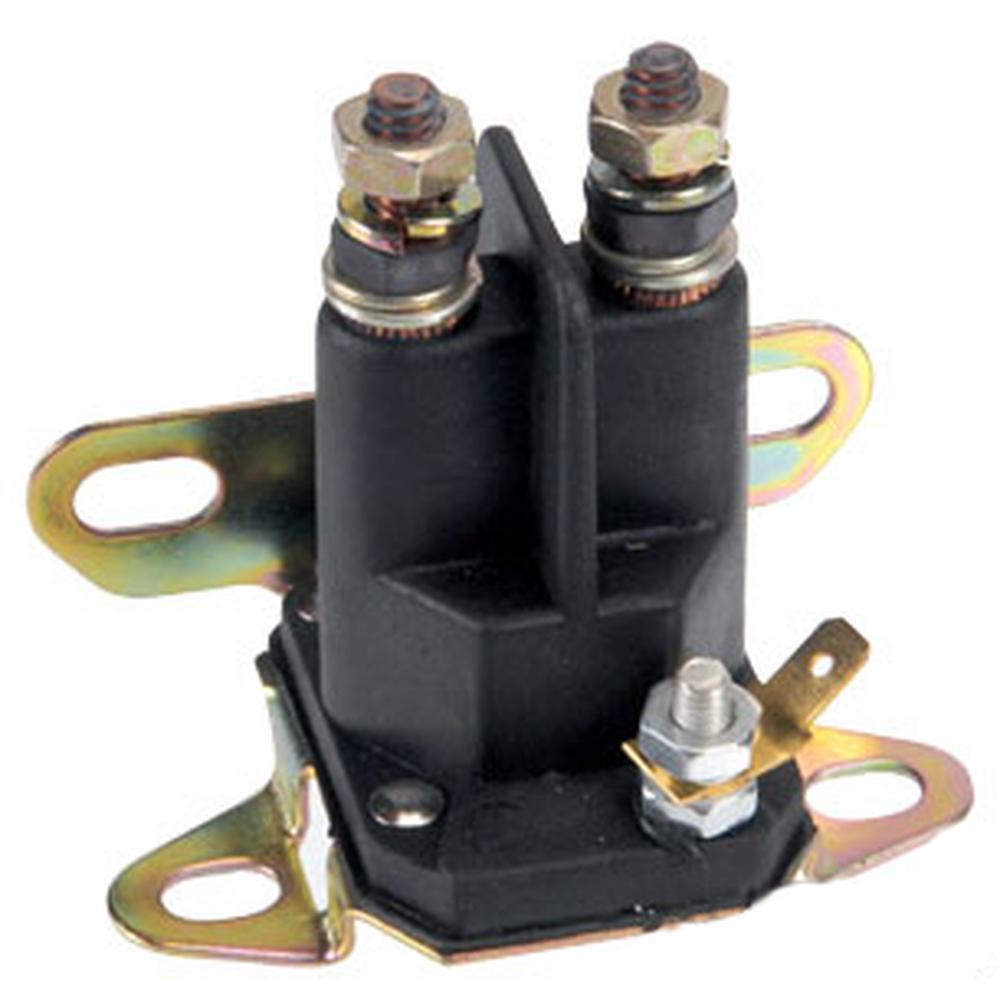

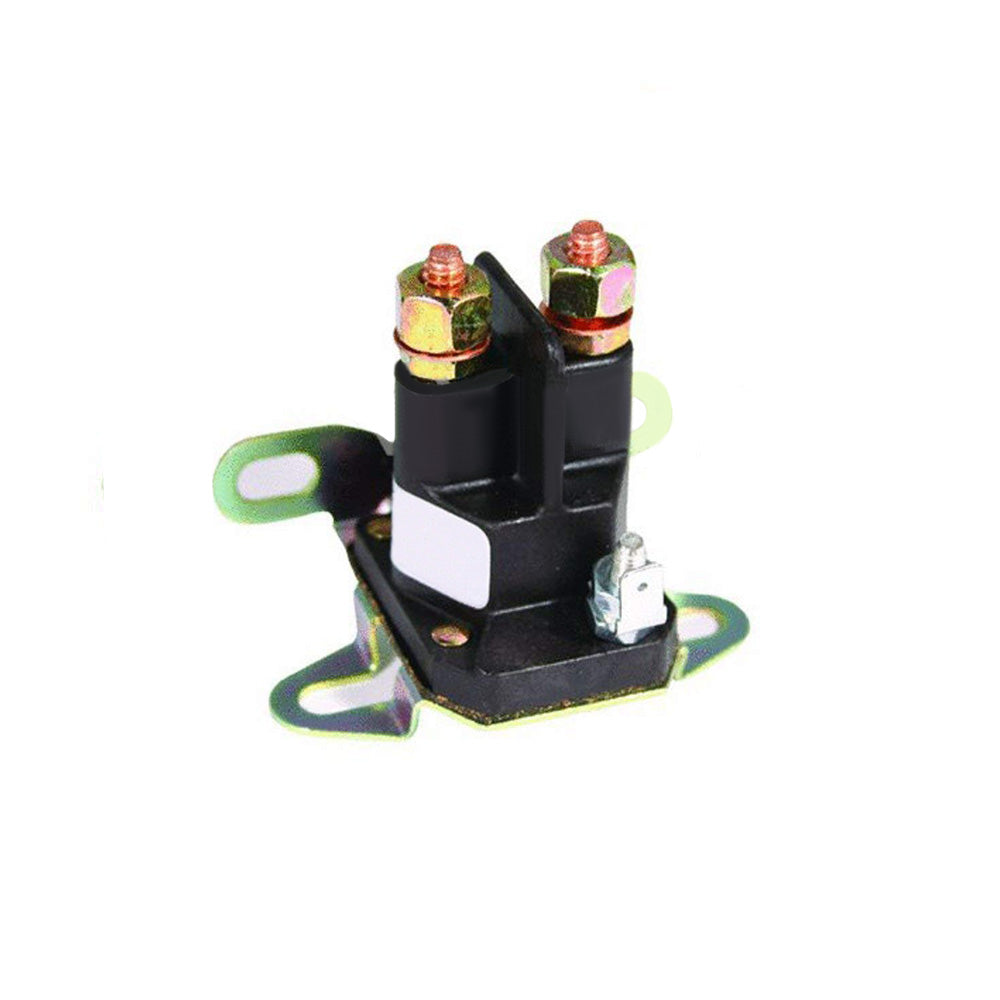

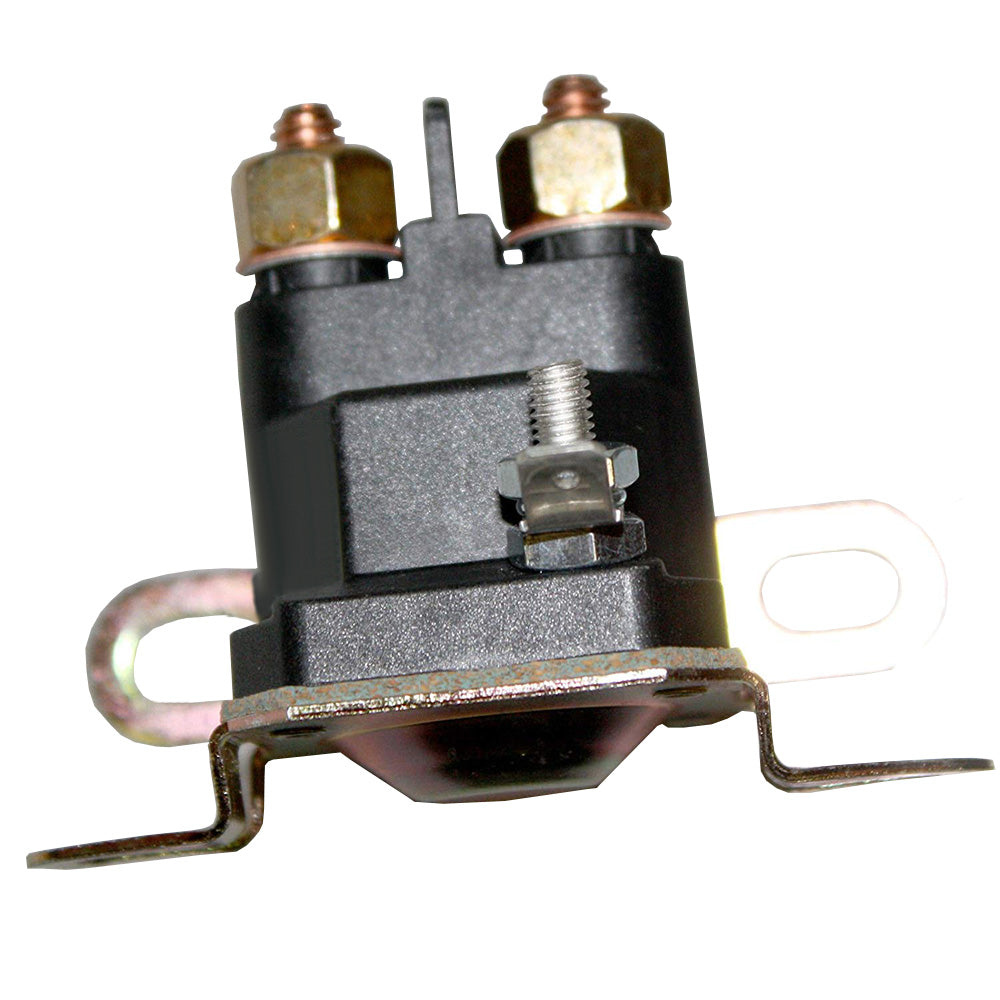

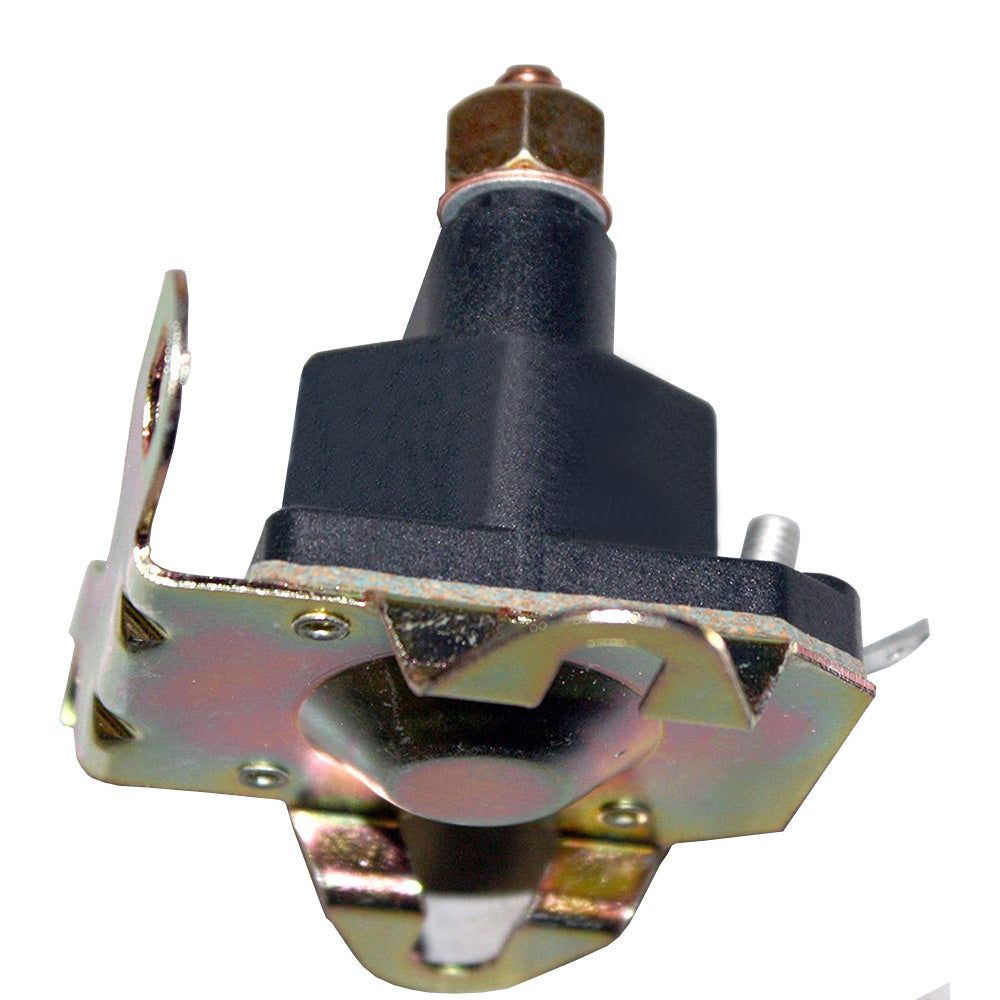

Rotary 12V Solenoid Starter Fits Toro 112-0309

Name: Rotary 12V Solenoid Starter Fits Toro 112-0309
Brand: AIC Replacement Parts
SKU: ELS60-0247_30
Price: 6.55 USD
Availability: InStock

Rotary 12V Solenoid Starter Fits Toro 112-0309

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Replacement Starter Solenoid for Toro, MTD, Briggs & Stratton, and More

This 12V starter solenoid is a direct aftermarket replacement for use on Toro, MTD, Cub Cadet, Hustler, Murray, Ariens, Snapper, AYP, Husqvarna, and other riding mowers and zero-turn mowers. The solenoid acts as the electrical switch that connects battery current to the starter motor when the ignition key is turned, enabling engine cranking. It features a single pole chassis ground design with both 1/4" and 5/16" posts, side and flat mounting brackets, and an adapter for spade connectors, making it compatible across a wide range of equipment configurations. Replaces Toro OEM part number 112-0309.

Specifications

Voltage: 12V
Posts: 2 Post, 1 Tab
Ground: Single Pole Chassis Ground
Post Sizes: 1/4" and 5/16"
Mounting: Side and Flat Mounting Brackets
Adapter: Includes adapter for spade connector
Torque Max: 35 in-lbs (LG)
Dimensions: 60mm H x 76mm L x 56mm W

Compatible Models

Toro: GT2100, GT2200, GT2300, LX420, LX425, LX460, LX465, LX500, SL500, ZT, ZT Elite, ZT Avenger, and additional riding mowers and zero-turn mowers with 32", 36", 42", 48", 52", and 61" decks including models 13AG609G063, 13AJ609H063, 13AV609H063, 13AY609H063, 13CD609G063

MTD / Cub Cadet / Troy-Bilt: Front and rear engine rider models (1990-1994) and additional riding mowers and lawn tractors

Hustler: Zero-turn and commercial mowers

Murray / Bolens: Riding mowers and lawn tractors

Ariens: Riding mowers and garden tractors

Snapper / Kees: Riding mowers and zero-turn mowers

Husqvarna / AYP: Riding mowers and lawn tractors

Briggs & Stratton: Small engines used in riding mowers and lawn tractors

Bad Boy: Commercial zero-turn mowers

Wright: Commercial walk-behind mowers

AMF / Noma / Dynamark / Simplicity / Ransome: Compatible riding mower models

Replaces Part Number(s):

Toro: 112-0309
MTD / Cub Cadet / Troy-Bilt: 725-0270, 725-0530, 725-0771, 725-0771P, 725-1426, 725-1426A, 925-0771, 925-1426, 925-1426A
Briggs & Stratton: 5409, 5409D, 5409H, 5409K, 5409WEB, 691656, 745000, 745000MA, 745001, 790951, 807829
Murray: 7701100MA, 21261, 24285, 424285, 924285
Ariens: 03057700, 035770, 03577000, 035832, 03583200, 3057700, 35770, 35832, 53504600, AR03577000, AR03583200
AYP / Husqvarna: 110832X, 111674, 532109946, 532110832, 532146154, HU532110832
Snapper / Kees: 1-8817, 7018817, 7075671, 7075671YP, 7075691YP, 75671, 18817
Hustler: 030817, 035770, 03577000
Bad Boy: 108-5349-00
Bolens: 1717048, 1751569
Simplicity: 1530
AMF / Noma / Dynamark: 52323, 53716
Husqvarna: 506558601, 1671994
Hustler: IZ4821T, IZ6125T, LZ5227TXP, LZ6127T
Additional: 030817, 21261, 53490009

Aftermarket Interchange Numbers

ELS60-0247

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

LT 1050, commercial mowers, 52", 445, riding mowers and several zero-turn mowers, zero-turns and commercial walk-behinds, LT 1024, IZ6125T, Riding Mowers, lawn equipment for precision work, riding mowers lawn equipment for precision work, ZT Elite, 1220, RZT22, yard and garden, 805, LT 1040, 1106, 1027, and some snow blowers, 13AV609H063, 1208, 1605, RZT50, lawn tractors, lawn tractors and some snow blowers, Lawn Tractors, 1002, 1320, 13AG609G063, 1180, 1415, and 13CD609G063, LT 1046, as well as several industrial loaders, 48", 1110, 3185, Garden Tractors, LZ5227TXP, 1020, ZT, 1136, GT 1222, LT 1042, mowers for cutting grass, IZ4821T, Zero-Turn, 13AJ609H063, 1215, LT 1018, GT 1554, 1615, RZT54, zero-turn mowers, ZT Avenger and others, 61", 1170, 13AY609H063, RZT17, RZT42, riding mowers and lawn tractors, LZ6127T, 1015, LT 1022, garden tractors and zero-turn mowers, 1105, 1315, 1030, lawn tractors and walk behind mowers, 1620, LT 1045

Additional Information:

Single Pole Chassis Ground 1/4" and 5/16" Post Side and Flat Mounting Brackets Adapter for Spade Connector 12V Starter Solenoid

Reference Numbers:

925-1426, 725-0771, 725-1426, 725-1426A, 1717048, 1726547, 1729547, 1740056, 1751569, GW-1751569, GW-B1740056, 725-1426P, 7250530, 7250771, 7251426, 925-0771, 925-1426A, 9250771, 9251426, 9251426A, 725-0185, 725-0270, 725-0771P, 725-3102, 7701100MA, 725-0530, 1751569, 7701100MA, 5409, 5409D, 5409H, 5409K, 5409WEB, 691656, 745000, 745000MA, 745001, 790951, 807829, 1671994, 53490009, 21261, 24285, 424285, 52323, 53716, 745000MA, 7701100MA, 924285, 725-0530, 725-0771, 725-1426, 725-1426A, 1717048, 1726547, 1729547, 1740056, 1751569, GW-1751569, GW-B1740056, 725-1426P, 7250530, 7250771, 7251426, 925-0771, 925-1426, 925-1426A, 9250771, 9251426, 9251426A, 725-0185, 725-0270, 725-0771P, 725-3102, 7701100MA, 18817, 1-8817, 7018817, 7075671, 7075671YP, 7075691YP, 75671, 1530, 1717048, 1751569, 725-1426A, 7701100MA, 925-1426A, 030817, 532109946, 532110832, 532146154, HU532110832, 506558601, 53-210-90-81, 53-210-99-46, 53-213-84-06, 53-214-61-54, 532 10 90-81, 532 10 99-46, 532 11 08-32, 532 13 84-06, 532 14 61-54, 532109081, 5321108-32, 532138406, 108-5349-00, 111674, 112-0309, 1717048, 1751569, 725-0270, 725-0530, 725-0771, 725-0771P, 725-1426, 725-1426A, 7701100MA, 925-0771, 925-1426, 925-1426A, 03057700, 035770, 03577000, 035832, 03583200, 3057700, 35770, 35832, 53504600, AR03577000, AR03583200, 110832X, 111674, 506558601, 532109946, 532110832, 532146154, HU532110832, 725-0771, 725-1426, 725-1426A, 1717048, 1726547, 1729547, 1740056, 1751569, GW-1751569, GW-B1740056, 725-1426P, 7250530, 7250771, 7251426, 925-0771, 925-1426, 925-1426A, 9250771, 9251426, 9251426A, 725-0185, 725-0270, 725-0771P, 725-3102, 7701100MA, 725-0530
