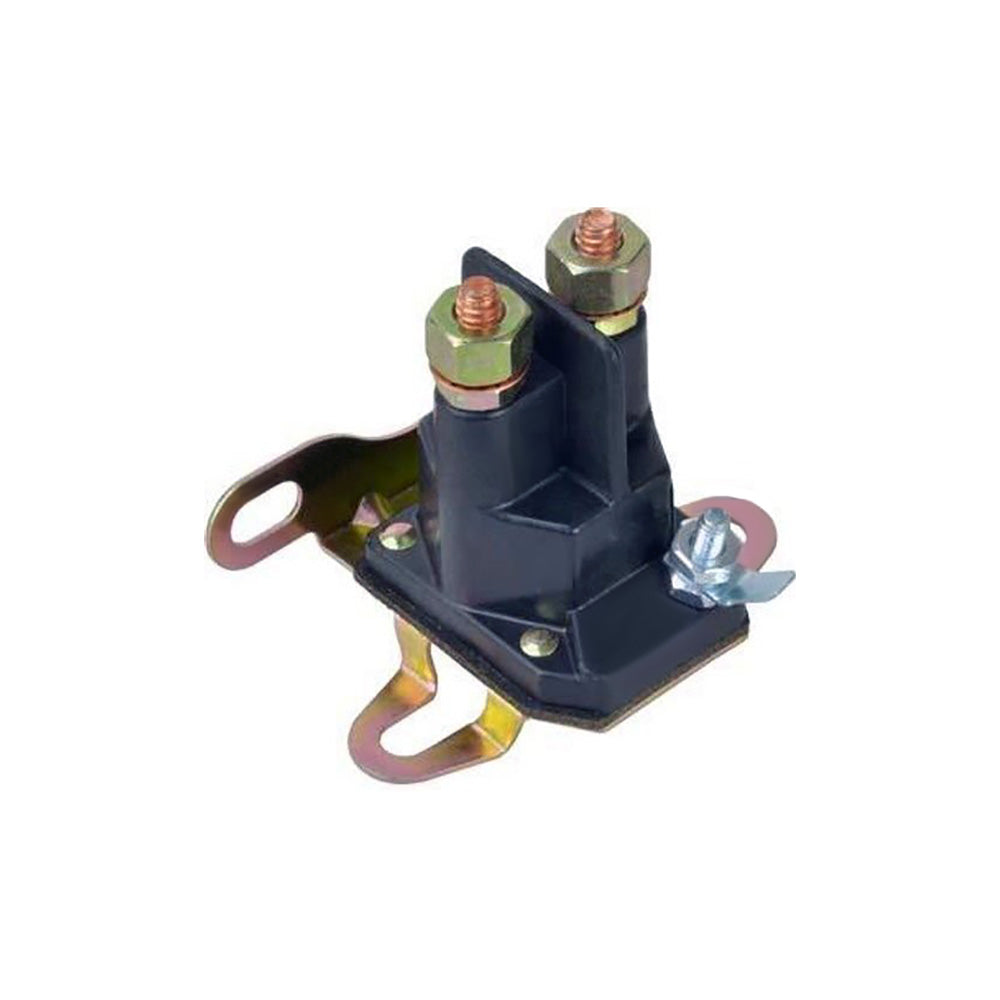

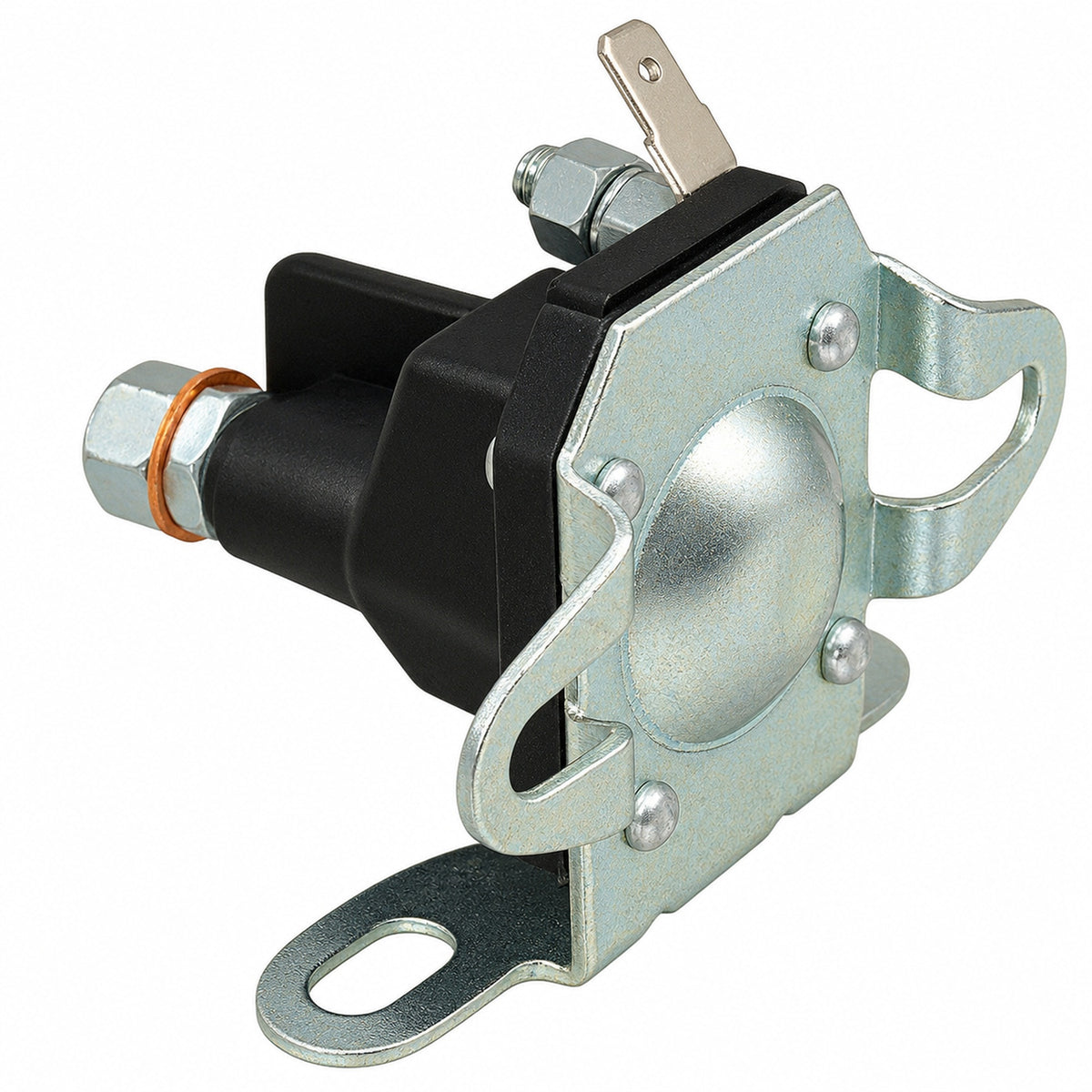

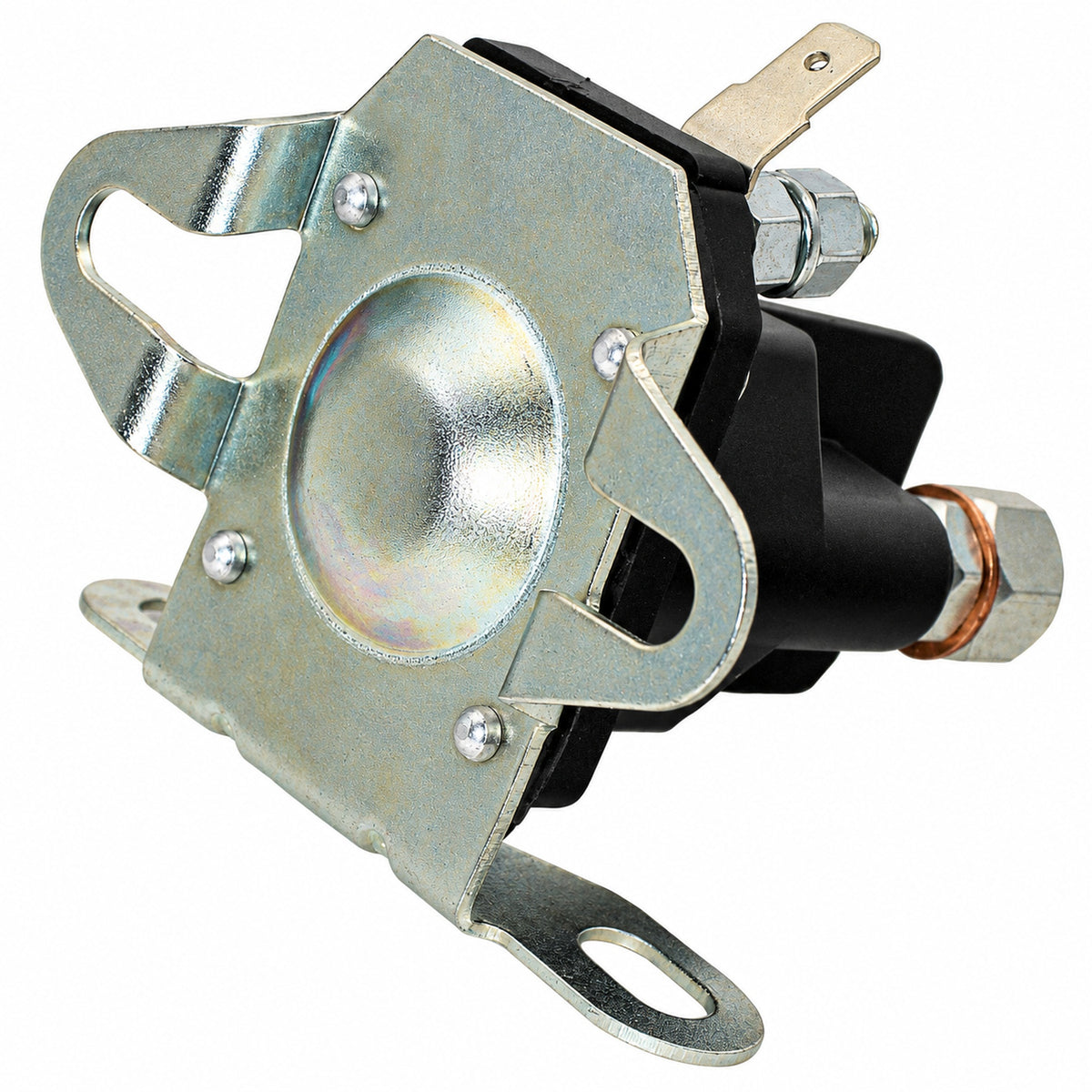

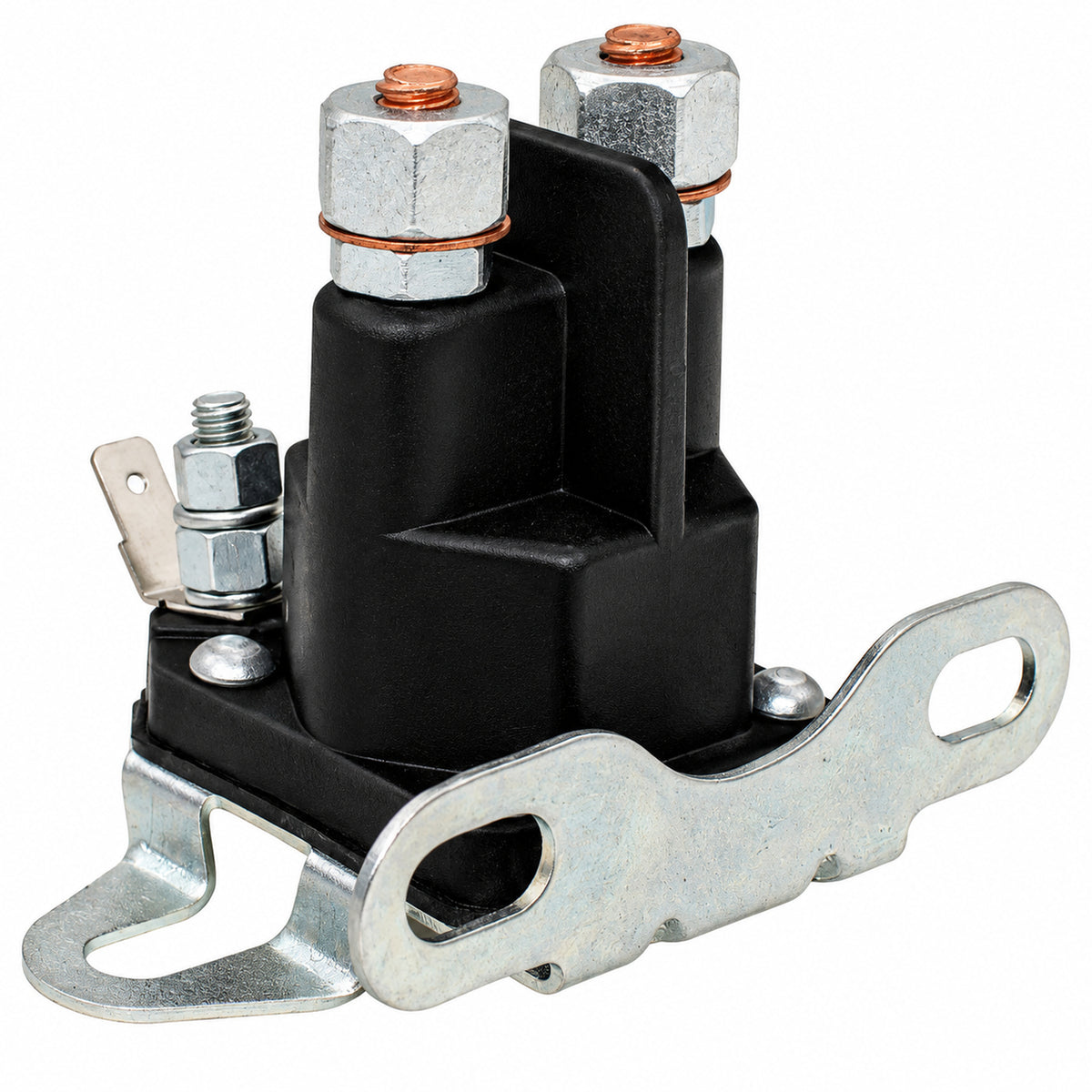

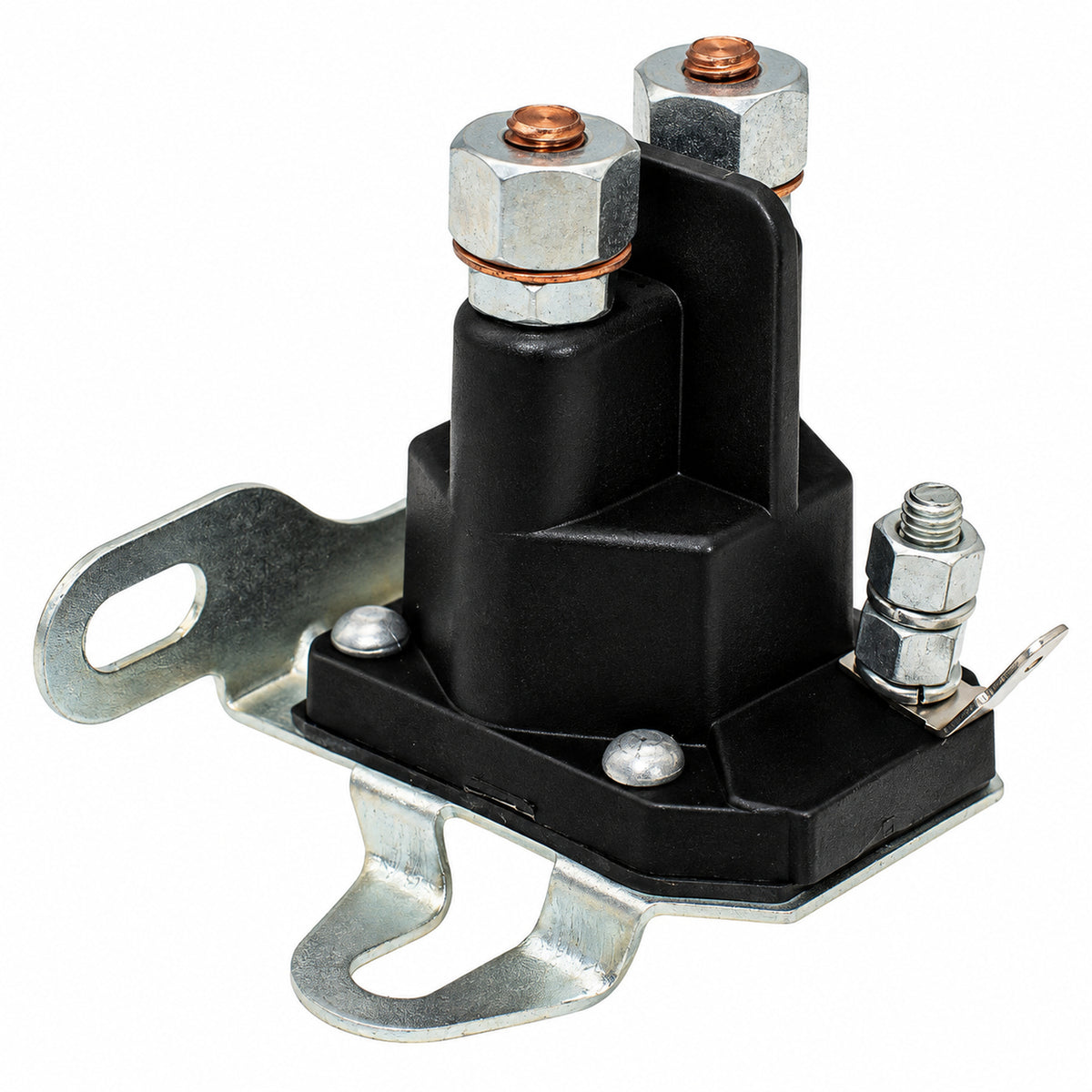

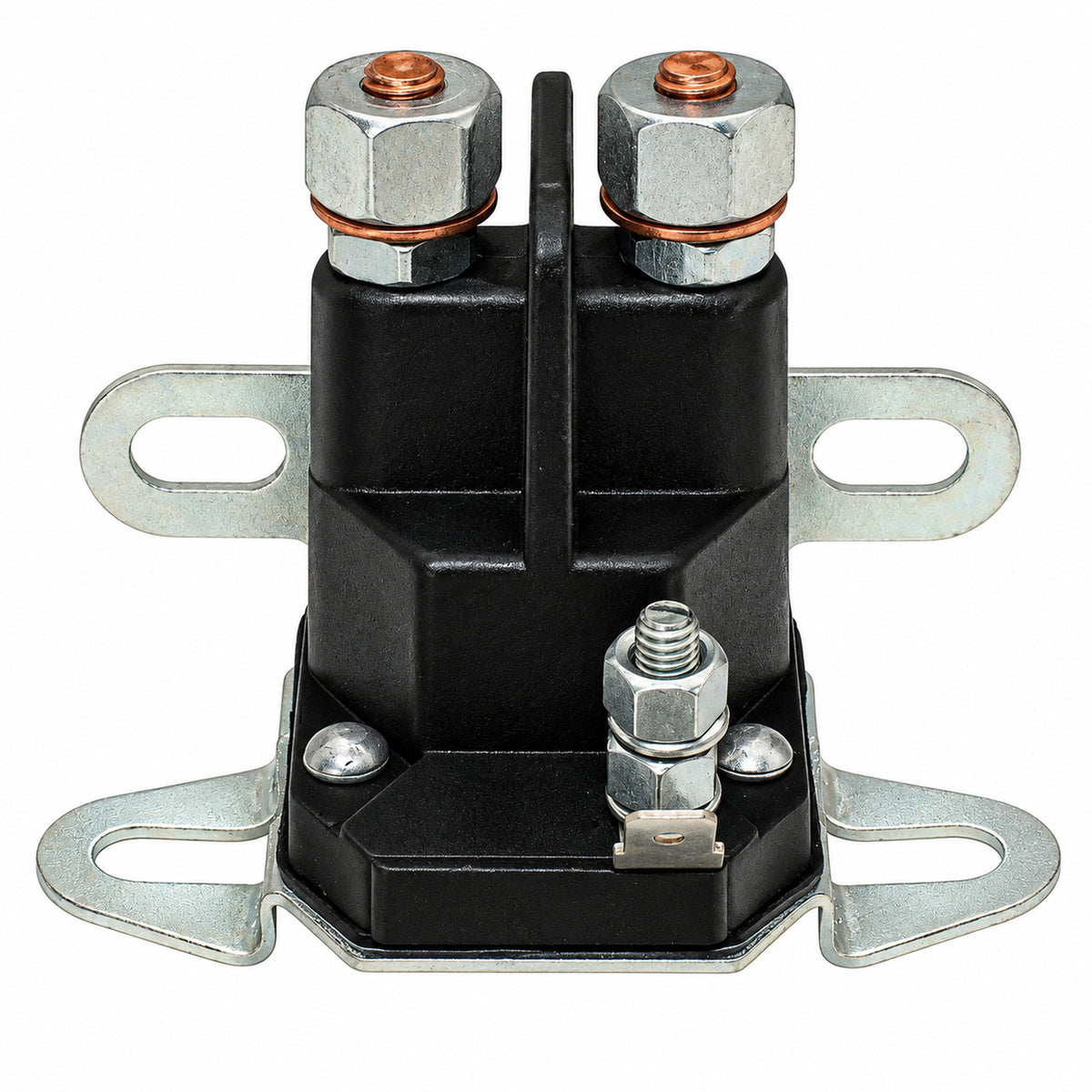

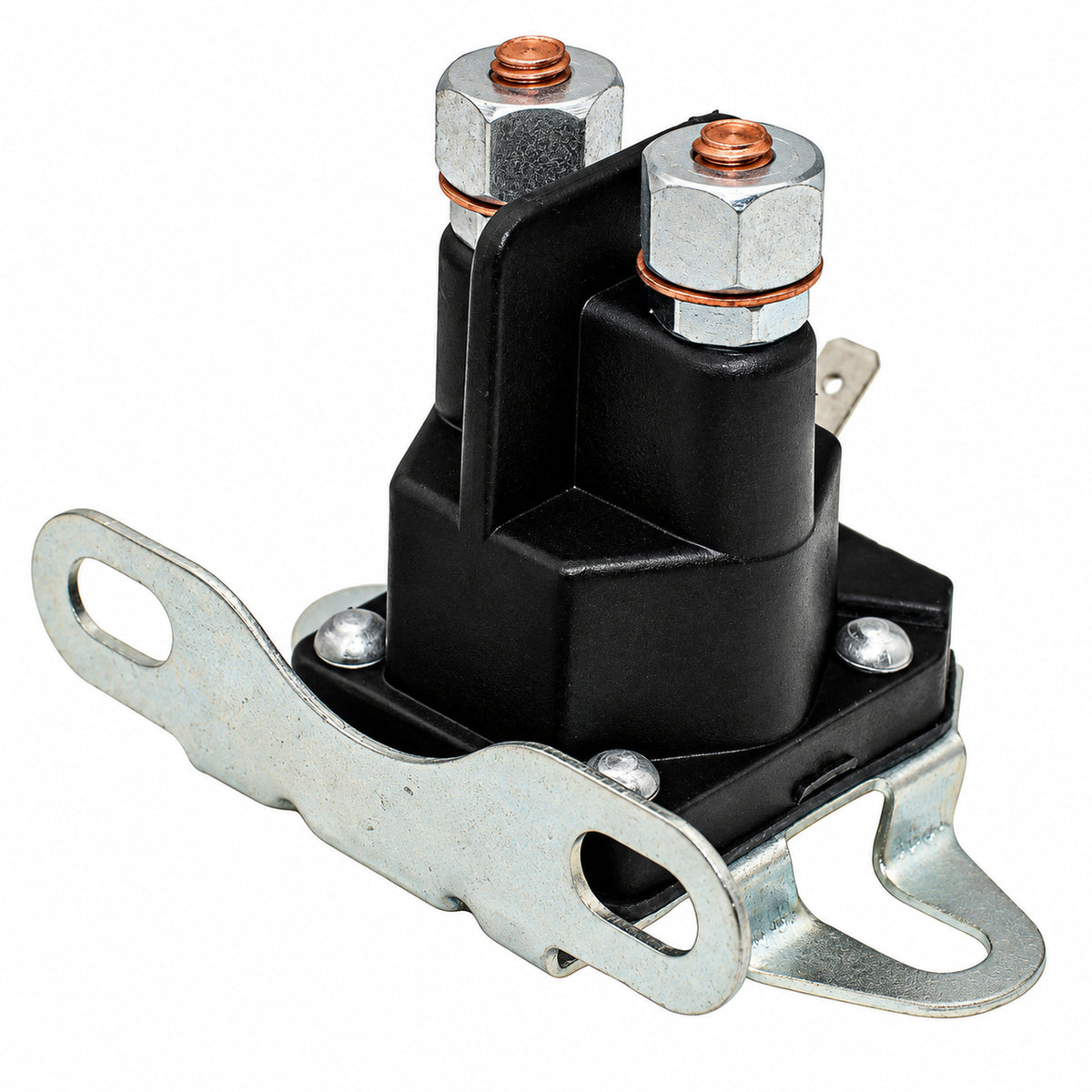

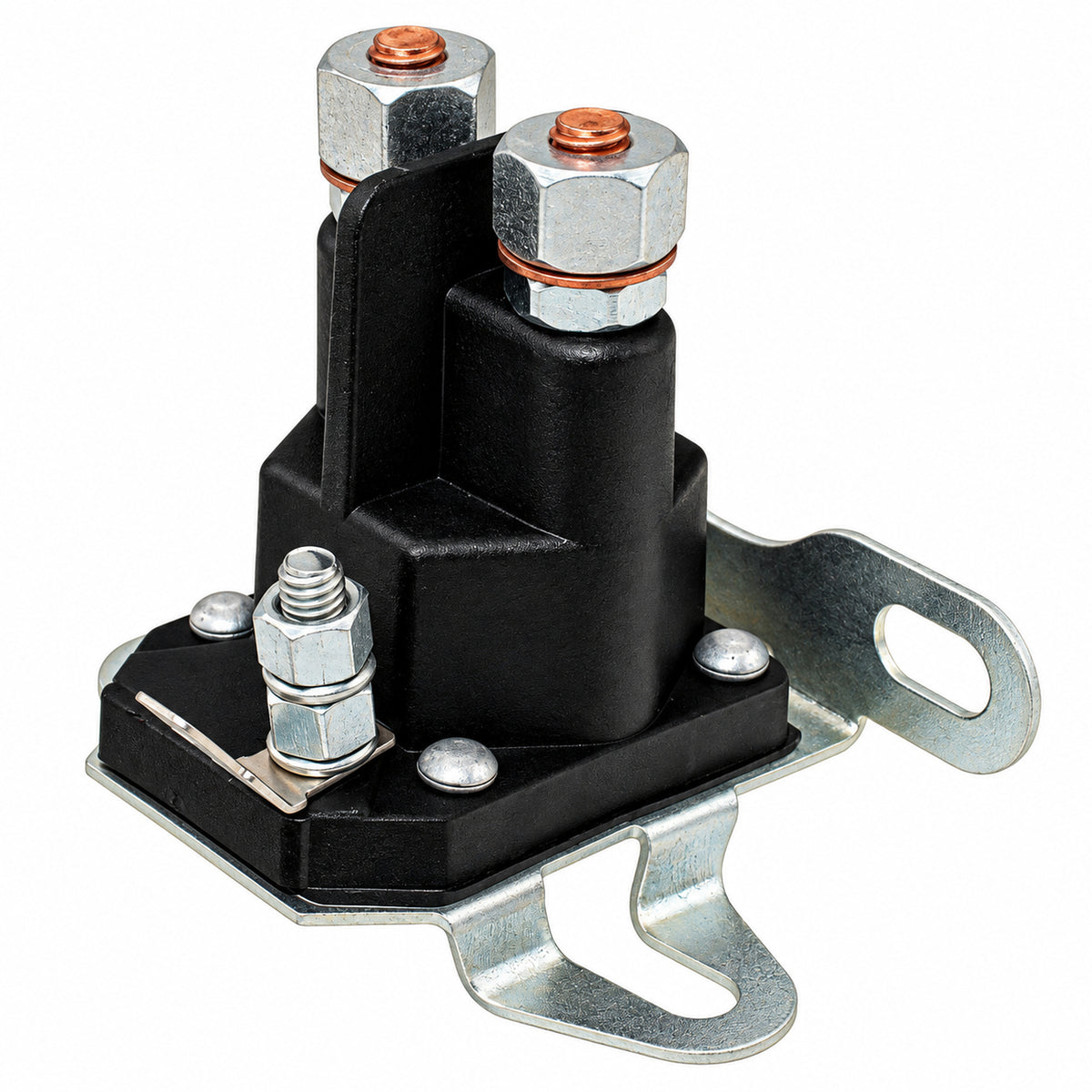

Rotary 12V Solenoid Starter MTD 725-1426, 925-1426, 9251426A

Rotary 12V Solenoid Starter MTD 725-1426, 925-1426, 9251426A

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement 12V Starter Solenoid for MTD, Fits Cub Cadet, Troy-Bilt, and More

This 12-volt starter solenoid serves as the electromagnetic relay between the battery and starter motor in the ignition circuit of riding mowers, lawn tractors, and zero-turn mowers. When the ignition key is turned, the solenoid closes the circuit and sends power to the starter motor to crank the engine. It fits MTD front and rear engine rider models from 1990 through 1994, as well as a wide range of other brands including Fits Cub Cadet, Troy-Bilt, Fits Toro, Snapper, Ariens, Murray, Fits Husqvarna, AYP, Fits Craftsman, Simplicity, Bad Boy, Bolens, and Fits Briggs & Fits Stratton-powered equipment.

Specifications

  • 12 Volt
  • Single Pole Chassis Ground
  • 90-degree mount, 3-post style
  • 1/4" and 5/16" post terminals
  • Side and flat mounting brackets included
  • Adapter for spade connector included
  • 50% duty cycle, 80 amp capacity

Compatible Equipment

MTD / Fits Cub Cadet / Troy-Bilt: Front and rear engine rider models (1990-1994), lawn tractors, riding mowers, zero-turn mowers

Fits Toro: Riding mowers, lawn tractors, zero-turn mowers including ZT Elite, ZT Avenger, ZT models (42", 48", 52", 61" deck); select models including 13CD609G063, 13AG609G063, 13AY609H063, 13AV609H063, 13AJ609H063

Snapper: Riding mowers, zero-turn mowers, lawn tractors, walk-behind mowers

Ariens: Garden tractors, zero-turn mowers, riding mowers

Murray / Fits Husqvarna / AYP / Fits Craftsman: Riding mowers, lawn tractors, garden tractors

Bad Boy: Zero-turn mowers including CZT, MZ, and ZT series

Fits Briggs & Fits Stratton / Simplicity / Bolens / Wright / Hustler: Various riding mowers and commercial walk-behinds

Replaces Part Number(s):

MTD / Fits Cub Cadet / Troy-Bilt: 725-1426, 725-1426A, 725-0270, 725-0530, 725-0771, 725-0771P, 925-1426, 925-1426A, 9251426A, 925-0771, 1717048, 1751569
Fits Toro: 112-0309
Snapper: 18817, 1-8817, 7018817, 75671, 7075671, 7075671YP, 7075691YP
AYP / Fits Husqvarna: 532109946, 532110832, 532146154, 110832X, HU532110832
Ariens: AR03577000, AR03583200, 03057700, 035770, 03577000, 035832, 03583200, 3057700, 35770, 35832, 53504600
Murray: 21261, 24285, 424285, 52323, 53716, 924285
Fits Briggs & Fits Stratton: 691656, 745000, 745000MA, 745001, 790951, 807829
Bad Boy: IZ4821T, IZ6125T, LZ5227TXP, LZ6127T, 53490009
Simplicity / White / Other: 030817, 1671994, 1530, 111674, 5409, 5409D, 5409H, 5409K, 5409WEB
Fits Toro / Fits Exmark: 108-5349-00, 112-0309
Oregon / Rotary / Other: 7701100MA, 506558601

Aftermarket Interchange Numbers

Oregon 33-335; MaxPower 334009B; Fits Stens 435-065; Rotary ELS60-0247

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Zero-Turn, riding mowers and lawn tractors, lawn tractors and walk behind mowers, 13AY609H063, ZT Elite, lawn equipment for precision work, mowers for cutting grass, riding mowers and several zero-turn mowers, 13AJ609H063, Riding Mowers, 52", 36", 48", lawn tractors, 13AG609G063, yard and garden, as well as several industrial loaders, zero-turn mowers, ZT, 32", commercial mowers, Garden Tractors, and 61" deck models, ZT Avenger and others, and some snow blowers, 13AV609H063, and 13CD609G063, garden tractors and zero-turn mowers, Lawn Tractors, zero-turns and commercial walk-behinds, lawn tractors and some snow blowers, riding mowers lawn equipment for precision work, 42"

Additional Information:

Single Pole Chassis Ground 1/4" and 5/16" Post Side and Flat Mounting Brackets Adapter for Spade Connector 12V Starter Solenoid

Reference Numbers:

5409, 5409D, 5409H, 5409K, 5409WEB, 691656, 745000, 745000MA, 745001, 790951, 807829, 110832X, 111674, 108-5349-00, 03057700, 035770, 03577000, 035832, 03583200, 3057700, 35770, 35832, 53504600, AR03577000, AR03583200, 1530, 506558601, 532109946, 532110832, 532146154, HU532110832, IZ4821T, IZ6125T, LZ5227TXP, LZ6127T, 1717048, 1751569, 725-0270, 725-0530, 725-0771, 725-0771P, 725-1426, 725-1426A, 7701100MA, 925-0771, 925-1426, 925-1426A, 21261, 24285, 424285, 52323, 53716, 745000MA, 7701100MA, 924285, 1671994, 111674, 112-0309, 030817, 18817, 1-8817, 7018817, 7075671, 7075671YP, 7075691YP, 75671, 53490009, 1751569, 7701100MA, 1717048, 1751569, 725-1426A, 7701100MA, 925-1426A
