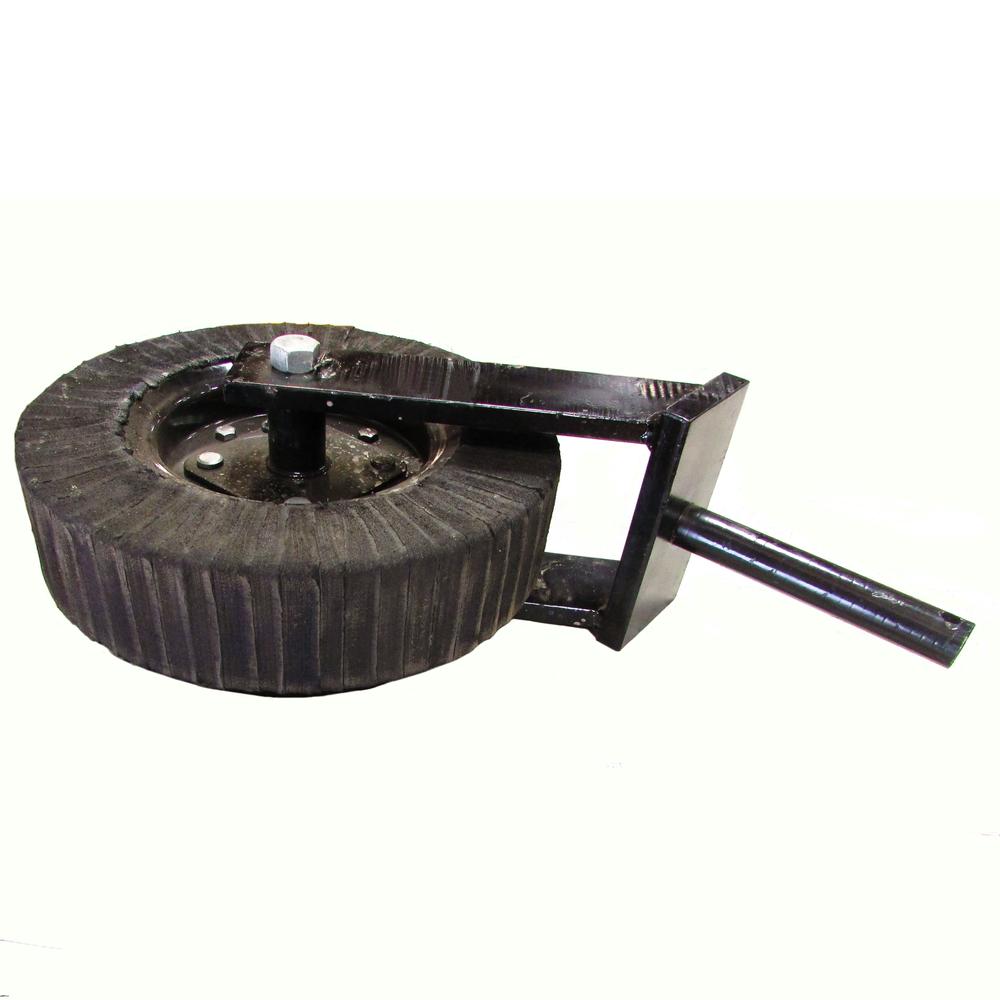

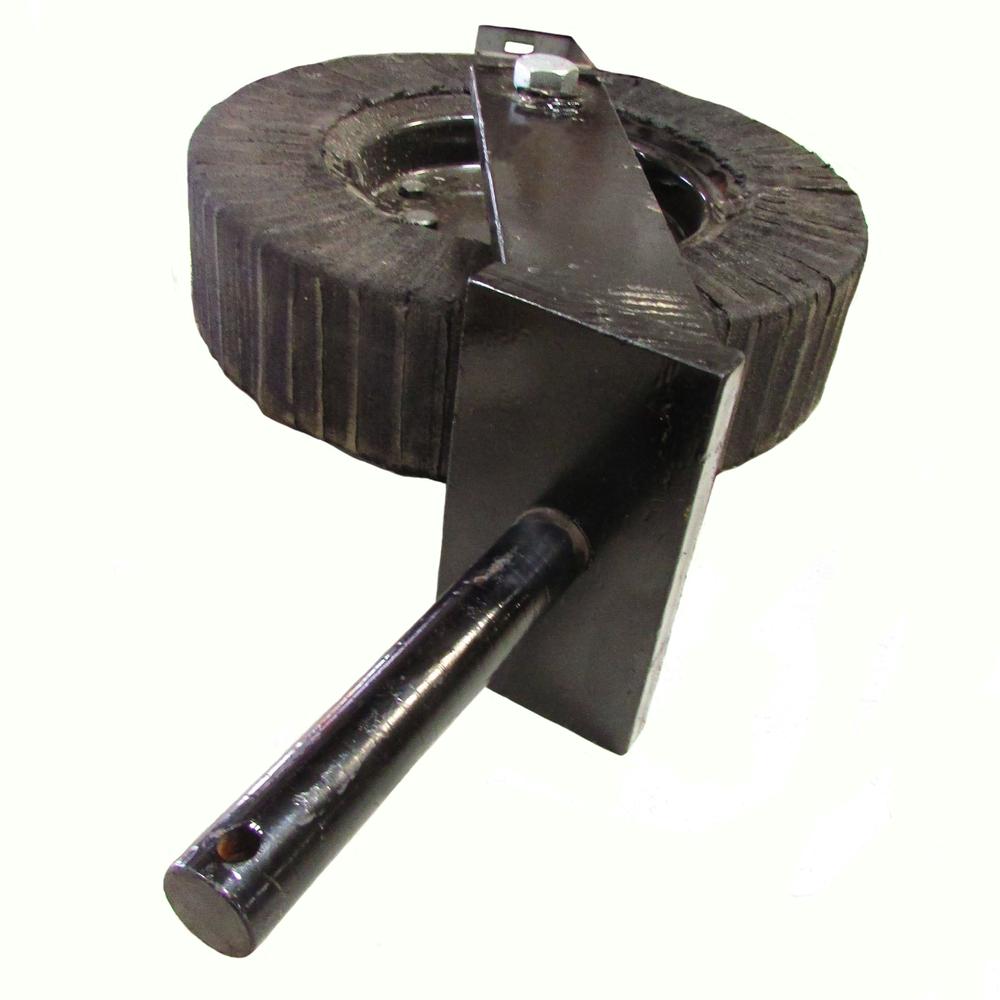

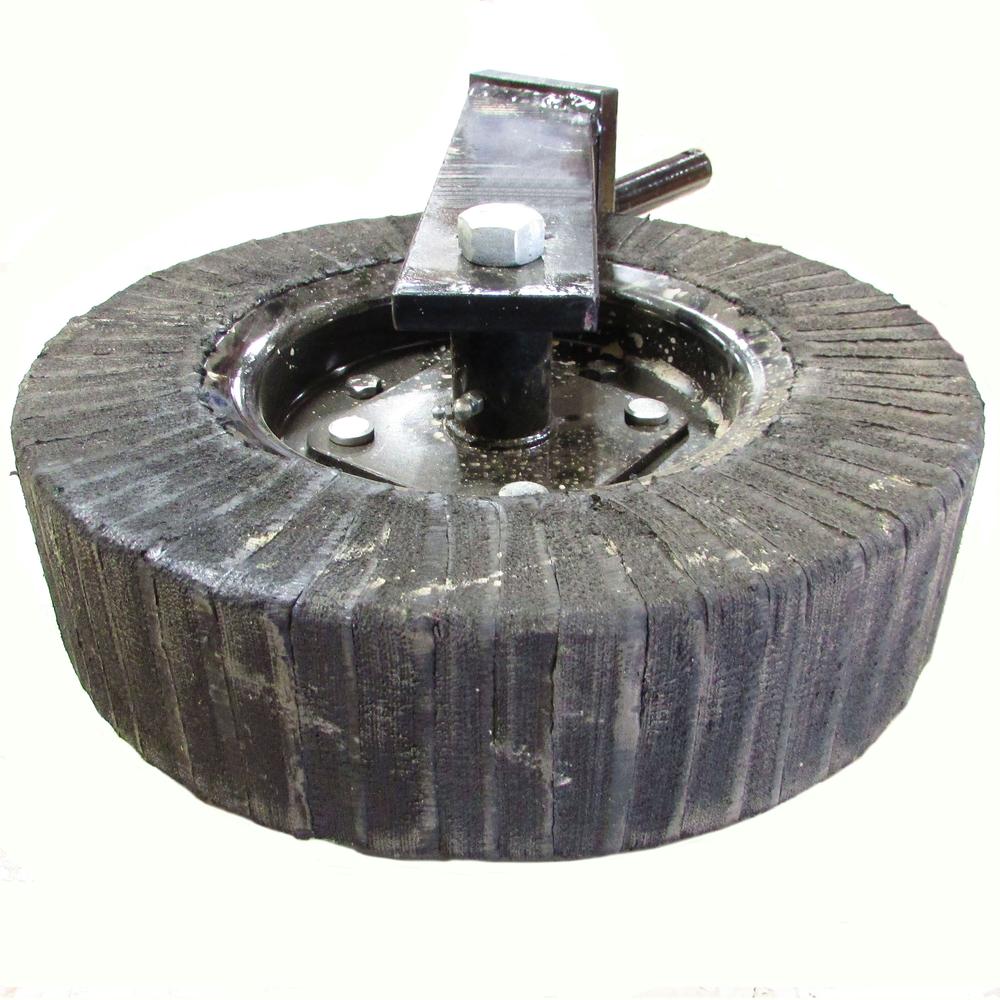

Rotary Cutter Tail Wheel Assembly With 1-1/4" Shaft Heavy Duty 1 Piece Fork
Rotary Cutter Tail Wheel Assembly With 1-1/4" Shaft Heavy Duty 1 Piece Fork
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Laminated Tail Wheel Assembly with Fork.
Fits Howske
Fits Kodiak
Fits Bush Hog
Fits Rhino,
Fits Land Pride and Many Other Brands!
Fits Kodiak
Fits Bush Hog
Fits Rhino,
Fits Land Pride and Many Other Brands!
Tech Info:
Post Diameter: 1-1/4"
Post Length: 5-1/4"
Fork Height (Inside): 9-5/8"
Fork Width (Inside): 5-1/2"
Tire Height: 15"
Axle Hole Diameter: 3/4"
The hub is the 4 bolt fabricated hub with replaceable bushings.
Post Diameter: 1-1/4"
Post Length: 5-1/4"
Fork Height (Inside): 9-5/8"
Fork Width (Inside): 5-1/2"
Tire Height: 15"
Axle Hole Diameter: 3/4"
The hub is the 4 bolt fabricated hub with replaceable bushings.
The hubs are greaseable and the bolt pattern is 3-9/16" going clockwise from bolt to bolt hole.
Models This Part Fits:
Additional Information:
Post Diameter: 1-1/4" Post Length: 5-1/4" 9-5/8" Tall Inside the Fork Fork Width (Inside): 5-1/2" Tire Height: 15" 3/4" Axle Hole Diameter The hub is the 4 bolt fabricated hub with replaceable bushings. The hubs are greasable and the bolt pattern is 3-9/16" going clockwise from bolt to bolt hole. Laminated Tail Wheel Assembly with ForkReference Numbers:
WHU90-0114Makes This Part Fits:
