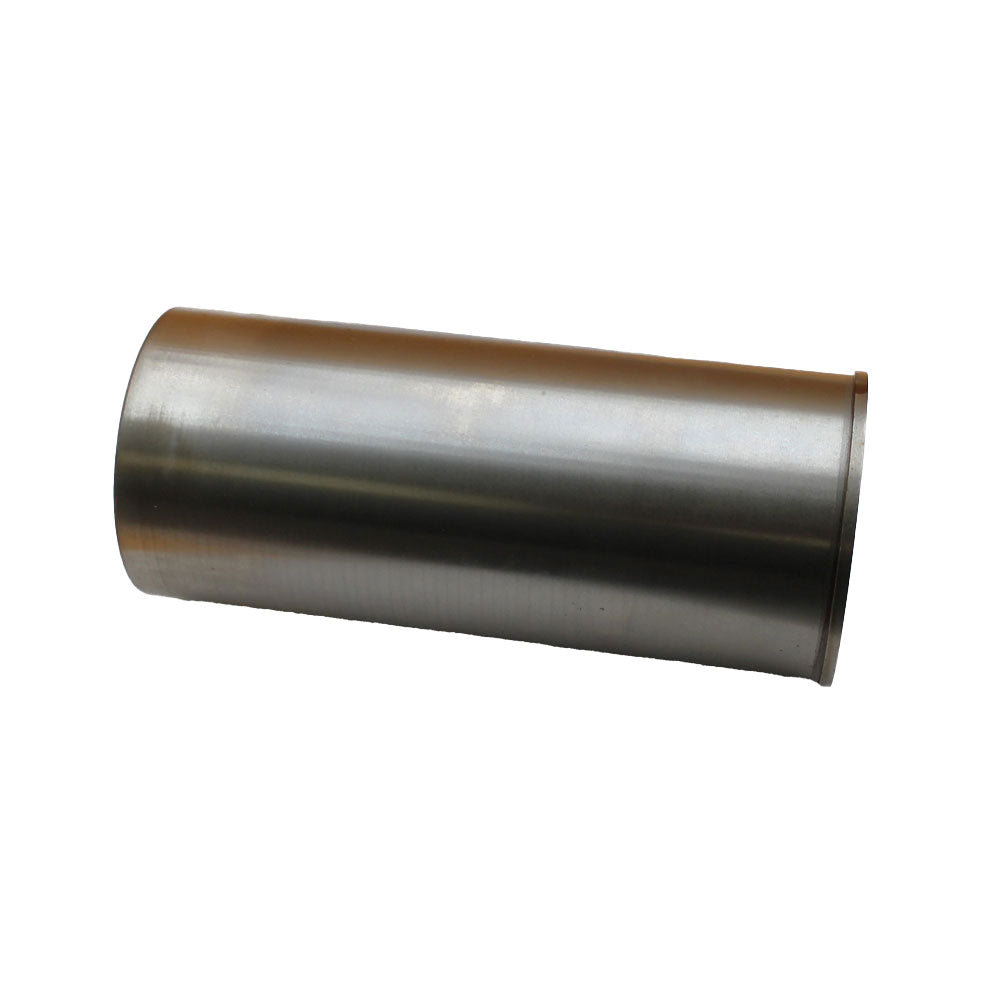

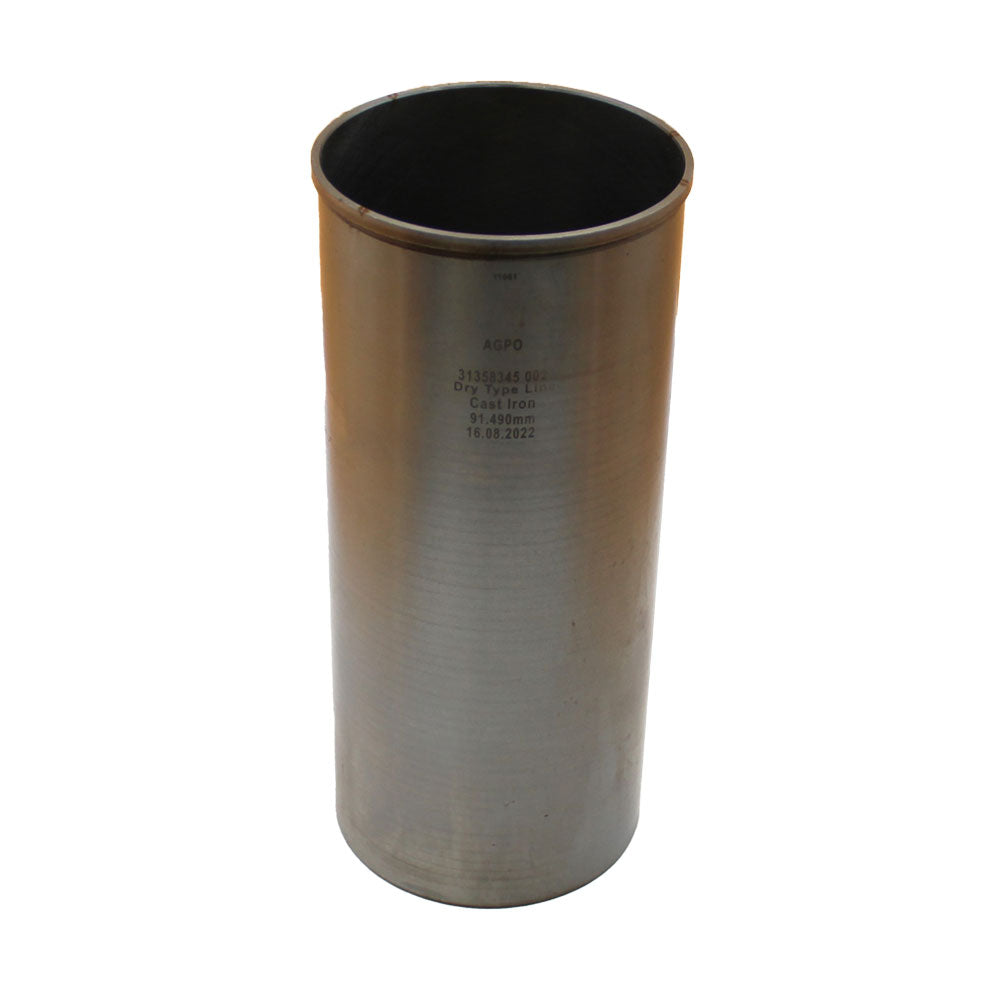

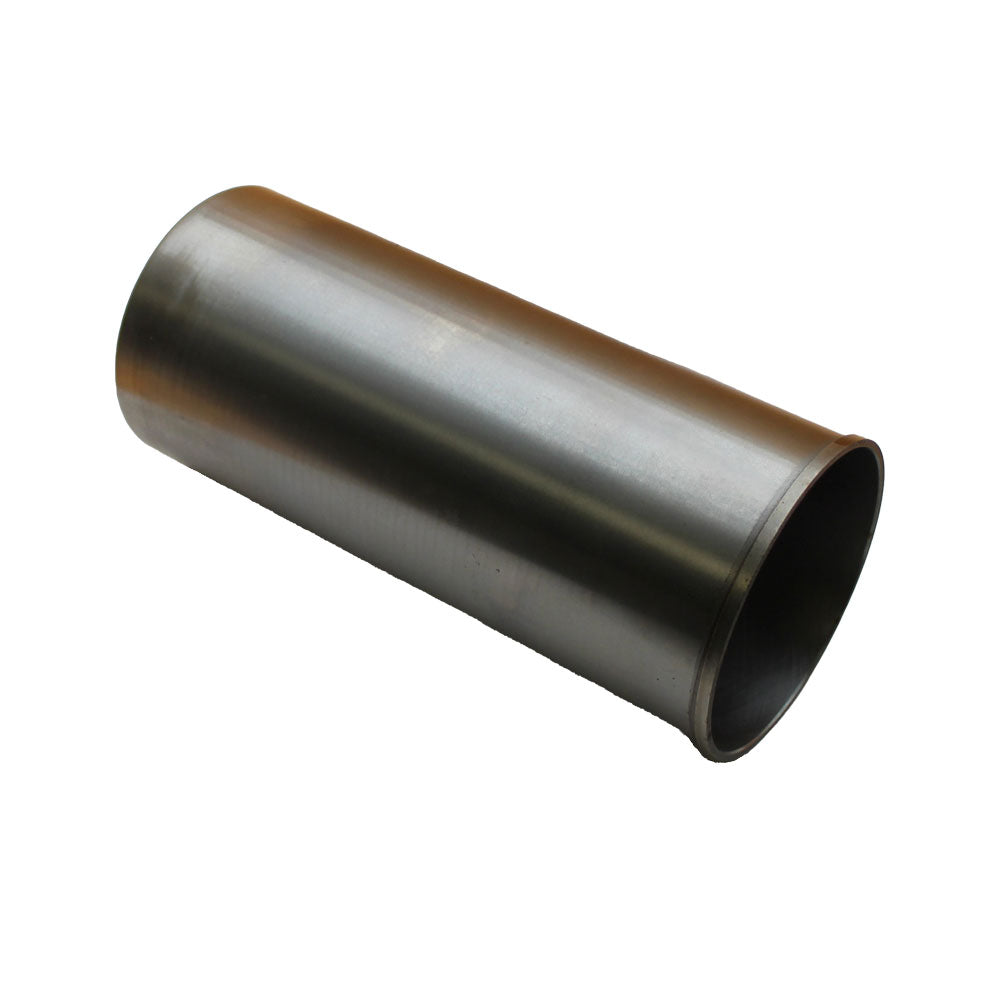

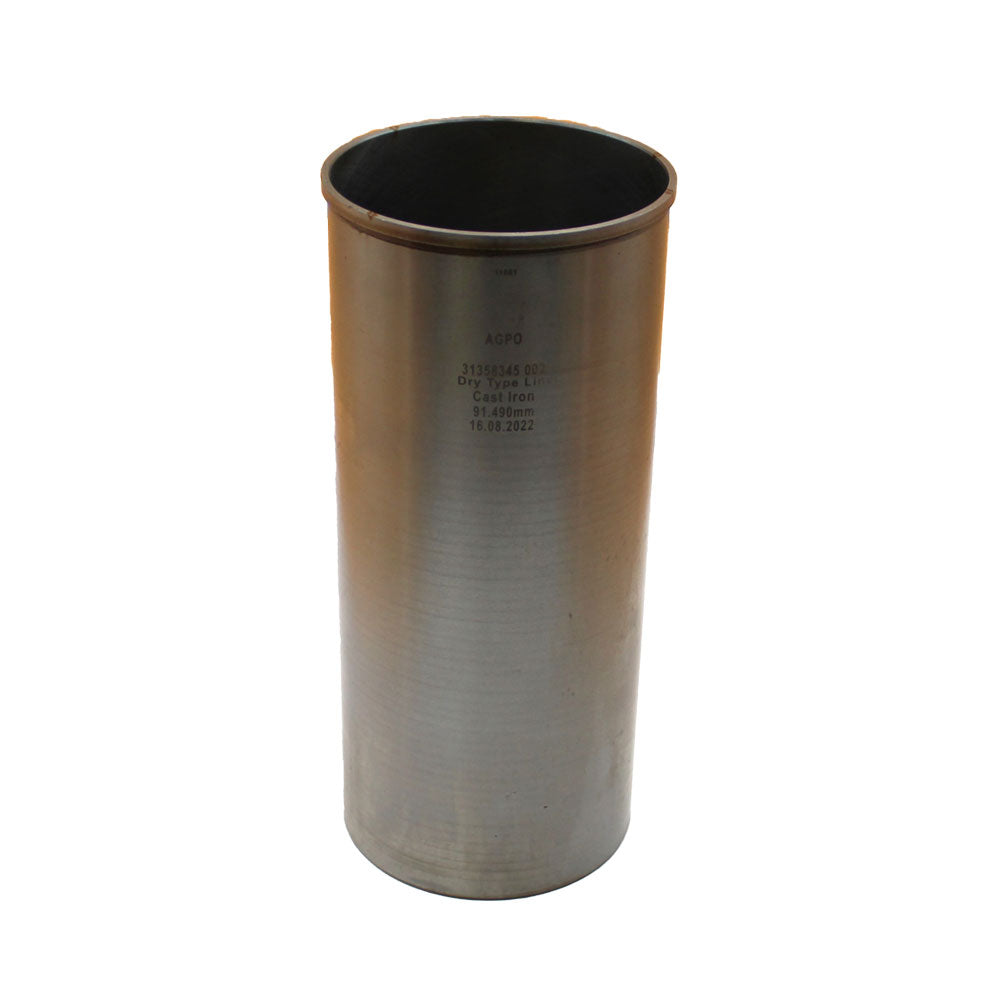

S.40432 Piston Liner (Finished) Fits Perkins

Name: S.40432 Piston Liner (Finished) Fits Perkins
Brand: AIC Replacement Parts
SKU: S.40432-SPX_9
Price: 22.24 USD
Availability: OutOfStock

S.40432 Piston Liner (Finished) Fits Perkins

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Piston Liner (Finished)
Fits Perkins Models: A3.152 (CD), AD3.152 (CE), AD4.203 (JE), T3.152.4 (CN)

Tech Info:
-Bore mm: 91.49
-Finish: Finished
-Flame Ring: No
-Flange mm: 96.72
-Flange Width mm: 3.78
-Height mm: 215.77
-Fits Massey Ferguson Build List: Perkins Build List: CE20166, CE08545, 08557, 20304, 20369, 20405, 20425, 20934, 20934, 21131, 21149, 21150, 21261, 21393, 21394, 21526, 21527, 21583, 21665, 21675, 21802, 21900, 21905, 22003 (>U67660H), 22009, 22103, 22183, 22236, 22488, 22490, 22493, 22495, 22521, 22522, 22526, 22528, 22545, 22576, 22609, 22652, 22657, 22697, 22717, 31029, 31075, 31106, 31115, 31116, 31121, 31133, 31161, 33512, 50066, 50126, 50127, 80184, 80236 (>U67640H), CE21489, 21690, 21899, 21906, 22003 (U676641H>), 22309, 22310, 22311, 22372, 22438, 22463, 22464, 22465, 22467, 22651, 22665, 22680, 22706, 31089, 80079, 80141, 80236 (U676641H>), Fits JD (Models with Cast Liners), JE21315*, 21586*, 21907*,22046, 22466*, 2247

Models This Part Fits:

AD3.152 (CE), 231, 230 US BUILT, 245, 244CF, 254-4, 354, 360, 5830, BLIZZARD 50, C5830, C5500, 134C, 134, 334, 3305, 7000, CF4830, 30B, 6060, 254C, 6000, SUPER DEXTA, 6040, 30D, 65, 264C, 6070, 3165, 5870, 205, 304, C4500, 2205, 353LX, 234C, GLOBUS 50, 145, 20F, 5000, 5530, TREKKER 60, 152, 20C, 5840, 230, 250, C4830, REX 55, 353, 4500, 35, 203X, CF6030, 2135, 203, 35X, REX 60, 148, 135, 765, 253, 400, 352, 164, 154-4, 35 US BUILT, 20E, 5560, 5500, 2203, 430, 20B, 154, 158, 263, 154C, 150, 320, 155, 233, 205X, 240, 2500, ADVANTAGE 55, C5000, 550, A3.152 (CD), 235, BLIZZARD 60, 234, 30, 30E, 302, 333, CF5830, 254, 40, CF5030, 260, 4000, 350, 6030, 165, 264, 140, T3.152.4 (CN), 255, 20, 342, 165 US BUILT, C6000, 4530, 5860, 30H, 50, 65 US BUILT, 340, 135 US BUILT, 3303, 160, 40B, AD4.203 (JE), 560, 2200

Additional Information:

Bore Diameter: 3.6" (91.49mm) Flange Thickness: 0.150" (3.8mm) Flange Diameter: 3.8" (96.72mm) Height: 8.4" (215.77mm) Piston Liner - Standard Liner (Finished)

Reference Numbers:

1434175M1, 31358345, 31358322, 739043M1, 734175M1, PH31358345, 739043M1, 131358345, 28057, 31358345, 31358322, 31358345, 31358322, AHM2186, 72080003, 739043M1, 8N7996
