S.62215 Single Hydraulic Pump Fits David Brown
S.62215 Single Hydraulic Pump Fits David Brown
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

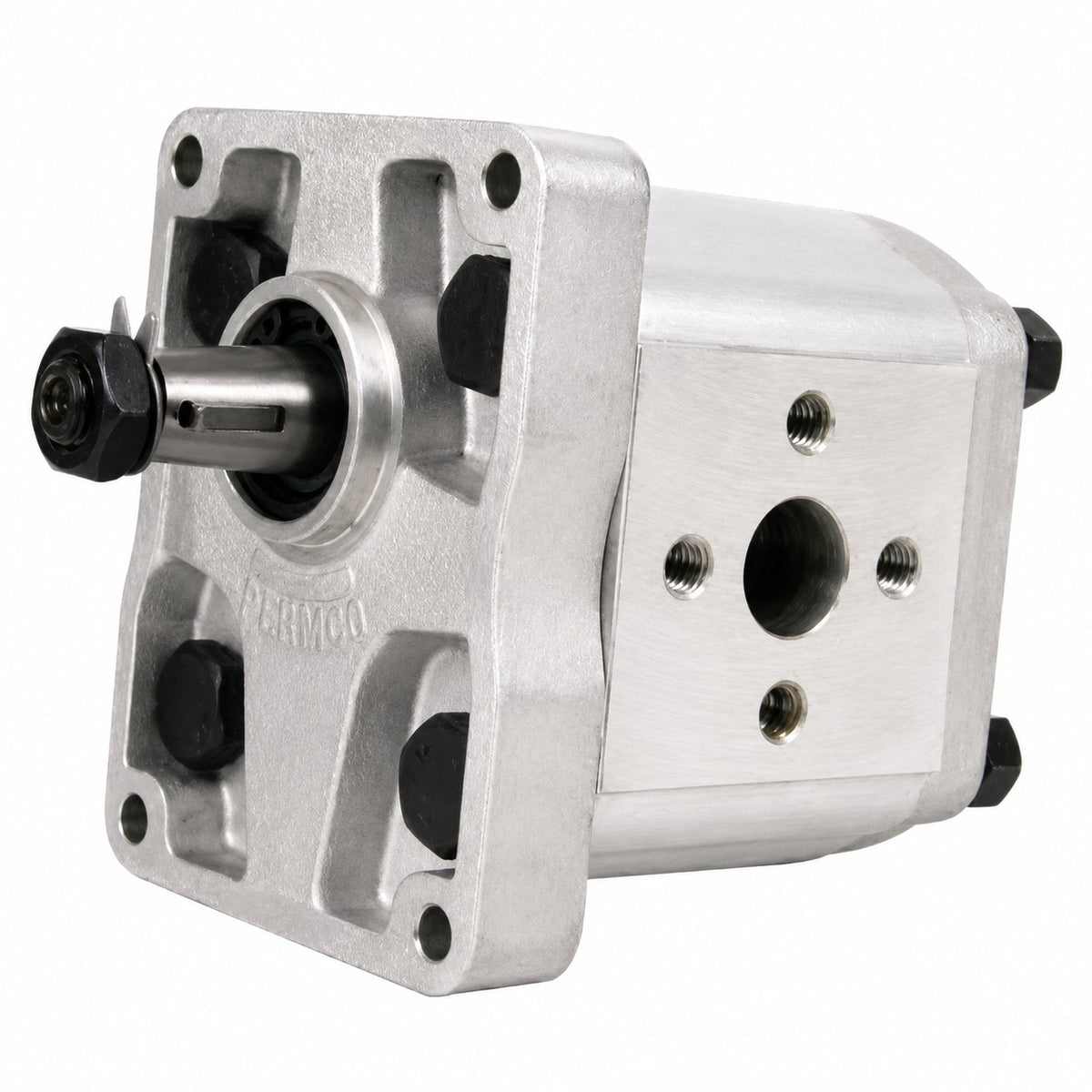

One New Aftermarket Single Hydraulic Pump
Fits David Brown Models: 1410, 1412, 1490, 1594, 1690, 1690 Turbo, 1694
Tech Info:
-Diagram specifications: A: 19, B (mm): 103.5, C: 71, D: 96, E: 19, F: 40, G: M8, H: 14.2, I: 30.2, J: M6.
-Front inlet hole fixing hole size: M8
-Front inlet hole fixing hole spacing: 40
-Front inlet hole size: 19
-Front outlet hole fixing hole size: M6
-Front outlet hole fixing hole spacing: 30.2
-Front outlet hole size: 14.2
-Inner max. gallon per minute: 12.55
Replaces Part Number(s): K949605, K200337
Fits David Brown Models: 1410, 1412, 1490, 1594, 1690, 1690 Turbo, 1694
Tech Info:
-Diagram specifications: A: 19, B (mm): 103.5, C: 71, D: 96, E: 19, F: 40, G: M8, H: 14.2, I: 30.2, J: M6.
-Front inlet hole fixing hole size: M8
-Front inlet hole fixing hole spacing: 40
-Front inlet hole size: 19
-Front outlet hole fixing hole size: M6
-Front outlet hole fixing hole spacing: 30.2
-Front outlet hole size: 14.2
-Inner max. gallon per minute: 12.55
Replaces Part Number(s): K949605, K200337
Models This Part Fits:
1355, 980, 553, 766DT, 3010S, 3830, 72-86, JX95, TD5.65, 72-94, 1412, 65-94, TK70FA, 70-76, 1690, 88-93, 90-90, TD65F, 82-86, 85-90, TD95D, TK95M, TD5.110, TD5.90, 433, 1370, TD85D, JX55, JX110, 1465, 4030, 2-60, 1365, TK75F, 7560, TD5.100, 1470, 1690 Turbo, 8630, TK90MA, 4010S, TK90A, 1280, JX65, 55-66, TD80D, 8830, TK75VA, TD85F, 1694, TD75F, 72-93, 80-76, 683, Winner 100-130, 700, 8430, JX85, 1594, 1180, 50-86, 60-86, 55-86, 60-93, TK65F, 140-90, 1580, JX80, 70-90, 700 Series, 1000, TD80, TD95, 9630, 55-88, TD60, 60-88, TK100A, JX70, 995, 1490, FD7, 82-93, TD55D, TD70, TK85, 60-90, 88-94, 160-90, 4430, 60-76, 60-66, 1033, TD5.75, TD60D, 1494, 885, TK75V, TT65, TD65D, TK75MA, TK65V, 100-90, 1410, 1394, JX75, 833, 5530, TD90, TK75FA, 80-88, 703, TK70VA, CX100, TD75D, TT55, 65-88, TD95D HC PLUS, TK75M, 643, JX90, 1380, 82-94, JX60, 70-88, 65-66, 353, TK80A, TK76M, TK80MA, 80-66, 60-94, TD5.80, 65-90, 115-90, 533, TD90D, 6530, JX100, MX100C, 80-90, 4330, 110-90, TK76, TD70D, 1880, 4330 Vineyard, 180-90, 4230, TK85M, 70-66, 453, 130-90, 65-93, 5010SAdditional Information:

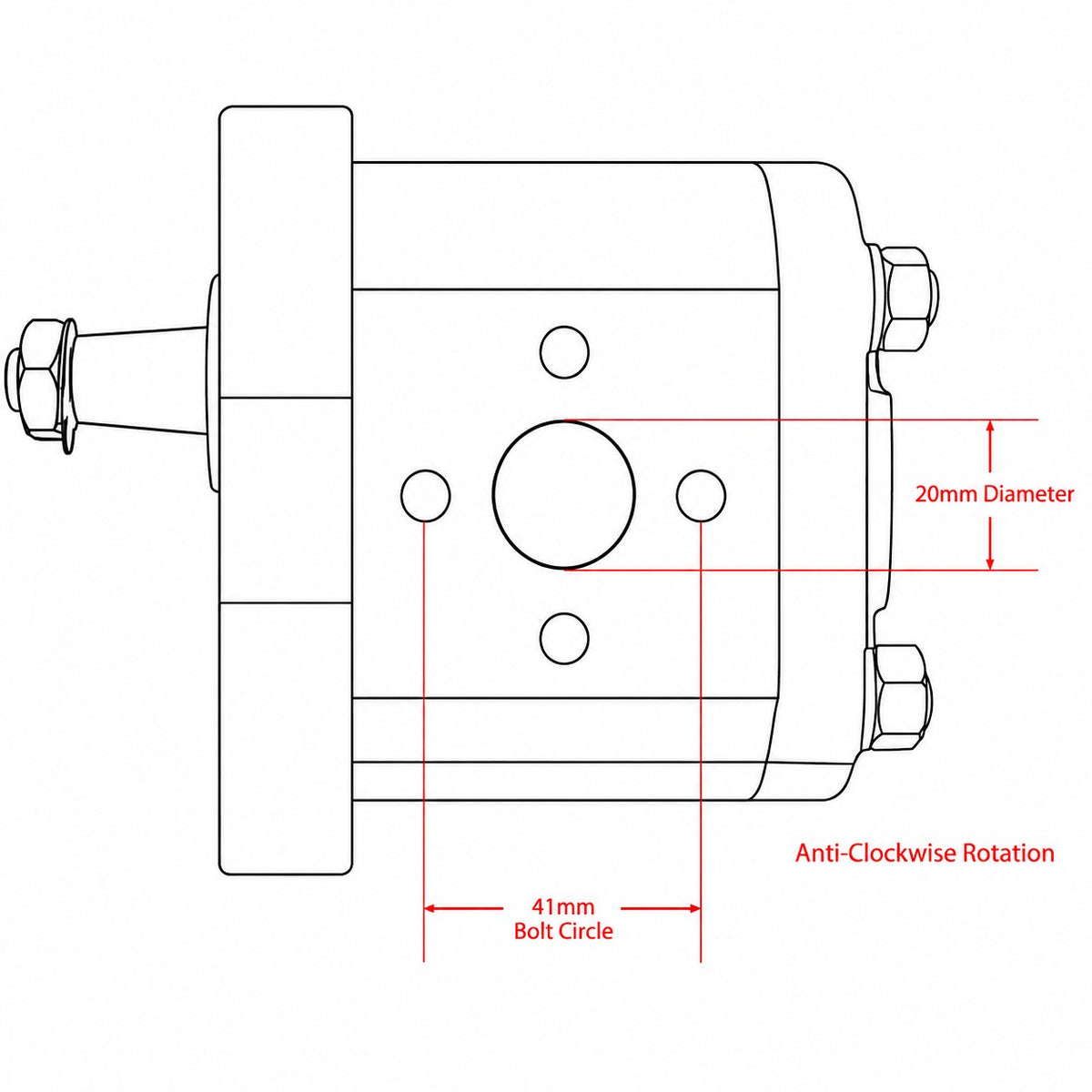

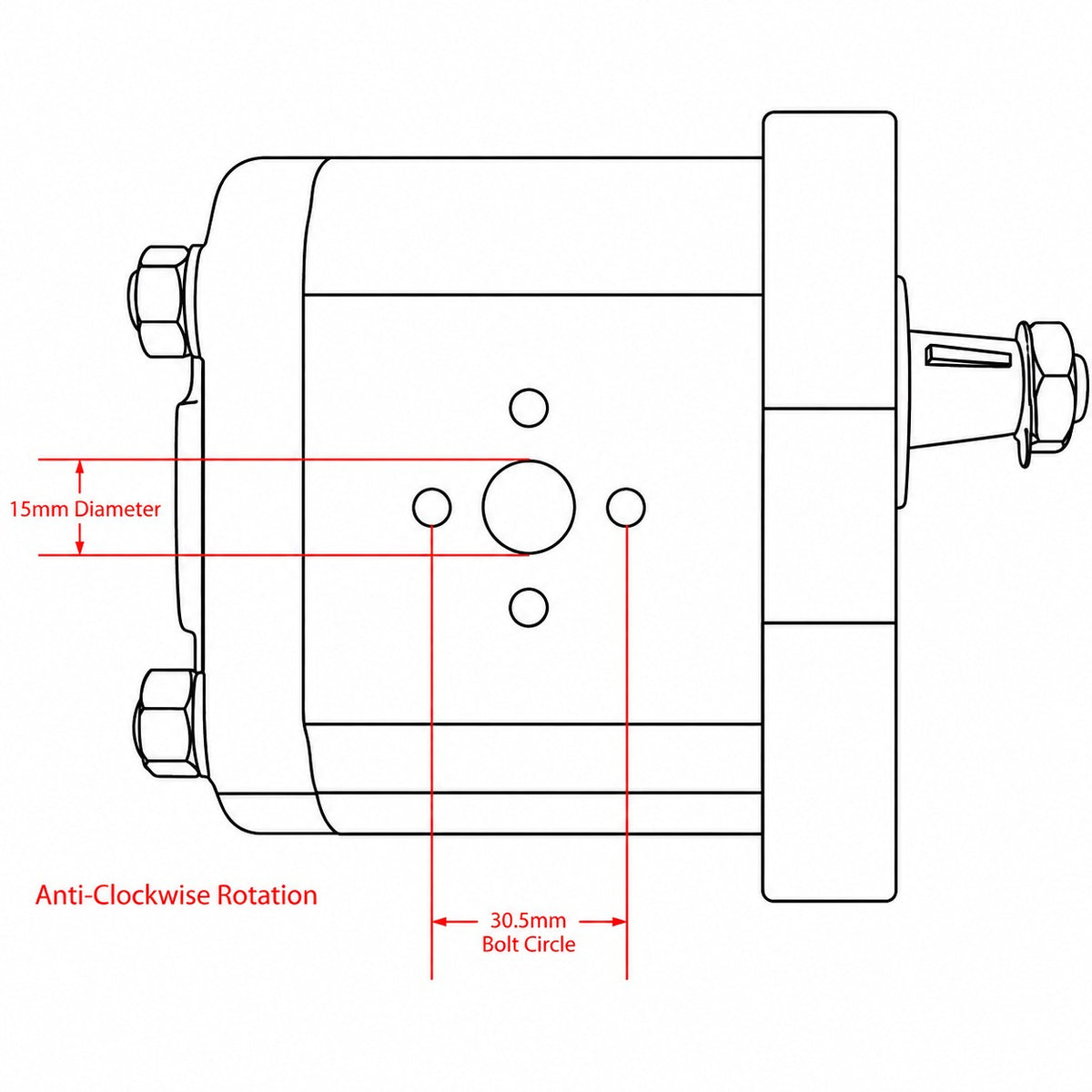

Rotation: Counter Clockwise Displacement: 19cc Side One: 20 mm Diameter Larger Hole 41 mm Bolt Circle Side Two: 15 mm Diameter Larger Hole 30.5 mm Bolt Circle Hydraulic PumpReference Numbers:
5169770, 5129488, A42X, 84530154, 9967782, 9967927, 5129488GV, 5113283, 2040333, 5120850, 5093658, 5179714, 05129488, 153634448, 1909916, 1930226, 1909916, 1930226, 5113283, 5120850, 5169770, PRD2217S, 675636AS, 20-7101188, K200337, K949605, 9967782, 5179414, 5179711, 5094394, 5179714, 5169770, 5093658, 47562399, K949605, K200337, 84530154, 2040333, 87737605, 73328630, 82987745, 5179714, 5129488, 2040333, 5169770, 84530154, 73328630, 5113283, PRD2217S, 5129488, A42X, 84530154, 9967782, 9967927, 5129488GV, 5113283, 2040333, 5120850, 5093658, 5169770, 5179714, 05129488, 153634448, 1909916, 1930226, 47562399, 9967782, 5179414, 5179711, 5094394, 5179714, 5169770, 5093658, K949605, K200337, 84530154, 2040333, 87737605, 73328630, 82987745Makes This Part Fits:
