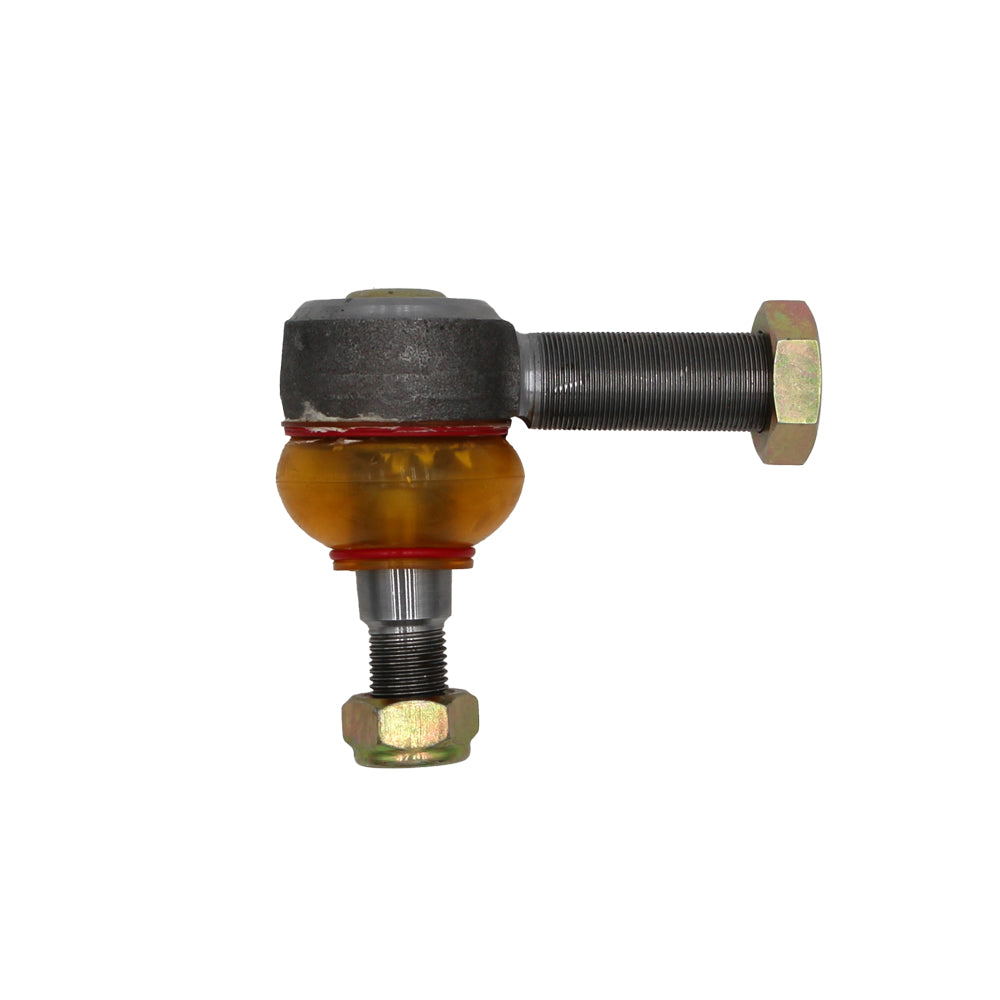

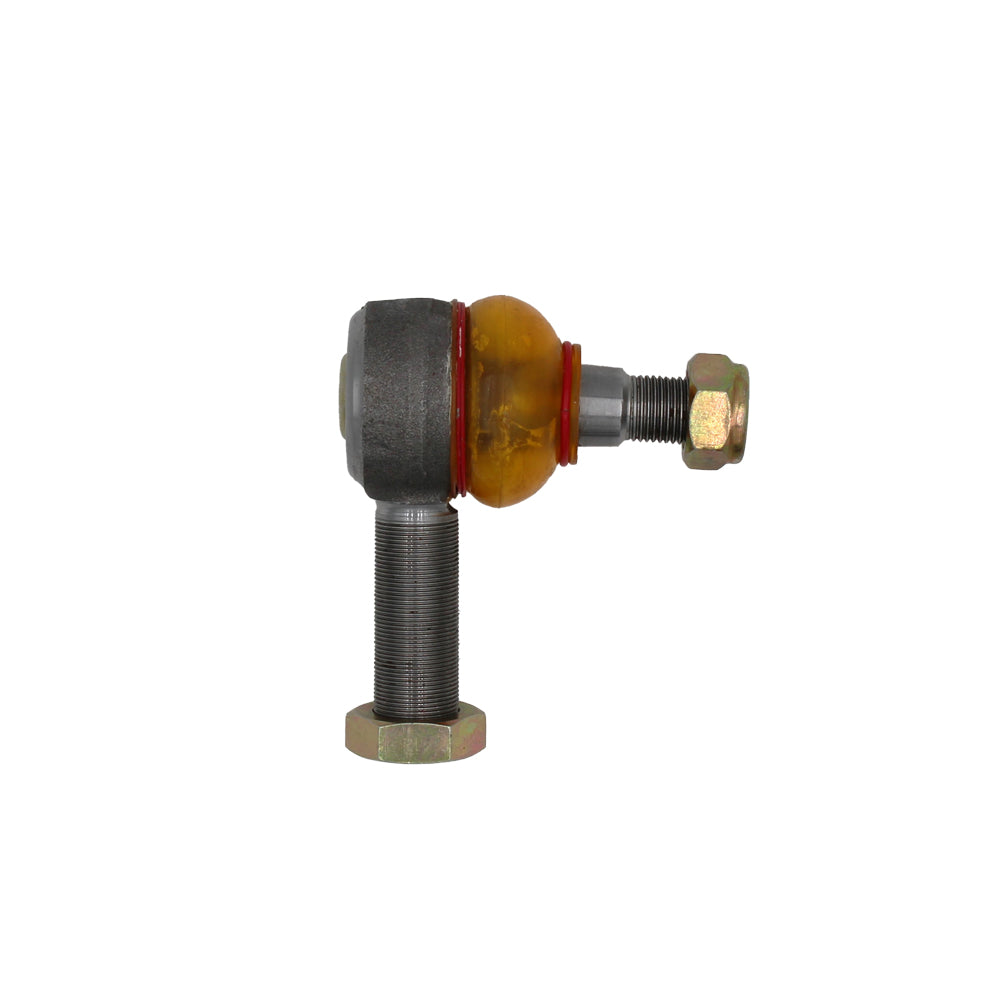

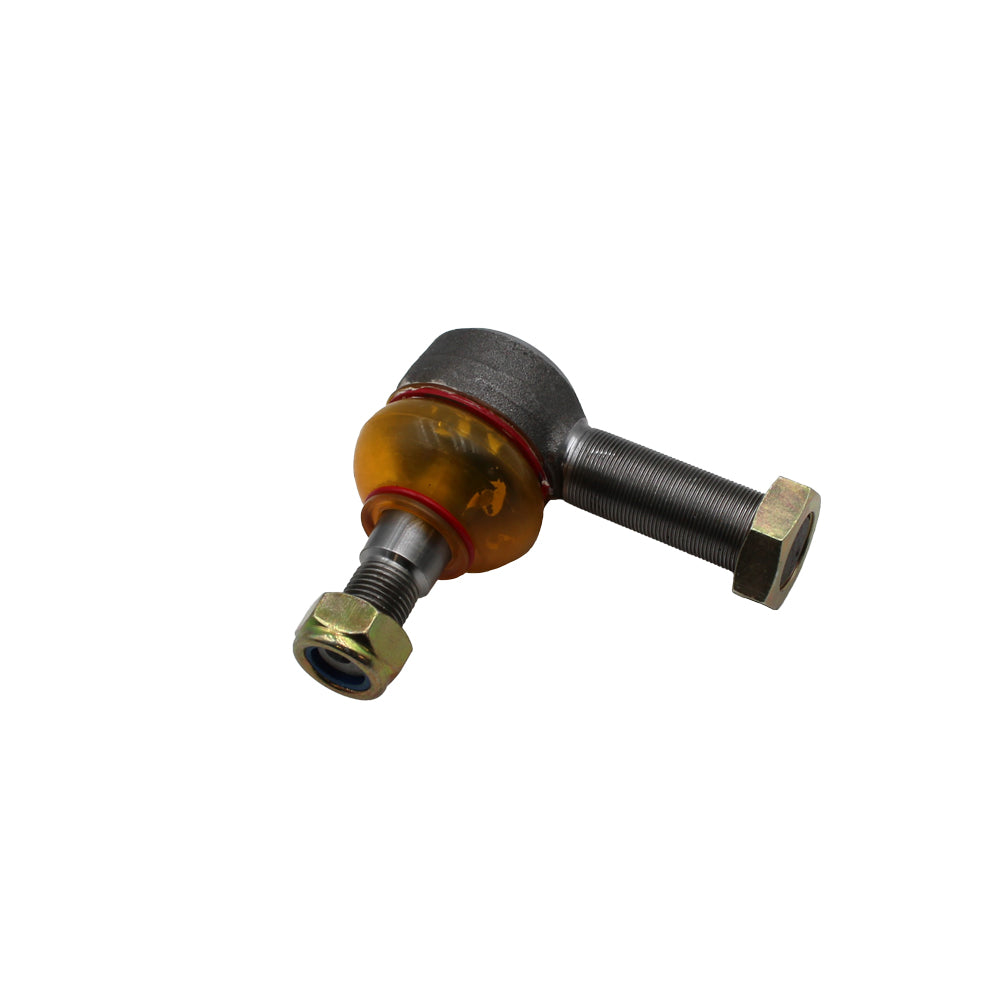

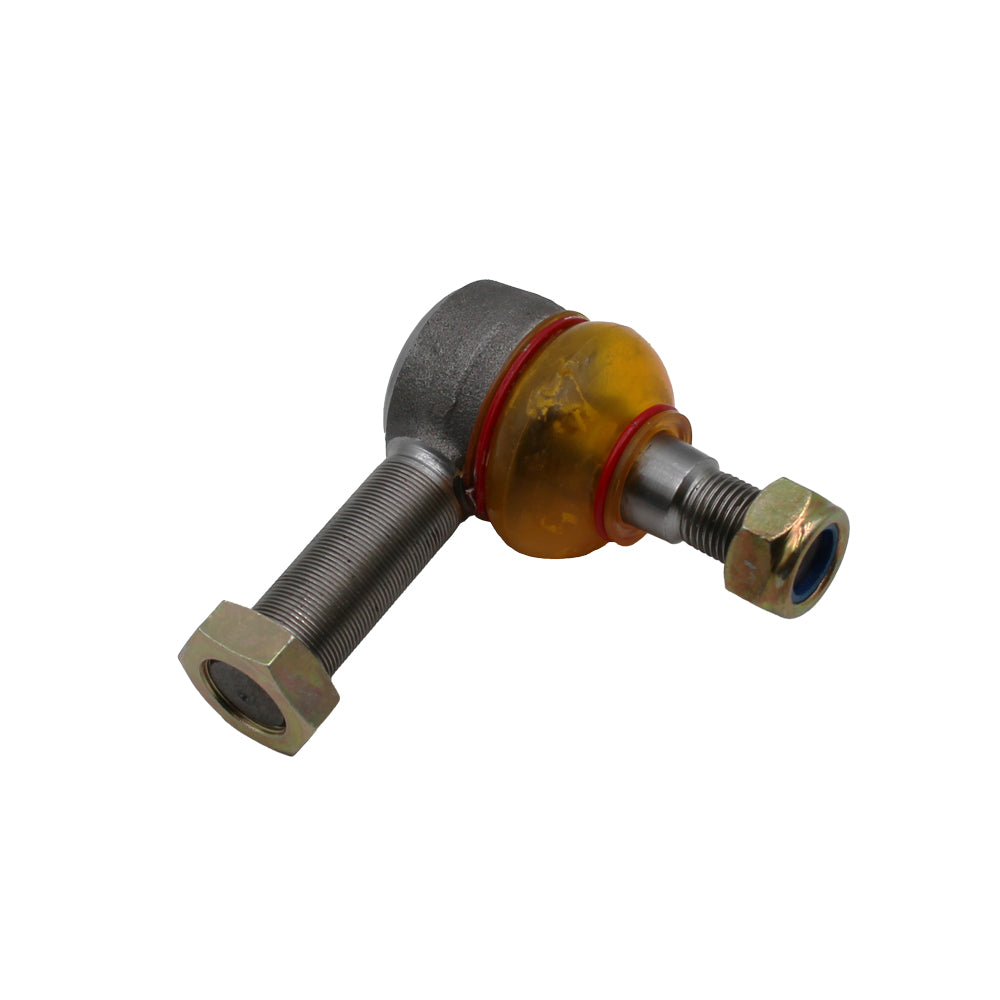

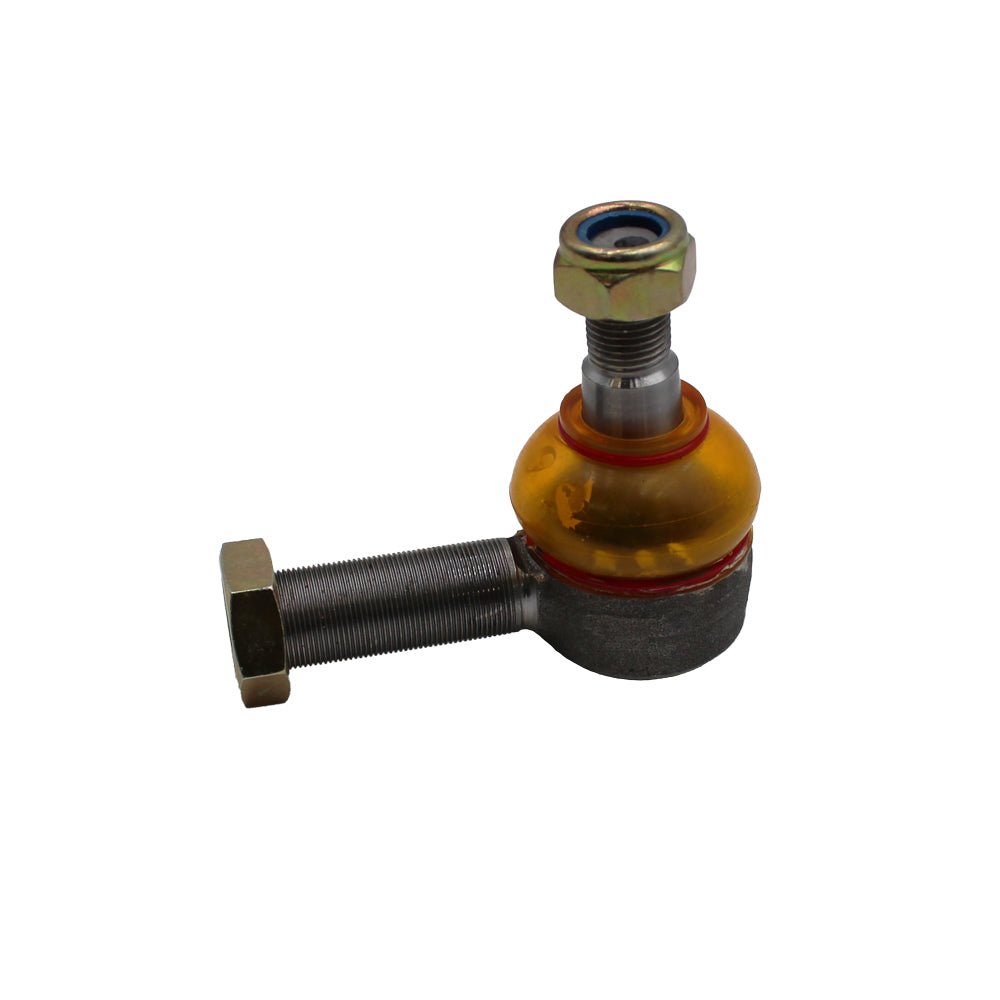

5109553 Tie Rod End M20 x 1 RH Threads Fits John Deere 310 480(2WD) 3.152" Long

Name: 5109553 Tie Rod End M20 x 1 RH Threads Fits John Deere 310 480(2WD) 3.152" Long
Brand: AIC Replacement Parts
SKU: S.62601-SPX
Price: 14.65 USD
Availability: InStock

5109553 Tie Rod End M20 x 1 RH Threads Fits John Deere 310 480(2WD) 3.152" Long

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

New Aftermarket Tie Rod End

Tech Info:
M20 x 1 RH Threads
3.152" Long

Fits:
Fits John Deere Models 310, 480 (2WD)

Replaces Part Numbers:
5109553, TX11830

Models This Part Fits:

JX65, JX80, 5610, TL100, TN70F, TS90, 4830, 1300DT SUPER, 2910, JX1075C, MFWD, 1265, 70, JX70U, 7740, 3930, TD75D, JX90, TS100, F110DT, 5640, 7610, 1355, 580, JX85, 4630, TD75, TN55, TD5020, TN70A, JX1085C (2WD), 5040, JX55, JX60, 3910, 7840, T4030, TN75FA, 446DT, 310, 2-50, 110-90DT, F115DT, TN65F, 75C, 1365, TL90, 780, TN90F, 5030, TD5050, TN60A, 1000 SUPER, JX1080U, 555 A/B, TN80F, 1370, 4610, TN70, TS110, TN70DA, 430, JX1100U, 8340, 680, 2-60, TN60DA, JX70, 5050, 650, TN75F, TN95FA, TS115, 2WD, JX90U, 420DT, TD5030, T4020, TL70, 100-90DT, 85C, TD5010, TD70D, 5045, JX75, JX95 (MFWD), 1255, JX1070C, TD60D, 90, 880, 1270, TN75DA, 65C, T4040, TN75, 6610, 80, 550, JX100U, 480, 60, TL80, 45-66DT, 980, 450, TN65, 4130, F100DT, 6640, JX1090U, JX80U, 95

Additional Information:

Inner Side Thread Diameter: A M20 x 1mm Length: 80mm Outer Side Thread Diameter: B M16 x 1.5mm Taper C 20.1 - 18.2mm Taper length: D 20mm Thread length: E 21mm Type Male Thread: Straight Tie Rod
