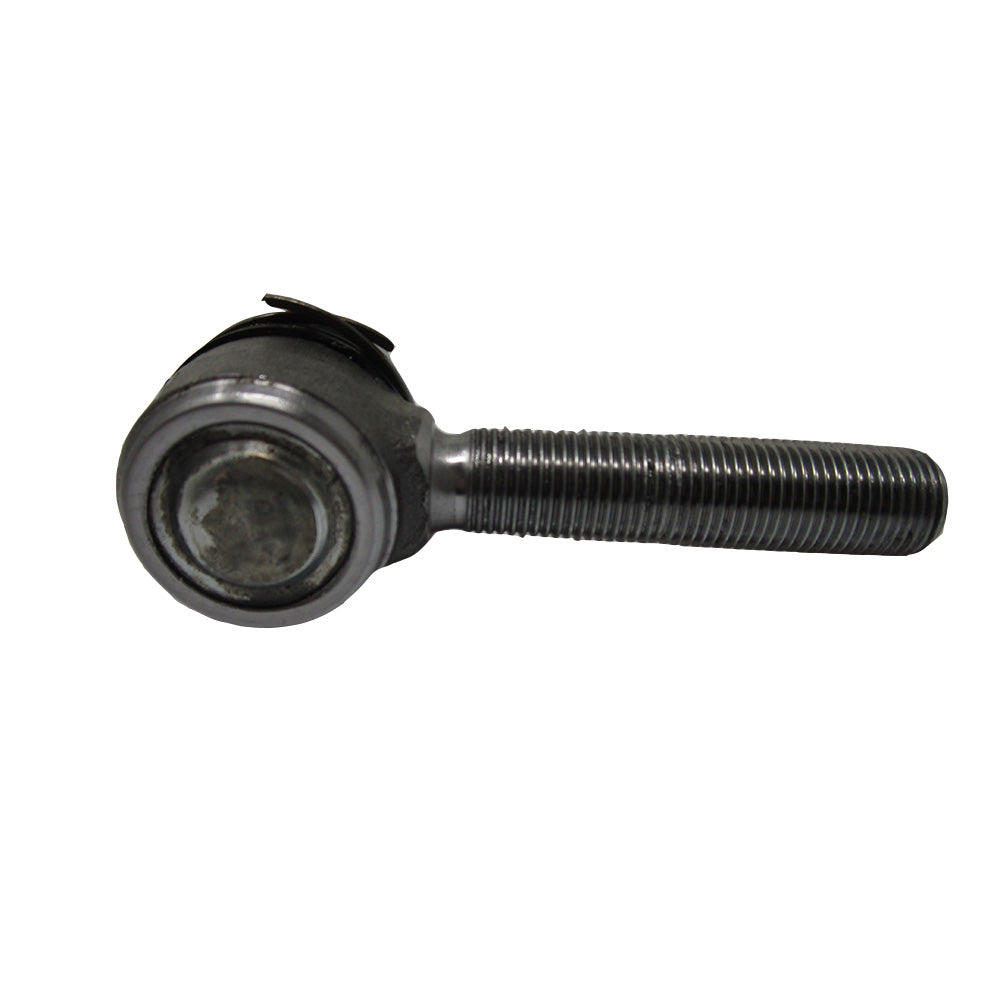

S.70689 Tie Rod End, Lh, 2Wd, L2600 Fits Kubota
S.70689 Tie Rod End, Lh, 2Wd, L2600 Fits Kubota
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Tie Rod End, Lh, 2Wd, L2600
Fits Kubota Models: L185, L185F, L2050, L210, L2250, L2350, L2350F, L245, L245F, L245H, L2500, L2550, L2600, L2650, L2650DT, L285, L2850, L2850F, L2900, L2900F, L295, L2950, L295F, L3000, L3010, L3010F, L3130, L3130F, L3250, L3250F, L3300, L3300F, L3450, L3650, L3650F, L3830, L3830F, L4200, L4200F, L4300, L4300F, L4310, L4310F, MX5000F
Tech Info:
-C mm: 13.9 - 12.9
-Inner side thread A mm: M16 x 1.5
-Length mm: 82
-Outer side thread B mm: M12 x 1.5
-Taper C mm: 14 - 13
-Taper length D mm: 21.5
-Thread length E mm: 18.5
Replaces Part Number(s): 32150-12600, 32150-12601, 32150-12602, 38440-44780
Fits Kubota Models: L185, L185F, L2050, L210, L2250, L2350, L2350F, L245, L245F, L245H, L2500, L2550, L2600, L2650, L2650DT, L285, L2850, L2850F, L2900, L2900F, L295, L2950, L295F, L3000, L3010, L3010F, L3130, L3130F, L3250, L3250F, L3300, L3300F, L3450, L3650, L3650F, L3830, L3830F, L4200, L4200F, L4300, L4300F, L4310, L4310F, MX5000F
Tech Info:
-C mm: 13.9 - 12.9
-Inner side thread A mm: M16 x 1.5
-Length mm: 82
-Outer side thread B mm: M12 x 1.5
-Taper C mm: 14 - 13
-Taper length D mm: 21.5
-Thread length E mm: 18.5
Replaces Part Number(s): 32150-12600, 32150-12601, 32150-12602, 38440-44780
Models This Part Fits:
L2350, B2150HSD, B9185, L3000F, L2500, B8200HSTEP, B1700, L2350DT, B2410, L2050, B9200HSDTOW, L295, B8200HSTDP, B2150HSE, L2500F, B2150D, B1700HSE, L185DT, L3000, B8200EP, L235, B2100HSE, L3000DT, L2350F, L185, L2600DT, B20, L210, B8200, B9200HSTEP, B2400HSE, B1700E, L275, B9200DCEP, B9200DCDP, L2600, L2600F, B2100E, L295F, B2400E, L260, B2410HSE, B2100, B9200, L245, L2050DT, B9200HSTDP, B21, L245DT, B8200DP, L2050F, B2150E, L2250F, B2400, L2250, L2500DTAdditional Information:
M16x1.50 left hand thread Length: 3-1/2" Tie Rod End - LH ThreadReference Numbers:
32150-12600, 3215012600, 32150-12601, 3215012601, 32150-12602, 3215012602, 38440-44780, 3844044780, 38440-44790, 3844044790Makes This Part Fits:
Shop Kubota Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
