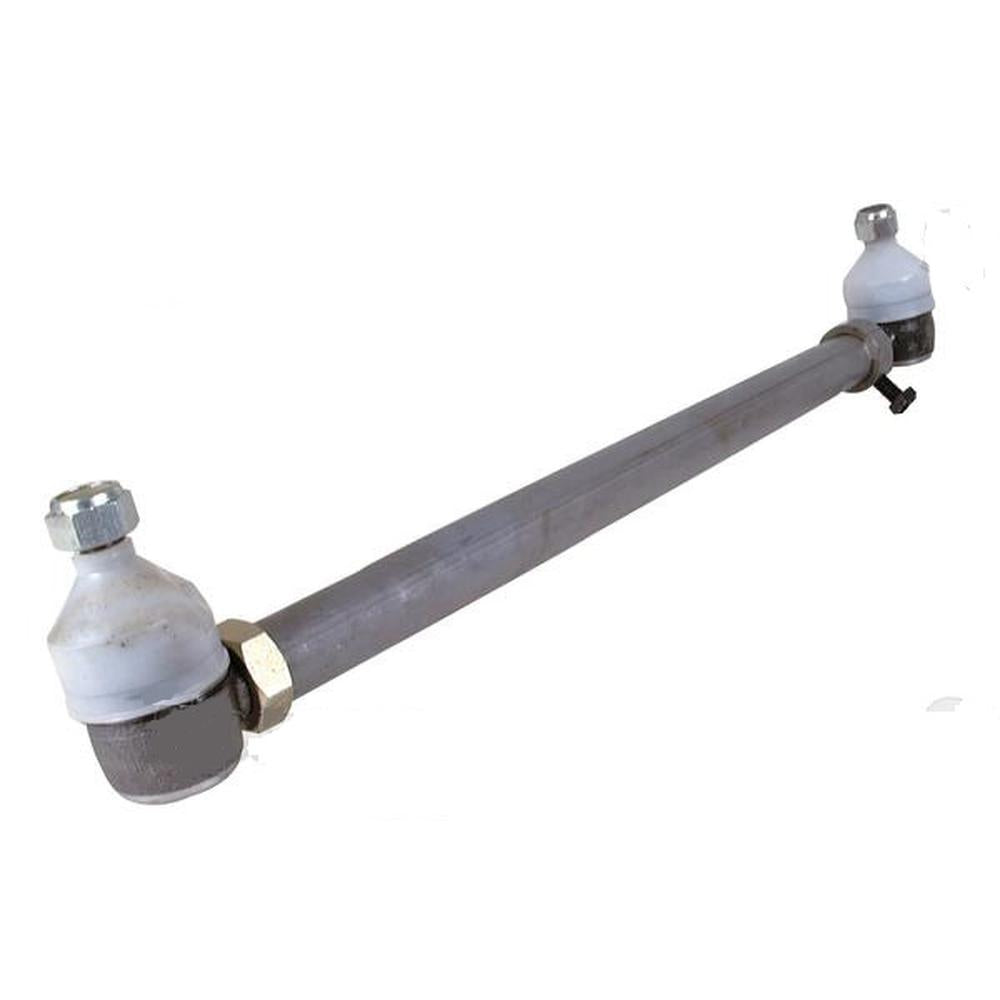

Tie Rod/Drag Link Assembly, Length: 485 - 790mm - Fits Case IH
Tie Rod/Drag Link Assembly, Length: 485 - 790mm - Fits Case IH
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Tie Rod/Drag Link Assembly
Fits Case IH Models:
238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 474, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 684, 685, 685XL, 695, 695XL, 784, 785, 785XL, 795, 795XL, 884, 885, 885XL, 895, 895XL, 995, 995XL, CX100, CX50, CX60, CX70, CX80, CX90, MX100C, MX80C, MX90C
Tech Info:
Inner side thread Ø A mm: 28
Length mm: 485 - 790
Outer side thread Ø B mm: M14 x 1.5
Taper C mm: 17.95 - 15.5
Taper length D mm: 22.5
Thread length E mm: 22
Replaces Part Numbers:
1538016C1, 65079C91, 3116321R93
Fits Case IH Models:
238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 474, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 684, 685, 685XL, 695, 695XL, 784, 785, 785XL, 795, 795XL, 884, 885, 885XL, 895, 895XL, 995, 995XL, CX100, CX50, CX60, CX70, CX80, CX90, MX100C, MX80C, MX90C
Tech Info:
Inner side thread Ø A mm: 28
Length mm: 485 - 790
Outer side thread Ø B mm: M14 x 1.5
Taper C mm: 17.95 - 15.5
Taper length D mm: 22.5
Thread length E mm: 22
Replaces Part Numbers:
1538016C1, 65079C91, 3116321R93
Models This Part Fits:
CX80, 3230, 685, 685XL, 695, 248, 4210, 288, 268, 4220, CX100, 885, C100, 695XL, 595, 785XL, 395, 895, 495XL, 585XL, C50, C80, 258, 475, 454, 674, CX60, 238, 795XL, 385, CX50, 4240, MX90C, 884, C70, CX90, 484, 995XL, 684, 785, 485, 595XL, 474, 574, 795, 784, MX80C, 584, C90, 585, 3210, 4230, 885XL, C60, 3220, MX100C, CX70, 495, 895XL, 995, 485XLAdditional Information:
Length: 52"-82" Thread Size: 7/8" Right Hand 2WD Machines Tie Rod Assembly, 2WD, AdjustableReference Numbers:
1538016C1, 3116321R92, 3116321R93, 3118841R2, 3118841R91, 3118841R92, 3116321R93, 65079C91, 1538016C1Makes This Part Fits:
