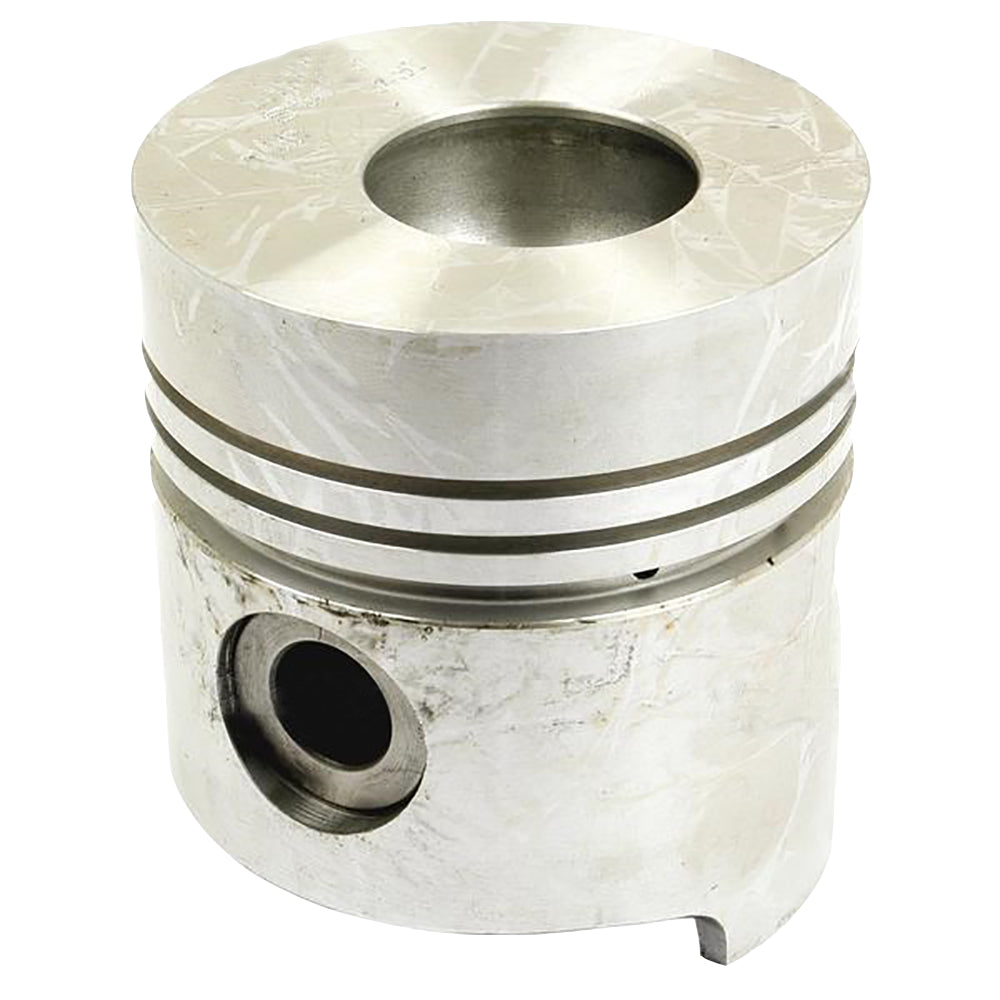

Piston Fits Long Replaces TX13158
Piston Fits Long Replaces TX13158
AIC Replacement Parts - FEDEX2DAY
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket PistonTech Info:
-Piston Length = 101.18mm.
-Chamber Depth = 23.58mm.
-Chamber Diameter 42.44mm.
-Pin Diameter 32mm.
-Compression Height = 59.66mm.
-To Fit Bore Diameter 94.99mm.
-No. of Rings = 2Made to Fit Long:
Models: 2260, 2360, 2360DTC, 2460, 2460DTC, 2460SD, 2460SD-DTC, 260C, 350, 360, 360C, 445, 445DT, 445SD, 445V, 460, 460DT, 460SD, 460V, 550, 550DT, 560, 560DT, 560DTE
Replaces Part Number(s): TX13158, TX13194
-Piston Length = 101.18mm.
-Chamber Depth = 23.58mm.
-Chamber Diameter 42.44mm.
-Pin Diameter 32mm.
-Compression Height = 59.66mm.
-To Fit Bore Diameter 94.99mm.
-No. of Rings = 2Made to Fit Long:
Models: 2260, 2360, 2360DTC, 2460, 2460DTC, 2460SD, 2460SD-DTC, 260C, 350, 360, 360C, 445, 445DT, 445SD, 445V, 460, 460DT, 460SD, 460V, 550, 550DT, 560, 560DT, 560DTE
Replaces Part Number(s): TX13158, TX13194
Models This Part Fits:
2260, 350, 560DT, 2460SD-DTC, 360C, 2460, 460V, 2360, 560, 2460DTC, 445DT, 2360DTC, 2460SD, 445, 445SD, 460, 560DTE, 445V, 550, 360, 460DT, 550DT, 460SD, 260CAdditional Information:
Piston Length = 101.18mm. Chamber Depth = 23.58mm. Chamber Diameter 42.44mm. Pin Diameter 32mm. Compression Height = 59.66mm. To Fit Bore Diameter 94.99mm. No. of Rings = 2 PistonReference Numbers:
TX13158, TX13194Makes This Part Fits:
Shop Long Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
