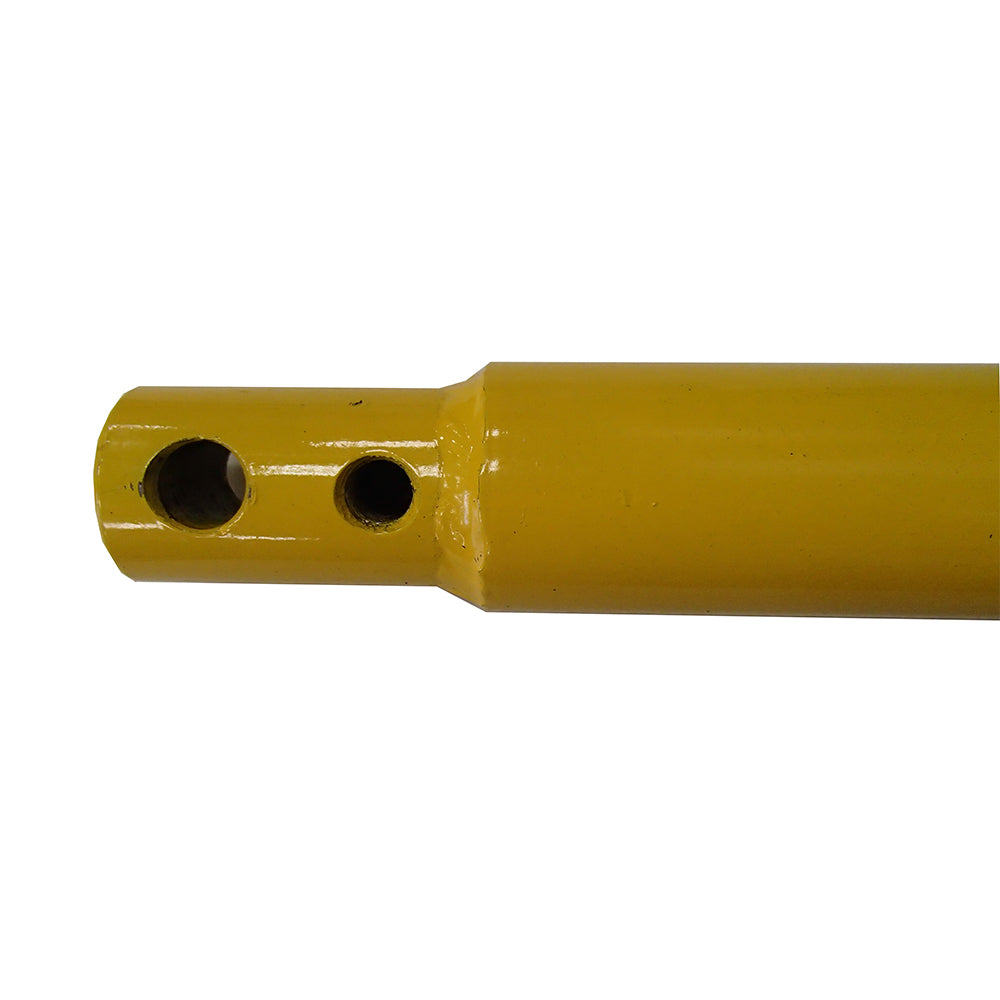

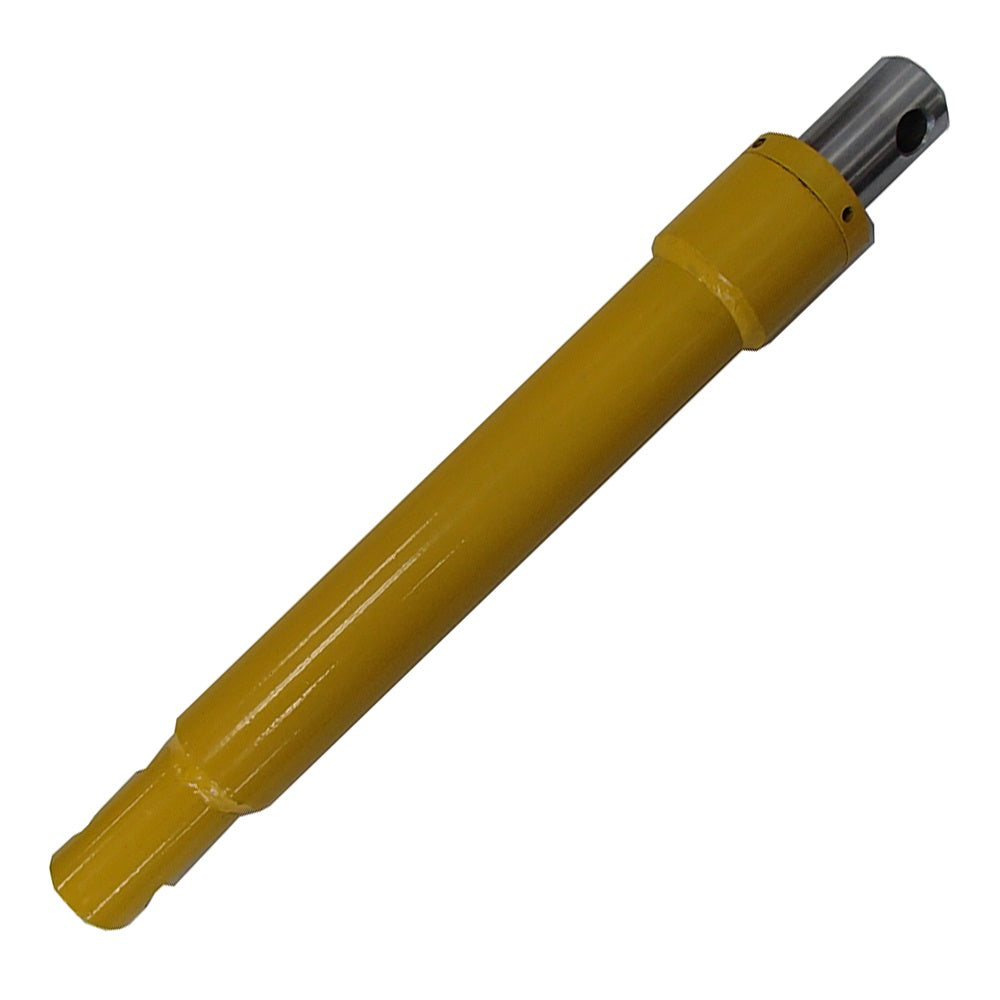

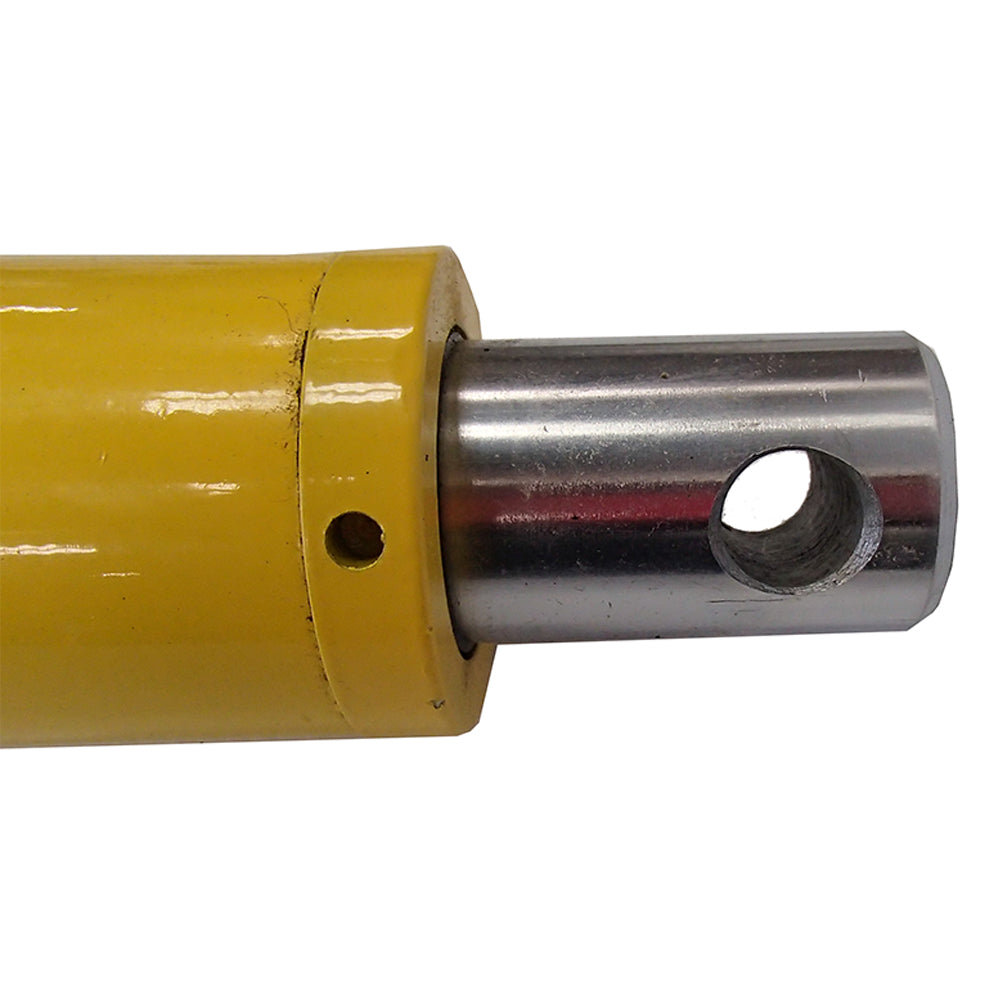

One New Aftermarket Replacement Snow Plow Angle Cylinder Ram for Meyer and Diamond Snowplow Blades

This aftermarket replacement angle angling cylinder ram controls left-right blade angling on Meyer and Diamond snow plow blades. The cylinder mounts inline between the plow blade and the hydraulic system, converting hydraulic pressure into the pushing and pulling force needed to angle the blade. This is a single-action angle type cylinder compatible with Meyer ST, STP, TM, TMP, and some C Blade plow models.

Specifications

• Type: Angle Type Cylinder (single-action)
• Bore x Stroke: 1-1/2" x 10"
• Center-to-Center Retracted: 16-1/4"
• Center-to-Center Extended: 26-1/4"
• Pin Size: 5/8"
• Port Size: 1/4" NPT Inline

Compatible Models

Meyer Snow Plows: ST, STP, TM, TMP, and some C Blade series plow blades (Universal Fit)

Diamond Snow Plows: Compatible Diamond plow blade models (Universal Fit)

Replaces Part Number(s):

05810, 5810, 6110, SNP6110, 411021, 1304005

Aftermarket Interchange Numbers

M05810, M05810-A, 1304005-A, SAM 1304005, Buyers 1304005

New aftermarket replacement part - not remanufactured, not used.
