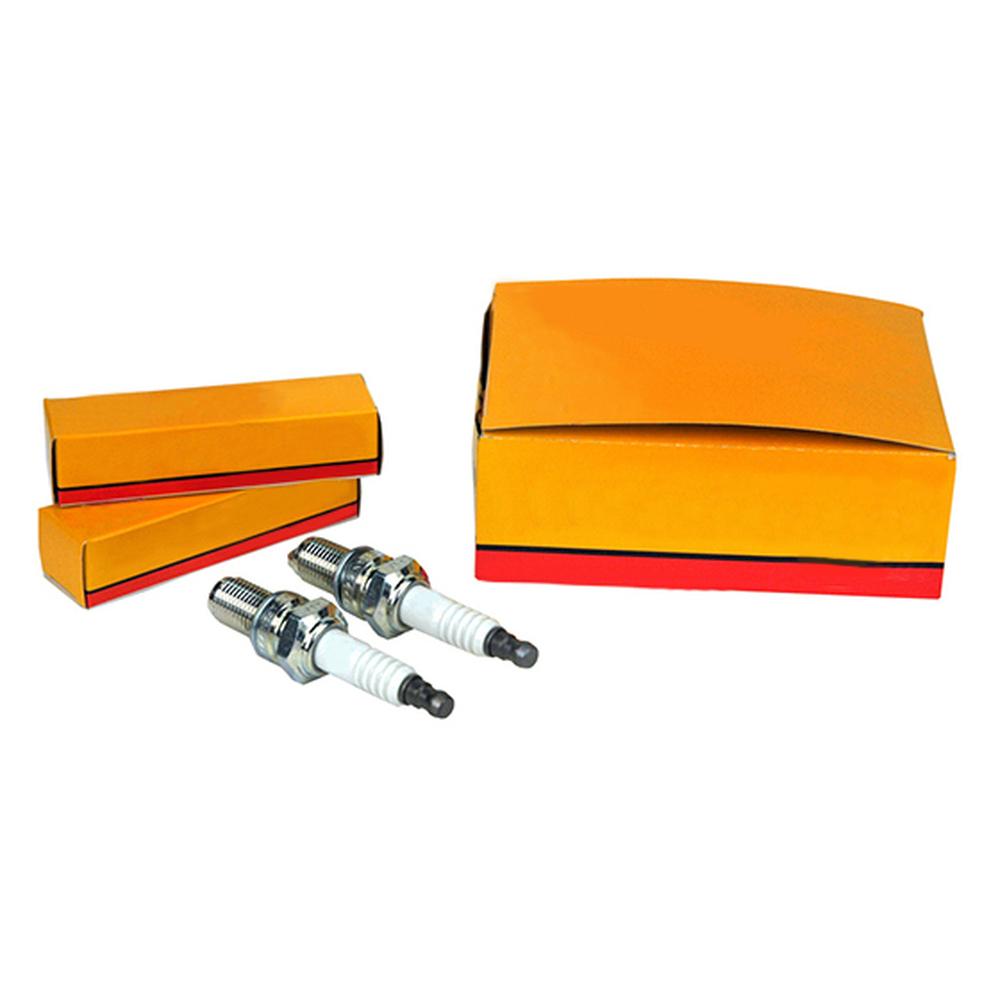

One New Aftermarket Replacement Resistor Spark Plug Fits Honda and Bomag Small Engines

This resistor-type spark plug is a direct replacement Fits Honda and Bomag small engines, including Fits Honda GX-series and GXV-series engines used in generators, trimmers, tillers, water pumps, and outboard motors, as well as Bomag compaction equipment powered by Fits Honda engines. It cross-references to Fits NGK CR5HSB (Fits NGK stock number 6535), the OEM-standard plug for these applications.

Specifications

• Plug Type: Resistor
• Thread Diameter: 10mm
• Thread Reach: 12.7mm
• Seat Type: Flat
• Hex Size: 16mm (5/8 in.)
• Tip Configuration: Non-projected
• Torque - Cast Iron: 7.2-10.8 lb. ft.
• Torque - Aluminum: 7.2-8.7 lb. ft.

Compatible Models

Fits Honda GX / GXV / GXH / GXR Engine Series: GX22, GX31, GX100, GX100RT, GX100T, GX100U, GX100UT, GXH50, GXH50U, GXH50UT, GXR120RT, GXR120UT, GXV50, GXV50U, GXV50UT, GXV57U, GXV57UT

Fits Honda Generators: EU1000I, EU2000I, EU2000IK1, EU2000IT1, EU2200IT, EB2000I, EB2000IT1, EB2200IT, EX700C

Fits Honda Power Equipment: FG100, HHE31C, HHT31S, UMK422, UMK422K1, UMK431, UMK431K1, WX10, WX15, WX15T

Fits Honda Marine: BF2DX, BF2DY

Bomag: Equipment using Fits Honda small engines (see Bomag part number 05748175)

Replaces Part Number(s):

Fits Honda: 98056-55757, 98056-55777 | Bomag: 05748175 | Fits NGK: CR5HSB, 6535 | Fits Stens: 130-340 | Autolite: 4194 | Fits Denso: U16FSR-UB | Fits Champion: Z9Y | Multiquip: 9805655777

Aftermarket Interchange Numbers

Fits NGK 6535, Rotary 9405, NHC 268-5817, Sunbelt B1CR5HSB, J. Thomas CR5HSB, Torch A5RTC, Fits Stens 130-340

New aftermarket replacement part - not remanufactured, not used.
