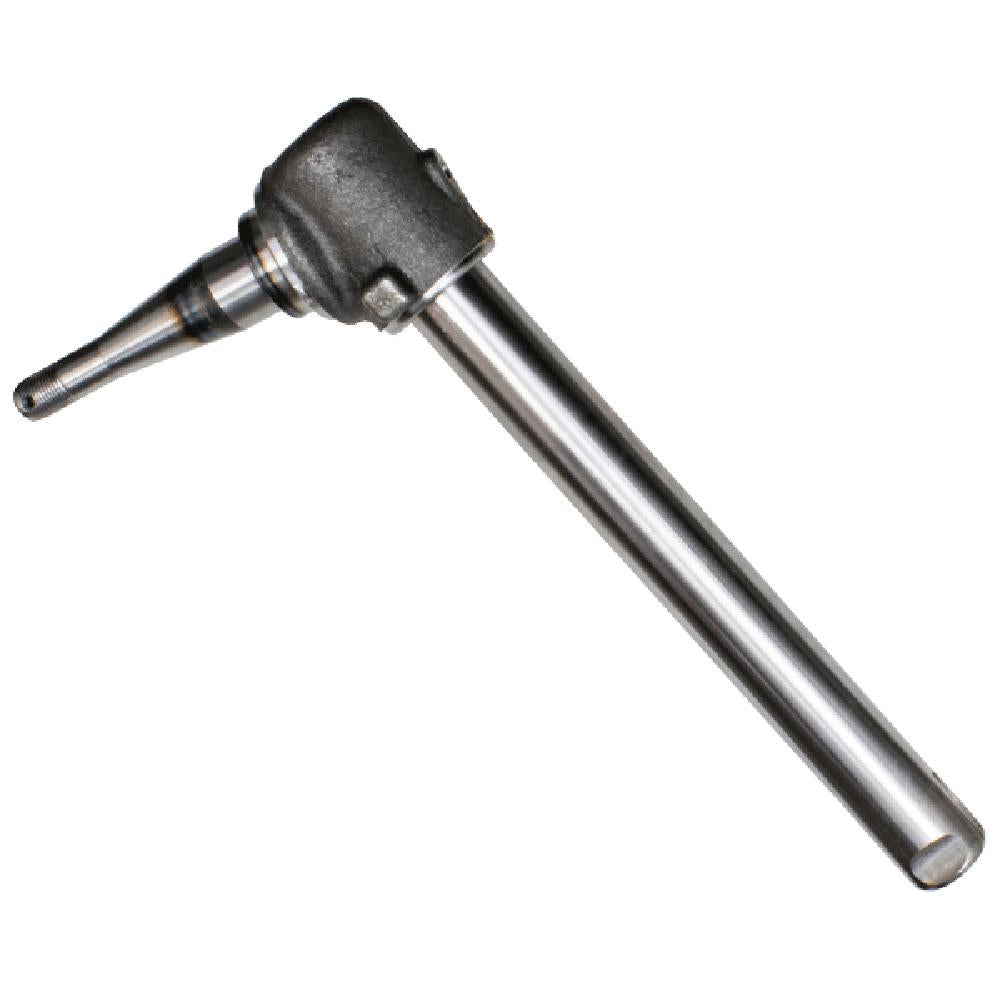

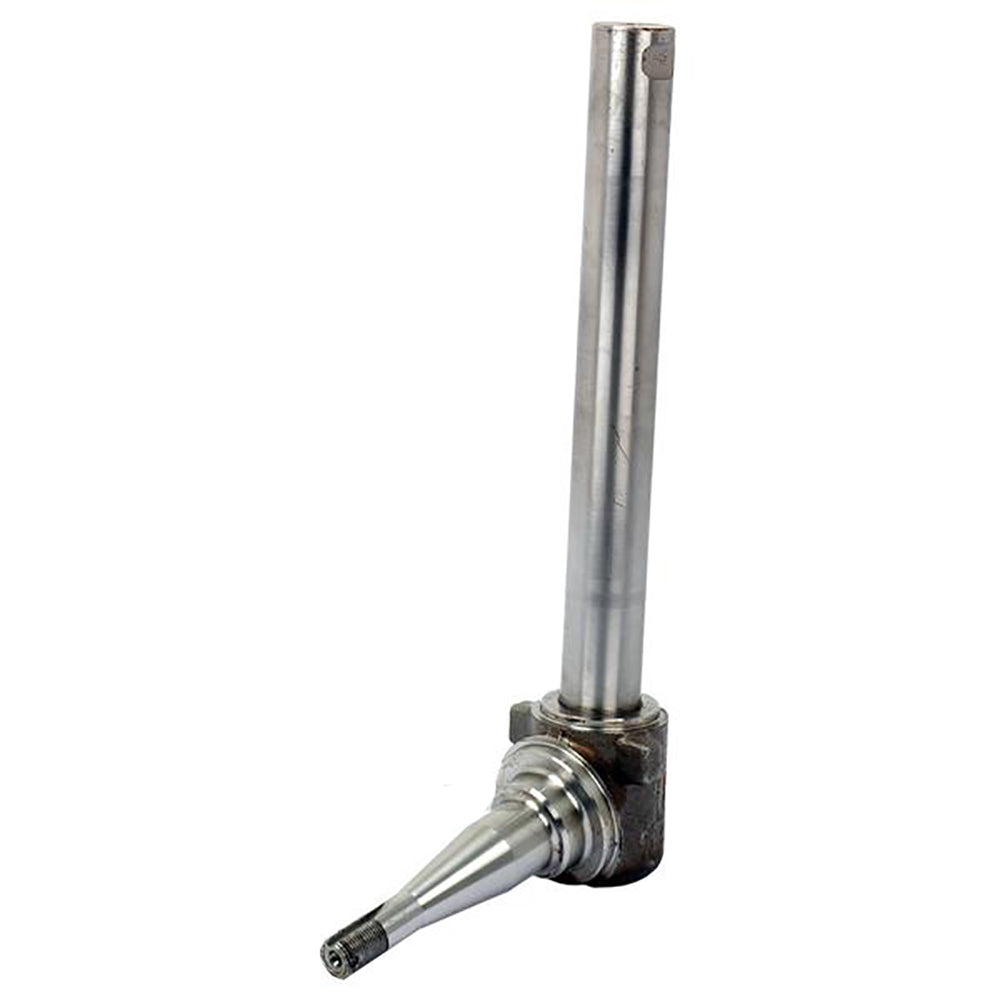

One New Aftermarket Replacement Front Axle Spindle Fits Massey Ferguson (MF) Tractors

This aftermarket replacement front axle spindle fits the left-hand or right-hand side of standard adjustable axles on Fits Massey Ferguson 100 and 200 Series tractors. The spindle is a critical front-end steering component that supports the front wheel hub and bearings, allowing the wheel to pivot for steering. Not for use on row crop wide, orchard, or lo-profile axle configurations. Verify shaft measurements before ordering.

Specifications

• Shaft Length (A): 12.375"
• Shaft Diameter (B): 1.500"
• Large (Inner) Race Bore (C): 1.375"
• Small (Outer) Race Bore (D): 0.750"
• Thread: 3/4" x 16 TPI UNF
• Fits Left-Hand or Right-Hand side
• Standard adjustable axle only -- not for row crop wide, orchard, or lo-profile

Serial Number Restrictions

• MF165: All (except LPG)
• MF175: All
• MF255: Up to SN# 9A324146
• MF265: Up to SN# 9A324139
• MF275: Up to SN# 9A324137

Compatible Models

Fits Massey Ferguson (MF) 100 Series: 165 (except LPG), 175

Fits Massey Ferguson (MF) 200 Series: 255, 265, 275

Fits Massey Ferguson (MF) 30 Series: 31

Replaces Part Number(s):

508571M92, 508571H92, 508571M1, 508571V92

New aftermarket replacement part - not remanufactured, not used.
