AIC Replacement Parts

**TO VIEW PRICE**

LOGIN or REGISTER

Models This Part Fits:

GTH 2548, 48" Decks built after 2001, YTH 2748, YTH 1848XP, GT 2248, 48" Decks, GTH 2248

Additional Information:

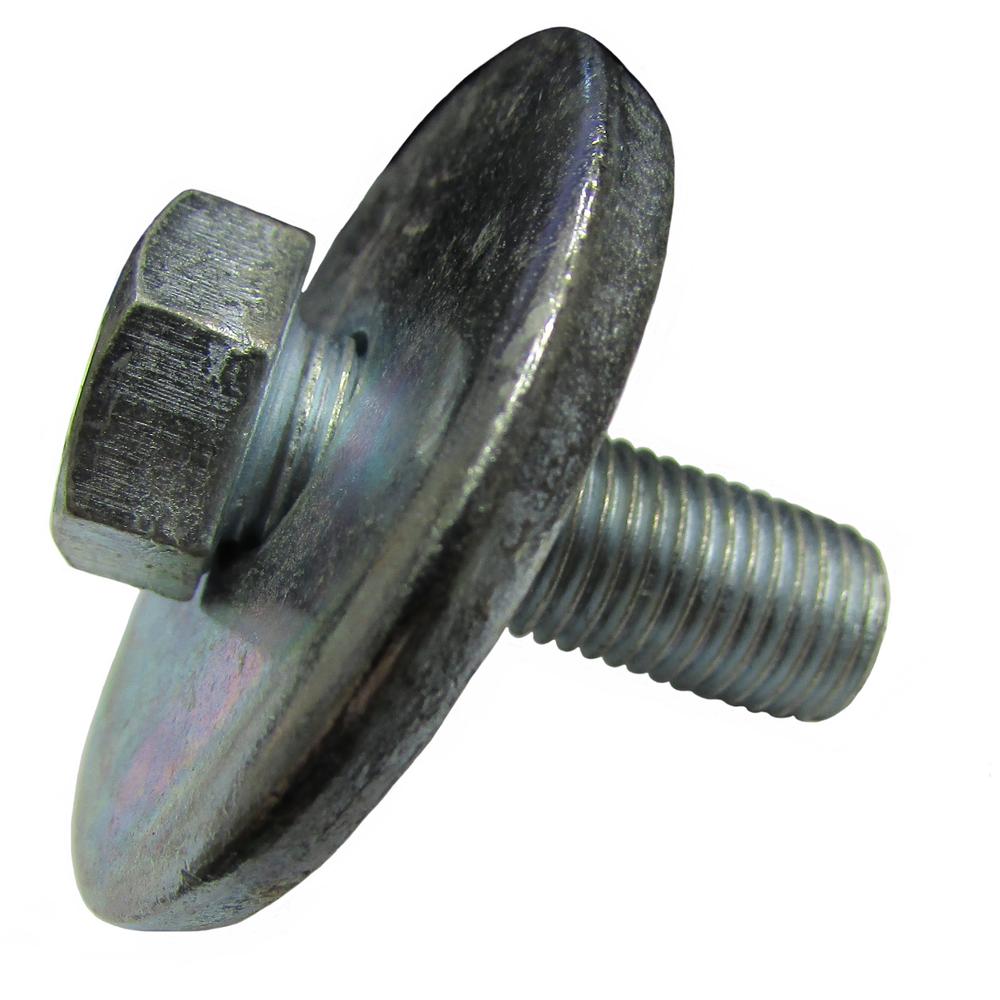

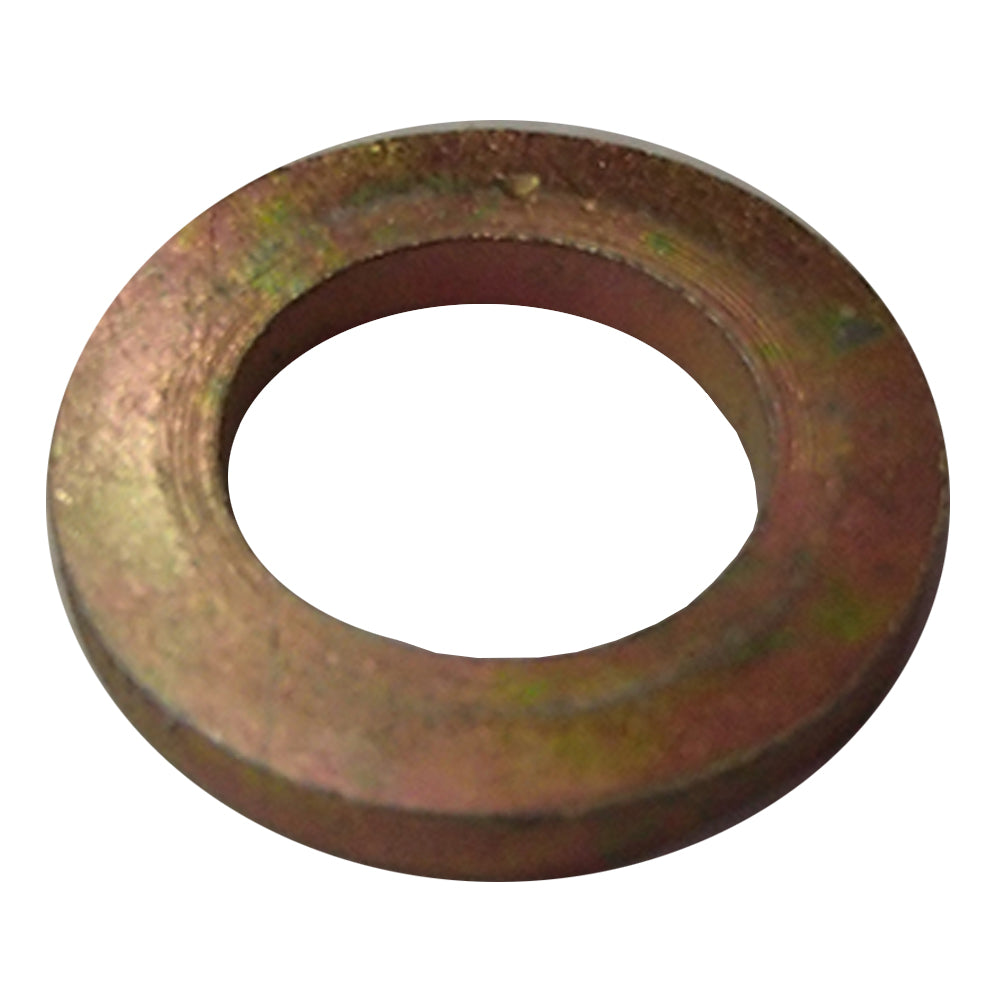

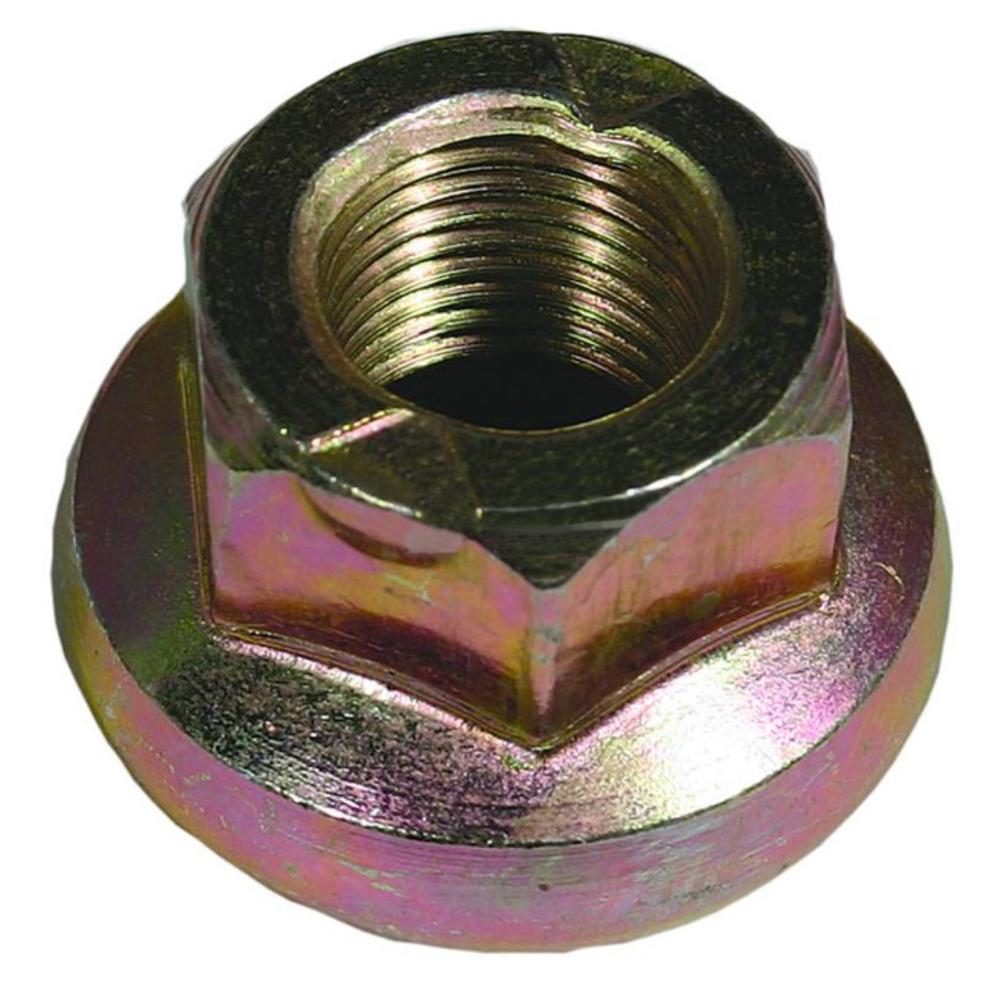

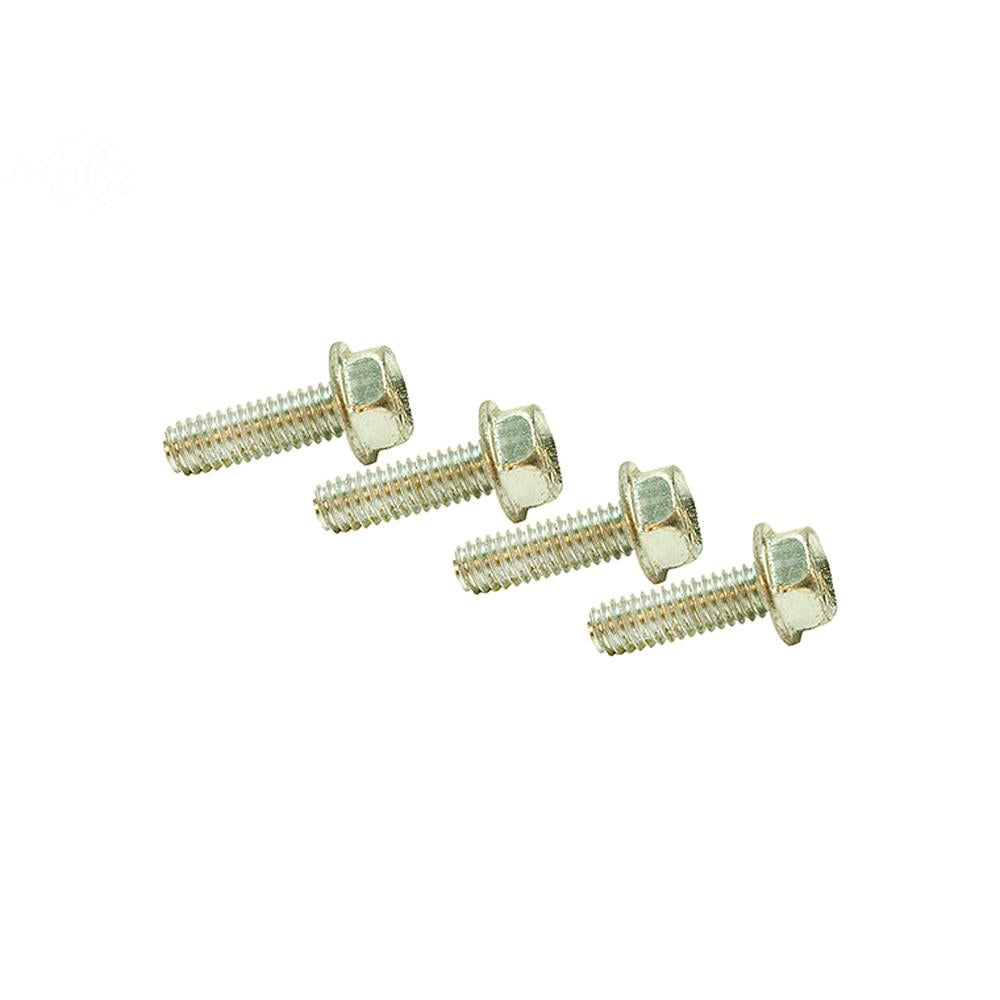

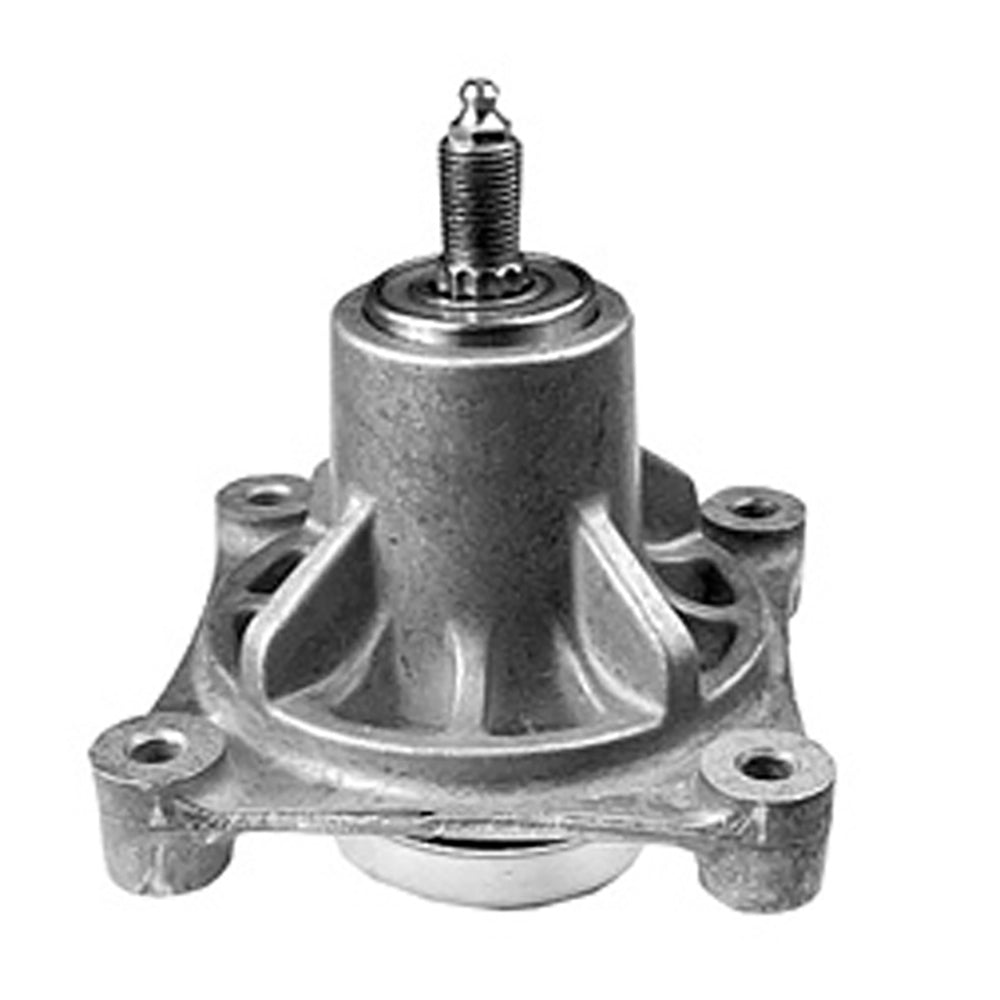

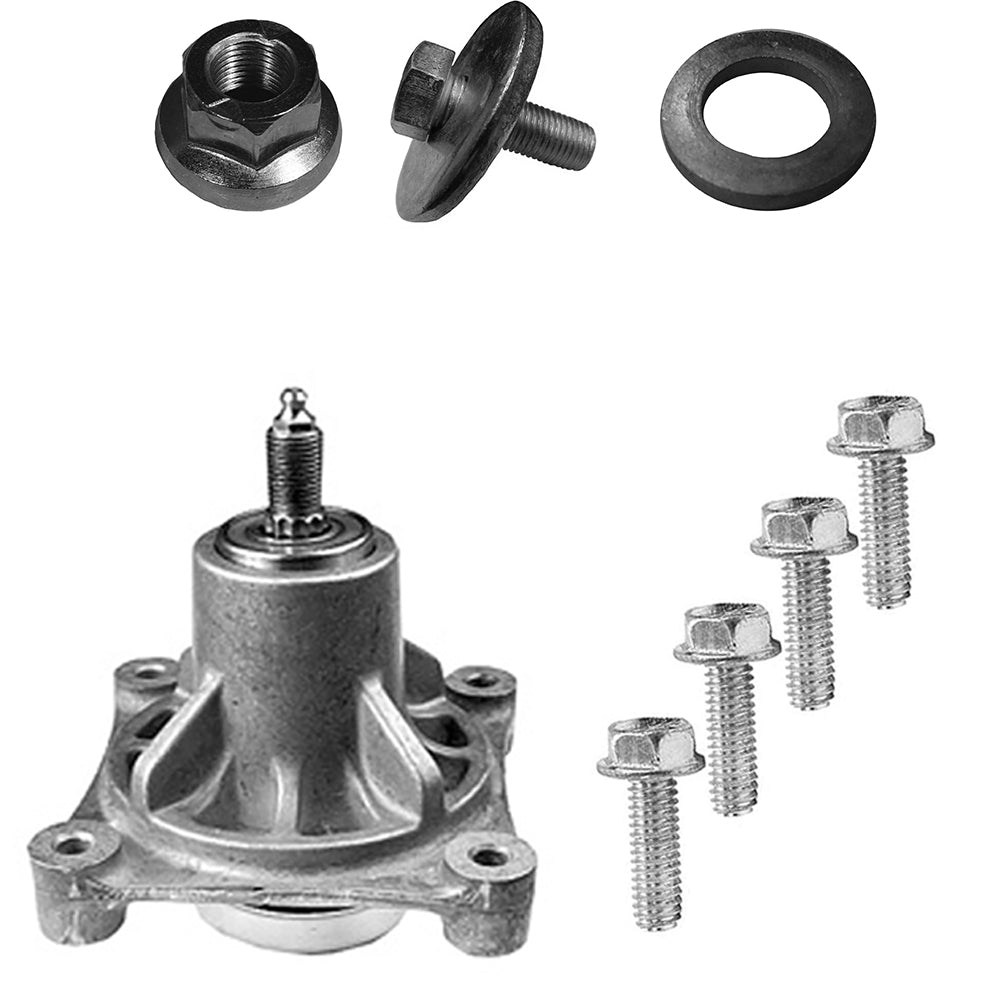

(1) Spindle Assembly Height: 5 9/16" Bolt short housing 5 point star center hole Grease fitting on threaded end Includes shaft, bearings and dust cap Replaces Part Number(s): 174356, 532174356, 532174358, 532192656, 539107515, 587125201 (1) Spacer Washer Inner Diameter: 11/16" Outer Diameter: 1-1/8" Thickness: 5/32" Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053 (1) Pulley Lock Nut Thread Length: 9/16"-18 Outer Diameter: 1-1/4" Thickness: 3/4" Type: Flange Hex: 7/8" Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801 (1) Blade Bolt w/ Flat Washer Comes with washer Threads: 20 Length: 1-¼" Thread Size: 7/16" Replaces Part Number(s): 174365, 193003, 532193003 (4) Self-Tapping Screw 5/16 x 18-1" Replaces Part Number(s): 138776, 157722, 532138776, 532157722, 532173984, 584953901

Reference Numbers:

174356, 187690, 129963, 532187690, 187860, 187860, 532445266, 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801, 174365, 193003, 532193003, 138776, 157722, 532173984, 584953901, 174356, 532174356, 532174358, 532192656, 539107515, 587125201, 532445266, 532187690, 532 13 72-66, 532 13 72-66, 532139729, 532193003, 532138776, 532157722, 532173984, 584953901

Makes This Part Fits:

Product Category:

Product Group:

Product Sub Group:

View full details
