One New Aftermarket Replacement Spindle Assembly for John Deere Commercial Mowers and Compact Utility Tractors

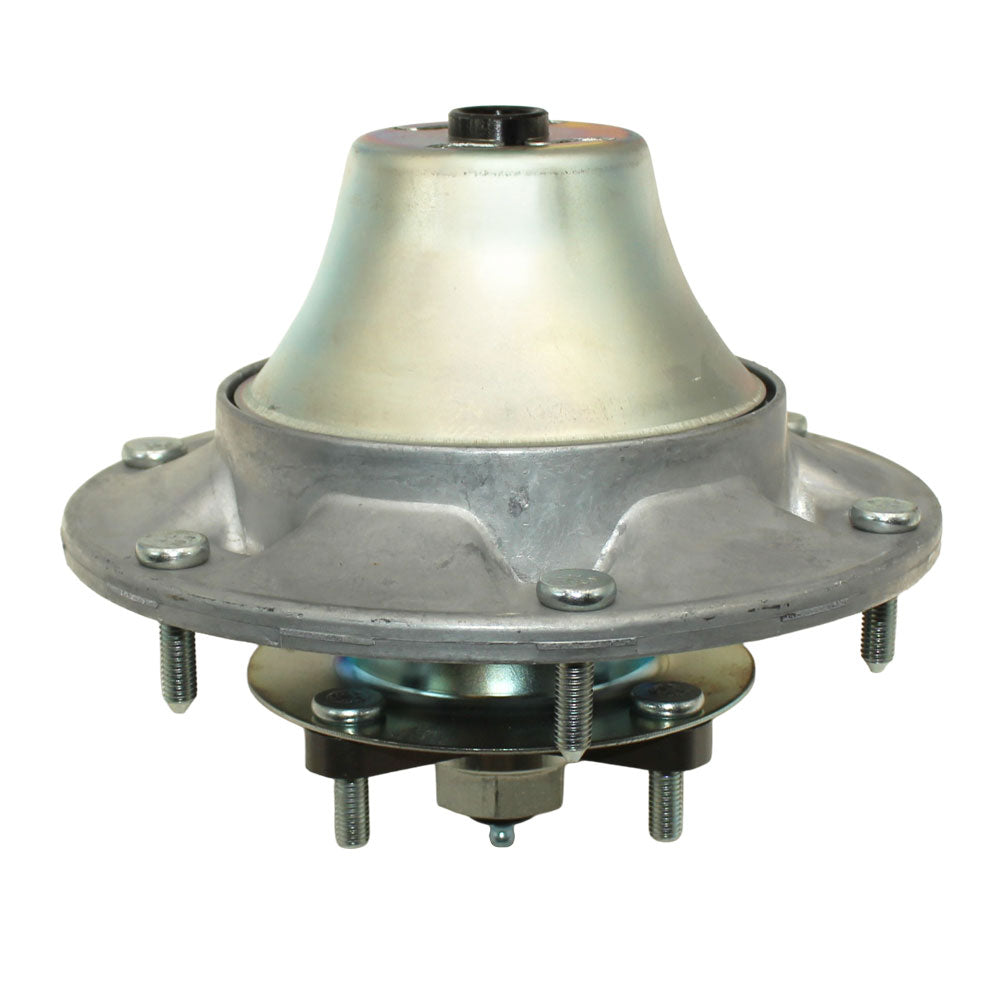

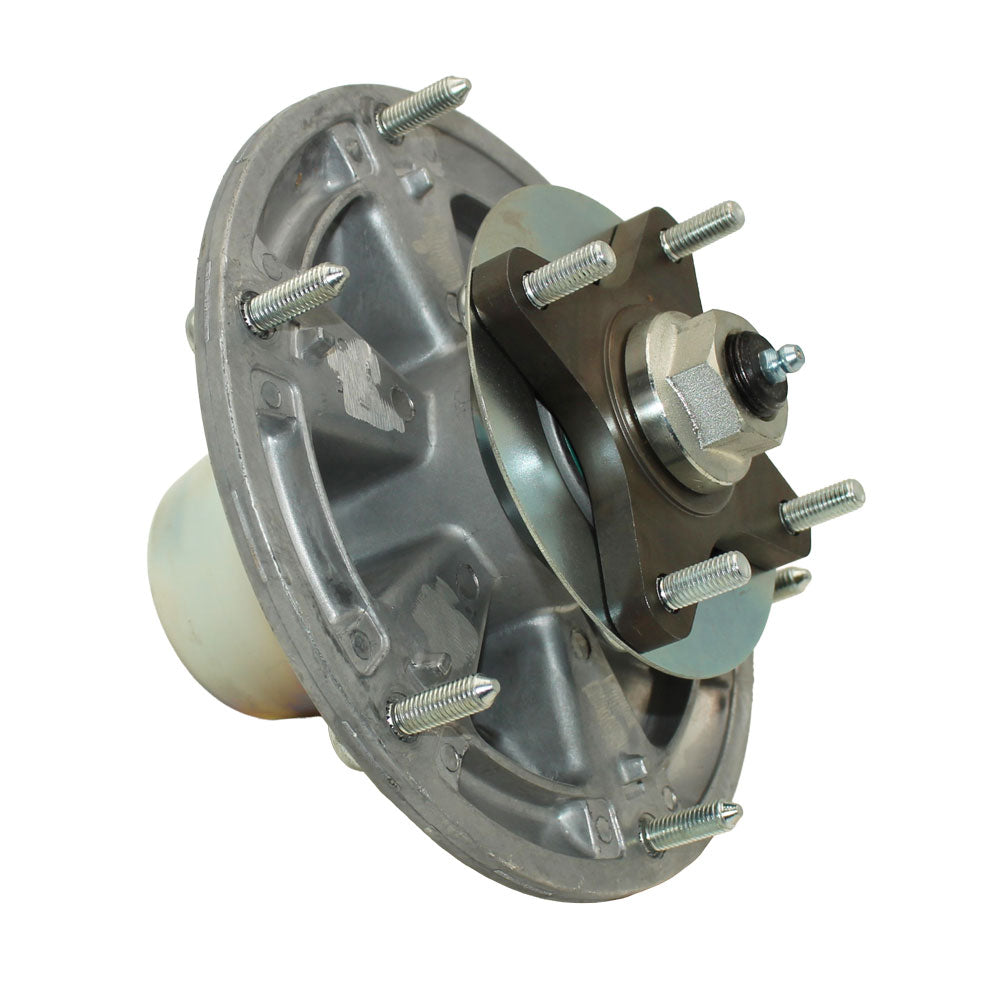

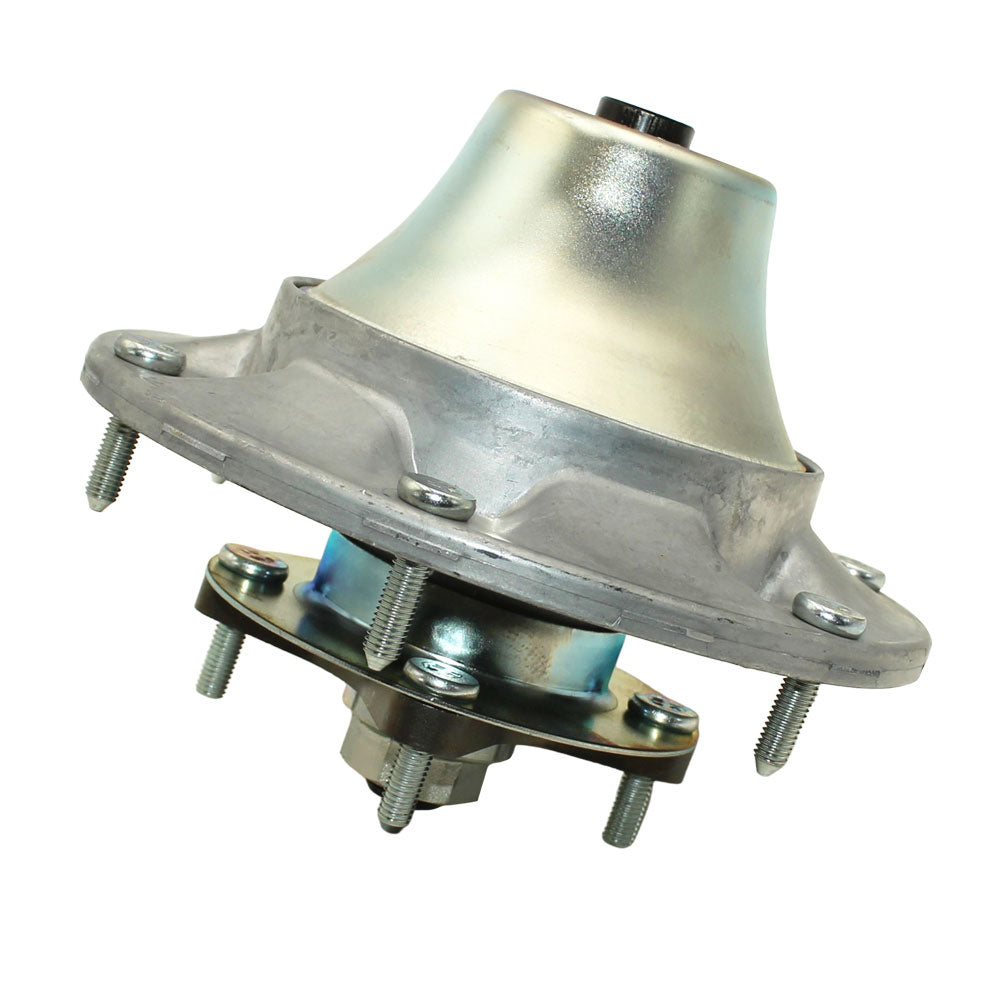

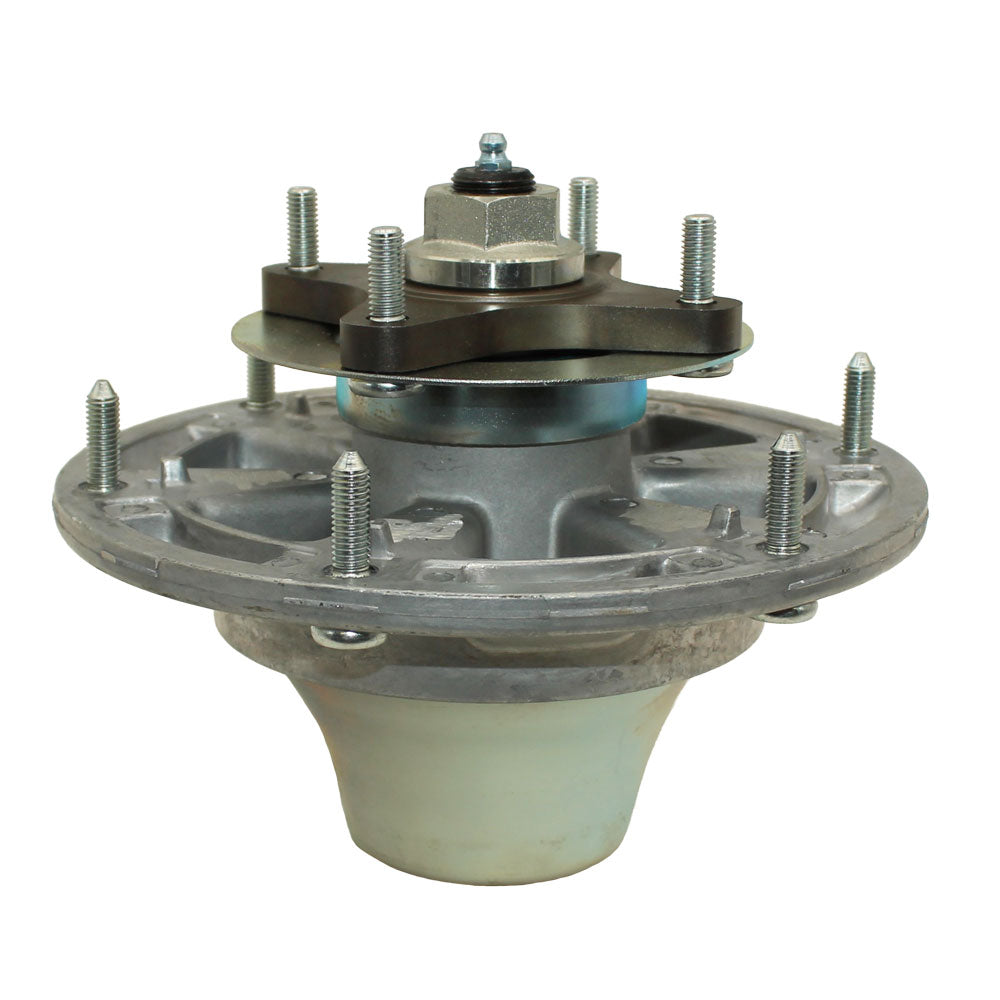

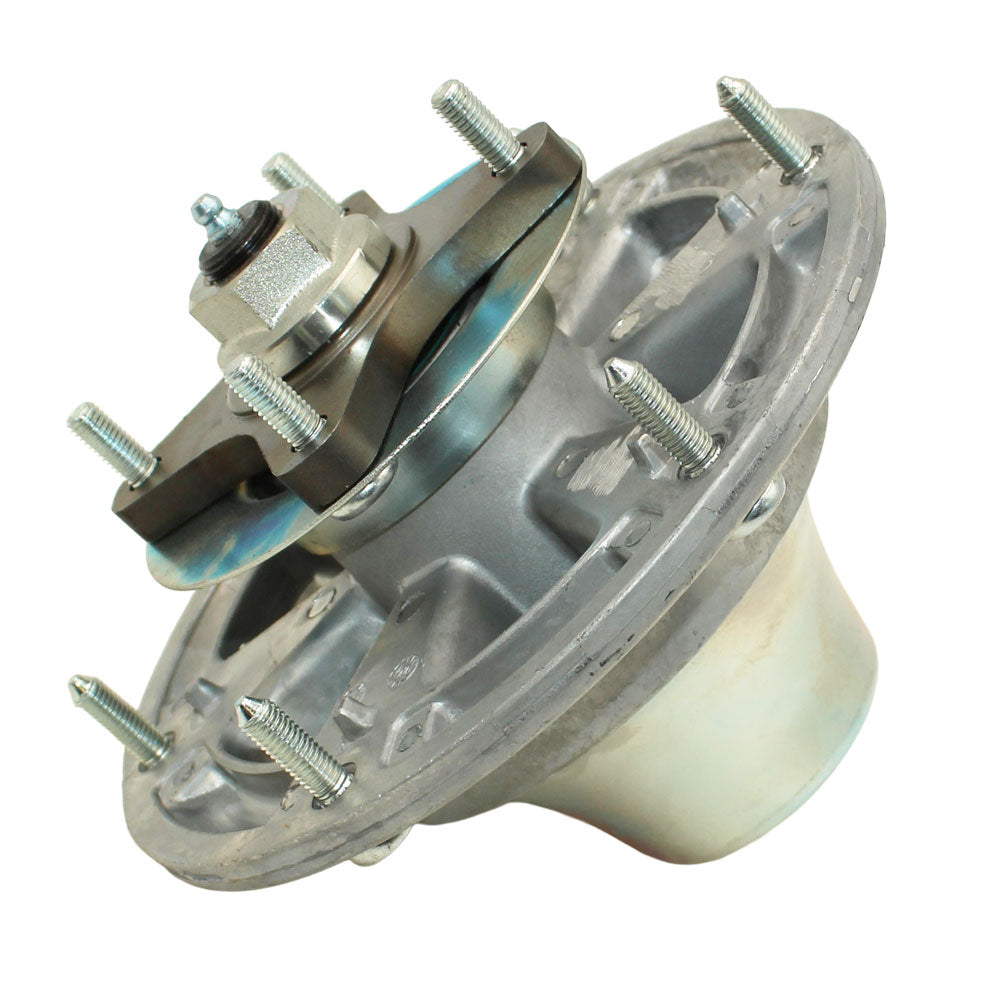

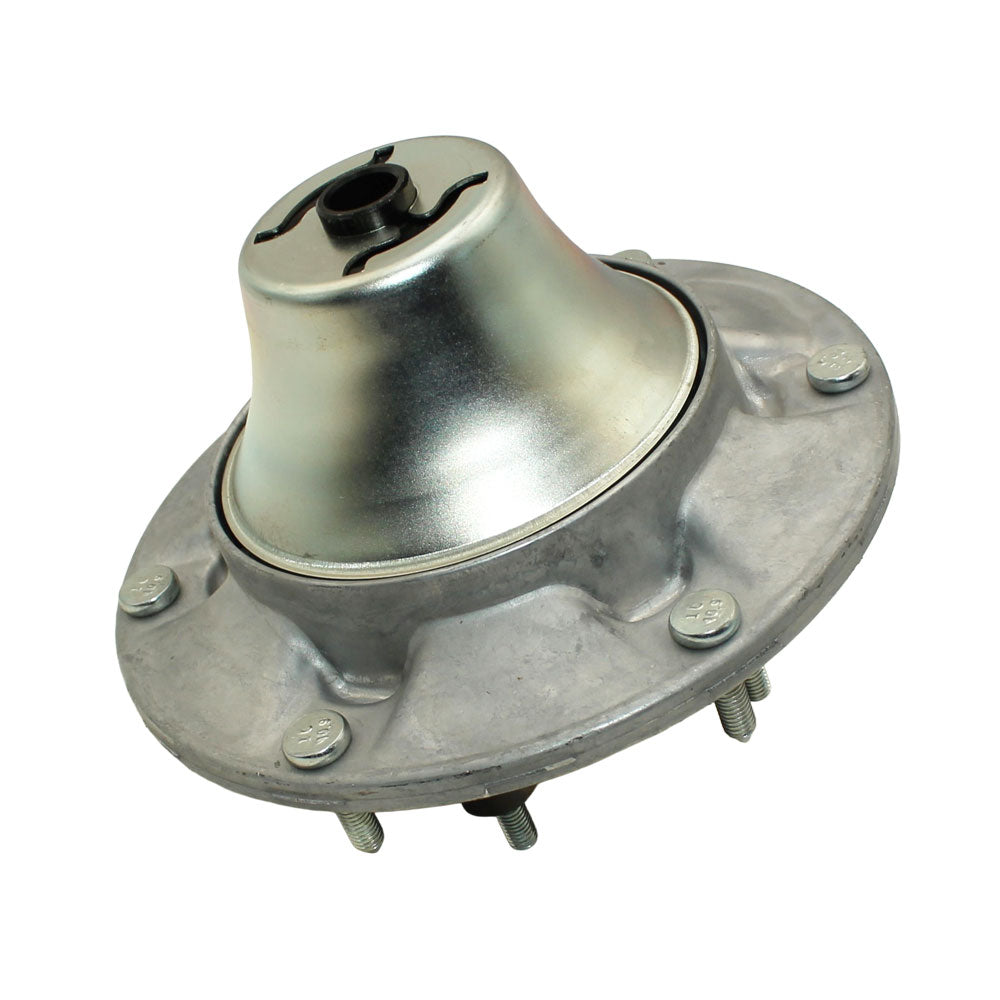

This mower deck blade spindle assembly is a direct replacement for John Deere OEM part numbers TCA51058 and TCA24881 (TCA24881 supersedes TCA51058). The spindle assembly mounts to the cutting deck and works with the pulleys to rotate the blades for a clean, even cut. Compatible with a wide range of John Deere (JD) TerrainCut front mowers, Wide Area Mowers, Z-Trak zero-turn mowers, and compact utility tractors equipped with 60" and 72" decks.

Specifications

• Overall Height: 6-3/4"
• Pulley Thread Size: M16-1.5
• Blade Thread Size: M12-1.75
• Housing Material: Aluminum
• Includes grease zerk fitting

Compatible Models

John Deere TerrainCut Front Mowers: 1400, 1420, 1435, 1445, 1505, 1545, 1550, 1565, 1570, 1575, 1580, 1585

John Deere Wide Area Mowers: 1600, 1600 Turbo, 1600 Turbo Series II, 1600 Turbo Series III, 1600 Sidewing, 1600 Turbo Sidewing, 1620, 1620 Sidewing, 1620 Turbo

John Deere Z-Trak Zero-Turn Mowers: 777, 797, 997, Z997R, Z-Trak 1420, Z-Trak 1435, Z-Trak 1445, Z-Trak 1545, Z-Trak 1565

John Deere Compact Utility Tractors: 2032R, 2036R, 2038R, 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3320, 3520, 3720

Replaces Part Number(s):

TCA24881, TCA25356, TCA51058, TCU39458

Aftermarket Interchange Numbers

Stens 285-888, Rotary 14169

New aftermarket replacement part - not remanufactured, not used.
