Spindle Assembly For Simplicity MF 2000 MF 2500 46" 52" Lawn Tractor

Name: Spindle Assembly For Simplicity MF 2000 MF 2500 46" 52" Lawn Tractor
Brand: AIC Replacement Parts
SKU: AGER2325374
Price: 54.99 USD
Availability: InStock

Spindle Assembly For Simplicity MF 2000 MF 2500 46" 52" Lawn Tractor

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

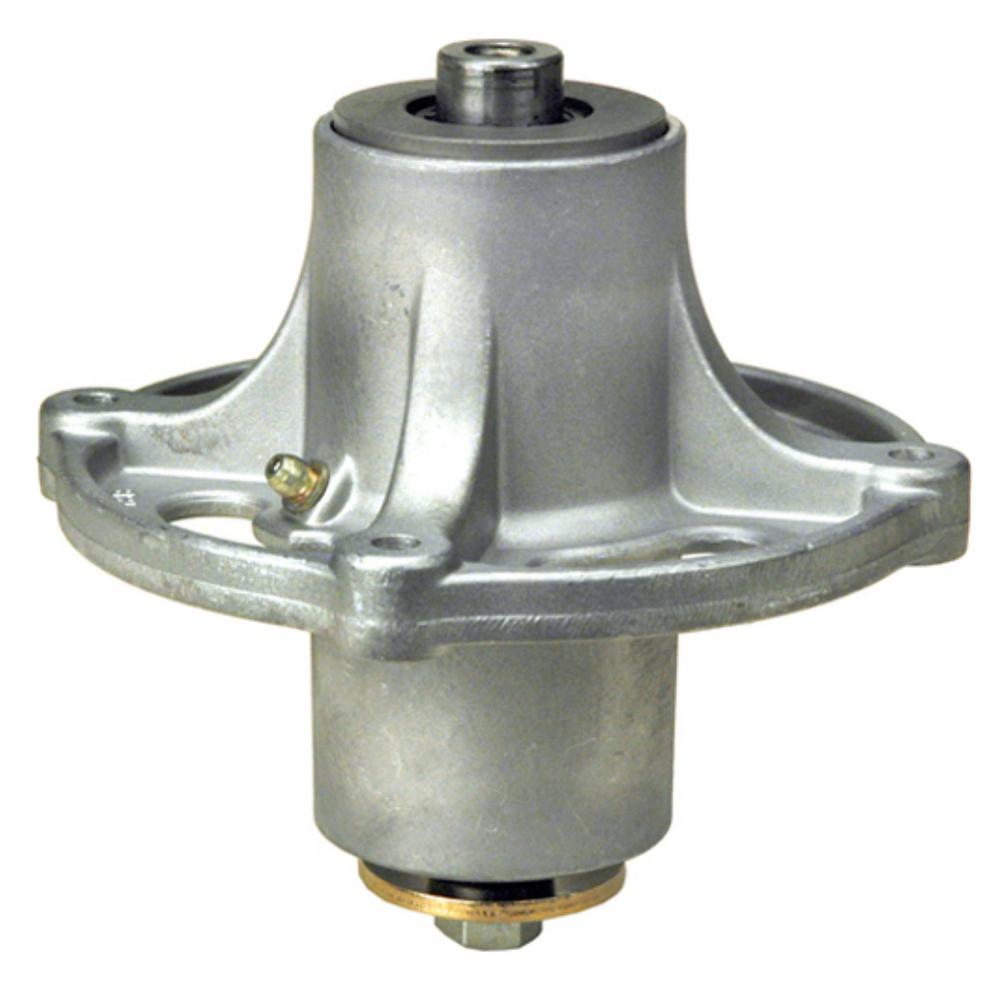

One New Aftermarket Replacement Spindle Assembly for Simplicity and Snapper Lawn Tractors and Zero-Turn Mowers

This aftermarket replacement mower deck spindle assembly fits Simplicity MF 2000, MF 2500, and a wide range of Snapper and Simplicity zero-turn and lawn tractor models with 42", 46", and 52" cutting decks. The spindle assembly is a complete, ready-to-install unit -- housing, shaft, bearings, shields, spacers, and locking rings all included. Housing is not threaded; installation requires self-tapping bolts. Note: part number 84003175 (Fits Briggs & Fits Stratton) now supersedes the discontinued OEM numbers 7600211YP and 7502226YP.

Kit Includes

(1) Housing - Replaces 1735573
(1) Shaft - Replaces 1735326
(2) Shields - Replaces 1735323
(2) Bearings - Replaces 1735399
(2) Spacers - Replaces 1735328
(2) Locking Rings - Replaces 1967066
Not Threaded - requires self-tapping bolts for mounting

Compatible Models

Simplicity MF Series / Lawn Tractors: MF 2000, MF 2500 (46" and 52" decks); 1696439-00, 1696439-01, 1696439-02, 1696581-00, 1696797-01

Simplicity Zero-Turn Mowers: SZT 110 (2691395-00, 2691692-00, 2691692-01), SZT 150 (2691357-00, 2691357-01, 2691693-00), ZT 2042 (2691138-00), ZT 2142 (2691036-00), ZT 2242 (2691160-00, 2691306-00), ZT 2246, ZT 2324 (2691098-00), ZT 2346 (2691161-00), ZT 21546 (2691140-00, 2691140-01), ETZ 20420 (2691048-00, 2691048-01, 2691048-02, 2691048-03, 2691048-04), KZT 2242 (2691300-00), KZT 2552 (2691299-00), ESPX 17542 (2691217-00)

Snapper Zero-Turn Mowers: 200Z (ZT 1842, ZT 2042, ZT 2142, ZT 2242, ZT 2246, ZT 2346, ZT 21546), 285Z (EZT 2042), 300Z (ZT 2446), 360Z (ZT 2246), ZT 1842 (2691139-00), ZT 2552 (2691162-00, 2691307-00), ZTX 110 (2691391-00), ZTX 150 (2691351-00), RPX 100 (2691251-00), RPX 200 (2691252-00), RPX 210 (2691491-00), RPX 300 (2691292-00), RPX 310 (2691705-00), RXT 300 (2691253-00), RXT 310 (2691492-00), SZT 110 (2691692-01), SZT 150 (2691357-01)

Replaces Part Number(s):

1735326, 1735326YP, 7502226YP, 7600211YP, 84003175, 485866

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

ETZ 20420 (2691048-02), KZT 2552 (2691299-00), RPX 210 (2691491-00), SZT 150 (2691693-00), RPX 300 (2691292-00), ELT 175420 (2691044), RXT 300 (2691253-00), 200Z (ZT 1842), ZT 2552 (2691307-00), 285Z (EZT 2042), 1696439-01, ZT 2242 (2691160-00), ETZ 20420 (2691048-04), ZT 2142 (2691036-00), ZTX 110 (2691391-00), 200Z (ZT 2042), KZT 2242 (2691300-00), 1696439-00, SZT 150 (2691357-00), 200Z (ZT 2142), ETZ 20420 (2691048-00), RPX 100 (2691251-00), RPX 200 (2691252-00), ZT 21546 (2691140-01), ZT 2552 (2691162-00), 1696797-01, 360Z (ZT 2246), ZT 2242 (2691306-00), ZT 2324 (2691098-00), SZT 110 (2691692-00), SZT 110 (2691395-00), ZT 1842 (2691139-00), 200Z (ZT 2242), 200Z (ZT 2346), 1696581-00, ZTX 150 (2691351-00), ZT 2042 (2691138-00), 300Z (ZT 2446), 1696439-02, 200Z (ZT 2246), ZT 21546 (2691140-00), ETZ 20420 (2691048-01), ETZ 20420 (2691048-03), 200Z (ZT 21546), RXT 310 (2691492-00), SZT 150 (2691357-01), ZT 2346 (2691161-00), ESPX 17542 (2691217-00), SZT 110 (2691692-01), RPX 310 (2691705-00)

Additional Information:

Assembly Includes: (1) Housing Replaces: 1735573 (1) Shaft Replaces: 1735326 (2) Shields Replaces: 1735323 (2) Bearings Replaces: 1735399 (2) Spacers Replaces: 1735328 (2) Locking Rings Replaces: 1967066 Not Threaded Spindle Assembly

Reference Numbers:

84003175, 1735326,1735326YP, 7502226YP, 7600211YP, 84003175, 7600211YP, 7502226YP, 1735326YP, 1735326, 84003175, 7502226YP, 7600211YP, 1735326, 1735326YP
