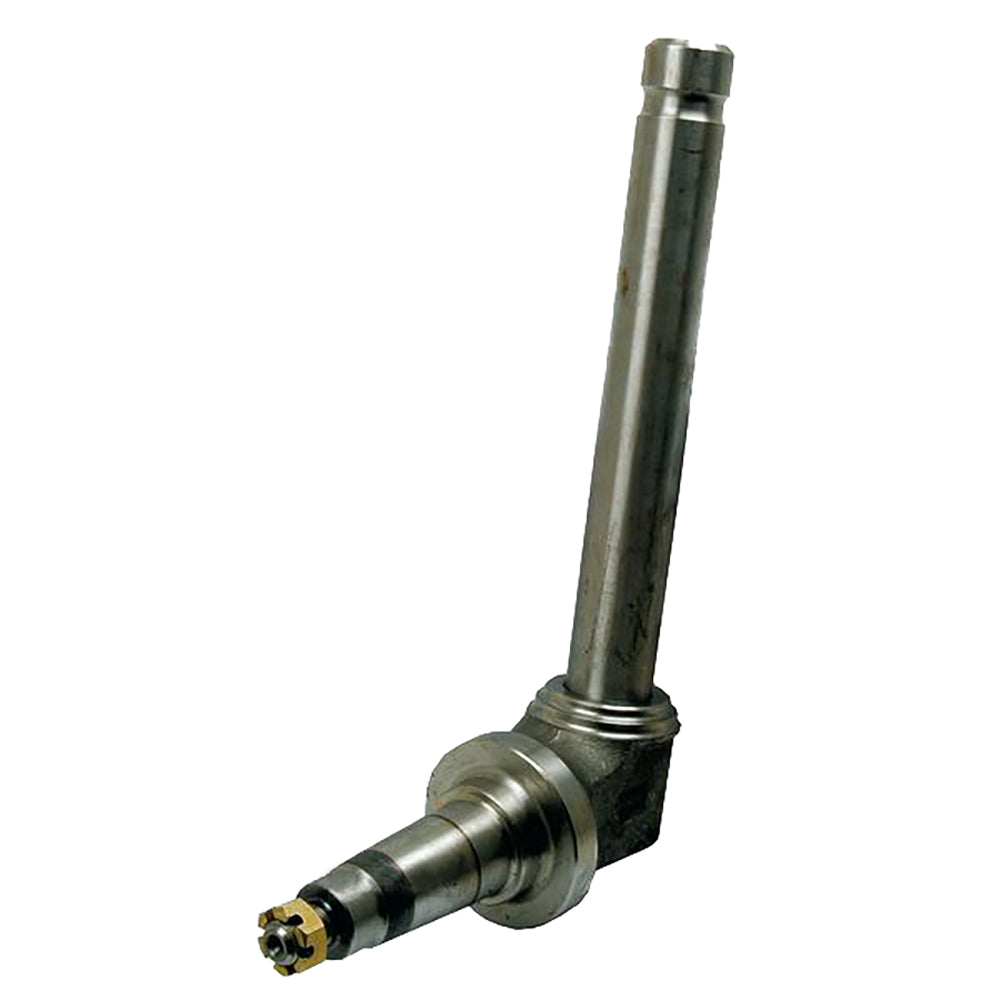

Spindle Right Hand/Left Hand Fits Case IH 595 Fits International 574 454 674
Spindle Right Hand/Left Hand Fits Case IH 595 Fits International 574 454 674
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Left Hand Spindle
Spindle:Low (LH/RH) Heavy Duty
(Shaft Length - 12 1/8'' - 308mm)
Adjustable Front Axle - Straight (52-82 Tread Width)

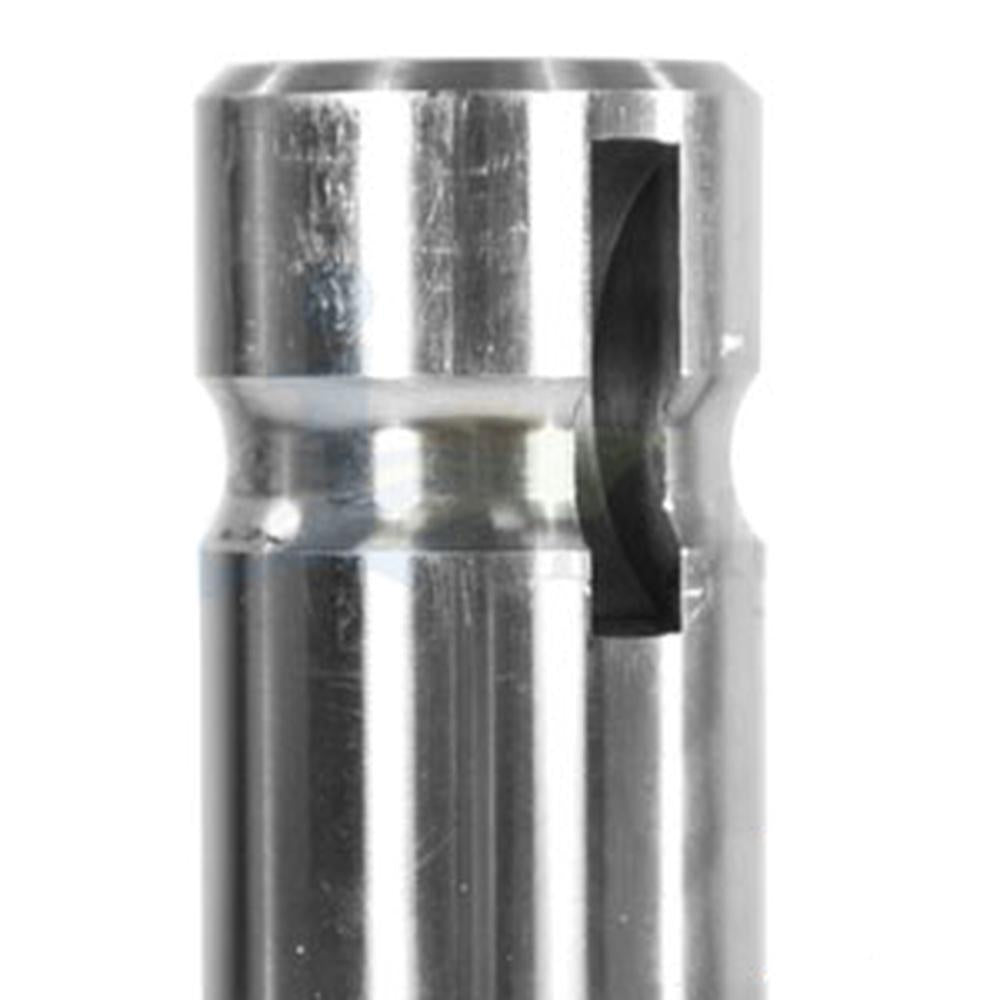

A: Spindle Shaft (Vertical Spindle)
The long vertical shaft that goes up into the axle support
Allows the wheel hub to pivot for steering
B: Spindle Diameter / Bearing Surface
The machined area where bushings or bearings ride inside the axle
Critical for smooth steering rotation
C: Steering Arm / Spindle Arm Area
The section where the steering arm is integrated or attaches
Transfers motion from the tie rod to turn the wheel
D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)
Fits Case IH, Fits International Harvester
Models: 238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 695, 695XL, 795, 895
Replaces Part Number(s)67535C91, 67535C91-A
Models This Part Fits:
C80, 3220, C100, 258, 595, CX60, 248, C50, 454, 385, 484, CX50, C60, C70, CX70, 584, 674, 695, CX80, 2500A, 485, 3230, 4240, 895, 574, 585, CX90, C90, 4230, 995, CX100, 4210, 2400AAdditional Information:
Spindle:Low (LH/RH) Heavy Duty (Shaft Length - 12 1/8'' - 308mm) Adjustable Front Axle - Straight (52-82 Tread Width) A: Spindle Shaft (Vertical Spindle) The long vertical shaft that goes up into the axle support Allows the wheel hub to pivot for steering B: Spindle Diameter / Bearing Surface The machined area where bushings or bearings ride inside the axle Critical for smooth steering rotation C: Steering Arm / Spindle Arm Area The section where the steering arm is integrated or attaches Transfers motion from the tie rod to turn the wheel D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount) Left Hand SpindleReference Numbers:
4317312R91, 67535C91, 67535C91Makes This Part Fits:
Shop Case/International Harvester Wholesale PartsShop International Harvester Wholesale Parts
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
