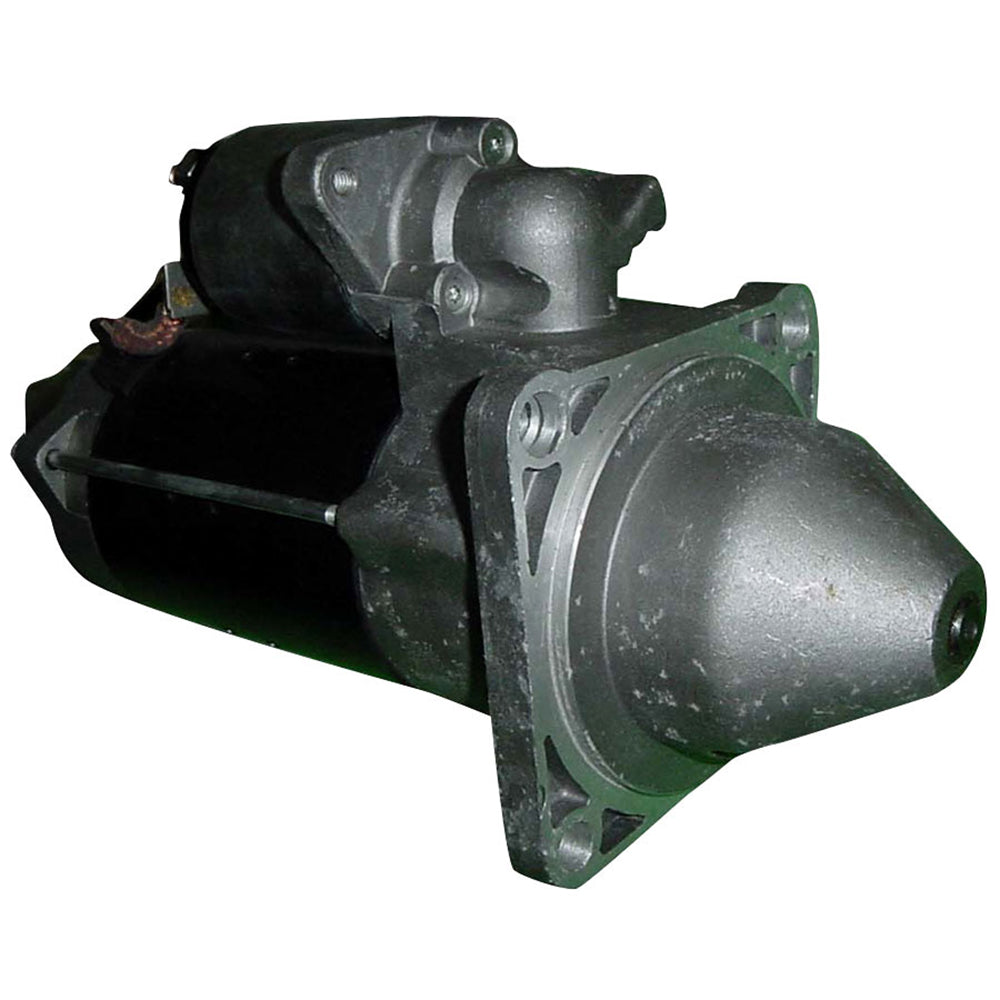

Starter 4172113 Fits Case IH JX75 JX85 JX95

Starter 4172113 Fits Case IH JX75 JX85 JX95



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Direct Drive Starter for Case IH (Case/International Harvester), Fiat, Ford/New Holland, Long, White, Allis Chalmers, and IVECO Tractors

This 12-volt direct drive (DD) starter delivers reliable engine cranking for a wide range of Case IH (Case/International Harvester), Fiat, Ford/New Holland, New Holland, Long, White, Allis Chalmers, and IVECO agricultural tractors. It mounts via a 3-hole flange pattern and is a direct replacement for the original Bosch/Iskra-family starter used across these platforms.

Specifications

  • Voltage: 12V
  • Power: 3 kW / 4.02 HP
  • Rotation: Clockwise (CW)
  • Type: Direct Drive (DD)
  • Number of Teeth: 9
  • Gear OD: 1.346 in / 34.2 mm
  • Mounting: 3-hole, 11 mm unthreaded

Compatible Models

Case IH / Case International Harvester Tractors: JX55, JX60, JX65, JX70, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N

Fiat Tractors: 55.85, 60-90, 65.9, 65.56, 65.66, 65.88, 70-56, 70-66, 70-76F, 70-76LP, 70-76V, 70-88, 70-90, 70.65, 70.75, 70.86, 70.9, 72-85, 72-93, 72-94, 80-65, 80-66, 80-75, 80-88, 80-90, 80.65, 80.75, 80.88, 80.9, 82-93, 82-94, 82.86, 85-90, 85.55, 85.9, 88-93, 88-94, 7090, 7090DT, 8065

Ford/New Holland Tractors: TN55, TN55DS, TN60ADASA, TN60VA, TN65, TN65DFS, TN65F, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70S, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85F, TN90F, TN95F, TN95FA, TN95VA, TL-5, TL70, TL80, TL90, TL100, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TD55D, TD70D, TD75D, TD80D, TD90D, TD95D, TT55, TT60A, TT65, TT75, TT75A, 4835, 5635, 6635, 7635, 4030

New Holland Tractors: 460, 5040, 5045, 5050, 7090, 7530

Long Tractors: 310, 340, 350, 360, 445, 460, 500, 510, 530, 545B, 550, 560, 600, 610, 640, 850, 1010, 2360, 2360 DTC, 2460, 2460 DTC, 2610, 2630, 3010S, 3400, 3400R, 3550, 3550AL, 3550R, 3830, 4010S, 4030, 4230, 4330V, 4430, 5010S

White Tractors: 2-60, 260

Allis Chalmers Tractors: 5045, 5050

IVECO: Z Series

Additional Models: FL-4C, FL-4D, FG-65A

Replaces Part Number(s):

4172113, 4832942, 4169096, 4699705, 4702248, 4703751, 4755109, 4807375, 88205006, 500333271, 47783079, 500325145, 500338952, 500339852, 504059251, F504059251, 5801441814, 82980757, 87470949, 87538219, 99449113, 31-2903335, 31-2906208

Aftermarket Interchange Numbers

Bosch: 0-001-359-021, 0-001-359-102, 0001367028, 0-001-367-028, 0-001-367-082; Remy/Standard: SR914X, SR9980N; Marelli: 4832942; Iskra: 11.130.140

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

70.86, 65.9, 80-88, 70.75, 80.88, TN65DFS, TT75A, TT65, 70.65, 65.88, TN65, 260, TN75F, TN65V, FL-4C, 3550AL, 3400R, 5530, 545B, TN60ADASA, 72-85, 640, 4430, 70-66, TN75VA, 65-46, 530, 85.55, TT60A, TN70DA, TN60VA, 80-66, 70-56, TT55, JX1075C, TN55DS, TL70, TK76, 80.65, 4835, 550, JX1070C, JX1075N, 610, JX80U, 55.85, 85.9, 65.56, TN70, TN75S, TD80D, 360, 70-88, 310, 72-94, TL90, JX60, 80-90, 1010, 80.75, 4330V, JX85, TL80, TN75, 2360, 600, 82-94, 4030, 88-94, 510, 3830, TL-5, JX1060C, TN95FA, TN70D, 7635, JX1070N, TK85, TL100, TN70A, 850, 82-93, TK90A, JX75, JX55, 65.66, TN85F, 3550R, 460, 2630, JX70U, TK90MA, 560, 82.86, TN65F, TK80MA, 445, 70-76V, 5050, 65-93, 3400, 3010S, JX1095N, JX90U, 80.9, JX100U, 5040, FG-65A, 5010S, TN90F, TK80A, TN75V, TN75SA, JX80, TD90D, 3550, 6635, 70-76LP, TD75D, TD55D, JX65, 350, TK100A, JX95, TN95F, 8065, TD95D, 60-90, FL-4D, 70.9, TN70S, TN95VA, TT75, Z Series, 5635, JX70, TK85M, 6530, 88-93, TN55, TN75A, 72-93, TN75D, 70-76F, 2460, TN80F, 5045, 2460 DTC, TN70F, 65-94, 2360 DTC, 2-60, 4010S, TN75DA, TD70D, 70-90, 2610, 340, JX90, 4230, 500, 85-90, 7530, TN70VA

Additional Information:

Voltage: 12 Power: 3kW / 4.02HP Rotation: CW Starter Type: DD Number of Teeth: 9 Gear OD: 1.346in / 34.2mm 3 Holes: 11mm Unthreaded Starter

Reference Numbers:

31-2903335, 31-2906208, 4755109, 47783079, 4807375, 500325145, 500333271, 500338952, 500339852, 504059251, 5801441814, 82980757, 87470949, 87538219, 99449113, F504059251, 0-001-359-021, 0-001-359-102, 0001367028, 0-001-367-028, 0-001-367-082, SR914X, SR9980N, 4169096, 4699705, 4702248, 4703751, 4755109, 4807375, 88205006, 500333271
