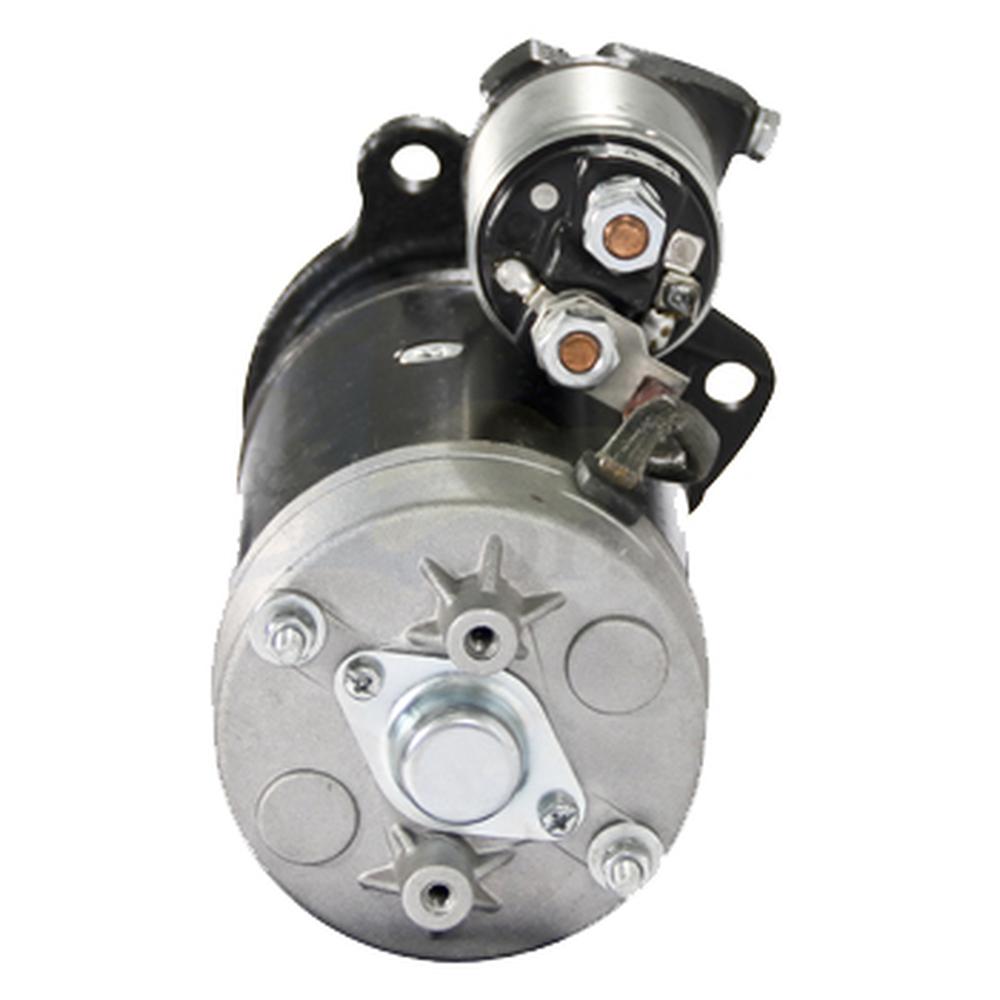

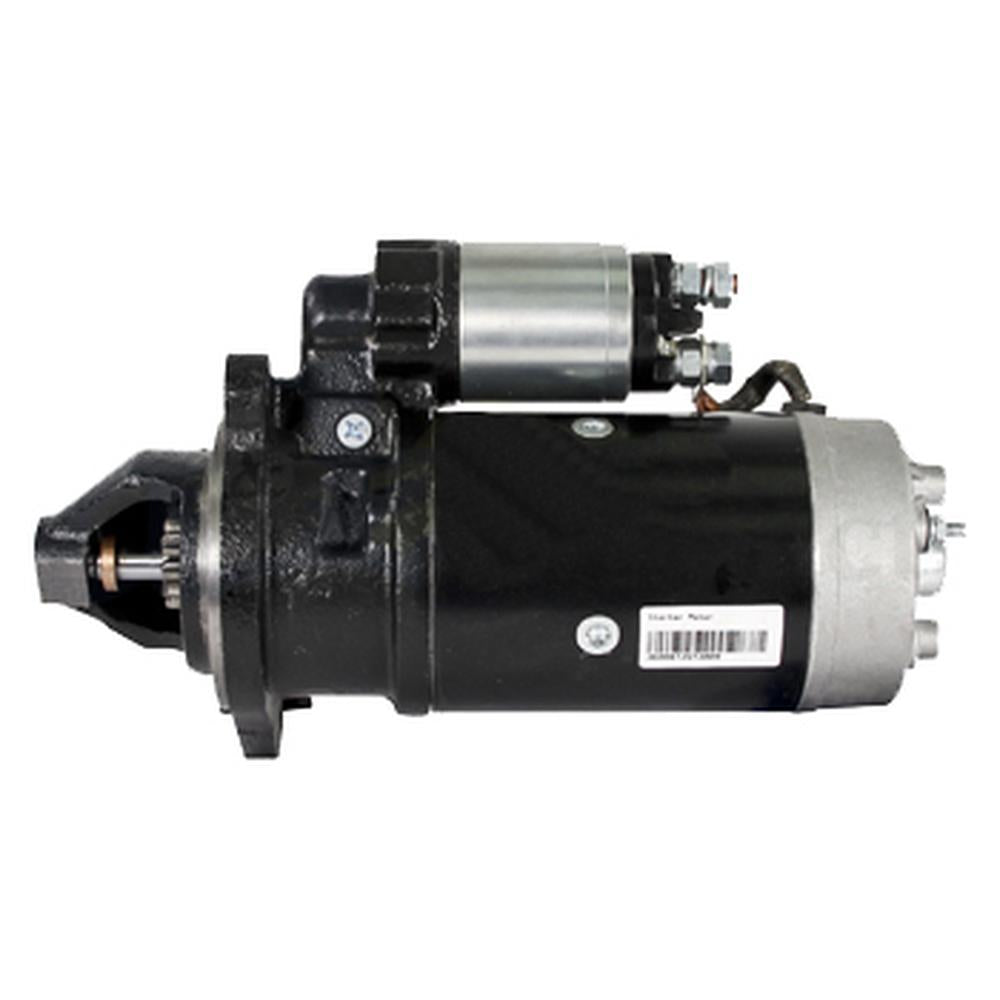

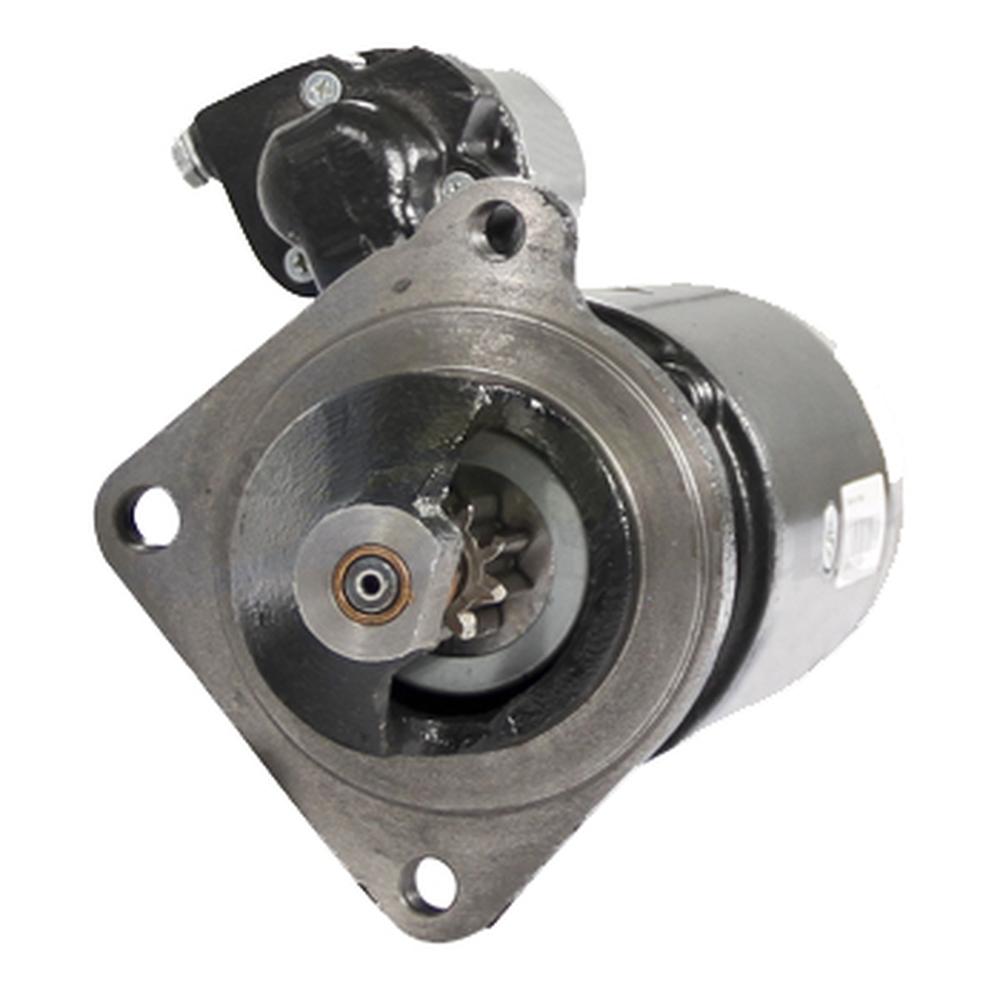

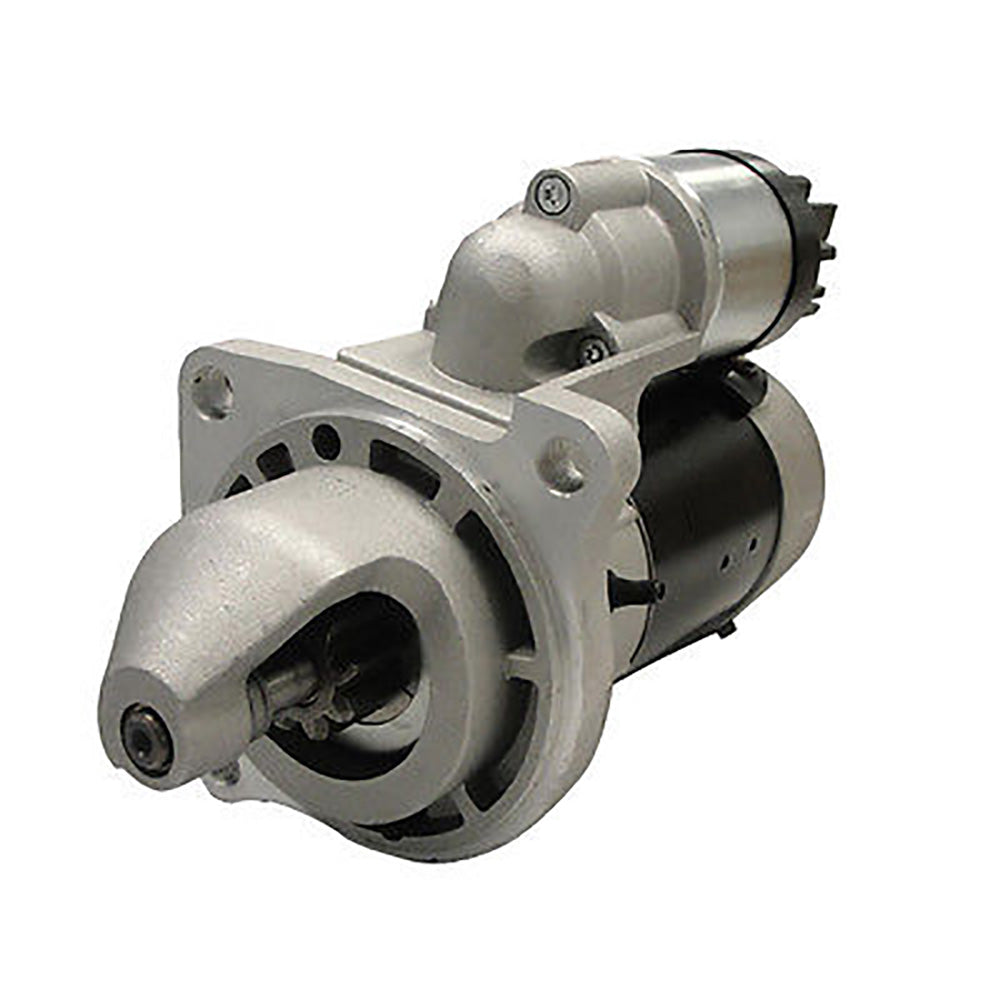

Starter 99999950 fits Fiat 7090 70-90Dt

Starter 99999950 fits Fiat 7090 70-90Dt



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Starter for Fiat, Long, Ford/New Holland, Case/IH, Oliver, White and Allis Chalmers Tractors

This 12-volt, 3.0 kW direct-drive (DD/MM) starter motor is a Bosch-type replacement for Fiat (Fiat-Allis), Long, Ford/New Holland, Case IH, Oliver, White, Goldoni, and Allis Chalmers tractors. It mounts to the engine flywheel housing and engages the ring gear via a 9-tooth clockwise-rotating pinion to crank the engine. Note: Not for 2-cylinder models. Not for Mitsubishi-powered units. Uses solenoid TX13149.

Specifications

  • Voltage: 12V
  • Output: 3.0 kW
  • Rotation: Clockwise (CW)
  • Teeth: 9
  • Type: DD (Direct Drive / MM)
  • Length (bolt housing to end): 10-3/4"
  • Full Length: 13-1/2"
  • Compatible Solenoid: TX13149

Compatible Models

Fiat: 65-46, 65-46DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66LP, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76DT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76DT, 80-76F, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 115-90, 130-90, 180-90, 180-90DT, 7090, 7530, 7635, 1010 II, 1033 II, L65

Fiat TN Series: TN55, TN55D, TN55S, TN60A, TN60D, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA

Fiat TK Series: TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A

Fiat TT/TD/TL Series: TD60D, TD70D, TD75D, TD80D, TD90D, TD95D, TL70, TL80, TL90, TL100, TT55, TT60A, TT65, TT75, TT75A, TK75VA

Fiat JX Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N

Long: 260 (2-60), 350, 360, 445, 453, 460, 483, 510, 530, 532, 533, 550, 560, 600, 610, 640, 642, 643, 683, 700, 703, 740, 850, 2360, 2360 DTC, 2460, 2460 DTC, 2510, 2610, 2630, 3010S, 3435, 3830, 3935, 4010S, 4030, 4230, 4330V, 4430, 4430N, 4835, 5010S, 5040, 5530, 5635, 6530, 6635

Ford/New Holland: LB75, LB75CP, LB90, LB95, LB110, LB115.B, LM430, LM640

Oliver: 1045, 1250A, 1255, 1265, 1270

White: 2-50, 2-60, 700

Allis Chalmers / White Oliver: 310, 340, 360, 500

Goldoni: See compatible model list

Replaces Part Number(s):

99999950, TX12433, 0001367014, 0 001 367 014, 0001359021, 0 001 359 091, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 2088728-7, 20887287, 82093256, 504059251, 504059251R, 500338952, 500338953, 500338953R, 5801441814, 5801441816, 5111319, 5119319, 4988513, 4737755, 4703751, 4807375, 4832942, 4699705, 4702248, 4755109, 99449112, 99449113, 30-3043509, 31-2904907

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

JX60, 72-93, 70-76LP, TK90A, 80-66, TK75V, 2460, 70-66, 1270, TN55D, TN65F, TN70DA, TL70, JX1075C, 553, JX95, 70-76FDT, 3935, 260, 850, TN75S, JX55, 85-90DT, TD90D, TN75D, TN55S, 510, 6635, Electrical Starting Systems, TT75, TN70S, LB75CP, 1255, TN75FA, 80-88DT, 65-94DT, LB95, 4030, 4330V, 4430N, 4835, TN75, 70-56DT, TK76, 460, 80-88, 70-88DT, 2630, 4010S, JX80U, 180-90, TK85, LB75, TN75A, 65-46DT, 360, 445, 82-93, LB110, 70-76F, 82-94, TN75F, 703, 2-50, 640, TT55, 2460 DTC, TK75FA, 72-85, 72-94DT, 7635, TN75V, 483, TN70D, TN70, TD60D, 65-93, 533, 5010S, 70-76DT, 740, 65-90DT, 530, 1033 II, 7530, 70-66V, TN65S, 72-93DT, 4430, TL90, TN60SA, TN80F, TK85M, 5530, JX65, 70-66SDT, 70-66S, JX90, 1250A, 88-93DT, 2610, TN60DA, TN95VA, 2360, 500, TN70SA, 70-56, 3435, TT60A, 80-76DT, 700, 3830, TD70D, TN95F, 643, 82-94DT, TN70VA, JX1060C, 72-94, 5635, 80-66F, TN75VA, 532, 70-76LPDT, LM430, 80-76F, TD95D, TN60D, TN65, JX70, TN75DA, TN95FA, TK100A, TK75F, TN75SA, 85-90, 4230, 80-90DT, TN65V, TL100, 2360 DTC, 5040, JX80, 70-66LP, 90-90, JX100U, TT75A, TL80, TN70NA, JX1075N, 70-66DT, 1010 II, 833, 180-90DT, 80-66FDT, L65, TN85FA, TK90MA, TN90F, JX85, JX75, TK75VA, TK80MA, LM640, 642, 130-90, 82-93DT, 115-90, 453, 65-46, 70-76V, 70-90, 72-86LPDT, JX70U, 80-66DT, 65-90, JX90U, 88-94, 72-85M, 80-90, 1265, 610, LB90, TK80A, 683, 88-93, JX1070C, 88-94DT, 70-88, TD75D, TN65D, 600, TK75MA, 70-90DT, TT65, 310, TN70F, 6530, TN60VA, TN55, 350, TK75M, JX1095N, 2-60, 550, 65-93DT, 80-76, 340, 3010S, TD80D, TN60A, 70-76, 1045, LB115.B, 65-94, JX1070N, TN70A

Additional Information:

Length from bolt housing to end: 10-3/4" Full Length: 13-1/2" Rotation: CW Teeth: 9 Volts: 12 KW: 3.0 Type: MM/DD Starter

Reference Numbers:

30-3043509, 31-2904907, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 5111319, 5119319, 4988513, 4737755, 4703751, 4807375, 4832942, 99999950, 4699705, 4702248, 4755109, 500338952, 5801441814, 99449112, 99449113, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, TX12433, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 0001367014, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 504059251, 500338952, 500338953, 500338953R, 504059251R, 5801441814, 5801441816, 17184, 2088728-7, 20887287, 82093256, 500338953R, 504059251R, 5801441814, 5801441816, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X
