Starter Repair Kit 12 Volt Fits John Deere A Fits Delco Remy Replaces 1108950

Starter Repair Kit 12 Volt Fits John Deere A Fits Delco Remy Replaces 1108950



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One (1) New Aftermarket Replacement 12 Volt Starter Repair Kit


Fits Delco Early DD Starters Including, But Not Limited To Models:
5MT, 10MT, 20MT, 25MT, 27MT, 40MT, 50MT, SD200, SD300

Please Verify that All Parts Will Fit Your Starter Before Ordering!

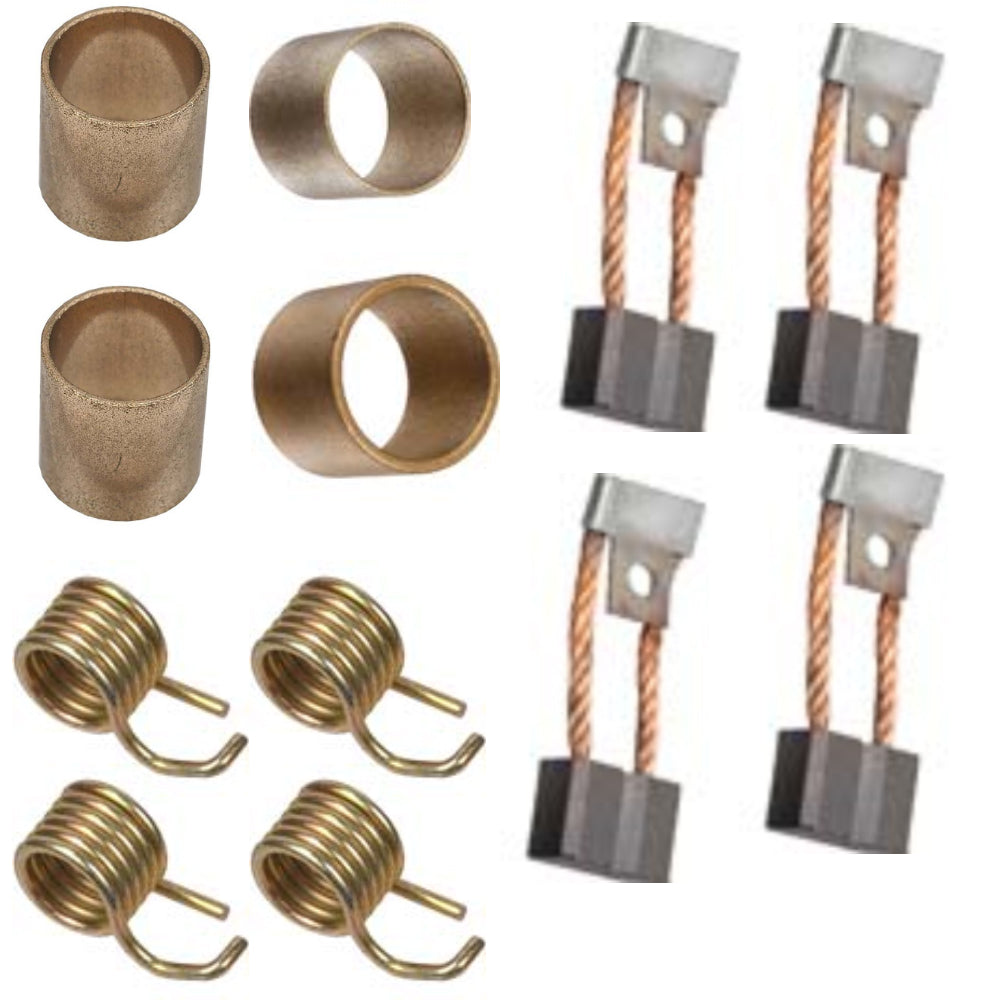

Kit Includes:
2 Starter Bushing
4 Starter Brush
4 Starter Spring
1 Center Bushing (Early)
1 Center Support Bushing (Late)

Tech Info:
Starter Bushing -
ID: 0.564in / 14.33mm
OD: 0.629in / 15.98mm
Width: 0.65in / 16.51mm

Starter Brush -
Voltage: 6
Length: 0.492in / 12.5mm
Width: 0.748in / 19mm
Height: 0.374in / 9.5mm
Lead Length: 1.531in / 38.9mm
Industry Number: R55

Starter Spring -
Used in 69-101, 69-104 brush holder assys.
Fits Delco 40MT, 50MT Series DD Starters

Center Bushing (Early) -
ID: 0.755in / 19.18mm
OD: 0.815in / 20.7mm
Width: 0.715in / 18.16mm
Bushing Type: Oilite

Center Support Bushing (Late) -
ID: 19.23mm
OD: 22.34mm
Length: 18.30mm

Replaces Part Numbers:
1906909, 1894023, D1675, 1961785, 820148, D756, SDR7160, D1676, 1945521, D1678

Models This Part Fits:

1107572, 1113018, 1113106, 1107255, 1107332, 1113080, 1107511, 1107523, 1108568, 1107533, 1113071, 1107418, 1107540, 1113339, 1107542, 1107571, 1107701, 1113302, 1107544, 1113049, 1107543, 1113061, 1113079, 779, 1107913, 1107698, 1113304, 1109040, 1113048, 1113105, 1107740, 1107334, 1107586, 1107851, 1113033, 1107916, 1113006, 1113057, 1107898, 1107527, 1113087, 1107848, 1113112, 1113014, 1107585, 1107639, 1113092, 1107860, 1107551, 1107592, 1107729, 1108610, 1113019, 1113016, 1113005, 1107535, 1113056, 1113123, 12301330, 1107590, 1107915, 1113062, 1113091, 1113081, 1107663, 1107852, 1113050, 1107538, 1107732, 1107600, 1107859, 1107911, 1107718, 1107866, 1107867, 1108585, 1113002, 1113096, 1113098, 1107747, 1107290, 1107579, 1107522, 1107923, 1113004, 1113152, 1107761, 1107350, 1107873, 1107051, 1107453, 1107567, 1107903, 1113065, 1107550, 1113072, 1113161, 1113060, 1107510, 1113178, 1113117, 1113037, 1107573, 1107611, 1107547, 1107909, 1113011, 1107507, 1113029, 1108669, 1108563, 1113128, 1107575, 1107589, 1107524, 1113109, 1107254, 1107555, 1107829, 1113140, 1107506, 1107810, 1107558, 1107854, 1113144, 1107581, 1113103, 1107577, 1113340, 1107513, 1107359, 1113055, 1113132, 1113303, 1107908, 1113129, 1107785, 700, 1108676, 1113082, 1107682, 1107746, 1113012, 1113083, 1113070, 1107578, 1113075, 1113066, 1107612, 1107857, 1107713, 1113009, 12301335, 1108632, 1113026, 1113015, 1113052, 1107736, 1107630, 1107870, 1107556, 1107745, 1107904, 1113078, 1107257, 1107564, 1107514, 1107588, 1107872, 1107884, 1107587, 1107863, 1107546, 1113010, 1107772, 1113088, 1107871, 1113118, 1113044, 1113021, 1113165, 10496109, 1107584, 1108634, 1113017, 1107534, 1107292, 1107685, 1113108, 1107658, 1113054, 1108753, 1107518, 1113039, 1107576, 1113345, 1113341, 1113030, 1108040, 1113051, 1113003, 1113042, 1113093, 1107737, 1108574, 1108621, 1113097, 1107545, 1107265, 1108559, 1113008, 1113020, 1107767, 1113104, 1107779, 1113346, 1107753, 1107849, 1107275, 1107539, 1113102, 1107598, 1107733, 1107356, 1107853, 1107071, 1113034, 1108631, 1107343, 1107537, 1107868, 1113035, 1113058, 1113122, 1107420, 1107897, 1107358, 1107855, 1107912, 1108612, 1107532, 1107758, 1109196, 1113022, 1107515, 1108625, 1113024, 1107659, 1107699, 1113041, 1113001, 1113084, 1113007, 1107725, 1107568, 1113053, 1107553, 1113027, 1107684, 1107256

Additional Information:

Kit Contains: (2) (2) Center Support Bushing (Late) Inner Diameter: 0.76" / 19.23mm Outer Diameter: 0.88" / 22.34mm Length: 0.72" / 18.30mm Replaces Part Number: 1894023 (4) Starter Brush Voltage: 6 Length: 0.492in / 12.5mm Width: 0.748in / 19mm Height: 0.374in / 9.5mm Lead Length: 1.531in / 38.9mm Industry Number: R55 Replaces Part Number(s): 1874852, 1906902, 1906909, 1906936, D756 (2) Starter Brush ID: 0.564" / 14.33 mm OD: 0.629" / 15.98 mm Width: 0.65" / 16.51 mm Replaces Part Number(s): D1675, D1676, 1938743, 35058, 810620 (4) Starter Spring Replaces Part Number(s): 1861785, 1945521, 1961785 (2) Center Bushing (Early) ID: 0.755" / 19.18mm OD: 0.815" / 20.7mm Width: 0.715" / 18.16mm Bushing Type: Oilite Replaces Part Numbers: 1934485, 820148, D1678

Reference Numbers:

1934485, 820148, D1678

Makes This Part Fits:

Product Category:

Misc. Replacement Parts

Product Group:

Product Sub Group:
